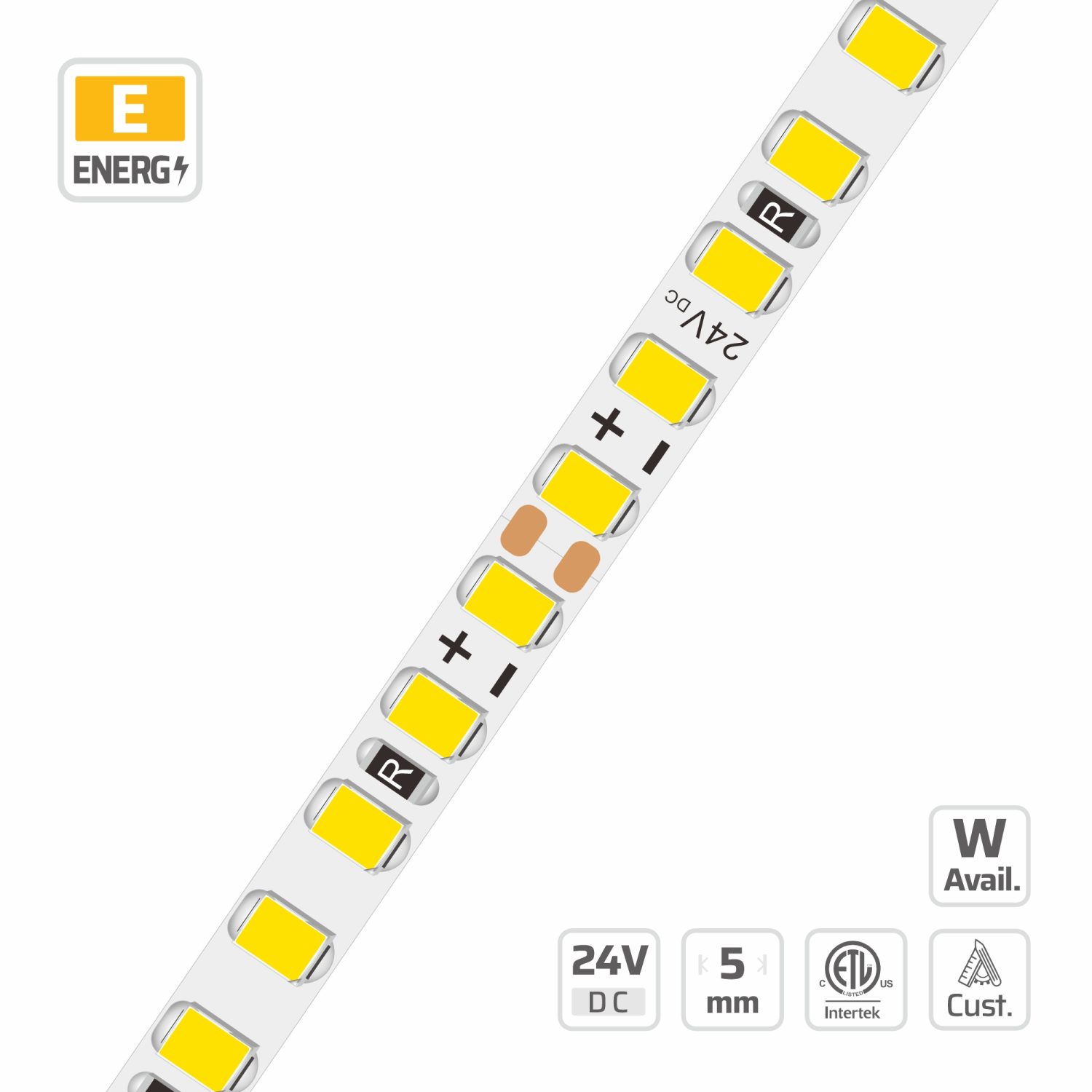

2835 High-Efficiency Classic Stable LED Strip Light (#13341)

5mm · 24V · 176LEDs · 45.456mm/cut

Model: 13341

13341 5mm | 24V | 176LEDs | 45.456mm/cut | #13341 | 2835 High-Efficiency Classic Stable LED Strip Light — 24V, cuttable every 45.5mm, 5mm FPCB width, 2835 LEDs, 176 LEDs/m, 2700–5000K

Overview

5mm | 24V | 176LEDs | 45.456mm/cut | #13341 | 2835 High-Efficiency Classic Stable LED Strip Light is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2835, 176 LEDs/m, 24V, 5 PCB, 3oz copper FPCB, cuttable 8LEDs/45.456mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Engineered on an ultra-slim 5mm PCB with heavy 3oz copper foil, this 2835 LED strip light features 176 LEDs per meter for dependable performance. Operating on a 24V constant voltage circuit, the strip is precisely cuttable every 45.456mm to simplify installation in OEM custom lengths. A wide 120-degree beam angle pairs with full dimming compatibility across PWM, DALI, and 0-10V systems for flexible illumination control. Designed for demanding architectural lighting projects, this model offers robust thermal stability between -25°C and 40°C for wholesale project supply.

Ultra Narrow Led Strip built for ultra-narrow smd strips projects.

Specifications

CCT (K)	2700–5000K
CRI	Full Spectrum
POWER (W/M)	18 W/m
LED QTY	176 LEDs/m
PART NO	DL-F28A88V24-13341-*
SMD TYPE	2835
CUTTABLE UNIT	8LEDs/45.456mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	5.682mm
PCB WIDTH	5
BEAM ANGLE	120°
RUN LENGTH	3m
COPPER FOIL	3oz
POWER RANGE	2.6~14.4W
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	24V
LUMINOUS FLUX	2070–2271 lm/m
OPERATING TEMPERATURE	-25~40°C;Tc：75°C（max）

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.

Recommended accessories & compatible parts

DL-0809HX-F — 8.89x7.79mm Mini Recessed LED Channel with Flange — Trimless Aluminum Profile for 5mm Strip: Accepts LED strips up to 5mm wide.
DL-0909HX-M — 9x9mm Magnetic LED Channel — Tool-Free Aluminum Profile for Shelf Lighting: Accepts LED strips up to 5mm wide.
DL-1010HX-V — 10x10mm V Shape Corner LED Channel — 45 Degree Aluminum Profile for Cabinets: Accepts LED strips up to 5mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #13341

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 203.4 lm/W at 4000K, Ra 80, ErP energy class B (Grade DN (1st Tier) · 8W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier) · 8W/m

Grade DL (2nd Tier) · 8W/m — measured at 8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	150.4 lm/W	1203.4 lm/m	D	120.9 lm/W	966.9 lm/m	E	—	—	—
2300 K	167.5 lm/W	1340.2 lm/m	C	134.6 lm/W	1077.1 lm/m	E	108.8 lm/W	870.4 lm/m	F
2700 K	177.4 lm/W	1419 lm/m	C	145.6 lm/W	1164.8 lm/m	D	118 lm/W	944.4 lm/m	E
3000 K	188.6 lm/W	1509.1 lm/m	B	153.2 lm/W	1225.9 lm/m	D	124.7 lm/W	997.5 lm/m	E
3500 K	191.4 lm/W	1530.8 lm/m	B	156 lm/W	1247.7 lm/m	D	128.4 lm/W	1027.2 lm/m	E
4000 K	197.5 lm/W	1579.9 lm/m	B	159.8 lm/W	1278.2 lm/m	D	131.9 lm/W	1055.4 lm/m	E
5000 K	197.2 lm/W	1577.5 lm/m	B	159.7 lm/W	1277.4 lm/m	D	132.2 lm/W	1057.8 lm/m	E
6500 K	180.9 lm/W	1447.1 lm/m	C	153.1 lm/W	1225.1 lm/m	D	127.1 lm/W	1016.8 lm/m	E

Grade DL (2nd Tier) · 12W/m

Grade DL (2nd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	146.3 lm/W	1755.1 lm/m	D	117.5 lm/W	1410.2 lm/m	E	—	—	—
2300 K	162.9 lm/W	1954.5 lm/m	C	130.9 lm/W	1570.9 lm/m	E	105.8 lm/W	1269.4 lm/m	F
2700 K	172.5 lm/W	2069.5 lm/m	C	141.6 lm/W	1698.8 lm/m	D	114.8 lm/W	1377.3 lm/m	E
3000 K	183.4 lm/W	2200.9 lm/m	C	149 lm/W	1787.9 lm/m	D	121.2 lm/W	1454.8 lm/m	E
3500 K	186 lm/W	2232.6 lm/m	B	151.6 lm/W	1819.6 lm/m	D	124.8 lm/W	1498.2 lm/m	E
4000 K	192 lm/W	2304.2 lm/m	B	155.4 lm/W	1864.2 lm/m	D	128.3 lm/W	1539.2 lm/m	E
5000 K	191.7 lm/W	2300.6 lm/m	B	155.3 lm/W	1863 lm/m	D	128.6 lm/W	1542.8 lm/m	E
6500 K	175.9 lm/W	2110.6 lm/m	C	148.9 lm/W	1786.8 lm/m	D	123.6 lm/W	1482.9 lm/m	E

Grade DL (2nd Tier) · 14.4W/m

Grade DL (2nd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	143.8 lm/W	2070.9 lm/m	D	115.6 lm/W	1663.9 lm/m	E	—	—	—
2300 K	160.2 lm/W	2306.2 lm/m	C	128.7 lm/W	1853.6 lm/m	E	104 lm/W	1497.8 lm/m	F
2700 K	169.6 lm/W	2441.9 lm/m	C	139.2 lm/W	2004.5 lm/m	D	112.9 lm/W	1625.2 lm/m	E
3000 K	180.3 lm/W	2596.9 lm/m	C	146.5 lm/W	2109.7 lm/m	D	119.2 lm/W	1716.5 lm/m	E
3500 K	182.9 lm/W	2634.3 lm/m	C	149.1 lm/W	2147 lm/m	D	122.8 lm/W	1767.7 lm/m	E
4000 K	188.8 lm/W	2718.8 lm/m	B	152.8 lm/W	2199.6 lm/m	D	126.1 lm/W	1816.2 lm/m	E
5000 K	188.5 lm/W	2714.6 lm/m	B	152.7 lm/W	2198.3 lm/m	D	126.4 lm/W	1820.4 lm/m	E
6500 K	172.9 lm/W	2490.4 lm/m	C	146.4 lm/W	2108.3 lm/m	D	121.5 lm/W	1749.8 lm/m	E

Grade DN (1st Tier) · 8W/m

Grade DN (1st Tier) · 8W/m — measured at 8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	159.4 lm/W	1275 lm/m	D	134.4 lm/W	1075.5 lm/m	E	—	—	—
2300 K	173.8 lm/W	1390 lm/m	C	150 lm/W	1200.2 lm/m	D	121.2 lm/W	969.3 lm/m	E
2700 K	187.3 lm/W	1498.6 lm/m	C	162.4 lm/W	1299.1 lm/m	D	131.6 lm/W	1053 lm/m	E
3000 K	196.7 lm/W	1573.4 lm/m	C	171.3 lm/W	1370.7 lm/m	D	139.4 lm/W	1114.9 lm/m	E
3500 K	199.6 lm/W	1596.8 lm/m	C	175.1 lm/W	1400.5 lm/m	C	144.1 lm/W	1152.7 lm/m	E
4000 K	203.4 lm/W	1627.3 lm/m	B	176.1 lm/W	1408.5 lm/m	C	145.3 lm/W	1162.4 lm/m	E
5000 K	203.1 lm/W	1624.9 lm/m	B	177.2 lm/W	1417.4 lm/m	C	146.7 lm/W	1173.6 lm/m	D
6500 K	194.7 lm/W	1557.4 lm/m	C	169.3 lm/W	1354.6 lm/m	D	140.6 lm/W	1124.6 lm/m	E

Grade DN (1st Tier) · 12W/m

Grade DN (1st Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	155 lm/W	1859.5 lm/m	D	130.7 lm/W	1568.6 lm/m	E	—	—	—
2300 K	168.9 lm/W	2027.3 lm/m	D	145.9 lm/W	1750.4 lm/m	D	117.8 lm/W	1413.7 lm/m	F
2700 K	182.1 lm/W	2185.7 lm/m	C	157.9 lm/W	1894.7 lm/m	D	128 lm/W	1535.7 lm/m	E
3000 K	191.2 lm/W	2294.8 lm/m	C	166.6 lm/W	1999.1 lm/m	D	135.5 lm/W	1626 lm/m	E
3500 K	194.1 lm/W	2328.8 lm/m	C	170.2 lm/W	2042.5 lm/m	D	140.1 lm/W	1681.2 lm/m	E
4000 K	197.8 lm/W	2373.4 lm/m	C	171.2 lm/W	2054.3 lm/m	D	141.3 lm/W	1695.3 lm/m	E
5000 K	197.5 lm/W	2369.9 lm/m	C	172.3 lm/W	2067.2 lm/m	D	142.6 lm/W	1711.7 lm/m	E
6500 K	189.3 lm/W	2271.3 lm/m	C	164.6 lm/W	1975.7 lm/m	D	136.7 lm/W	1640.1 lm/m	E

Grade DN (1st Tier) · 14.4W/m

Grade DN (1st Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	152.4 lm/W	2194.1 lm/m	D	128.5 lm/W	1850.8 lm/m	E	—	—	—
2300 K	166.1 lm/W	2392.1 lm/m	D	143.4 lm/W	2065.4 lm/m	E	115.8 lm/W	1668.1 lm/m	F
2700 K	179.1 lm/W	2578.9 lm/m	C	155.3 lm/W	2235.6 lm/m	D	125.8 lm/W	1812 lm/m	E
3000 K	188 lm/W	2707.7 lm/m	C	163.8 lm/W	2358.8 lm/m	D	133.2 lm/W	1918.6 lm/m	E
3500 K	190.8 lm/W	2747.8 lm/m	C	167.4 lm/W	2410.1 lm/m	D	137.8 lm/W	1983.7 lm/m	E
4000 K	194.5 lm/W	2800.4 lm/m	C	168.3 lm/W	2423.9 lm/m	D	138.9 lm/W	2000.3 lm/m	E
5000 K	194.2 lm/W	2796.3 lm/m	C	169.4 lm/W	2439.1 lm/m	D	140.3 lm/W	2019.7 lm/m	E
6500 K	186.1 lm/W	2680 lm/m	C	161.9 lm/W	2331.2 lm/m	D	134.4 lm/W	1935.2 lm/m	E

Grade KE (3rd Tier) · 8W/m

Grade KE (3rd Tier) · 8W/m — measured at 8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	129.9 lm/W	1039.3 lm/m	E	104.3 lm/W	834.2 lm/m	F	—	—	—
2300 K	144.9 lm/W	1159.2 lm/m	D	116.1 lm/W	929.1 lm/m	E	93.8 lm/W	750.5 lm/m	F
2700 K	156.2 lm/W	1249.3 lm/m	D	126.1 lm/W	1008.7 lm/m	E	102.2 lm/W	817.3 lm/m	F
3000 K	164 lm/W	1312 lm/m	C	133.1 lm/W	1065 lm/m	E	108.3 lm/W	866.4 lm/m	F
3500 K	166.4 lm/W	1331.3 lm/m	C	135.7 lm/W	1086 lm/m	D	111.7 lm/W	893.7 lm/m	E
4000 K	171.2 lm/W	1369.9 lm/m	C	138.7 lm/W	1109.3 lm/m	D	114.4 lm/W	915.4 lm/m	E
5000 K	171 lm/W	1368.3 lm/m	C	138.6 lm/W	1108.5 lm/m	D	114.7 lm/W	917.8 lm/m	E
6500 K	164 lm/W	1312 lm/m	C	133 lm/W	1064.2 lm/m	E	110.4 lm/W	883.3 lm/m	E

Grade KE (3rd Tier) · 12W/m

Grade KE (3rd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	126.3 lm/W	1515.8 lm/m	E	101.4 lm/W	1216.6 lm/m	F	—	—	—
2300 K	140.9 lm/W	1690.6 lm/m	D	112.9 lm/W	1355 lm/m	E	91.2 lm/W	1094.6 lm/m	F
2700 K	151.8 lm/W	1822 lm/m	D	122.6 lm/W	1471.2 lm/m	E	99.3 lm/W	1192 lm/m	F
3000 K	159.5 lm/W	1913.5 lm/m	D	129.4 lm/W	1553.3 lm/m	E	105.3 lm/W	1263.5 lm/m	F
3500 K	161.8 lm/W	1941.6 lm/m	C	132 lm/W	1583.8 lm/m	E	108.6 lm/W	1303.4 lm/m	F
4000 K	166.5 lm/W	1998 lm/m	C	134.8 lm/W	1617.8 lm/m	E	111.3 lm/W	1335.1 lm/m	E
5000 K	166.3 lm/W	1995.6 lm/m	C	134.7 lm/W	1616.7 lm/m	E	111.6 lm/W	1338.6 lm/m	E
6500 K	159.5 lm/W	1913.5 lm/m	D	129.3 lm/W	1552.1 lm/m	E	107.3 lm/W	1288.2 lm/m	F

Grade KE (3rd Tier) · 14.4W/m

Grade KE (3rd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	124.2 lm/W	1788.5 lm/m	E	99.7 lm/W	1435.5 lm/m	F	—	—	—
2300 K	138.5 lm/W	1994.8 lm/m	D	111 lm/W	1598.9 lm/m	E	89.7 lm/W	1291.5 lm/m	F
2700 K	149.3 lm/W	2149.8 lm/m	D	120.5 lm/W	1735.9 lm/m	E	97.7 lm/W	1406.4 lm/m	F
3000 K	156.8 lm/W	2257.8 lm/m	D	127.3 lm/W	1832.8 lm/m	E	103.5 lm/W	1490.9 lm/m	F
3500 K	159.1 lm/W	2291 lm/m	D	129.8 lm/W	1868.8 lm/m	E	106.8 lm/W	1538 lm/m	F
4000 K	163.7 lm/W	2357.5 lm/m	C	132.6 lm/W	1908.9 lm/m	E	109.4 lm/W	1575.3 lm/m	F
5000 K	163.5 lm/W	2354.7 lm/m	C	132.5 lm/W	1907.6 lm/m	E	109.7 lm/W	1579.5 lm/m	F
6500 K	156.8 lm/W	2257.8 lm/m	D	127.2 lm/W	1831.4 lm/m	E	105.6 lm/W	1520 lm/m	F

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 14.4W/m, 13341 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

Channel inner width ≥ FPC width + 2mm. This strip is 5mm wide, so it needs at least 7mm of inner width.
The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 5mm wide, so it needs a channel with at least 7mm inner width (5mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 13341?

13341: 2835, 176 LEDs/m, 24V, 5 PCB, 3oz copper FPCB, cuttable 8LEDs/45.456mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

How long can a single run of this 24V SMD LED strip lights be?

Maximum single run for this model is 3m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.

Can DENO customise this 24V SMD LED strip lights for a project?

Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

How much can a high efficacy LED strip cut energy use?

Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.

How narrow can a thin LED strip be?

DENO builds down to a 3 mm wide FPCB. A 3 mm LED strip fits aluminium channels, cabinet reveals, shelf edges and slim architectural slots where an 8 or 10 mm board cannot be hidden, while still carrying 2 oz copper for stable long runs.

Engineering & selection guide

Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.

High Efficiency LED Strips series — High Efficiency LED Strip — Buyer Questions
ultra narrow LED strip series — Ultra Narrow LED Strip — Buyer Questions
LED strip engineering selection handbook
