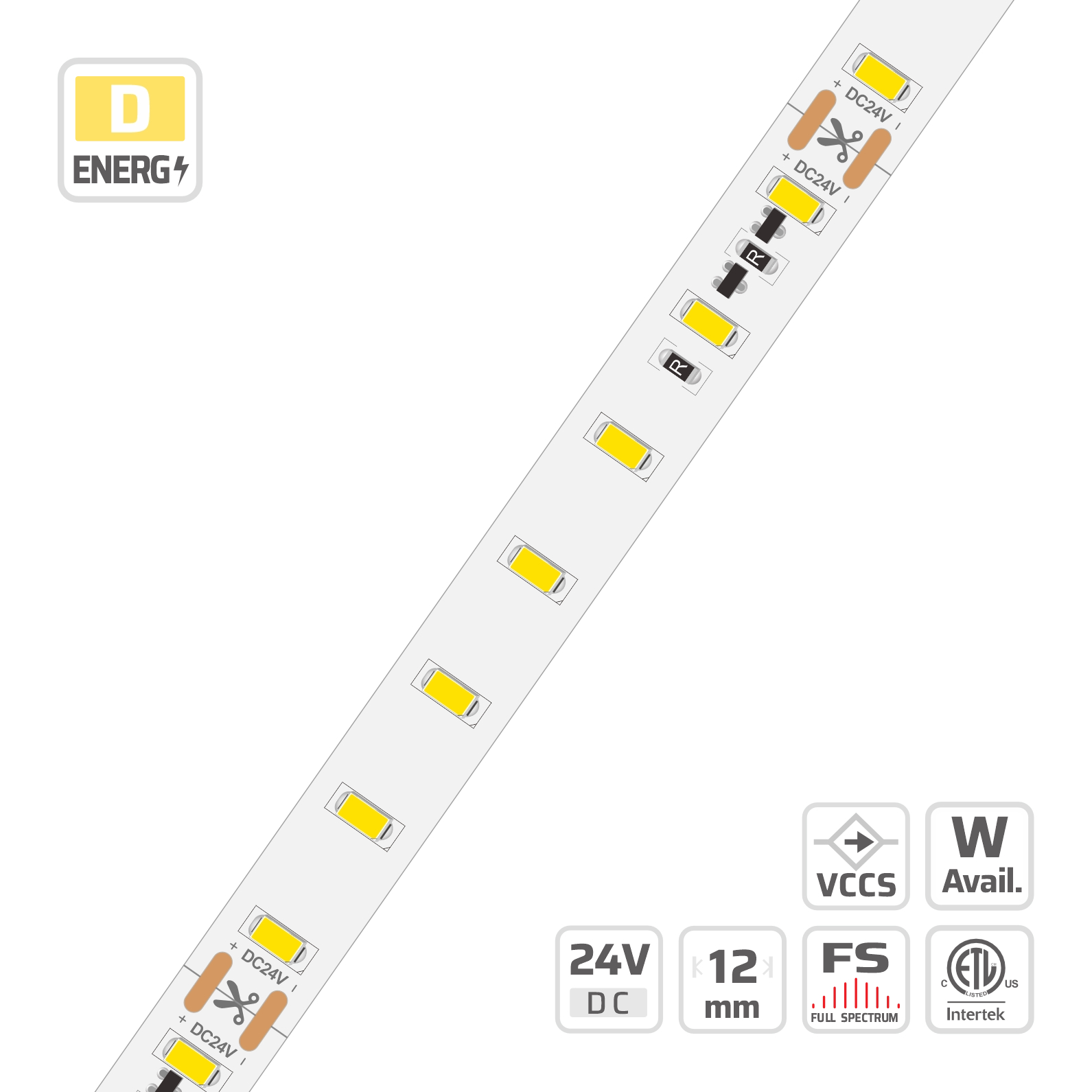

5630 Classic LED Strip Light (#11323)
12mm · 24V · 70LEDs · 100cut
Model: 11323
Overview
12mm | 24V | 70LEDs | 100cut | #11323 | 5630 Classic LED Strip Light is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 5630, 70, 24V, 12 PCB, 2 oz copper FPCB, cuttable 7LEDs/100mm, IP20/IP65/IP67/IP68, CRI Ra≥80. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Featuring 70 LEDs per meter on a 12mm 2 oz copper PCB, this 24V 5630 LED strip light delivers up to 2330 lm/m. Engineered with Ra≥80 and single-bin color consistency under 3 SDCM across 2700K to 6500K CCT, it ensures uniform visual output. The durable 5630 SMD package utilizes a pure copper frame and pure golden wire encapsulation to minimize component degradation. Available in IP20 to IP68 ingress protection options with a 120-degree beam angle, making it ideal for high-demand architectural lighting installations. This dimmable circuit design is cuttable every 100mm up to 5m run lengths for factory-direct wholesale project supply.
Constant Current Ic Led Strip built for c.c. smd strips (ic regulated) projects.
Specifications
| CCT (K) | 2700-6500 |
|---|---|
| CRI | Ra≥80 |
| SDCM | < 3 SDCM (Single Bin) |
| POWER (W/M) | 14.4 W/m |
| LED QTY | 70 |
| PART NO | DL-F56A35V24-11323-* |
| SMD TYPE | 5630 |
| CUTTABLE UNIT | 7LEDs/100mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67/IP68 |
| LED PITCH | 14.2mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 12 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2 oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 4~28.8W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 2330 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #11323
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 155.8 lm/W at 4000K, Ra 80, ErP energy class D (Grade DL (2nd Tier) · 14.4W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 118.7 lm/W | 1709.6 lm/m | E | 95.1 lm/W | 1369.5 lm/m | F | — | — | — |
| 2300 K | 132.2 lm/W | 1903.2 lm/m | E | 106 lm/W | 1525.7 lm/m | F | — | — | — |
| 2700 K | 139.4 lm/W | 2007.4 lm/m | D | 114.6 lm/W | 1650.8 lm/m | E | 92.9 lm/W | 1337.9 lm/m | F |
| 3000 K | 148.8 lm/W | 2142.1 lm/m | D | 120.6 lm/W | 1737.3 lm/m | E | 98.1 lm/W | 1412.8 lm/m | F |
| 3500 K | 151 lm/W | 2174.4 lm/m | D | 122.8 lm/W | 1768.2 lm/m | E | 101.1 lm/W | 1455.3 lm/m | F |
| 4000 K | 155.8 lm/W | 2243.8 lm/m | D | 125.8 lm/W | 1810.8 lm/m | E | 103.8 lm/W | 1494.8 lm/m | F |
| 5000 K | 155.6 lm/W | 2241.3 lm/m | D | 125.7 lm/W | 1809.7 lm/m | E | — | — | — |
| 6500 K | 142.5 lm/W | 2052.3 lm/m | D | 120.6 lm/W | 1736.2 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 114.8 lm/W | 2203.5 lm/m | E | 91.9 lm/W | 1765.4 lm/m | F | — | — | — |
| 2300 K | 127.8 lm/W | 2454.1 lm/m | E | 102.5 lm/W | 1967.7 lm/m | F | — | — | — |
| 2700 K | 134.8 lm/W | 2587.7 lm/m | E | 110.8 lm/W | 2127.4 lm/m | E | 89.8 lm/W | 1724.5 lm/m | F |
| 3000 K | 143.9 lm/W | 2762.2 lm/m | D | 116.6 lm/W | 2238.7 lm/m | E | 94.8 lm/W | 1821.1 lm/m | F |
| 3500 K | 146 lm/W | 2803.1 lm/m | D | 118.7 lm/W | 2279.6 lm/m | E | 97.7 lm/W | 1876.8 lm/m | F |
| 4000 K | 150.6 lm/W | 2892.2 lm/m | D | 121.6 lm/W | 2335.3 lm/m | E | 100.4 lm/W | 1926.9 lm/m | F |
| 5000 K | 150.4 lm/W | 2888.5 lm/m | D | 121.5 lm/W | 2333.4 lm/m | E | — | — | — |
| 6500 K | 137.8 lm/W | 2645.3 lm/m | D | 116.6 lm/W | 2238.7 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 25W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 110.2 lm/W | 2754.6 lm/m | E | 88.3 lm/W | 2206.9 lm/m | F | — | — | — |
| 2300 K | 122.7 lm/W | 3067.8 lm/m | E | 98.4 lm/W | 2459.8 lm/m | F | — | — | — |
| 2700 K | 129.4 lm/W | 3234.9 lm/m | E | 106.4 lm/W | 2659.4 lm/m | F | 86.2 lm/W | 2155.8 lm/m | F |
| 3000 K | 138.1 lm/W | 3453.1 lm/m | D | 111.9 lm/W | 2798.7 lm/m | E | 91.1 lm/W | 2276.5 lm/m | F |
| 3500 K | 140.2 lm/W | 3504.1 lm/m | D | 114 lm/W | 2849.7 lm/m | E | 93.8 lm/W | 2346.1 lm/m | F |
| 4000 K | 144.6 lm/W | 3615.5 lm/m | D | 116.8 lm/W | 2919.3 lm/m | E | 96.4 lm/W | 2408.8 lm/m | F |
| 5000 K | 144.4 lm/W | 3610.9 lm/m | D | 116.7 lm/W | 2917 lm/m | E | — | — | — |
| 6500 K | 132.3 lm/W | 3306.9 lm/m | E | 111.9 lm/W | 2798.7 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 107.3 lm/W | 3089.7 lm/m | F | 86 lm/W | 2475.4 lm/m | F | — | — | — |
| 2300 K | 119.5 lm/W | 3441.1 lm/m | E | 95.8 lm/W | 2759.1 lm/m | F | — | — | — |
| 2700 K | 126 lm/W | 3628.5 lm/m | E | 103.6 lm/W | 2983 lm/m | F | 84 lm/W | 2418.1 lm/m | G |
| 3000 K | 134.5 lm/W | 3873.2 lm/m | E | 109 lm/W | 3139.1 lm/m | F | 88.7 lm/W | 2553.5 lm/m | F |
| 3500 K | 136.5 lm/W | 3930.4 lm/m | D | 111 lm/W | 3196.4 lm/m | E | 91.4 lm/W | 2631.6 lm/m | F |
| 4000 K | 140.8 lm/W | 4055.4 lm/m | D | 113.7 lm/W | 3274.5 lm/m | E | 93.8 lm/W | 2701.8 lm/m | F |
| 5000 K | 140.6 lm/W | 4050.2 lm/m | D | 113.6 lm/W | 3271.9 lm/m | E | — | — | — |
| 6500 K | 128.8 lm/W | 3709.2 lm/m | E | 109 lm/W | 3139.1 lm/m | F | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 28.8W/m, 11323 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 20x08mm Surface Mount LED Channel · fits ≤12mm strip
- 18x18mm Magnetic LED Channel · fits ≤12mm strip
- 17.3x14.5mm Surface Mount LED Channel · fits ≤12mm strip
- 17.5x7mm Slim Surface Mount LED Channel · fits ≤12mm strip
- Slim Surface Aluminum Profile · 12mm PCB · fits ≤12mm strip
- 25x7mm Wide Slim Surface Mount LED Channel · fits ≤12mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 5630 High Lumen Classic Multi-Line LED Strip Light (#2351)
- 5630 Classic LED Strip Light (#3834)
- 5630 Tunable CCT High Lumen Multi-Line LED Strip Light (#2771)
- 5630 High Density LED Strip Light (#5325)
- 5630 Tunable CCT High Lumen LED Strip Light (#3406)
- 5630 Special High Lumen Long Run LED Strip Light (#4925)
- 5630 Classic LED Strip Light (#11664)
- 5630 Classic High Lumen LED Strip Light (#2486)
See every model in SMD LED Strip Series or narrow to 5630. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 11323?
11323: 5630, 70, 24V, 12 PCB, 2 oz copper FPCB, cuttable 7LEDs/100mm, IP20/IP65/IP67/IP68, CRI Ra≥80. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
