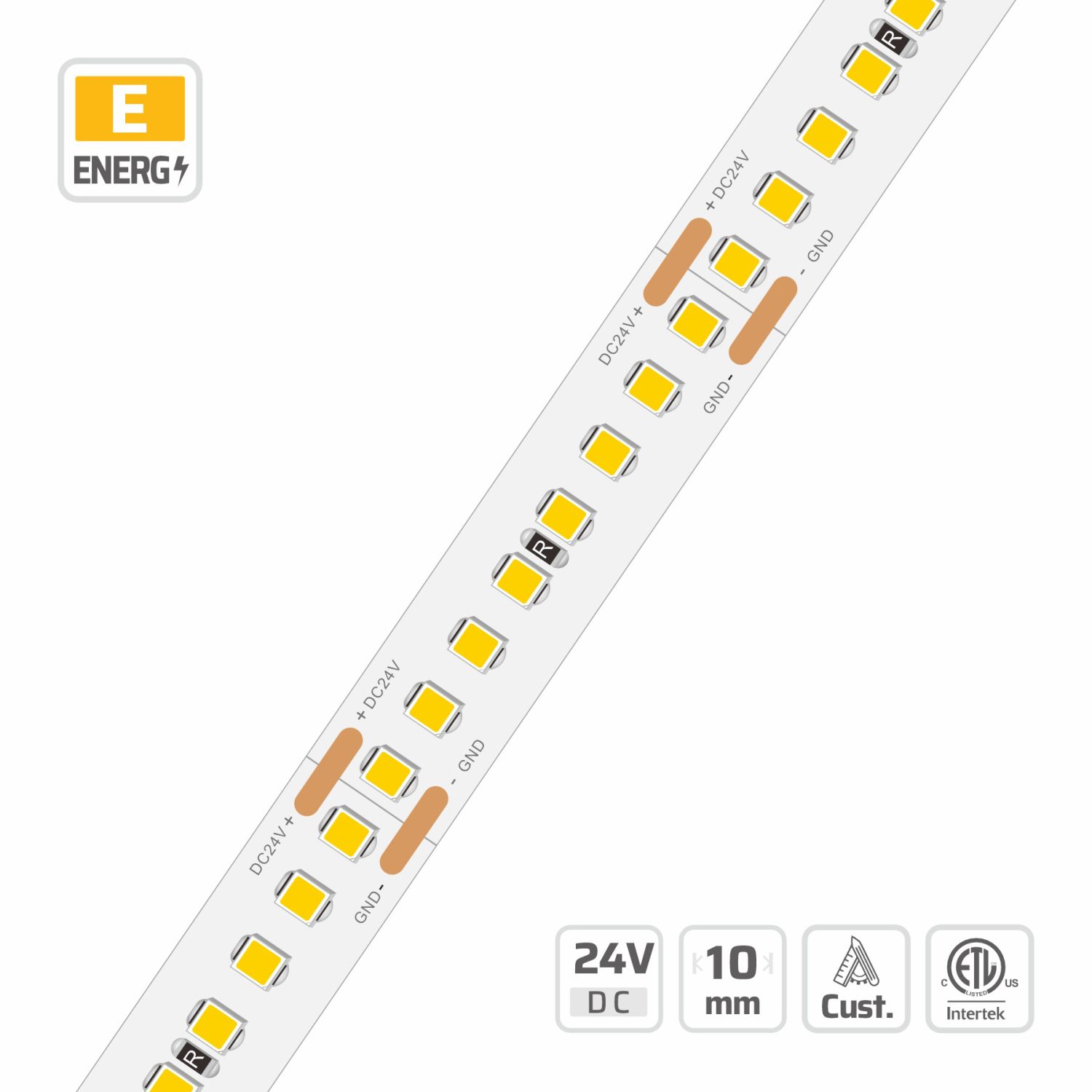

2216 Ultra-Dense Micro SMD LED Strip Lights (#11153-N)
Model: 11153-N
Overview
The DENO LED 11153-N is a high-performance 2216 Ultra-Dense Micro SMD LED Strip Light designed for demanding B2B applications. Featuring a 24V input, 256 LEDs/m, and a robust 3oz copper PCB, it ensures consistent brightness and excellent heat dissipation. Its special surface provides uniform, anti-glare luminescence, ideal for areas with low clearance or reflective surfaces. Customizable CCT and power options cater to diverse commercial, architectural, and display lighting...
Description
#11153-N | 2216 Ultra-Dense Micro SMD LED Strip Lights With thicker PCB, better for heat dissipation, keep the good consitent brightness from begin to end. Special surface provide uniform luminescence and anti-glare. With built-in chip protection stents, make it higher power available. Special power is customizable. Wide CCT range for option from 1800K~7500K. Customizable full spectrum, 120° view angel high color efficiency. No need extra covers. Perfect for area with low clearance or reflective surfaces to eliminate spot-glare.
2216 · 256 LEDs/m high density led strip 24v — built for longer architectural runs with lower voltage drop per metre.
Specifications
| LED QTY | 256 LEDs/m |
|---|---|
| PART NO | DL-F22A128V24-11153-N-* |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | 8LEDs/31.25mm |
| DIMMABLE | Yes |
| LED PITCH | 3.906mm |
| PCB WIDTH | 8 |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 3.8~15W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Human-centric & full-spectrum interiors — Violet-excited full spectrum output fills the cyan gap, which is used in museums, high-end residential and wellbeing-focused workspaces.
Request a quotation for #11153-N
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 152.6 lm/W at 4000K, Ra 90, ErP energy class D (Grade DL (2nd Tier) · 3.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 3.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 115.4 lm/W | 438.5 lm/m | E | — | — | — |
| 2300 K | — | — | — | 128.5 lm/W | 488.5 lm/m | E | — | — | — |
| 2700 K | — | — | — | 139.1 lm/W | 528.7 lm/m | D | 112.7 lm/W | 428.2 lm/m | E |
| 3000 K | — | — | — | 146.3 lm/W | 556.1 lm/m | D | 119.1 lm/W | 452.4 lm/m | E |
| 3500 K | — | — | — | 148.9 lm/W | 565.9 lm/m | D | 122.6 lm/W | 466 lm/m | E |
| 4000 K | — | — | — | 152.6 lm/W | 579.9 lm/m | D | 126 lm/W | 478.7 lm/m | E |
| 5000 K | — | — | — | 152.5 lm/W | 579.5 lm/m | D | — | — | — |
| 6500 K | — | — | — | 146.2 lm/W | 555.7 lm/m | D | — | — | — |
Grade DL (2nd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 110.5 lm/W | 1104.8 lm/m | E | — | — | — |
| 2300 K | — | — | — | 123.1 lm/W | 1230.7 lm/m | E | — | — | — |
| 2700 K | — | — | — | 133.2 lm/W | 1331.9 lm/m | E | 107.9 lm/W | 1078.9 lm/m | F |
| 3000 K | — | — | — | 140.1 lm/W | 1401.1 lm/m | D | 114 lm/W | 1139.9 lm/m | E |
| 3500 K | — | — | — | 142.6 lm/W | 1425.9 lm/m | D | 117.4 lm/W | 1173.9 lm/m | E |
| 4000 K | — | — | — | 146.1 lm/W | 1461 lm/m | D | 120.6 lm/W | 1205.9 lm/m | E |
| 5000 K | — | — | — | 146 lm/W | 1459.9 lm/m | D | — | — | — |
| 6500 K | — | — | — | 140 lm/W | 1400 lm/m | D | — | — | — |
Grade DL (2nd Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 106.7 lm/W | 1599.9 lm/m | F | — | — | — |
| 2300 K | — | — | — | 118.8 lm/W | 1782.4 lm/m | E | — | — | — |
| 2700 K | — | — | — | 128.6 lm/W | 1928.9 lm/m | E | 104.2 lm/W | 1562.6 lm/m | F |
| 3000 K | — | — | — | 135.3 lm/W | 2029.1 lm/m | D | 110.1 lm/W | 1650.8 lm/m | E |
| 3500 K | — | — | — | 137.7 lm/W | 2065 lm/m | D | 113.3 lm/W | 1700.1 lm/m | E |
| 4000 K | — | — | — | 141.1 lm/W | 2115.8 lm/m | D | 116.4 lm/W | 1746.5 lm/m | E |
| 5000 K | — | — | — | 141 lm/W | 2114.3 lm/m | D | — | — | — |
| 6500 K | — | — | — | 135.2 lm/W | 2027.6 lm/m | D | — | — | — |
Related models in this series
- 2216 Constant Current High Lumen High Density High Light Efficacy LED Strip Light (#9426)
- PU LED Light Strips (#2783-PU)
- 2216 Dim-to-warm LED Ultra-Narrow strip light (#17254)
- 2216 Dim-to-warm High density LED Strip Light (#14207-N)
- 2216 High Density LED Strip Light (#17000-N)
- 2216 Ultra-high density mini cutting LED Strip Light (#14158-N)
- 2216 Single-Color LED Strip Light (#15926-N)
- Classic Series PU LED Light Strips (#1688 PU)
See every model in SMD LED Strip Series or narrow to 2216. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key benefits of the 2216 Ultra-Dense Micro SMD LED Strip Lights?
These strips feature a thicker PCB for superior heat dissipation, anti-glare uniform luminescence, and built-in chip protection, ensuring consistent brightness and durability.
Is this LED strip dimmable and what voltage does it require?
Yes, the 11153-N LED strip is dimmable and operates optimally with a 24V input voltage, making it compatible with standard commercial power supplies.
Can the color temperature (CCT) be customized for specific projects?
Absolutely. This product offers a wide CCT range from 1800K to 7500K, with customizable full spectrum options to meet unique project requirements.
What advantages does the ultra-dense LED configuration provide for commercial use?
The ultra-dense 2216 SMD LEDs provide seamless, spot-free illumination, ideal for retail displays, architectural accents, and areas requiring smooth, consistent light output.
How many LEDs per metre does a dotless LED strip need?
Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.
What makes a full spectrum LED strip different from a normal high CRI strip?
A full spectrum LED strip fills the cyan gap and the deep red region that standard phosphor LEDs leave weak, reaching Ra 95 to 98 with R9 above 90. Colours, skin tones and printed material look closer to daylight, which is why museums, retail and studios specify it.
Full Spectrum LED Strip — Buyer Questions
What makes a full spectrum LED strip different from a normal high CRI strip?
A high CRI board raises the average of eight pastel test colours; a full spectrum LED strip reproduces a continuous 380–780 nm curve with no cyan gap and a low blue peak. DENO builds them at Ra 95+ with R9 above 90, so saturated reds, timber and skin tones render as they do in daylight rather than simply scoring well on a datasheet.
Is a violet-excited full spectrum LED better than a blue-chip white LED?
For colour fidelity, yes. A violet-excited LED pumps a multi-phosphor blend with a ~405 nm die, filling the 420–500 nm region that a 450 nm blue chip leaves as a spike and a dip. The trade-off is efficacy: expect 80–110 lm/W instead of 130–150 lm/W. Blue-pump Ra 95 remains the better choice where lumens per watt drive the energy calculation.
- Series Full Spectrum LED Strips series
- Related series violet excitation full spectrum boards
- Guide efficacy and ErP class trade-offs
- Product 14158-N violet-excited full spectrum strip
What CRI and R9 values do your full spectrum LED strip lights reach?
Standard production is Ra 95+ with R9 greater than 90, typically TM-30 Rf 93 and Rg around 100. Every reel ships with spectral test data, and 1-SDCM binning is available when several reels must match visually in the same room. Ra 98 selections can be produced for gallery and film work on a project basis.
- Series Full Spectrum LED Strips series
- Related series 1 SDCM colour consistency binning
- Related series high efficiency LED strip lights series
Which full spectrum model should I choose for a shallow cove?
Pick density by mounting depth: with 6–12 mm between board and diffuser the 8 mm 256 LEDs/m 2216 build at 3.9 mm pitch stays dot-free, while the 10 mm 128 LEDs/m board is the efficient choice behind deeper profiles. For runs that must not drift in brightness, the 12 mm constant-current board regulates each segment independently.
Are full spectrum LED strips available in 24V and are they dimmable?
All five DENO full spectrum boards are 24V, which keeps current low enough for 5 m single-feed runs and 10 m with dual feed. They dim on PWM, 0–10V, DALI and TRIAC drivers down to 1% without colour shift, because the phosphor blend is fixed rather than mixed from separate colour channels.
Can full spectrum LED strip lights be used for plants or human-centric lighting?
Yes for both, within limits. The continuous spectrum supports supplementary horticulture and human-centric schemes where a magenta grow bar would be unacceptable, and melanopic content is tuned by CCT rather than by adding a channel. For dedicated high-PPFD growing, a purpose-built horticultural board is still the more efficient option.
- Series Full Spectrum LED Strips series
- Related series tunable white LED strip series
- Related series dim to warm LED strip behaviour
Can I order a custom full spectrum LED strip — width, CCT or IP class?
Board width from 8 mm to 20 mm, 1800K–6500K including dual-CCT tunable white, 2 oz or 3 oz copper, free-cut segmentation and IP20 to IP68 protection are all configurable on the existing full spectrum stack-ups, so a non-standard build is a production setup rather than new tooling. MOQ and lead time are quoted per specification.
What wavelength range does the spectrum actually cover, and is the cyan gap really filled?
Emission runs continuously from 380 nm to 780 nm. On a violet-pump board the 405 nm die feeds a three-phosphor blend, so the 480–500 nm cyan region sits within roughly 15% of the neighbouring bands instead of collapsing into the dip a 450 nm blue chip leaves. Measured SPD files (5 nm resolution), TM-30 Rf/Rg and the duv figure ship with each production lot, so the curve can be verified rather than assumed.
Which colour temperatures are available, and can the CCT be tuned after installation?
Fixed CCT options run 1800K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K, all held inside a 3-SDCM ellipse and 1 SDCM on request. For adjustable schemes a dual-channel tunable board mixes two full-spectrum phosphor sets, so 2700K–6500K tuning keeps Ra 95 across the whole travel — unlike RGB-based tuning, which loses fidelity away from its calibration point.
- Series Full Spectrum LED Strips series
- Related series tunable white 2700K–6500K boards
- Related series short cut units for tunable installs
Where is a continuous-spectrum board worth the efficacy penalty?
Museums and galleries (low UV, faithful pigment rendering), fashion and jewellery retail where saturated reds decide a purchase, dermatology and dental rooms, food halls, colour-grading suites and photo studios, plus high-end residential where timber and skin tones dominate. In warehouses, car parks and back-of-house corridors the 30–40% efficacy gap is not justified — a blue-pump Ra 80 board is the correct specification there.
- Series Full Spectrum LED Strips series
- Related series efficacy-first alternatives for utility areas
- Guide specify a project build with DENO
How does the spectrum affect flicker, UV and blue-light exposure?
A 405 nm pump sits below the 450 nm blue-hazard peak, so the RG0 exempt-group rating is easier to hold at the same lux; UV-A leakage beyond the die is filtered by the phosphor layer and measures below 2 µW/lm, which suits archival display. Flicker is a driver property, not a spectral one: on constant-current segments DENO measures Pst LM below 1.0 and SVM below 0.4, so the same board stays camera-safe.
- Series Full Spectrum LED Strips series
- Related series flicker-free constant-current segments
- Guide Pst LM and SVM flicker limits
Can a continuous-spectrum board be built waterproof or in long outdoor runs?
Yes. IP65 silicone coating, IP67 extrusion and IP68 filled builds are all available, and the phosphor blend is unaffected by the encapsulation because it sits under the LED lens. For long façade or landscape lines the 12 mm and 20 mm constant-current versions hold brightness across 10 m per feed, and 48V variants extend that further where trenching cost dominates.
- Series Full Spectrum LED Strips series
- Related series waterproof LED strip constructions
- Related series 48V long-run architecture
High Density LED Strip — Buyer Questions
What counts as a high density LED strip?
Anything above roughly 120 LEDs per metre is normally sold as a high density LED strip. DENO builds high-density boards from 240 up to 700 LEDs/m, which puts the LED pitch between 4.2 mm and 1.4 mm — tight enough to read as a continuous line behind a shallow diffuser instead of a row of dots.
Is a 24V high density LED strip better than 12V?
For dense boards, yes in most cases. A 24V high density LED strip draws half the current of a 12V board at the same wattage, so voltage drop is far lower and single runs of 5–10 m stay even in brightness. DENO supplies 12V, 24V, 48V and mains-voltage versions of the same high-density layout; 12V is normally reserved for short cabinet runs or low-voltage furniture requirements.
What power supply do I need for a dense LED strip run?
Size the driver from the board wattage: multiply the W/m figure on the datasheet by the run length, then add 20–30 % headroom, so a 20 W/m board over 5 m needs a 100 W load on a 120–130 W constant-voltage driver. Match the driver voltage exactly (24V board, 24V driver), keep it constant-voltage rather than constant-current unless the board carries its own CC ICs, and check that the dimming protocol — TRIAC, 0–10V, DALI or PWM — is supported on both sides before ordering.
