What counts as a high efficiency LED strip in lumens per watt?

In 2026 a mainstream 24V 2835 board sits around 120-140 lm/W. A high efficiency LED strip starts at roughly 160 lm/W and DENO's top binned 2835 and 2110 boards are measured at up to 200 lm/W at 4000K Ra 80, LM-79 tested at 25 degrees Celsius. The figure is light-source efficacy of the tape itself, measured without the driver, which is exactly how the ErP energy label is calculated.

What is the difference between high efficiency and high efficacy LED strip lights?

They describe the same measurement. Efficacy is the engineering term for lumens delivered per watt consumed; efficiency is how buyers and tender documents usually phrase it. DENO publishes lm/W per model so both audiences read the same number, and the ErP energy class printed on the reel is derived from it.

Which ErP energy class can a high efficiency LED strip reach?

Class C is achievable on the best-binned 2835 and 2110 boards above 180 lm/W, class D covers the 160-180 lm/W band and most well-specified architectural tape lands in class E. High-CRI 95+ and full spectrum builds drop one or two classes because phosphor conversion costs lumens. Every DENO datasheet states the measured class so it can be reproduced by a notified body.

Does a high efficiency LED strip run cooler and last longer?

Yes. Fewer watts per lumen means less heat into the FPCB, so junction temperature drops and L70 lifetime extends. Combined with 2 oz copper and a 99.9% pure copper foil the same brightness can be produced at 20-30% lower wattage, which also lets a single driver feed a longer run and keeps aluminium profiles below the touch-temperature limits used in hospitality projects.

How much energy does a high efficiency LED strip save on a large project?

Take 500 m of cove lighting at 10 hours a day. A 130 lm/W board delivering 1000 lm/m draws about 7.7 W/m; a 190 lm/W board delivers the same output at about 5.3 W/m. Across 500 m that is 1.2 kW saved, roughly 4,380 kWh a year, and it usually removes one driver and one circuit from the electrical schedule as well.

Can I get a high efficiency LED strip in 12V, 24V, 36V or 48V?

24V is the efficiency sweet spot and carries the full binned range. 12V is available where fixture space or existing drivers dictate it, at the cost of shorter single-feed runs. 36V and 48V constant-current boards keep the same lm/W while extending a single feed well past 20 m, which is where the real system efficiency gain shows up on long architectural lines.

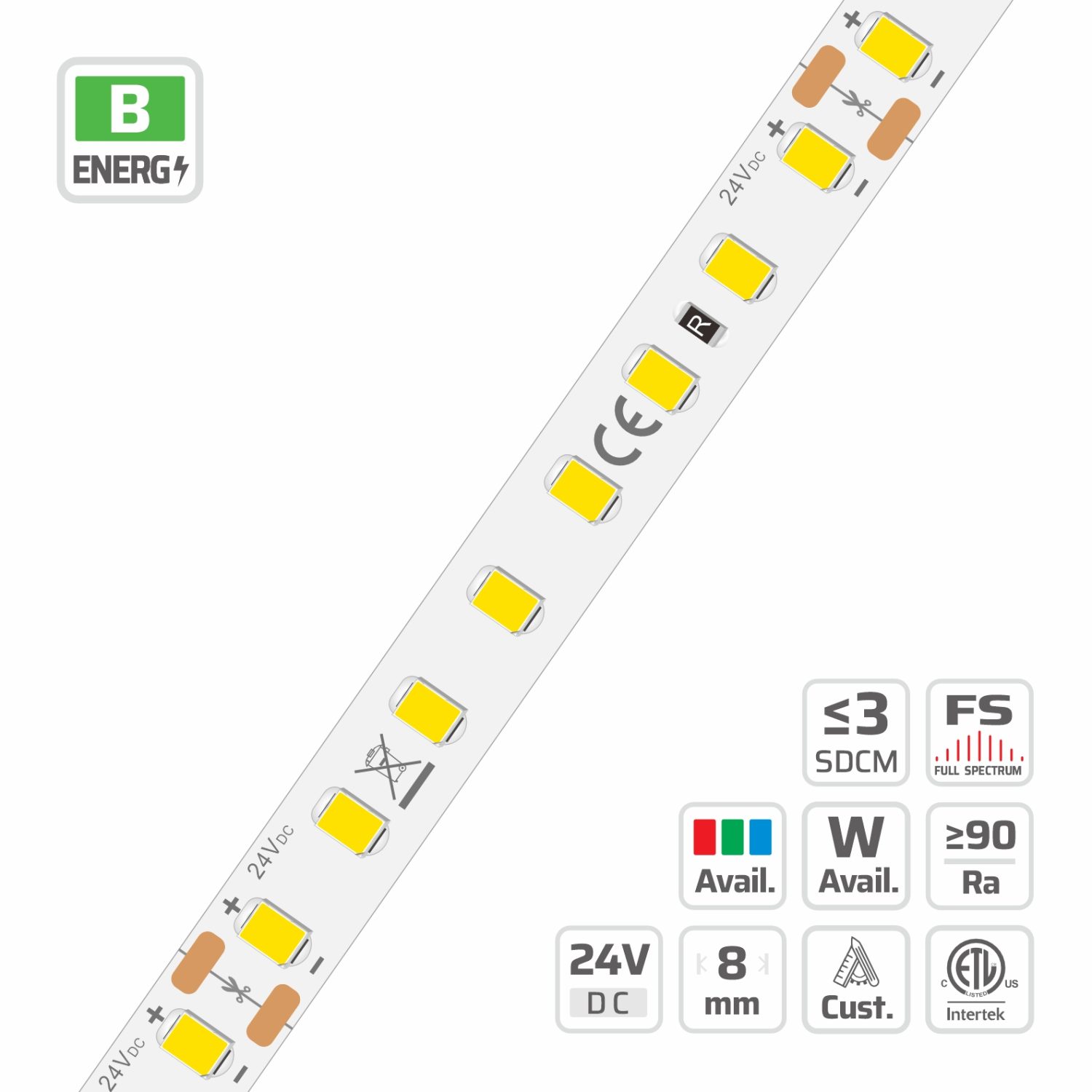

2835 High Lumen High Light Efficacy LED Strip Light (#10419)

8mm · 24V · 128LEDs · 62.5cut

Model: 10419

10419 8mm | 24V | 128LEDs | 62.5cut | #10419 | 2835 High Lumen High Light Efficacy LED Strip Light — 24V, cuttable every 62.5mm, 8mm FPCB width, 2835 LEDs, 128 LEDs/m, IP20

Overview

8mm | 24V | 128LEDs | 62.5cut | #10419 | 2835 High Lumen High Light Efficacy LED Strip Light is part of the DENO High Light Efficacy SMD Strips series, engineered around high efficacy LED strip lights. Key specifications: 2835, 128 LEDs/m, DC 24V, 8mm PCB, 3 oz copper FPCB, cuttable 8LEDs/62.5mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

This 2835 LED strip light features 128 LEDs per meter on a compact 8mm PCB width for high light efficacy in architectural lighting installations. The DC 24V constant voltage circuit operates across a 2 to 19.2W power range with dimmable control for wholesale project supply. A robust 3 oz copper foil PCB paired with 99.9% purity gold wire encapsulation ensures stable thermal management up to 75°C maximum Tc. Engineered with a 62.5mm cut unit and 120-degree beam angle, this flexible strip reliably functions across operating temperatures of -25 to 40°C.

High Efficacy Led Strip Lights built for high light efficacy smd strips projects.

Specifications

LED QTY	128 LEDs/m
PART NO	DL-F28A64V24-10419-*
SMD TYPE	2835
CUTTABLE UNIT	8LEDs/62.5mm
DIMMABLE	Yes
IP RATING	IP20
LED PITCH	7.8mm
PCB WIDTH	8mm
BEAM ANGLE	120°
RUN LENGTH	5m
COPPER FOIL	3 oz
ON OFF TIMES	10000（test times）
POWER RANGE	2~19.2W
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	DC 24V
MIN BEND DIAMETER	Φ60mm
OPERATING TEMPERATURE	-25~40°C;Tc: 75°C (max)

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #10419

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 180.7 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier)).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 7.7 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	137.6 lm/W	1059.3 lm/m	D	110.4 lm/W	849.8 lm/m	E	—	—	—
2300 K	153.2 lm/W	1179.9 lm/m	D	122.9 lm/W	946.7 lm/m	E	99.6 lm/W	766.9 lm/m	F
2700 K	161.9 lm/W	1246.6 lm/m	C	133 lm/W	1024.4 lm/m	E	107.8 lm/W	830 lm/m	F
3000 K	172.4 lm/W	1327.5 lm/m	C	140 lm/W	1078.4 lm/m	D	113.9 lm/W	876.8 lm/m	E
3500 K	175 lm/W	1347.4 lm/m	C	142.5 lm/W	1097.4 lm/m	D	117.3 lm/W	903 lm/m	E
4000 K	180.7 lm/W	1391 lm/m	C	145.9 lm/W	1123.6 lm/m	D	120.5 lm/W	927.6 lm/m	E
5000 K	180.3 lm/W	1388.6 lm/m	C	145.8 lm/W	1122.8 lm/m	D	120.3 lm/W	926.3 lm/m	E
6500 K	165.3 lm/W	1272.8 lm/m	C	139.9 lm/W	1077.6 lm/m	D	116.2 lm/W	894.7 lm/m	E

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	135.8 lm/W	1303.2 lm/m	D	108.9 lm/W	1045.5 lm/m	F	—	—	—
2300 K	151.2 lm/W	1451.6 lm/m	D	121.3 lm/W	1164.6 lm/m	E	98.3 lm/W	943.7 lm/m	F
2700 K	159.7 lm/W	1533.6 lm/m	D	131.3 lm/W	1260.3 lm/m	E	106.4 lm/W	1021.1 lm/m	F
3000 K	170.1 lm/W	1633.2 lm/m	C	138.2 lm/W	1326.6 lm/m	D	112.4 lm/W	1078.7 lm/m	E
3500 K	172.7 lm/W	1657.6 lm/m	C	140.6 lm/W	1350.1 lm/m	D	115.7 lm/W	1110.9 lm/m	E
4000 K	178.3 lm/W	1711.3 lm/m	C	144 lm/W	1382.3 lm/m	D	118.9 lm/W	1141.2 lm/m	E
5000 K	178 lm/W	1708.3 lm/m	C	143.9 lm/W	1381.3 lm/m	D	118.7 lm/W	1139.5 lm/m	E
6500 K	163.1 lm/W	1565.8 lm/m	C	138.1 lm/W	1325.7 lm/m	D	114.6 lm/W	1100.2 lm/m	E

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 11.5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	134 lm/W	1540.4 lm/m	E	107.5 lm/W	1235.8 lm/m	F	—	—	—
2300 K	149.2 lm/W	1715.8 lm/m	D	119.7 lm/W	1376.6 lm/m	E	97 lm/W	1115.5 lm/m	F
2700 K	157.6 lm/W	1812.8 lm/m	D	129.5 lm/W	1489.7 lm/m	E	105 lm/W	1207 lm/m	F
3000 K	167.9 lm/W	1930.5 lm/m	C	136.4 lm/W	1568.1 lm/m	D	110.9 lm/W	1275.1 lm/m	E
3500 K	170.4 lm/W	1959.3 lm/m	C	138.8 lm/W	1595.8 lm/m	D	114.2 lm/W	1313.1 lm/m	E
4000 K	175.9 lm/W	2022.8 lm/m	C	142.1 lm/W	1633.9 lm/m	D	117.3 lm/W	1348.9 lm/m	E
5000 K	175.6 lm/W	2019.3 lm/m	C	142 lm/W	1632.8 lm/m	D	117.1 lm/W	1346.7 lm/m	E
6500 K	160.9 lm/W	1850.8 lm/m	C	136.3 lm/W	1567 lm/m	D	113.1 lm/W	1300.7 lm/m	E

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 15.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	130.3 lm/W	2007.1 lm/m	E	104.6 lm/W	1610.2 lm/m	F	—	—	—
2300 K	145.2 lm/W	2235.6 lm/m	D	116.5 lm/W	1793.6 lm/m	E	94.3 lm/W	1452.2 lm/m	F
2700 K	153.4 lm/W	2361.9 lm/m	D	126 lm/W	1941 lm/m	E	102.1 lm/W	1572.6 lm/m	F
3000 K	163.3 lm/W	2515.3 lm/m	C	132.7 lm/W	2043.2 lm/m	E	107.9 lm/W	1661.3 lm/m	F
3500 K	165.8 lm/W	2552.9 lm/m	C	135 lm/W	2079.3 lm/m	D	111.1 lm/W	1710.9 lm/m	E
4000 K	171.1 lm/W	2635.6 lm/m	C	138.2 lm/W	2128.9 lm/m	D	114.1 lm/W	1757.5 lm/m	E
5000 K	170.8 lm/W	2631 lm/m	C	138.1 lm/W	2127.4 lm/m	D	114 lm/W	1755.6 lm/m	E
6500 K	156.6 lm/W	2411.5 lm/m	D	132.6 lm/W	2041.7 lm/m	E	110 lm/W	1694 lm/m	E

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	126.9 lm/W	2436.5 lm/m	E	101.8 lm/W	1954.6 lm/m	F	—	—	—
2300 K	141.3 lm/W	2713.9 lm/m	D	113.4 lm/W	2177.3 lm/m	E	91.9 lm/W	1764.5 lm/m	F
2700 K	149.3 lm/W	2867.2 lm/m	D	122.7 lm/W	2356.2 lm/m	E	99.4 lm/W	1909 lm/m	F
3000 K	159 lm/W	3053.3 lm/m	D	129.2 lm/W	2480.3 lm/m	E	105 lm/W	2016.7 lm/m	F
3500 K	161.4 lm/W	3099 lm/m	C	131.5 lm/W	2524.1 lm/m	E	108.2 lm/W	2076.9 lm/m	F
4000 K	166.6 lm/W	3199.3 lm/m	C	134.6 lm/W	2584.3 lm/m	E	111.1 lm/W	2133.5 lm/m	E
5000 K	166.3 lm/W	3193.9 lm/m	C	134.5 lm/W	2582.5 lm/m	E	111 lm/W	2131.2 lm/m	E
6500 K	152.5 lm/W	2927.4 lm/m	D	129.1 lm/W	2478.4 lm/m	E	107.1 lm/W	2056.3 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 7.7 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	141.6 lm/W	1090.2 lm/m	E	119.3 lm/W	918.6 lm/m	E	—	—	—
2300 K	154.3 lm/W	1188.2 lm/m	D	133.1 lm/W	1025.1 lm/m	E	107.8 lm/W	830.1 lm/m	F
2700 K	166.3 lm/W	1280.7 lm/m	D	144 lm/W	1109 lm/m	E	116.7 lm/W	899 lm/m	F
3000 K	174.8 lm/W	1345.7 lm/m	C	152.1 lm/W	1170.9 lm/m	D	123.7 lm/W	952.3 lm/m	E
3500 K	177.3 lm/W	1365.3 lm/m	C	155.3 lm/W	1196 lm/m	D	127.8 lm/W	984.4 lm/m	E
4000 K	180.7 lm/W	1391.2 lm/m	C	156.2 lm/W	1203.1 lm/m	D	129 lm/W	993 lm/m	E
5000 K	180.4 lm/W	1388.8 lm/m	C	157.3 lm/W	1210.9 lm/m	D	129.7 lm/W	998.7 lm/m	E
6500 K	172.9 lm/W	1331.6 lm/m	C	150.2 lm/W	1156.8 lm/m	D	124.7 lm/W	960.2 lm/m	E

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	139.7 lm/W	1341.2 lm/m	E	117.7 lm/W	1130 lm/m	F	—	—	—
2300 K	152.3 lm/W	1461.7 lm/m	D	131.4 lm/W	1261.2 lm/m	E	106.4 lm/W	1021.4 lm/m	F
2700 K	164.1 lm/W	1575.5 lm/m	D	142.1 lm/W	1364.3 lm/m	E	115.2 lm/W	1105.9 lm/m	F
3000 K	172.4 lm/W	1655.5 lm/m	D	150.1 lm/W	1440.5 lm/m	D	122 lm/W	1171.5 lm/m	E
3500 K	175 lm/W	1679.6 lm/m	C	153.3 lm/W	1471.4 lm/m	D	126.1 lm/W	1211 lm/m	E
4000 K	178.3 lm/W	1711.4 lm/m	C	154.2 lm/W	1480 lm/m	D	127.3 lm/W	1221.6 lm/m	E
5000 K	178 lm/W	1708.5 lm/m	C	155.2 lm/W	1489.7 lm/m	D	128 lm/W	1228.8 lm/m	E
6500 K	170.6 lm/W	1638.2 lm/m	D	148.2 lm/W	1423.1 lm/m	D	123 lm/W	1180.8 lm/m	E

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 11.5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	137.9 lm/W	1585.3 lm/m	E	116.2 lm/W	1335.7 lm/m	F	—	—	—
2300 K	150.2 lm/W	1727.8 lm/m	D	129.6 lm/W	1490.7 lm/m	E	105 lm/W	1207.5 lm/m	F
2700 K	161.9 lm/W	1862.3 lm/m	D	140.2 lm/W	1612.7 lm/m	E	113.7 lm/W	1307.2 lm/m	F
3000 K	170.2 lm/W	1956.9 lm/m	D	148.1 lm/W	1702.7 lm/m	D	120.4 lm/W	1384.7 lm/m	E
3500 K	172.6 lm/W	1985.4 lm/m	D	151.2 lm/W	1739.2 lm/m	D	124.5 lm/W	1431.5 lm/m	E
4000 K	175.9 lm/W	2023 lm/m	C	152.1 lm/W	1749.4 lm/m	D	125.6 lm/W	1444 lm/m	E
5000 K	175.6 lm/W	2019.6 lm/m	C	153.1 lm/W	1760.8 lm/m	D	126.3 lm/W	1452.5 lm/m	E
6500 K	168.4 lm/W	1936.4 lm/m	D	146.3 lm/W	1682.2 lm/m	D	121.4 lm/W	1396.1 lm/m	E

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 15.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	134.1 lm/W	2065.6 lm/m	E	113 lm/W	1740.4 lm/m	F	—	—	—
2300 K	146.2 lm/W	2251.2 lm/m	D	126.1 lm/W	1942.3 lm/m	E	102.2 lm/W	1573.9 lm/m	F
2700 K	157.6 lm/W	2426.4 lm/m	D	136.4 lm/W	2101.2 lm/m	E	110.6 lm/W	1703.3 lm/m	F
3000 K	165.6 lm/W	2549.7 lm/m	D	144.1 lm/W	2218.5 lm/m	E	117.2 lm/W	1804.2 lm/m	F
3500 K	168 lm/W	2586.8 lm/m	D	147.1 lm/W	2266.1 lm/m	D	121.1 lm/W	1865.1 lm/m	E
4000 K	171.2 lm/W	2635.8 lm/m	D	148 lm/W	2279.4 lm/m	D	122.2 lm/W	1881.5 lm/m	E
5000 K	170.9 lm/W	2631.4 lm/m	D	149 lm/W	2294.3 lm/m	D	122.9 lm/W	1892.7 lm/m	E
6500 K	163.8 lm/W	2523 lm/m	D	142.3 lm/W	2191.8 lm/m	E	118.1 lm/W	1818.7 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	130.6 lm/W	2507.5 lm/m	E	110 lm/W	2112.7 lm/m	F	—	—	—
2300 K	142.3 lm/W	2732.8 lm/m	E	122.8 lm/W	2357.8 lm/m	E	99.5 lm/W	1910.4 lm/m	F
2700 K	153.4 lm/W	2945.5 lm/m	D	132.8 lm/W	2550.7 lm/m	E	107.7 lm/W	2067.6 lm/m	F
3000 K	161.2 lm/W	3095.1 lm/m	D	140.3 lm/W	2693.1 lm/m	E	114.1 lm/W	2190.2 lm/m	F
3500 K	163.6 lm/W	3140.2 lm/m	D	143.3 lm/W	2750.8 lm/m	E	117.9 lm/W	2264.1 lm/m	F
4000 K	166.6 lm/W	3199.7 lm/m	D	144.1 lm/W	2767 lm/m	E	119 lm/W	2283.9 lm/m	E
5000 K	166.4 lm/W	3194.3 lm/m	D	145.1 lm/W	2785.1 lm/m	E	119.7 lm/W	2298.2 lm/m	E
6500 K	159.5 lm/W	3062.7 lm/m	D	138.6 lm/W	2660.7 lm/m	E	115 lm/W	2208 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 7.7 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	115.5 lm/W	889.2 lm/m	E	92.6 lm/W	712.6 lm/m	F	—	—	—
2300 K	128.8 lm/W	991.8 lm/m	E	103.1 lm/W	793.8 lm/m	F	83.5 lm/W	643 lm/m	G
2700 K	138.8 lm/W	1069 lm/m	D	111.9 lm/W	861.4 lm/m	E	90.7 lm/W	698.3 lm/m	F
3000 K	145.7 lm/W	1122.3 lm/m	D	118.2 lm/W	909.9 lm/m	E	96.1 lm/W	739.7 lm/m	F
3500 K	147.9 lm/W	1139 lm/m	D	120.5 lm/W	928.2 lm/m	E	99.2 lm/W	763.6 lm/m	F
4000 K	152.3 lm/W	1172.4 lm/m	D	123 lm/W	947.3 lm/m	E	101.6 lm/W	782.6 lm/m	F
5000 K	152 lm/W	1170.8 lm/m	D	123 lm/W	947.3 lm/m	E	101.5 lm/W	781.6 lm/m	F
6500 K	145.7 lm/W	1122.3 lm/m	D	118.2 lm/W	909.9 lm/m	E	98.1 lm/W	755.4 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	114 lm/W	1093.9 lm/m	E	91.3 lm/W	876.7 lm/m	F	—	—	—
2300 K	127.1 lm/W	1220.2 lm/m	E	101.7 lm/W	976.5 lm/m	F	82.4 lm/W	791 lm/m	G
2700 K	137 lm/W	1315.1 lm/m	D	110.4 lm/W	1059.7 lm/m	E	89.5 lm/W	859.1 lm/m	F
3000 K	143.8 lm/W	1380.6 lm/m	D	116.6 lm/W	1119.4 lm/m	E	94.8 lm/W	910 lm/m	F
3500 K	146 lm/W	1401.2 lm/m	D	118.9 lm/W	1141.9 lm/m	E	97.8 lm/W	939.3 lm/m	F
4000 K	150.2 lm/W	1442.3 lm/m	D	121.4 lm/W	1165.4 lm/m	E	100.3 lm/W	962.8 lm/m	F
5000 K	150 lm/W	1440.3 lm/m	D	121.4 lm/W	1165.4 lm/m	E	100.1 lm/W	961 lm/m	F
6500 K	143.8 lm/W	1380.6 lm/m	D	116.6 lm/W	1119.4 lm/m	E	96.8 lm/W	929.3 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 11.5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	112.4 lm/W	1293.1 lm/m	E	90.1 lm/W	1036.3 lm/m	F	—	—	—
2300 K	125.4 lm/W	1442.3 lm/m	E	100.4 lm/W	1154.3 lm/m	F	81.3 lm/W	935 lm/m	G
2700 K	135.2 lm/W	1554.5 lm/m	D	108.9 lm/W	1252.6 lm/m	F	88.3 lm/W	1015.5 lm/m	F
3000 K	141.9 lm/W	1632 lm/m	D	115.1 lm/W	1323.1 lm/m	E	93.5 lm/W	1075.6 lm/m	F
3500 K	144 lm/W	1656.2 lm/m	D	117.4 lm/W	1349.7 lm/m	E	96.6 lm/W	1110.3 lm/m	F
4000 K	148.2 lm/W	1704.8 lm/m	D	119.8 lm/W	1377.5 lm/m	E	99 lm/W	1138.1 lm/m	F
5000 K	148 lm/W	1702.5 lm/m	D	119.8 lm/W	1377.5 lm/m	E	98.8 lm/W	1136.2 lm/m	F
6500 K	141.9 lm/W	1632 lm/m	D	115.1 lm/W	1323.1 lm/m	E	95.5 lm/W	1098.3 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 15.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	109.4 lm/W	1684.8 lm/m	F	87.7 lm/W	1350.2 lm/m	F	—	—	—
2300 K	122 lm/W	1879.2 lm/m	E	97.7 lm/W	1504 lm/m	F	79.1 lm/W	1218.1 lm/m	G
2700 K	131.5 lm/W	2025.4 lm/m	E	106 lm/W	1632.1 lm/m	F	85.9 lm/W	1323.1 lm/m	F
3000 K	138.1 lm/W	2126.3 lm/m	D	111.9 lm/W	1724 lm/m	E	91 lm/W	1401.5 lm/m	F
3500 K	140.1 lm/W	2158 lm/m	D	114.2 lm/W	1758.6 lm/m	E	93.9 lm/W	1446.7 lm/m	F
4000 K	144.2 lm/W	2221.3 lm/m	D	116.5 lm/W	1794.8 lm/m	E	96.3 lm/W	1482.9 lm/m	F
5000 K	144 lm/W	2218.3 lm/m	D	116.5 lm/W	1794.8 lm/m	E	96.2 lm/W	1481.5 lm/m	F
6500 K	138.1 lm/W	2126.3 lm/m	D	111.9 lm/W	1724 lm/m	E	92.9 lm/W	1430.7 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	106.5 lm/W	2045.2 lm/m	F	85.4 lm/W	1639.1 lm/m	F	—	—	—
2300 K	118.8 lm/W	2281.2 lm/m	E	95.1 lm/W	1825.7 lm/m	F	77 lm/W	1478.4 lm/m	G
2700 K	128.1 lm/W	2458.6 lm/m	E	103.2 lm/W	1981.2 lm/m	F	83.7 lm/W	1606.2 lm/m	G
3000 K	134.4 lm/W	2581.2 lm/m	E	109 lm/W	2092.8 lm/m	F	88.6 lm/W	1701.3 lm/m	F
3500 K	136.4 lm/W	2619.6 lm/m	D	111.2 lm/W	2134.8 lm/m	E	91.5 lm/W	1756.2 lm/m	F
4000 K	140.4 lm/W	2696.4 lm/m	D	113.5 lm/W	2178.7 lm/m	E	93.8 lm/W	1800.1 lm/m	F
5000 K	140.2 lm/W	2692.8 lm/m	D	113.5 lm/W	2178.7 lm/m	E	93.6 lm/W	1797.1 lm/m	F
6500 K	134.4 lm/W	2581.2 lm/m	E	109 lm/W	2092.8 lm/m	F	90.5 lm/W	1737.6 lm/m	F

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 19.2W/m, 10419 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 10419?

10419: 2835, 128 LEDs/m, DC 24V, 8mm PCB, 3 oz copper FPCB, cuttable 8LEDs/62.5mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

Which environments is this high efficacy LED strip lights rated for?

Ingress protection for this model is listed in the datasheet. As a high efficacy LED strip lights it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.

Can DENO customise this high efficacy LED strip lights for a project?

Yes. DENO manufactures the High Light Efficacy SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

How much can a high efficacy LED strip cut energy use?

Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.

Which LED driver and run length suit #10419?

8mm | 24V | 128LEDs | 62.5cut | #10419 | 2835 High Lumen High Light Efficacy LED Strip Light is a constant-voltage DC 24V product, so pair it with a CE or UL listed DC 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.

Engineering & selection guide

Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.

High Efficiency LED Strips series — High Efficiency LED Strip — Buyer Questions
LED strip engineering selection handbook
