2835 High Lumen High Density LED Strip Light (#10023)
8mm · 24V · 240LEDs · 33.3mm/cut
Model: 10023
Overview

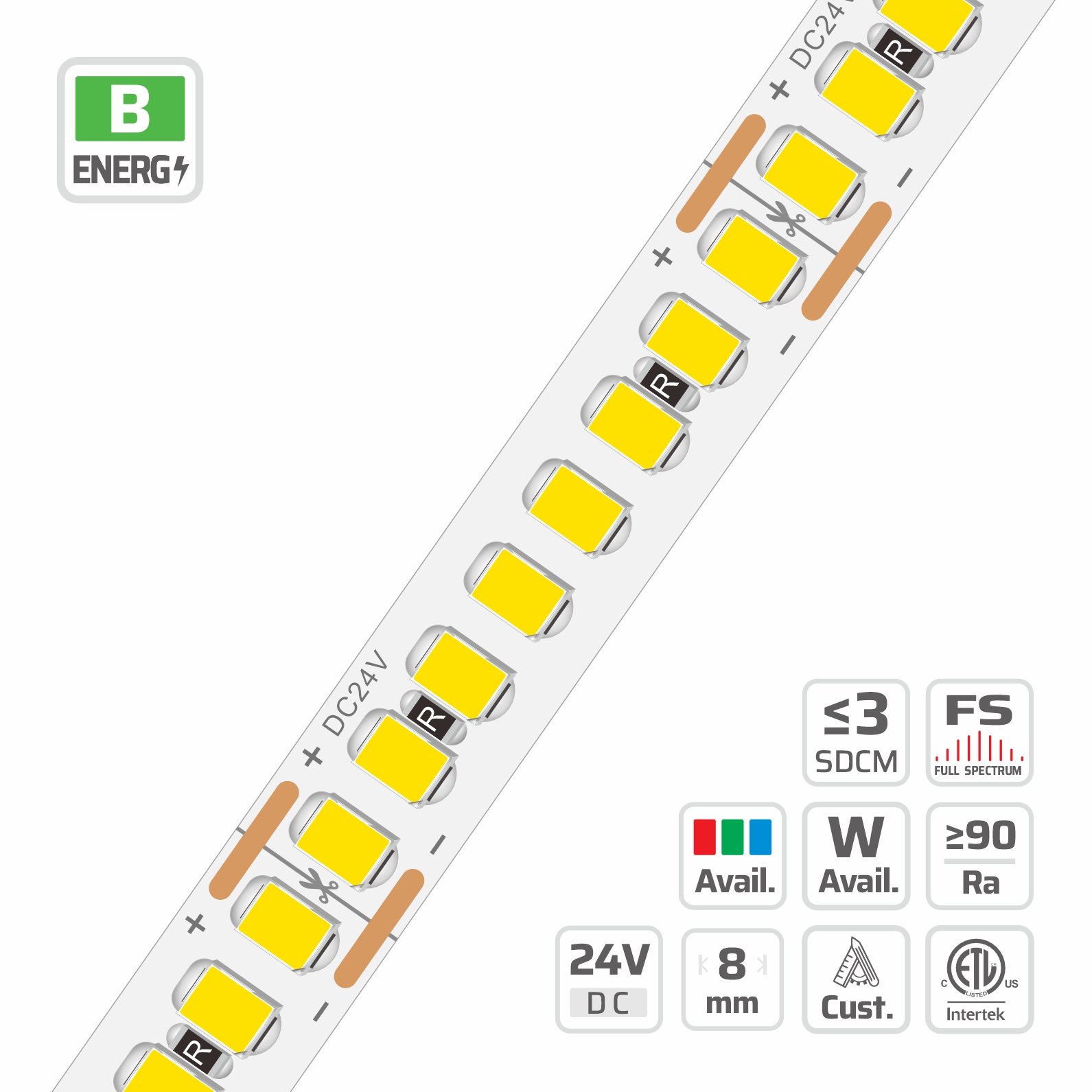

8mm | 24V | 240LEDs | 33.3mm/cut | #10023 | 2835 High Lumen High Density LED Strip Light is part of the DENO High Density LED Strips series, engineered around ultra high density LED strip. Key specifications: 2835, 240 LEDs/m, 24V, 8mm PCB, 3oz copper FPCB, cuttable 8LEDs/33.33mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 240 SMD 2835 chips per meter on an 8mm PCB, this high density LED strip light delivers continuous illumination for architectural lighting projects. Operating on constant voltage 24V DC with full dimming support, the strip offers precise cuttable intervals of 33.33mm for exact field measurements. Heavy-duty 3oz copper foil combined with pure copper LED frames and gold wire encapsulation ensures robust thermal management and durability. A wide 120-degree beam angle and a minimum bend diameter of 60mm allow smooth installation within operating temperatures ranging from -25°C to 40°C. Available in maximum continuous runs of 5 meters, our factory-direct wholesale project supply supports demanding commercial and cove lighting installations.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 240 LEDs/m |
|---|---|
| PART NO | DL-F28A120V24-10023-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 8LEDs/33.33mm |
| DIMMABLE | Yes |
| IP RATING | IP67 |
| LED PITCH | 4.16mm |
| PCB WIDTH | 8mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 3.6~19.2W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Facade, landscape & bathroom runs (IP67) — IP67 sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #10023
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 211.6 lm/W at 4000K, Ra 80, ErP energy class B (Grade DN (1st Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 152.8 lm/W | 1100.4 lm/m | D | 122.7 lm/W | 883.3 lm/m | E | — | — | — |
| 2300 K | 170.2 lm/W | 1225.2 lm/m | C | 136.7 lm/W | 984.1 lm/m | D | 110.7 lm/W | 797 lm/m | E |
| 2700 K | 180 lm/W | 1296 lm/m | C | 147.8 lm/W | 1064.2 lm/m | D | 119.8 lm/W | 862.5 lm/m | E |
| 3000 K | 191.6 lm/W | 1379.2 lm/m | B | 155.6 lm/W | 1120.4 lm/m | D | 126.5 lm/W | 911 lm/m | E |
| 3500 K | 194.3 lm/W | 1399.2 lm/m | B | 158.4 lm/W | 1140.5 lm/m | D | 130.4 lm/W | 938.7 lm/m | E |
| 4000 K | 200.5 lm/W | 1443.9 lm/m | B | 162.1 lm/W | 1167.4 lm/m | C | 133.9 lm/W | 964.1 lm/m | E |
| 5000 K | 200.3 lm/W | 1442.3 lm/m | B | 162.1 lm/W | 1167.4 lm/m | C | 133.8 lm/W | 963.4 lm/m | E |
| 6500 K | 183.7 lm/W | 1323 lm/m | C | 155.5 lm/W | 1119.7 lm/m | D | 129.1 lm/W | 929.5 lm/m | E |
Grade DL (2nd Tier) · 14.44W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 145.3 lm/W | 2091.7 lm/m | D | 116.6 lm/W | 1678.9 lm/m | E | — | — | — |
| 2300 K | 161.7 lm/W | 2328.8 lm/m | C | 129.9 lm/W | 1870.7 lm/m | E | 105.2 lm/W | 1514.9 lm/m | F |
| 2700 K | 171.1 lm/W | 2463.5 lm/m | C | 140.5 lm/W | 2022.9 lm/m | D | 113.8 lm/W | 1639.4 lm/m | E |
| 3000 K | 182.1 lm/W | 2621.6 lm/m | C | 147.9 lm/W | 2129.8 lm/m | D | 120.3 lm/W | 1731.6 lm/m | E |
| 3500 K | 184.7 lm/W | 2659.7 lm/m | C | 150.5 lm/W | 2167.8 lm/m | D | 123.9 lm/W | 1784.3 lm/m | E |
| 4000 K | 190.6 lm/W | 2744.6 lm/m | B | 154.1 lm/W | 2219.1 lm/m | D | 127.3 lm/W | 1832.6 lm/m | E |
| 5000 K | 190.4 lm/W | 2741.6 lm/m | B | 154.1 lm/W | 2219.1 lm/m | D | 127.1 lm/W | 1830.2 lm/m | E |
| 6500 K | 174.6 lm/W | 2514.7 lm/m | C | 147.8 lm/W | 2128.3 lm/m | D | 122.7 lm/W | 1766.9 lm/m | E |
Grade DL (2nd Tier) · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 141.7 lm/W | 2550.1 lm/m | D | 113.7 lm/W | 2046.8 lm/m | E | — | — | — |
| 2300 K | 157.7 lm/W | 2839.2 lm/m | D | 126.7 lm/W | 2280.6 lm/m | E | 102.6 lm/W | 1846.8 lm/m | F |
| 2700 K | 166.9 lm/W | 3003.3 lm/m | C | 137 lm/W | 2466.2 lm/m | D | 111 lm/W | 1998.7 lm/m | E |
| 3000 K | 177.6 lm/W | 3196.1 lm/m | C | 144.2 lm/W | 2596.5 lm/m | D | 117.3 lm/W | 2111.1 lm/m | E |
| 3500 K | 180.1 lm/W | 3242.5 lm/m | C | 146.8 lm/W | 2642.9 lm/m | D | 120.9 lm/W | 2175.3 lm/m | E |
| 4000 K | 185.9 lm/W | 3346 lm/m | B | 150.3 lm/W | 2705.3 lm/m | D | 124.1 lm/W | 2234.2 lm/m | E |
| 5000 K | 185.7 lm/W | 3342.4 lm/m | B | 150.3 lm/W | 2705.3 lm/m | D | 124 lm/W | 2232 lm/m | E |
| 6500 K | 170.3 lm/W | 3065.8 lm/m | C | 144.1 lm/W | 2594.7 lm/m | D | 119.6 lm/W | 2152.8 lm/m | E |
Grade KE (3rd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 140.7 lm/W | 1012.9 lm/m | D | 112.8 lm/W | 812.4 lm/m | E | — | — | — |
| 2300 K | 156.8 lm/W | 1128.6 lm/m | D | 125.8 lm/W | 905.5 lm/m | E | 101.9 lm/W | 733.7 lm/m | F |
| 2700 K | 169 lm/W | 1217.1 lm/m | C | 136.5 lm/W | 982.6 lm/m | D | 110.6 lm/W | 796.5 lm/m | E |
| 3000 K | 177.5 lm/W | 1277.6 lm/m | C | 144.1 lm/W | 1037.8 lm/m | D | 117.2 lm/W | 844.2 lm/m | E |
| 3500 K | 180.1 lm/W | 1296.6 lm/m | C | 147 lm/W | 1058.3 lm/m | D | 120.9 lm/W | 870.7 lm/m | E |
| 4000 K | 185.4 lm/W | 1335.1 lm/m | B | 150.1 lm/W | 1081 lm/m | D | 123.9 lm/W | 891.9 lm/m | E |
| 5000 K | 185.1 lm/W | 1332.9 lm/m | B | 150 lm/W | 1080.2 lm/m | D | 123.8 lm/W | 891.4 lm/m | E |
| 6500 K | 177.5 lm/W | 1277.6 lm/m | C | 144 lm/W | 1037.1 lm/m | D | 119.6 lm/W | 861.1 lm/m | E |
Grade KE (3rd Tier) · 14.44W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 133.7 lm/W | 1925.3 lm/m | E | 107.2 lm/W | 1544.3 lm/m | F | — | — | — |
| 2300 K | 149 lm/W | 2145.3 lm/m | D | 119.5 lm/W | 1721.1 lm/m | E | 96.8 lm/W | 1393.9 lm/m | F |
| 2700 K | 160.7 lm/W | 2313.5 lm/m | C | 129.7 lm/W | 1867.8 lm/m | E | 105.1 lm/W | 1514.1 lm/m | F |
| 3000 K | 168.7 lm/W | 2428.6 lm/m | C | 137 lm/W | 1972.8 lm/m | D | 111.4 lm/W | 1604.7 lm/m | E |
| 3500 K | 171.1 lm/W | 2464.5 lm/m | C | 139.7 lm/W | 2011.6 lm/m | D | 114.9 lm/W | 1655 lm/m | E |
| 4000 K | 176.2 lm/W | 2537.9 lm/m | C | 142.7 lm/W | 2054.7 lm/m | D | 117.7 lm/W | 1695.3 lm/m | E |
| 5000 K | 175.9 lm/W | 2533.5 lm/m | C | 142.6 lm/W | 2053.3 lm/m | D | 117.6 lm/W | 1693.4 lm/m | E |
| 6500 K | 168.7 lm/W | 2428.6 lm/m | C | 136.9 lm/W | 1971.3 lm/m | D | 113.6 lm/W | 1635.8 lm/m | E |
Grade KE (3rd Tier) · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 130.4 lm/W | 2347.2 lm/m | E | 104.6 lm/W | 1882.7 lm/m | F | — | — | — |
| 2300 K | 145.3 lm/W | 2615.4 lm/m | D | 116.6 lm/W | 2098.3 lm/m | E | 94.4 lm/W | 1699.2 lm/m | F |
| 2700 K | 156.7 lm/W | 2820.5 lm/m | D | 126.5 lm/W | 2277.1 lm/m | E | 102.5 lm/W | 1845.9 lm/m | F |
| 3000 K | 164.5 lm/W | 2960.7 lm/m | C | 133.6 lm/W | 2405.1 lm/m | E | 108.7 lm/W | 1956.3 lm/m | F |
| 3500 K | 166.9 lm/W | 3004.6 lm/m | C | 136.2 lm/W | 2452.4 lm/m | D | 112.1 lm/W | 2017.7 lm/m | E |
| 4000 K | 171.9 lm/W | 3094 lm/m | C | 139.2 lm/W | 2505 lm/m | D | 114.8 lm/W | 2066.7 lm/m | E |
| 5000 K | 171.6 lm/W | 3088.7 lm/m | C | 139.1 lm/W | 2503.2 lm/m | D | 114.7 lm/W | 2064.6 lm/m | E |
| 6500 K | 164.5 lm/W | 2960.7 lm/m | C | 133.5 lm/W | 2403.3 lm/m | E | 110.8 lm/W | 1994.4 lm/m | E |
Grade DN (1st Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 165.8 lm/W | 1194 lm/m | D | 139.9 lm/W | 1007.1 lm/m | E | — | — | — |
| 2300 K | 180.8 lm/W | 1301.5 lm/m | C | 156 lm/W | 1123.1 lm/m | D | 126.4 lm/W | 910.1 lm/m | E |
| 2700 K | 194.8 lm/W | 1402.8 lm/m | C | 168.9 lm/W | 1215.8 lm/m | D | 136.8 lm/W | 985.3 lm/m | E |
| 3000 K | 204.7 lm/W | 1473.6 lm/m | B | 178.2 lm/W | 1282.8 lm/m | C | 145 lm/W | 1043.7 lm/m | E |
| 3500 K | 207.7 lm/W | 1495.4 lm/m | B | 182.1 lm/W | 1310.9 lm/m | C | 149.8 lm/W | 1078.7 lm/m | D |
| 4000 K | 211.6 lm/W | 1523.5 lm/m | B | 183 lm/W | 1317.9 lm/m | C | 151.1 lm/W | 1088.1 lm/m | D |
| 5000 K | 211.3 lm/W | 1521.2 lm/m | B | 184.3 lm/W | 1327.2 lm/m | C | 152.1 lm/W | 1095.1 lm/m | D |
| 6500 K | 202.5 lm/W | 1458.1 lm/m | B | 176.1 lm/W | 1268 lm/m | C | 146.2 lm/W | 1052.6 lm/m | D |
Grade DN (1st Tier) · 14.44W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 157.6 lm/W | 2269.6 lm/m | D | 132.9 lm/W | 1914.3 lm/m | E | — | — | — |
| 2300 K | 171.8 lm/W | 2473.9 lm/m | C | 148.3 lm/W | 2134.9 lm/m | D | 120.1 lm/W | 1729.4 lm/m | E |
| 2700 K | 185.2 lm/W | 2666.4 lm/m | B | 160.5 lm/W | 2311.1 lm/m | C | 130.1 lm/W | 1872.9 lm/m | E |
| 3000 K | 194.5 lm/W | 2801.1 lm/m | B | 169.3 lm/W | 2438.4 lm/m | C | 137.8 lm/W | 1983.9 lm/m | D |
| 3500 K | 197.4 lm/W | 2842.6 lm/m | B | 173 lm/W | 2491.7 lm/m | C | 142.4 lm/W | 2050.5 lm/m | D |
| 4000 K | 201.1 lm/W | 2895.9 lm/m | B | 174 lm/W | 2505 lm/m | C | 143.6 lm/W | 2068.3 lm/m | D |
| 5000 K | 200.8 lm/W | 2891.4 lm/m | B | 175.2 lm/W | 2522.8 lm/m | C | 144.5 lm/W | 2080.8 lm/m | E |
| 6500 K | 192.5 lm/W | 2771.5 lm/m | B | 167.4 lm/W | 2410.3 lm/m | C | 138.9 lm/W | 2000.2 lm/m | E |
Grade DN (1st Tier) · 18W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 153.7 lm/W | 2767 lm/m | D | 129.7 lm/W | 2333.8 lm/m | E | — | — | — |
| 2300 K | 167.6 lm/W | 3016.1 lm/m | D | 144.6 lm/W | 2602.7 lm/m | E | 117.1 lm/W | 2107.8 lm/m | F |
| 2700 K | 180.6 lm/W | 3250.7 lm/m | C | 156.5 lm/W | 2817.5 lm/m | D | 126.8 lm/W | 2283.2 lm/m | E |
| 3000 K | 189.7 lm/W | 3414.9 lm/m | C | 165.2 lm/W | 2972.7 lm/m | D | 134.4 lm/W | 2418.6 lm/m | E |
| 3500 K | 192.5 lm/W | 3465.5 lm/m | C | 168.8 lm/W | 3037.7 lm/m | D | 138.9 lm/W | 2499.8 lm/m | E |
| 4000 K | 196.1 lm/W | 3530.5 lm/m | C | 169.7 lm/W | 3054 lm/m | D | 140.1 lm/W | 2521.5 lm/m | E |
| 5000 K | 195.8 lm/W | 3525 lm/m | C | 170.9 lm/W | 3075.6 lm/m | D | 141 lm/W | 2538 lm/m | E |
| 6500 K | 187.7 lm/W | 3378.8 lm/m | C | 163.2 lm/W | 2938.4 lm/m | D | 135.5 lm/W | 2439 lm/m | E |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 18W/m, 10023 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
- 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
- 12x15mm Surface Mount LED Channel · fits ≤8mm strip
- Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
- 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
- 14x8mm Surface Mount LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 10023?
10023: 2835, 240 LEDs/m, 24V, 8mm PCB, 3oz copper FPCB, cuttable 8LEDs/33.33mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra high density LED strip be?
Maximum single run for this model is 5M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra high density LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra high density LED strip for a project?
Yes. DENO manufactures the High Density LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How many LEDs per metre does a dotless LED strip need?
Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.
How much can a high efficacy LED strip cut energy use?
Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.
