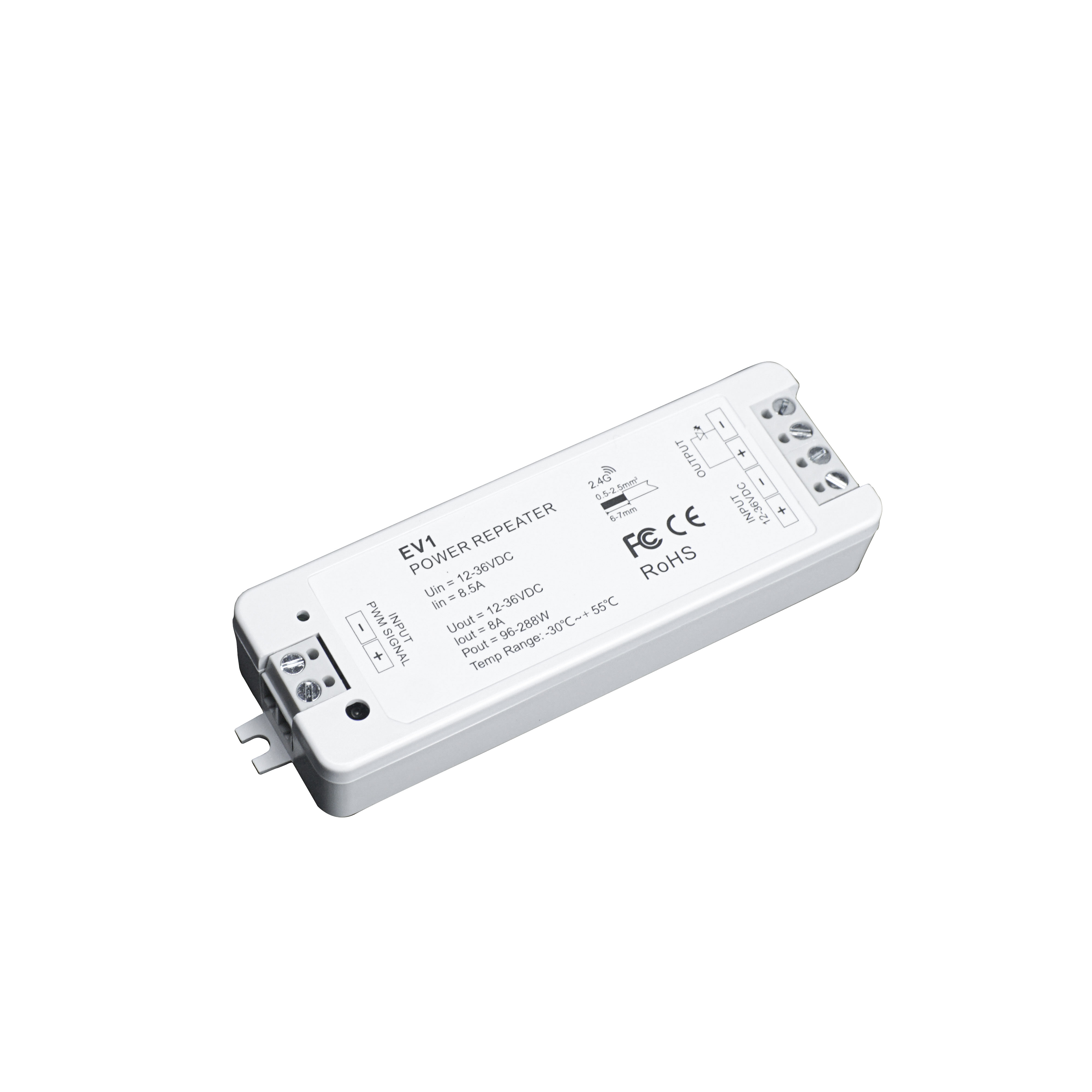

12-36V 1-Channel * 8A Constant Voltage Power Expander (#EV1)

EV1

Model: EV1

EV1 12-36V 1-Channel * 8A Constant Voltage Power Expander | EV1 — 36V

Overview

The DENO EV1 is a 12-36V 1-channel * 8A constant voltage power expander designed for architectural linear lighting applications. This unit extends the reach and capacity of constant voltage LED drivers, enabling longer runs of LED strip lighting without significant voltage drop or dimming performance degradation. Encased in anodised 6063 aluminium with a diffuser and end caps, it integrates seamlessly into LED aluminum profiles. As an OEM/ODM product, it supports large-scale B2B projects requiring reliable power distribution for LED installations.

Description

Constant-voltage power expander (signal repeater) for 12-36V LED installations, rated up to 8A on its single output channel. It takes the control signal from an upstream controller and re-drives it with its own power input, so a long run or a high-wattage load can be extended beyond the output rating of the controller itself. Used where one control zone needs more current than a single controller can supply.

Specifications

INPUT VOLTAGEDC36V

Applications

  • Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
  • Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
  • Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
  • Long corridor & warehouse runs — Long single-feed runs on 36V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.

Request a quotation for #EV1

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

  • Warranty: 5 years
  • Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
  • Compliance: CE · UL · RoHS
  • Bonding wire: 99.99% pure gold
  • Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Related models in this series

See every model in Power Supplies or narrow to 24V. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What is the primary function of the 12-36V 1-channel * 8A constant voltage power expander (EV1)?

The EV1 power expander is designed to extend the effective distance and load capacity of constant voltage LED drivers. It amplifies the signal from a constant voltage dimmer, allowing for longer LED strip runs or higher wattage loads while maintaining consistent brightness and dimming performance across the entire installation.

What are the input and output voltage ranges for the EV1 power expander?

The EV1 operates within a 12-36V DC input voltage range. It outputs the same constant voltage as its input, up to a maximum of 8A per channel. This allows it to be compatible with various constant voltage LED strips, ensuring system flexibility for different project requirements.

Can the EV1 be integrated into existing LED aluminum profiles?

Yes, the EV1 is designed with a compact form factor and an anodised 6063 aluminium casing, making it suitable for integration into various LED aluminum profiles. Its inclusion helps to maintain a clean aesthetic while providing necessary power distribution for linear lighting installations.

What are the typical lead times and minimum order quantities (MOQ) for OEM/ODM orders of the EV1?

As an OEM/ODM manufacturer, DENO LED offers customizable solutions for the EV1. Lead times and MOQs are project-dependent, influenced by order volume, specific customization requirements, and current production schedules. Please contact our sales team directly for detailed information tailored to your project needs.

What are the key specifications of #EV1?

12-36V 1-Channel * 8A Constant Voltage Power Expander | EV1: full technical data. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.

Engineering & selection guide

Driver sizing against total strip load, output voltage matching, dimming protocol compatibility and channel current limits are covered on the series page.
