Precision Showcase Lighting System (#DL-MT 001L/002L)
Micro Magnetic Track Light · DL-MT 001L/002L
Model: DL-MT 001L/002L
Description

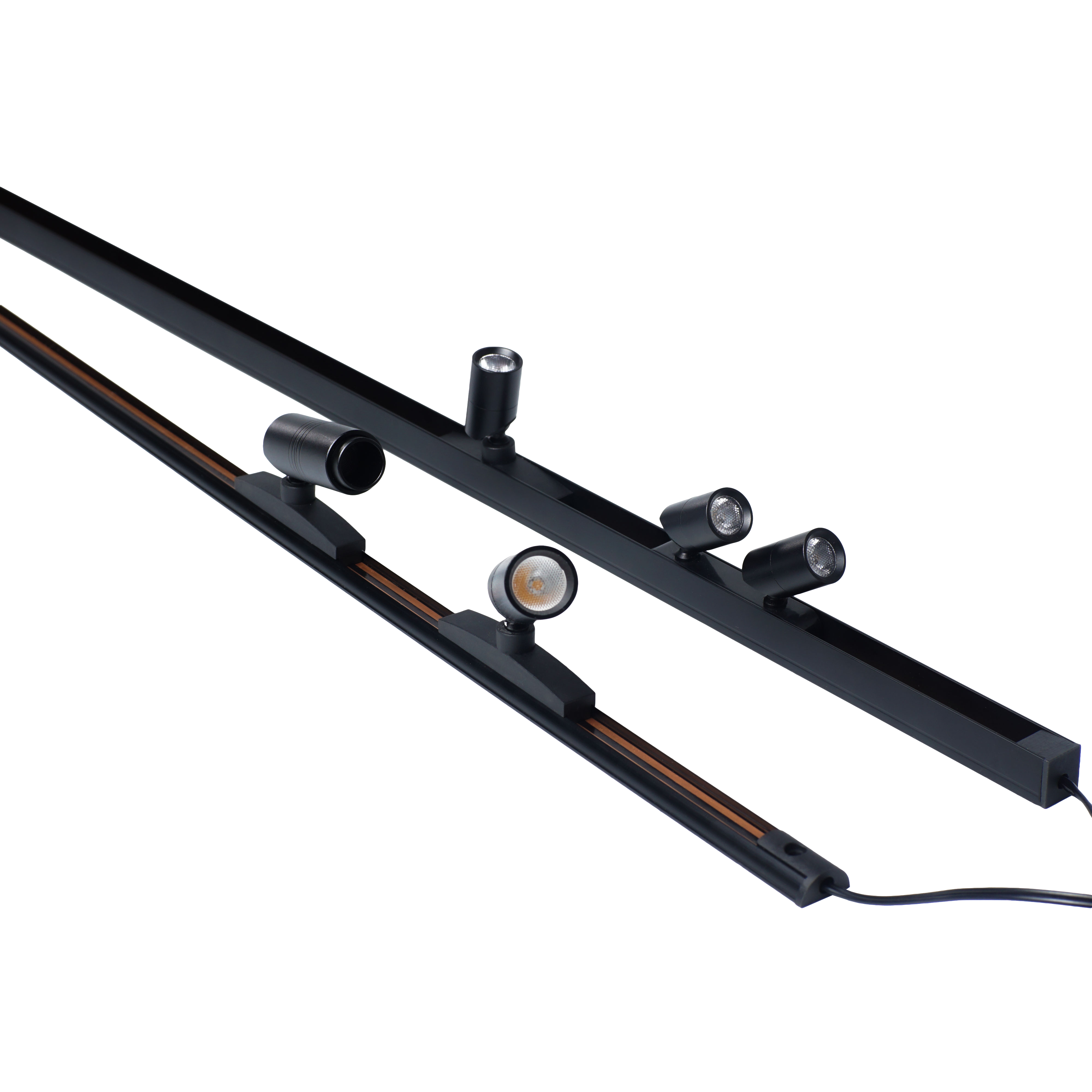

DL-MT 001L/002L | Micro Magnetic Track Light | Precision Showcase Lighting System Ultimate lighting effect and realistic color rendering.Features a beaded anti-glare design with a 25° precision lens for uniform, spot-free illumination. High CRI restores natural light, perfectly presenting the true colors and textures of exhibits. The magnetic module slides seamlessly along the track. Each of the 4 heads features a smooth damping mechanism (90° vertical tilt, 360° horizontal rotation), allowing tool-free repositioning for dynamic, multi-angle showcase displays. Engineered with an anodized aviation-aluminum shell for fast heat dissipation and long lifespan. Paired with a high-strength ABS flame-retardant base, DC12V SELV low voltage, and a secure magnetic lock system to eliminate electrical hazards and accidental falls. Mainly used in high-end jewelry display cabinets, museum cultural relics display cabinets, luxury watch counters, and beauty boutique display racks.
Specifications
| SMD TYPE | 3030 |
|---|---|
| DIMMABLE | Yes |
| BEAM ANGLE | 15°、25° |
| COLOR TYPE | Single Color |
| POWER RANGE | 1W~2W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 12V |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #DL-MT 001L/002L
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: samples from 1–5 working days, mass production 1–2 weeks
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 77.8 lm/W at 4000K, Ra 90, ErP energy class G (Grade DL (2nd Tier) · 2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 1.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 48.7 lm/W | 73 lm/m | G | — | — | — |
| 2300 K | — | — | — | 54.3 lm/W | 81.4 lm/m | G | — | — | — |
| 2700 K | — | — | — | 58.7 lm/W | 88 lm/m | G | — | — | — |
| 3000 K | — | — | — | 61.8 lm/W | 92.6 lm/m | G | — | — | — |
| 3500 K | — | — | — | 62.9 lm/W | 94.3 lm/m | G | — | — | — |
| 4000 K | — | — | — | 64.4 lm/W | 96.6 lm/m | G | — | — | — |
| 5000 K | — | — | — | 64.4 lm/W | 96.6 lm/m | G | — | — | — |
| 6500 K | — | — | — | 61.7 lm/W | 92.5 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 58.9 lm/W | 117.7 lm/m | G | — | — | — |
| 2300 K | — | — | — | 65.6 lm/W | 131.1 lm/m | G | — | — | — |
| 2700 K | — | — | — | 71 lm/W | 142 lm/m | G | — | — | — |
| 3000 K | — | — | — | 74.7 lm/W | 149.4 lm/m | G | — | — | — |
| 3500 K | — | — | — | 76 lm/W | 152 lm/m | G | — | — | — |
| 4000 K | — | — | — | 77.8 lm/W | 155.6 lm/m | G | — | — | — |
| 5000 K | — | — | — | 77.8 lm/W | 155.6 lm/m | G | — | — | — |
| 6500 K | — | — | — | 74.6 lm/W | 149.2 lm/m | G | — | — | — |
