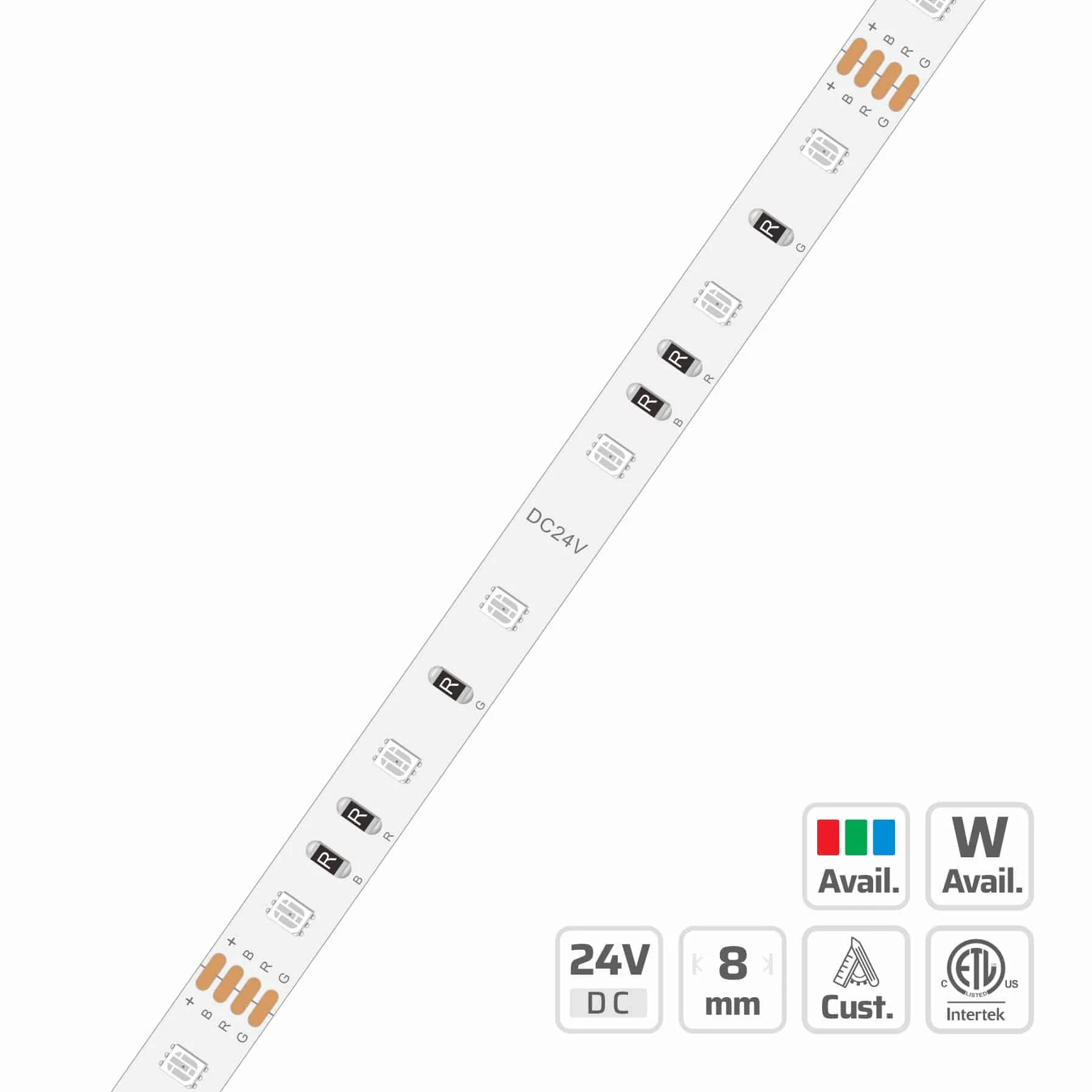

3528 Classic LED Strip Light (#7229)

8mm · 24V · 60LEDs · 12W · 100cut

Model: 7229

7229 3528 Classic LED Strip Light | 8mm | 24V | 60LEDs | 12W | 100cut | #7229 — 24V, cuttable every 100mm, 8mm FPCB width, 3528 LEDs, 60 LEDs/m, 2700-6500

Overview

3528 Classic LED Strip Light | 8mm | 24V | 60LEDs | 12W | 100cut | #7229 is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 3528, 60, 24V, 8 PCB, cuttable 100mm, IP20/IP65/IP67/IP68, CRI Ra≥80. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

The 3528 classic LED strip light features an 8mm PCB width and runs on a 24V input delivering 12W per meter. Equipped with 60 LEDs per meter, it produces 385 lm/m across 2700K to 6500K color temperatures for architectural cove lighting. This dimmable tape light maintains a color rendering index of Ra≥80 and under 3 SDCM single binning for precise color consistency. Engineered with 100mm cuttable increments and a 120° beam angle, it comes in IP20, IP65, IP67, and IP68 protection options. Operating reliably from -20°C to +50°C, DENO offers factory-direct wholesale project supply and OEM custom configurations for global contractors.

24v Smd Led Strip Lights built for classic smd strips projects.

Specifications

CCT (K)	2700-6500
CRI	Ra≥80
SDCM	< 3 SDCM (Single Bin)
POWER (W/M)	12 W/m
LED QTY	60
PART NO	DL-F35A30V24-7229-*
SMD TYPE	3528
CUTTABLE UNIT	100mm
DIMMABLE	Yes
IP RATING	IP20/IP65/IP67/IP68
LED PITCH	6LEDs/16.6mm
LIFESPAN	50000
PCB WIDTH	8mm
WARRANTY	5 Years
BEAM ANGLE	120°
RUN LENGTH	5m
COPPER FOIL	2oz
POWER RANGE	12 W/m
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	24V
LUMINOUS FLUX	385 lm/m
OPERATING TEMPERATURE	-25~40°C; Tc: 75°C (max)

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #7229

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to 3528. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 7229?

7229: 3528, 60, 24V, 8 PCB, cuttable 100mm, IP20/IP65/IP67/IP68, CRI Ra≥80. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

How long can a single run of this 24V SMD LED strip lights be?

Maximum single run for this model is listed in the datasheet. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.

Can DENO customise this 24V SMD LED strip lights for a project?

Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Which SMD LED strip density should you specify?

For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.

Which LED driver and run length suit #7229?

3528 Classic LED Strip Light | 8mm | 24V | 60LEDs | 12W | 100cut | #7229 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
