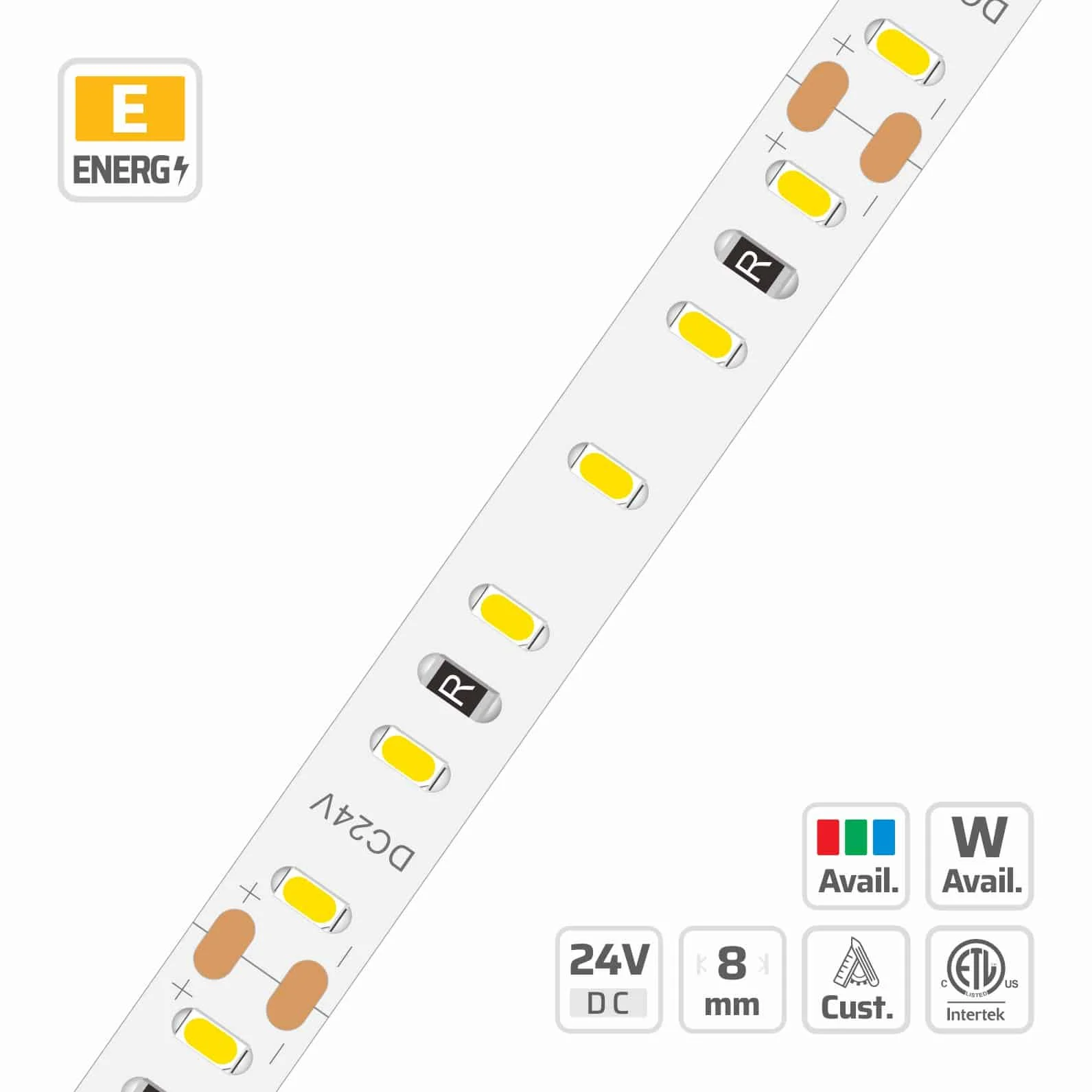

3014 Classic LED Strip Light (#2416)
8mm · 24V · 120LEDs · 50cut
Model: 2416
Overview
3014 Classic LED Strip Light | 8mm | 24V | 120LEDs | 50cut | #2416 is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 3014, 120 LEDs/m, 24V, 8 PCB, 2oz copper FPCB, cuttable 6LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 24V 3014 Classic LED strip light features a narrow 8mm PCB engineered with 2oz copper foil for reliable wholesale project supply. Equipped with 120 LEDs per meter at an 8.3mm pitch, the strip delivers uniform output and cuts conveniently every 50mm. A wide 120-degree beam angle and smooth dimmable performance make this linear light ideal for discreet cove lighting and architectural details. Single-bin 3 SDCM color consistency across 2000K to 7000K ensures precise color matching across OEM custom lengths and installations.
24v Smd Led Strip Lights built for classic smd strips projects.
Specifications
| LED QTY | 120 LEDs/m |
|---|---|
| PART NO | DL-F34A60V24-2416-* |
| SMD TYPE | 3014 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67/IP68 |
| LED PITCH | 8.3mm |
| PCB WIDTH | 8 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 2oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 2.4~14.4W |
| CIRCUIT TYPE | C.V. (Resistor Based) |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #2416
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 150.1 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 105.9 lm/W | 1016.8 lm/m | F | 84.7 lm/W | 812.7 lm/m | G | — | — | — |
| 2300 K | 117.9 lm/W | 1131.9 lm/m | E | 94.3 lm/W | 905.8 lm/m | F | — | — | — |
| 2700 K | 124 lm/W | 1190 lm/m | E | 102.1 lm/W | 979.8 lm/m | F | 82.8 lm/W | 794.7 lm/m | G |
| 3000 K | 132.7 lm/W | 1274.1 lm/m | E | 107.4 lm/W | 1030.9 lm/m | F | 87.4 lm/W | 838.7 lm/m | F |
| 3500 K | 134.7 lm/W | 1293.1 lm/m | E | 109.4 lm/W | 1049.9 lm/m | F | 90 lm/W | 863.7 lm/m | F |
| 4000 K | 139 lm/W | 1334.1 lm/m | D | 112 lm/W | 1074.9 lm/m | E | 92.5 lm/W | 887.7 lm/m | F |
| 5000 K | 138.9 lm/W | 1333.1 lm/m | D | 111.9 lm/W | 1073.9 lm/m | E | — | — | — |
| 6500 K | 127 lm/W | 1219 lm/m | E | 107.4 lm/W | 1030.9 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 104.2 lm/W | 1249.8 lm/m | F | 83.2 lm/W | 998.9 lm/m | G | — | — | — |
| 2300 K | 115.9 lm/W | 1391.3 lm/m | E | 92.8 lm/W | 1113.3 lm/m | F | — | — | — |
| 2700 K | 121.9 lm/W | 1462.6 lm/m | E | 100.4 lm/W | 1204.3 lm/m | F | 81.4 lm/W | 976.7 lm/m | G |
| 3000 K | 130.5 lm/W | 1566 lm/m | E | 105.6 lm/W | 1267 lm/m | F | 85.9 lm/W | 1030.8 lm/m | F |
| 3500 K | 132.4 lm/W | 1589.3 lm/m | E | 107.5 lm/W | 1290.4 lm/m | F | 88.5 lm/W | 1061.6 lm/m | F |
| 4000 K | 136.6 lm/W | 1639.8 lm/m | D | 110.1 lm/W | 1321.2 lm/m | E | 90.9 lm/W | 1091.1 lm/m | F |
| 5000 K | 136.5 lm/W | 1638.5 lm/m | D | 110 lm/W | 1319.9 lm/m | F | — | — | — |
| 6500 K | 124.9 lm/W | 1498.3 lm/m | E | 105.6 lm/W | 1267 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 102.4 lm/W | 1474.7 lm/m | F | 81.8 lm/W | 1178.6 lm/m | G | — | — | — |
| 2300 K | 114 lm/W | 1641.6 lm/m | E | 91.2 lm/W | 1313.6 lm/m | F | — | — | — |
| 2700 K | 119.8 lm/W | 1725.8 lm/m | E | 98.7 lm/W | 1421 lm/m | F | 80 lm/W | 1152.5 lm/m | G |
| 3000 K | 128.3 lm/W | 1847.7 lm/m | E | 103.8 lm/W | 1495 lm/m | F | 84.5 lm/W | 1216.3 lm/m | G |
| 3500 K | 130.2 lm/W | 1875.3 lm/m | E | 105.7 lm/W | 1522.6 lm/m | F | 87 lm/W | 1252.6 lm/m | F |
| 4000 K | 134.4 lm/W | 1934.8 lm/m | E | 108.3 lm/W | 1558.9 lm/m | F | 89.4 lm/W | 1287.5 lm/m | F |
| 5000 K | 134.3 lm/W | 1933.4 lm/m | E | 108.2 lm/W | 1557.4 lm/m | F | — | — | — |
| 6500 K | 122.8 lm/W | 1767.9 lm/m | E | 103.8 lm/W | 1495 lm/m | F | — | — | — |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 117.7 lm/W | 1129.9 lm/m | F | 98.9 lm/W | 949.8 lm/m | F | — | — | — |
| 2300 K | 128.3 lm/W | 1232 lm/m | E | 110.4 lm/W | 1059.9 lm/m | F | — | — | — |
| 2700 K | 138.2 lm/W | 1327.1 lm/m | E | 119.5 lm/W | 1147 lm/m | E | 96.9 lm/W | 929.8 lm/m | F |
| 3000 K | 145.2 lm/W | 1394.2 lm/m | E | 126.1 lm/W | 1211 lm/m | E | 102.6 lm/W | 984.8 lm/m | F |
| 3500 K | 147.4 lm/W | 1415.2 lm/m | D | 128.9 lm/W | 1237 lm/m | E | 106.1 lm/W | 1018.8 lm/m | F |
| 4000 K | 150.1 lm/W | 1441.2 lm/m | D | 129.6 lm/W | 1244 lm/m | E | 107 lm/W | 1026.9 lm/m | F |
| 5000 K | 149.9 lm/W | 1439.2 lm/m | D | 130.4 lm/W | 1252 lm/m | E | — | — | — |
| 6500 K | 143.8 lm/W | 1380.2 lm/m | E | 124.7 lm/W | 1197 lm/m | E | — | — | — |
Grade DN (1st Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 115.7 lm/W | 1388.8 lm/m | F | 97.3 lm/W | 1167.4 lm/m | F | — | — | — |
| 2300 K | 126.2 lm/W | 1514.3 lm/m | E | 108.6 lm/W | 1302.7 lm/m | F | — | — | — |
| 2700 K | 135.9 lm/W | 1631.2 lm/m | E | 117.5 lm/W | 1409.7 lm/m | F | 95.2 lm/W | 1142.8 lm/m | F |
| 3000 K | 142.8 lm/W | 1713.6 lm/m | E | 124 lm/W | 1488.5 lm/m | E | 100.9 lm/W | 1210.4 lm/m | F |
| 3500 K | 145 lm/W | 1739.4 lm/m | E | 126.7 lm/W | 1520.4 lm/m | E | 104.4 lm/W | 1252.3 lm/m | F |
| 4000 K | 147.6 lm/W | 1771.4 lm/m | D | 127.4 lm/W | 1529 lm/m | E | 105.2 lm/W | 1262.1 lm/m | F |
| 5000 K | 147.4 lm/W | 1768.9 lm/m | D | 128.2 lm/W | 1538.9 lm/m | E | — | — | — |
| 6500 K | 141.4 lm/W | 1696.3 lm/m | E | 122.6 lm/W | 1471.2 lm/m | E | — | — | — |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 113.8 lm/W | 1638.7 lm/m | F | 95.7 lm/W | 1377.5 lm/m | F | — | — | — |
| 2300 K | 124.1 lm/W | 1786.8 lm/m | E | 106.7 lm/W | 1537.1 lm/m | F | — | — | — |
| 2700 K | 133.7 lm/W | 1924.7 lm/m | E | 115.5 lm/W | 1663.4 lm/m | F | 93.6 lm/W | 1348.4 lm/m | F |
| 3000 K | 140.4 lm/W | 2021.9 lm/m | E | 122 lm/W | 1756.3 lm/m | E | 99.2 lm/W | 1428.3 lm/m | F |
| 3500 K | 142.5 lm/W | 2052.4 lm/m | E | 124.6 lm/W | 1794 lm/m | E | 102.6 lm/W | 1477.6 lm/m | F |
| 4000 K | 145.1 lm/W | 2090.1 lm/m | E | 125.3 lm/W | 1804.2 lm/m | E | 103.4 lm/W | 1489.2 lm/m | F |
| 5000 K | 144.9 lm/W | 2087.2 lm/m | E | 126.1 lm/W | 1815.8 lm/m | E | — | — | — |
| 6500 K | 139 lm/W | 2001.6 lm/m | E | 120.6 lm/W | 1736 lm/m | E | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 14.4W/m, 2416 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
- 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
- 12x15mm Surface Mount LED Channel · fits ≤8mm strip
- Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
- 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
- 14x8mm Surface Mount LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 3014 High Density LED Strip Light (#5590)
- 3014 Classic PU LED Strip Light (#4524-PU)
- 3014 Ultra-Narrow LED Strip Light (#9124)
- 3014 Side View LED Strip Light (#7609)
- 3014 Side View LED Strip Light (#7610)
- 3014 Side View LED Strip Light (#4722)
- 3014 CCT LED Strip Light (#4272)
- 3014 Classic LED Strip Light (#4723)
See every model in SMD LED Strip Series or narrow to 3014. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2416?
2416: 3014, 120 LEDs/m, 24V, 8 PCB, 2oz copper FPCB, cuttable 6LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
Which LED driver and run length suit #2416?
3014 Classic LED Strip Light | 8mm | 24V | 120LEDs | 50cut | #2416 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5M. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
