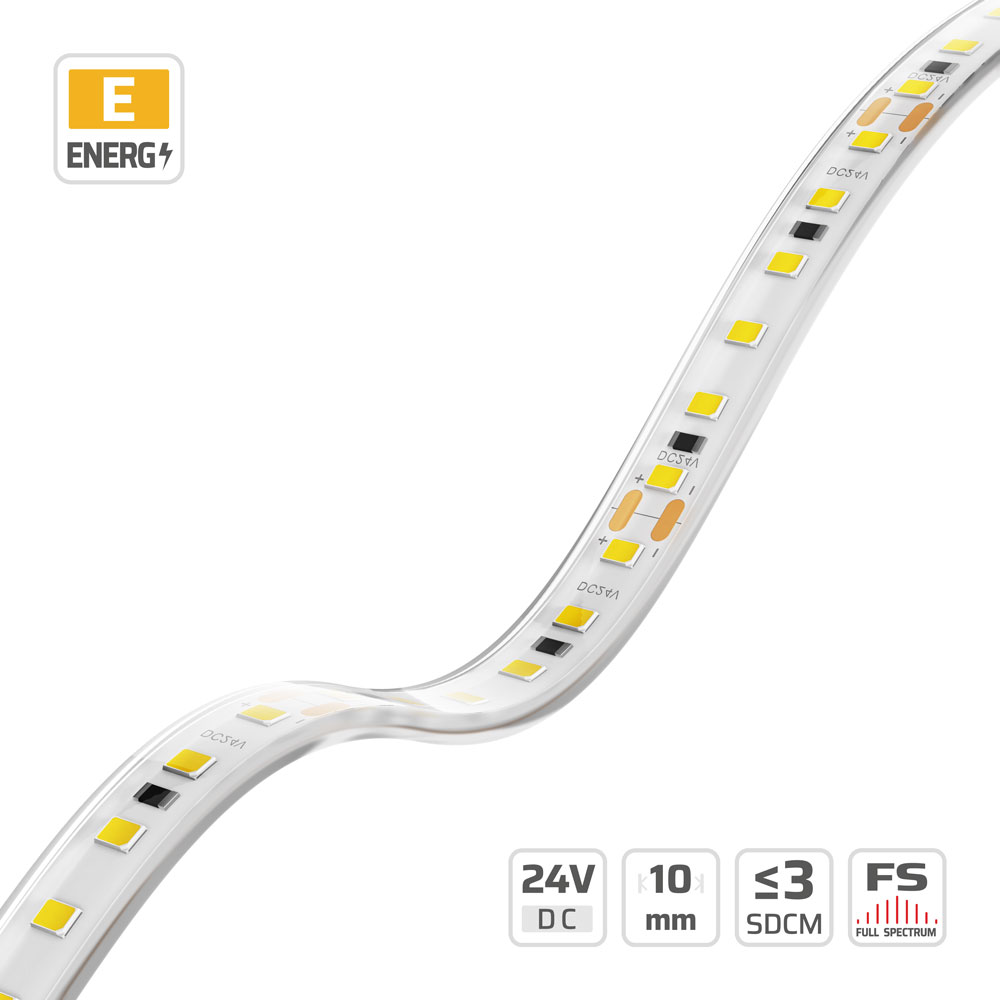

2835 Classic PU LED Strip Light (#2307-PU)
10mm · 24V · 120LEDs · 50mm/cut
Model: 2307-PU
Overview
2835 Classic PU LED Strip Light | 10mm | 24V | 120LEDs | 50mm/cut | #2307-PU is part of the DENO Marine Grade SMD Strips series, engineered around marine grade LED strip. Key specifications: 2835, 120, 24V, 8mm PCB, 3 oz copper FPCB, cuttable 6LEDs/50mm, IP68PU, CRI Ra≥80 , Ra≥90 , Ra≥95 , FS. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 120 high-efficiency 2835 LEDs per meter, this 24V PU LED strip light delivers clean, uniform linear illumination for modern installations. High-grade PU encapsulation resists ultraviolet radiation and severe temperature fluctuations while offering complete sealing against outdoor water and dust ingress. A specialized flexible circuit board ensures stable electrical performance and efficient heat management across every 50mm cut interval. Ideal for demanding outdoor architectural lighting, commercial facade illumination, and landscape perimeter accents that require rugged weatherproofing. We support global distributors and engineering contractors with OEM custom lengths and factory-direct wholesale project supply.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CCT (K) | 1800-6500 |
|---|---|
| CRI | Ra≥80 , Ra≥90 , Ra≥95 , FS |
| SDCM | < 3 SDCM (Single Bin) |
| POWER (W/M) | 14.4 W/m |
| LED QTY | 120 |
| PART NO | DL-F28D60V24-2307-PU* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP68PU |
| LED PITCH | 8.3mm |
| LIFESPAN | 50000h |
| PCB WIDTH | 8mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3 oz |
| ON OFF TIMES | 10000 (test times) |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1419 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Facade, landscape & bathroom runs (IP68PU) — IP68PU sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #2307-PU
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 131.5 lm/W at 4000K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 100.2 lm/W | 962.1 lm/m | F | 80 lm/W | 767.7 lm/m | G | — | — | — |
| 2300 K | 111.4 lm/W | 1069.8 lm/m | E | 89.1 lm/W | 855.4 lm/m | F | 72.2 lm/W | 693.1 lm/m | G |
| 2700 K | 117.1 lm/W | 1124.6 lm/m | E | 96.5 lm/W | 926.2 lm/m | F | 78.2 lm/W | 750.7 lm/m | G |
| 3000 K | 125.5 lm/W | 1204.3 lm/m | E | 101.5 lm/W | 974 lm/m | F | 82.6 lm/W | 792.6 lm/m | G |
| 3500 K | 127.4 lm/W | 1223.3 lm/m | E | 103.3 lm/W | 992 lm/m | F | 85.1 lm/W | 816.5 lm/m | F |
| 4000 K | 131.5 lm/W | 1262.2 lm/m | E | 105.8 lm/W | 1015.9 lm/m | F | 87.3 lm/W | 838.5 lm/m | F |
| 5000 K | 131.4 lm/W | 1261.2 lm/m | E | 105.7 lm/W | 1014.9 lm/m | F | 87.2 lm/W | 837.1 lm/m | F |
| 6500 K | 120.1 lm/W | 1152.5 lm/m | E | 101.5 lm/W | 974 lm/m | F | 84.2 lm/W | 808.3 lm/m | G |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 98.5 lm/W | 1182.5 lm/m | F | 78.6 lm/W | 943.5 lm/m | G | — | — | — |
| 2300 K | 109.6 lm/W | 1314.8 lm/m | F | 87.6 lm/W | 1051.4 lm/m | F | 71 lm/W | 852 lm/m | G |
| 2700 K | 115.2 lm/W | 1382.2 lm/m | E | 94.9 lm/W | 1138.4 lm/m | F | 76.9 lm/W | 922.7 lm/m | G |
| 3000 K | 123.4 lm/W | 1480.3 lm/m | E | 99.8 lm/W | 1197.2 lm/m | F | 81.2 lm/W | 974.2 lm/m | G |
| 3500 K | 125.3 lm/W | 1503.5 lm/m | E | 101.6 lm/W | 1219.3 lm/m | F | 83.6 lm/W | 1003.6 lm/m | G |
| 4000 K | 129.3 lm/W | 1551.3 lm/m | E | 104.1 lm/W | 1248.7 lm/m | F | 85.9 lm/W | 1030.5 lm/m | F |
| 5000 K | 129.2 lm/W | 1550.1 lm/m | E | 104 lm/W | 1247.4 lm/m | F | 85.8 lm/W | 1029.6 lm/m | F |
| 6500 K | 118 lm/W | 1416.5 lm/m | E | 99.8 lm/W | 1197.2 lm/m | F | 82.8 lm/W | 993.6 lm/m | G |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 96.9 lm/W | 1395.3 lm/m | F | 77.3 lm/W | 1113.3 lm/m | G | — | — | — |
| 2300 K | 107.7 lm/W | 1551.4 lm/m | F | 86.2 lm/W | 1240.6 lm/m | F | 69.8 lm/W | 1005.1 lm/m | G |
| 2700 K | 113.3 lm/W | 1631 lm/m | E | 93.3 lm/W | 1343.2 lm/m | F | 75.6 lm/W | 1088.7 lm/m | G |
| 3000 K | 121.3 lm/W | 1746.6 lm/m | E | 98.1 lm/W | 1412.6 lm/m | F | 79.8 lm/W | 1149.5 lm/m | G |
| 3500 K | 123.2 lm/W | 1774.1 lm/m | E | 99.9 lm/W | 1438.6 lm/m | F | 82.2 lm/W | 1184.2 lm/m | G |
| 4000 K | 127.1 lm/W | 1830.5 lm/m | E | 102.3 lm/W | 1473.4 lm/m | F | 84.4 lm/W | 1216 lm/m | G |
| 5000 K | 127 lm/W | 1829 lm/m | E | 102.2 lm/W | 1471.9 lm/m | F | 84.3 lm/W | 1213.9 lm/m | G |
| 6500 K | 116.1 lm/W | 1671.4 lm/m | E | 98.1 lm/W | 1412.6 lm/m | F | 81.4 lm/W | 1172.2 lm/m | G |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 93.7 lm/W | 1798.7 lm/m | F | 74.8 lm/W | 1435.2 lm/m | G | — | — | — |
| 2300 K | 104.2 lm/W | 2000 lm/m | F | 83.3 lm/W | 1599.2 lm/m | G | 67.5 lm/W | 1296 lm/m | G |
| 2700 K | 109.5 lm/W | 2102.5 lm/m | F | 90.2 lm/W | 1731.6 lm/m | F | 73.1 lm/W | 1403.5 lm/m | G |
| 3000 K | 117.3 lm/W | 2251.6 lm/m | E | 94.8 lm/W | 1821 lm/m | F | 77.2 lm/W | 1481.8 lm/m | G |
| 3500 K | 119.1 lm/W | 2287 lm/m | E | 96.6 lm/W | 1854.6 lm/m | F | 79.5 lm/W | 1526.5 lm/m | G |
| 4000 K | 122.9 lm/W | 2359.7 lm/m | E | 98.9 lm/W | 1899.3 lm/m | F | 81.6 lm/W | 1567.6 lm/m | G |
| 5000 K | 122.8 lm/W | 2357.9 lm/m | E | 98.8 lm/W | 1897.5 lm/m | F | 81.5 lm/W | 1564.8 lm/m | G |
| 6500 K | 112.2 lm/W | 2154.7 lm/m | E | 94.8 lm/W | 1821 lm/m | F | 78.7 lm/W | 1511 lm/m | G |
Grade DL (2nd Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 92.5 lm/W | 1942.6 lm/m | F | 73.8 lm/W | 1550 lm/m | G | — | — | — |
| 2300 K | 102.9 lm/W | 2160 lm/m | F | 82.2 lm/W | 1727.2 lm/m | G | 66.6 lm/W | 1398.6 lm/m | G |
| 2700 K | 108.1 lm/W | 2270.7 lm/m | F | 89.1 lm/W | 1870.1 lm/m | F | 72.2 lm/W | 1515.8 lm/m | G |
| 3000 K | 115.8 lm/W | 2431.8 lm/m | E | 93.7 lm/W | 1966.7 lm/m | F | 76.2 lm/W | 1600.4 lm/m | G |
| 3500 K | 117.6 lm/W | 2470 lm/m | E | 95.4 lm/W | 2003 lm/m | F | 78.5 lm/W | 1648.7 lm/m | G |
| 4000 K | 121.4 lm/W | 2548.5 lm/m | E | 97.7 lm/W | 2051.3 lm/m | F | 80.6 lm/W | 1693 lm/m | G |
| 5000 K | 121.3 lm/W | 2546.5 lm/m | E | 97.6 lm/W | 2049.3 lm/m | F | 80.5 lm/W | 1690.5 lm/m | G |
| 6500 K | 110.8 lm/W | 2327.1 lm/m | E | 93.7 lm/W | 1966.7 lm/m | F | 77.7 lm/W | 1631.7 lm/m | G |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 96 lm/W | 921.2 lm/m | F | 80.5 lm/W | 772.7 lm/m | G | — | — | — |
| 2300 K | 104.6 lm/W | 1004 lm/m | F | 89.8 lm/W | 862.4 lm/m | G | 72.8 lm/W | 698.9 lm/m | G |
| 2700 K | 112.8 lm/W | 1082.7 lm/m | F | 97.2 lm/W | 933.2 lm/m | F | 78.7 lm/W | 755.7 lm/m | G |
| 3000 K | 118.4 lm/W | 1136.6 lm/m | F | 102.6 lm/W | 985 lm/m | F | 83.5 lm/W | 801.6 lm/m | G |
| 3500 K | 120.2 lm/W | 1153.5 lm/m | E | 104.9 lm/W | 1006.9 lm/m | F | 86.3 lm/W | 828.5 lm/m | G |
| 4000 K | 122.4 lm/W | 1175.4 lm/m | E | 105.5 lm/W | 1012.9 lm/m | F | 87 lm/W | 835.5 lm/m | G |
| 5000 K | 122.2 lm/W | 1173.4 lm/m | E | 106.1 lm/W | 1018.9 lm/m | F | 87.6 lm/W | 841 lm/m | G |
| 6500 K | 117.2 lm/W | 1125.6 lm/m | F | 101.5 lm/W | 974 lm/m | F | 84.2 lm/W | 808.3 lm/m | G |
Grade DN (1st Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 94.4 lm/W | 1132.3 lm/m | F | 79.1 lm/W | 949.7 lm/m | G | — | — | — |
| 2300 K | 102.8 lm/W | 1234 lm/m | F | 88.3 lm/W | 1060 lm/m | G | 71.5 lm/W | 858 lm/m | G |
| 2700 K | 110.9 lm/W | 1330.8 lm/m | F | 95.6 lm/W | 1147 lm/m | F | 77.4 lm/W | 928.8 lm/m | G |
| 3000 K | 116.4 lm/W | 1396.9 lm/m | F | 100.9 lm/W | 1210.7 lm/m | F | 82.1 lm/W | 985.2 lm/m | G |
| 3500 K | 118.1 lm/W | 1417.8 lm/m | F | 103.1 lm/W | 1237.6 lm/m | F | 84.9 lm/W | 1018.3 lm/m | G |
| 4000 K | 120.4 lm/W | 1444.7 lm/m | E | 103.7 lm/W | 1245 lm/m | F | 85.6 lm/W | 1026.9 lm/m | G |
| 5000 K | 120.2 lm/W | 1442.3 lm/m | E | 104.4 lm/W | 1252.3 lm/m | F | 86.1 lm/W | 1033.2 lm/m | G |
| 6500 K | 115.3 lm/W | 1383.5 lm/m | F | 99.8 lm/W | 1197.2 lm/m | F | 82.8 lm/W | 993.6 lm/m | G |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 92.8 lm/W | 1336 lm/m | F | 77.8 lm/W | 1120.6 lm/m | G | — | — | — |
| 2300 K | 101.1 lm/W | 1456 lm/m | F | 86.9 lm/W | 1250.7 lm/m | G | 70.4 lm/W | 1013.8 lm/m | G |
| 2700 K | 109 lm/W | 1570.2 lm/m | F | 94 lm/W | 1353.3 lm/m | F | 76.1 lm/W | 1096 lm/m | G |
| 3000 K | 114.5 lm/W | 1648.3 lm/m | F | 99.2 lm/W | 1428.5 lm/m | F | 80.7 lm/W | 1162.5 lm/m | G |
| 3500 K | 116.2 lm/W | 1672.9 lm/m | F | 101.4 lm/W | 1460.3 lm/m | F | 83.4 lm/W | 1201.5 lm/m | G |
| 4000 K | 118.4 lm/W | 1704.7 lm/m | F | 102 lm/W | 1469 lm/m | F | 84.1 lm/W | 1211.6 lm/m | G |
| 5000 K | 118.2 lm/W | 1701.8 lm/m | F | 102.6 lm/W | 1477.7 lm/m | F | 84.7 lm/W | 1219.7 lm/m | G |
| 6500 K | 113.4 lm/W | 1632.4 lm/m | F | 98.1 lm/W | 1412.6 lm/m | F | 81.4 lm/W | 1172.2 lm/m | G |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 89.7 lm/W | 1722.3 lm/m | G | 75.2 lm/W | 1444.5 lm/m | G | — | — | — |
| 2300 K | 97.8 lm/W | 1877 lm/m | F | 84 lm/W | 1612.3 lm/m | G | 68 lm/W | 1305.6 lm/m | G |
| 2700 K | 105.4 lm/W | 2024.2 lm/m | F | 90.9 lm/W | 1744.6 lm/m | G | 73.6 lm/W | 1412.9 lm/m | G |
| 3000 K | 110.7 lm/W | 2124.9 lm/m | F | 95.9 lm/W | 1841.6 lm/m | F | 78.1 lm/W | 1498.6 lm/m | G |
| 3500 K | 112.3 lm/W | 2156.6 lm/m | F | 98 lm/W | 1882.6 lm/m | F | 80.7 lm/W | 1548.9 lm/m | G |
| 4000 K | 114.5 lm/W | 2197.6 lm/m | F | 98.6 lm/W | 1893.7 lm/m | F | 81.4 lm/W | 1562 lm/m | G |
| 5000 K | 114.3 lm/W | 2193.8 lm/m | F | 99.2 lm/W | 1904.9 lm/m | F | 81.9 lm/W | 1572.5 lm/m | G |
| 6500 K | 109.6 lm/W | 2104.4 lm/m | F | 94.8 lm/W | 1821 lm/m | F | 78.7 lm/W | 1511 lm/m | G |
Grade DN (1st Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 88.6 lm/W | 1860.1 lm/m | G | 74.3 lm/W | 1560.1 lm/m | G | — | — | — |
| 2300 K | 96.5 lm/W | 2027.1 lm/m | F | 82.9 lm/W | 1741.3 lm/m | G | 67.2 lm/W | 1411.2 lm/m | G |
| 2700 K | 104.1 lm/W | 2186.2 lm/m | F | 89.7 lm/W | 1884.2 lm/m | G | 72.7 lm/W | 1525.9 lm/m | G |
| 3000 K | 109.3 lm/W | 2294.9 lm/m | F | 94.7 lm/W | 1988.9 lm/m | F | 77.1 lm/W | 1618.5 lm/m | G |
| 3500 K | 110.9 lm/W | 2329.1 lm/m | F | 96.8 lm/W | 2033.2 lm/m | F | 79.7 lm/W | 1672.8 lm/m | G |
| 4000 K | 113 lm/W | 2373.4 lm/m | F | 97.4 lm/W | 2045.3 lm/m | F | 80.3 lm/W | 1686.9 lm/m | G |
| 5000 K | 112.8 lm/W | 2369.4 lm/m | F | 98 lm/W | 2057.3 lm/m | F | 80.8 lm/W | 1696.8 lm/m | G |
| 6500 K | 108.2 lm/W | 2272.7 lm/m | F | 93.7 lm/W | 1966.7 lm/m | F | 77.7 lm/W | 1631.7 lm/m | G |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 99.4 lm/W | 954.1 lm/m | F | 79.4 lm/W | 762.7 lm/m | G | — | — | — |
| 2300 K | 110.8 lm/W | 1063.8 lm/m | E | 88.5 lm/W | 849.4 lm/m | F | 71.7 lm/W | 688.3 lm/m | G |
| 2700 K | 119.4 lm/W | 1146.5 lm/m | E | 96.1 lm/W | 922.2 lm/m | F | 77.8 lm/W | 746.7 lm/m | G |
| 3000 K | 125.3 lm/W | 1203.3 lm/m | E | 101.5 lm/W | 974 lm/m | F | 82.6 lm/W | 792.6 lm/m | G |
| 3500 K | 127.2 lm/W | 1221.3 lm/m | E | 103.4 lm/W | 993 lm/m | F | 85.2 lm/W | 817.5 lm/m | F |
| 4000 K | 131 lm/W | 1257.2 lm/m | E | 105.7 lm/W | 1014.9 lm/m | F | 87.2 lm/W | 837.5 lm/m | F |
| 5000 K | 130.7 lm/W | 1255.2 lm/m | E | 105.6 lm/W | 1013.9 lm/m | F | 87.1 lm/W | 836.2 lm/m | F |
| 6500 K | 125.3 lm/W | 1203.3 lm/m | E | 101.5 lm/W | 974 lm/m | F | 84.2 lm/W | 808.3 lm/m | G |
Grade KE (3rd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 97.7 lm/W | 1172.7 lm/m | F | 78.1 lm/W | 937.4 lm/m | G | — | — | — |
| 2300 K | 109 lm/W | 1307.5 lm/m | F | 87 lm/W | 1044 lm/m | F | 70.5 lm/W | 846 lm/m | G |
| 2700 K | 117.4 lm/W | 1409.2 lm/m | E | 94.5 lm/W | 1133.5 lm/m | F | 76.5 lm/W | 917.8 lm/m | G |
| 3000 K | 123.3 lm/W | 1479 lm/m | E | 99.8 lm/W | 1197.2 lm/m | F | 81.2 lm/W | 974.2 lm/m | G |
| 3500 K | 125.1 lm/W | 1501.1 lm/m | E | 101.7 lm/W | 1220.5 lm/m | F | 83.7 lm/W | 1004.8 lm/m | G |
| 4000 K | 128.8 lm/W | 1545.2 lm/m | E | 104 lm/W | 1247.4 lm/m | F | 85.8 lm/W | 1029.3 lm/m | F |
| 5000 K | 128.6 lm/W | 1542.8 lm/m | E | 103.9 lm/W | 1246.2 lm/m | F | 85.7 lm/W | 1028.4 lm/m | F |
| 6500 K | 123.3 lm/W | 1479 lm/m | E | 99.8 lm/W | 1197.2 lm/m | F | 82.8 lm/W | 993.6 lm/m | G |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 96.1 lm/W | 1383.7 lm/m | F | 76.8 lm/W | 1106.1 lm/m | G | — | — | — |
| 2300 K | 107.1 lm/W | 1542.8 lm/m | F | 85.5 lm/W | 1231.9 lm/m | F | 69.3 lm/W | 997.9 lm/m | G |
| 2700 K | 115.5 lm/W | 1662.8 lm/m | E | 92.9 lm/W | 1337.4 lm/m | F | 75.2 lm/W | 1083 lm/m | G |
| 3000 K | 121.2 lm/W | 1745.2 lm/m | E | 98.1 lm/W | 1412.6 lm/m | F | 79.8 lm/W | 1149.5 lm/m | G |
| 3500 K | 123 lm/W | 1771.2 lm/m | E | 100 lm/W | 1440.1 lm/m | F | 82.3 lm/W | 1185.6 lm/m | G |
| 4000 K | 126.6 lm/W | 1823.3 lm/m | E | 102.2 lm/W | 1471.9 lm/m | F | 84.3 lm/W | 1214.5 lm/m | G |
| 5000 K | 126.4 lm/W | 1820.4 lm/m | E | 102.1 lm/W | 1470.5 lm/m | F | 84.2 lm/W | 1212.5 lm/m | G |
| 6500 K | 121.2 lm/W | 1745.2 lm/m | E | 98.1 lm/W | 1412.6 lm/m | F | 81.4 lm/W | 1172.2 lm/m | G |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 92.9 lm/W | 1783.8 lm/m | F | 74.3 lm/W | 1425.9 lm/m | G | — | — | — |
| 2300 K | 103.6 lm/W | 1988.8 lm/m | F | 82.7 lm/W | 1588.1 lm/m | G | 67 lm/W | 1286.4 lm/m | G |
| 2700 K | 111.6 lm/W | 2143.5 lm/m | E | 89.8 lm/W | 1724.1 lm/m | F | 72.7 lm/W | 1396.1 lm/m | G |
| 3000 K | 117.2 lm/W | 2249.8 lm/m | E | 94.8 lm/W | 1821 lm/m | F | 77.2 lm/W | 1481.8 lm/m | G |
| 3500 K | 118.9 lm/W | 2283.3 lm/m | E | 96.7 lm/W | 1856.5 lm/m | F | 79.6 lm/W | 1528.4 lm/m | G |
| 4000 K | 122.4 lm/W | 2350.4 lm/m | E | 98.8 lm/W | 1897.5 lm/m | F | 81.5 lm/W | 1565.7 lm/m | G |
| 5000 K | 122.2 lm/W | 2346.7 lm/m | E | 98.7 lm/W | 1895.6 lm/m | F | 81.5 lm/W | 1564.8 lm/m | G |
| 6500 K | 117.2 lm/W | 2249.8 lm/m | E | 94.8 lm/W | 1821 lm/m | F | 78.7 lm/W | 1511 lm/m | G |
Grade KE (3rd Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 91.7 lm/W | 1926.5 lm/m | F | 73.3 lm/W | 1540 lm/m | G | — | — | — |
| 2300 K | 102.3 lm/W | 2147.9 lm/m | F | 81.7 lm/W | 1715.1 lm/m | G | 66.2 lm/W | 1390.2 lm/m | G |
| 2700 K | 110.2 lm/W | 2315 lm/m | E | 88.7 lm/W | 1862.1 lm/m | F | 71.8 lm/W | 1507.8 lm/m | G |
| 3000 K | 115.7 lm/W | 2429.7 lm/m | E | 93.7 lm/W | 1966.7 lm/m | F | 76.2 lm/W | 1600.4 lm/m | G |
| 3500 K | 117.4 lm/W | 2466 lm/m | E | 95.5 lm/W | 2005 lm/m | F | 78.6 lm/W | 1650.7 lm/m | G |
| 4000 K | 120.9 lm/W | 2538.5 lm/m | E | 97.6 lm/W | 2049.3 lm/m | F | 80.5 lm/W | 1691 lm/m | G |
| 5000 K | 120.7 lm/W | 2534.4 lm/m | E | 97.5 lm/W | 2047.3 lm/m | F | 80.4 lm/W | 1688.4 lm/m | G |
| 6500 K | 115.7 lm/W | 2429.7 lm/m | E | 93.7 lm/W | 1966.7 lm/m | F | 77.7 lm/W | 1631.7 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 21W/m, 2307-PU is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
- 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
- 12x15mm Surface Mount LED Channel · fits ≤8mm strip
- Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
- 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
- 14x8mm Surface Mount LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2307-PU?
2307-PU: 2835, 120, 24V, 8mm PCB, 3 oz copper FPCB, cuttable 6LEDs/50mm, IP68PU, CRI Ra≥80 , Ra≥90 , Ra≥95 , FS. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this marine grade LED strip rated for?
Ingress protection for this model is IP68PU. As a marine grade LED strip it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this marine grade LED strip for a project?
Yes. DENO manufactures the Marine Grade SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What makes an LED strip marine grade?
Marine LED strip lights need IP67 or IP68 encapsulation, salt-mist resistant coating, tinned copper conductors and UV stable silicone. These boat LED strip lights are built for continuous saltwater spray and vibration rather than the light splash duty a standard waterproof strip is rated for.
Which LED driver and run length suit #2307-PU?
2835 Classic PU LED Strip Light | 10mm | 24V | 120LEDs | 50mm/cut | #2307-PU is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
