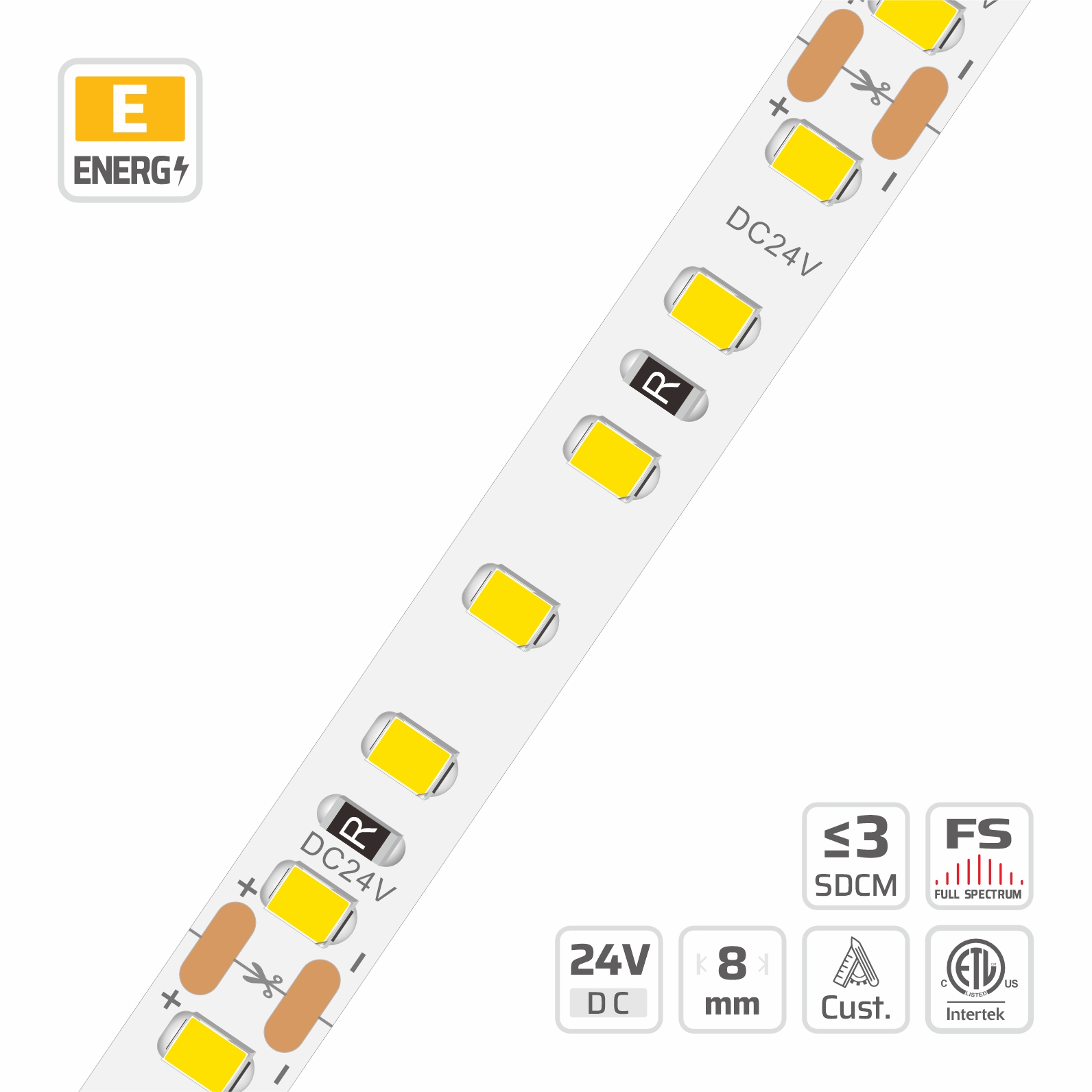

2835 Classic LED Strip Light (#2307)
8mm · 24V · 120LEDs · 50cut
Model: 2307
Overview
8mm | 24V | 120LEDs | 50cut | #2307 | 2835 Classic LED Strip Light is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2835, 120 LEDs/m, 24V, 8mm PCB, 3 oz copper FPCB, cuttable 6LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 120 LEDs per meter, this 2835 Classic LED strip light delivers consistent linear illumination with a broad 120-degree beam angle. The slim 8mm PCB features a heavy 3 oz copper foil base and 99.9% purity gold wire encapsulation for dependable thermal management. Operating on a constant voltage 24V system, this dimmable LED strip light provides smooth brightness control for high-end architectural lighting. Designed with precise 50mm cut intervals up to 5m run lengths, DENO supports factory-direct delivery and OEM custom lengths. Built with a 60mm minimum bend diameter, the strip functions reliably across ambient operating temperatures from minus 25 to 40 degrees Celsius.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CRI | Ra>80 / Ra>90 / Ra>95 |
|---|---|
| POWER (W/M) | 12 W/m |
| LED QTY | 120 LEDs/m |
| PART NO | DL-F28A60V24-2307-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.3mm |
| PCB WIDTH | 8mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3 oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 2.4~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1115–1625 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #2307
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 161.8 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier)).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 115.9 lm/W | 1112.9 lm/m | E | 92.8 lm/W | 891.3 lm/m | F | — | — | — |
| 2300 K | 129 lm/W | 1238.8 lm/m | E | 103.4 lm/W | 992.8 lm/m | F | 83.8 lm/W | 804.5 lm/m | G |
| 2700 K | 136.1 lm/W | 1306.1 lm/m | D | 111.9 lm/W | 1073.8 lm/m | E | 90.7 lm/W | 870.8 lm/m | F |
| 3000 K | 145.3 lm/W | 1395 lm/m | D | 117.8 lm/W | 1130.4 lm/m | E | 95.8 lm/W | 919.6 lm/m | F |
| 3500 K | 147.4 lm/W | 1415.5 lm/m | D | 119.9 lm/W | 1150.9 lm/m | E | 98.6 lm/W | 946.9 lm/m | F |
| 4000 K | 152.1 lm/W | 1460.4 lm/m | D | 122.7 lm/W | 1178.3 lm/m | E | 101.3 lm/W | 972.3 lm/m | F |
| 5000 K | 152 lm/W | 1459.4 lm/m | D | 122.6 lm/W | 1177.3 lm/m | E | 101.2 lm/W | 971.5 lm/m | F |
| 6500 K | 139.1 lm/W | 1335.4 lm/m | D | 117.7 lm/W | 1129.4 lm/m | E | 97.6 lm/W | 937 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 112.1 lm/W | 1613.9 lm/m | E | 89.8 lm/W | 1292.6 lm/m | F | — | — | — |
| 2300 K | 124.8 lm/W | 1796.6 lm/m | E | 100 lm/W | 1439.8 lm/m | F | 81 lm/W | 1166.4 lm/m | G |
| 2700 K | 131.5 lm/W | 1894.2 lm/m | E | 108.1 lm/W | 1557.3 lm/m | F | 87.7 lm/W | 1262.8 lm/m | F |
| 3000 K | 140.5 lm/W | 2023.1 lm/m | D | 113.8 lm/W | 1639.4 lm/m | E | 92.6 lm/W | 1333.6 lm/m | F |
| 3500 K | 142.6 lm/W | 2052.8 lm/m | D | 115.9 lm/W | 1669.1 lm/m | E | 95.4 lm/W | 1373.3 lm/m | F |
| 4000 K | 147.1 lm/W | 2117.9 lm/m | D | 118.7 lm/W | 1708.8 lm/m | E | 97.9 lm/W | 1410.1 lm/m | F |
| 5000 K | 147 lm/W | 2116.5 lm/m | D | 118.6 lm/W | 1707.4 lm/m | E | 97.8 lm/W | 1408.3 lm/m | F |
| 6500 K | 134.5 lm/W | 1936.7 lm/m | E | 113.7 lm/W | 1638 lm/m | E | 94.4 lm/W | 1359.4 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 108.4 lm/W | 2080.6 lm/m | F | 86.8 lm/W | 1666.3 lm/m | F | — | — | — |
| 2300 K | 120.6 lm/W | 2316 lm/m | E | 96.7 lm/W | 1856.1 lm/m | F | 78.3 lm/W | 1503.4 lm/m | G |
| 2700 K | 127.2 lm/W | 2441.9 lm/m | E | 104.6 lm/W | 2007.6 lm/m | F | 84.8 lm/W | 1627.9 lm/m | G |
| 3000 K | 135.8 lm/W | 2608 lm/m | D | 110.1 lm/W | 2113.4 lm/m | E | 89.5 lm/W | 1719.2 lm/m | F |
| 3500 K | 137.8 lm/W | 2646.3 lm/m | D | 112.1 lm/W | 2151.7 lm/m | E | 92.2 lm/W | 1770.3 lm/m | F |
| 4000 K | 142.2 lm/W | 2730.3 lm/m | D | 114.7 lm/W | 2202.8 lm/m | E | 94.7 lm/W | 1817.7 lm/m | F |
| 5000 K | 142.1 lm/W | 2728.4 lm/m | D | 114.6 lm/W | 2201 lm/m | E | 94.6 lm/W | 1816.3 lm/m | F |
| 6500 K | 130 lm/W | 2496.7 lm/m | E | 110 lm/W | 2111.6 lm/m | F | 91.3 lm/W | 1753 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 114 lm/W | 1367.8 lm/m | E | 91.3 lm/W | 1095.4 lm/m | F | — | — | — |
| 2300 K | 126.9 lm/W | 1522.6 lm/m | E | 101.7 lm/W | 1220.2 lm/m | F | 82.4 lm/W | 988.8 lm/m | G |
| 2700 K | 133.8 lm/W | 1605.4 lm/m | E | 110 lm/W | 1319.8 lm/m | F | 89.2 lm/W | 1070.2 lm/m | F |
| 3000 K | 142.9 lm/W | 1714.6 lm/m | D | 115.8 lm/W | 1389.4 lm/m | E | 94.2 lm/W | 1130.2 lm/m | F |
| 3500 K | 145 lm/W | 1739.8 lm/m | D | 117.9 lm/W | 1414.6 lm/m | E | 97 lm/W | 1163.8 lm/m | F |
| 4000 K | 149.6 lm/W | 1794.9 lm/m | D | 120.7 lm/W | 1448.2 lm/m | E | 99.6 lm/W | 1195 lm/m | F |
| 5000 K | 149.5 lm/W | 1793.7 lm/m | D | 120.6 lm/W | 1447 lm/m | E | 99.5 lm/W | 1194 lm/m | F |
| 6500 K | 136.8 lm/W | 1641.4 lm/m | D | 115.7 lm/W | 1388.2 lm/m | E | 96 lm/W | 1152 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 124.7 lm/W | 1496.2 lm/m | E | 105 lm/W | 1259.8 lm/m | F | — | — | — |
| 2300 K | 135.9 lm/W | 1630.6 lm/m | E | 117.1 lm/W | 1405 lm/m | F | 94.8 lm/W | 1137.6 lm/m | F |
| 2700 K | 146.5 lm/W | 1757.8 lm/m | D | 126.7 lm/W | 1520.2 lm/m | E | 102.7 lm/W | 1232.2 lm/m | F |
| 3000 K | 153.9 lm/W | 1846.5 lm/m | D | 133.8 lm/W | 1605.4 lm/m | E | 108.8 lm/W | 1305.4 lm/m | F |
| 3500 K | 156.2 lm/W | 1874.1 lm/m | D | 136.7 lm/W | 1640.2 lm/m | E | 112.5 lm/W | 1349.8 lm/m | F |
| 4000 K | 159.1 lm/W | 1908.9 lm/m | D | 137.5 lm/W | 1649.8 lm/m | E | 113.5 lm/W | 1361.8 lm/m | F |
| 5000 K | 158.9 lm/W | 1906.5 lm/m | D | 138.4 lm/W | 1660.6 lm/m | E | 114.2 lm/W | 1370.4 lm/m | F |
| 6500 K | 152.3 lm/W | 1827.3 lm/m | D | 132.2 lm/W | 1586.2 lm/m | E | 109.7 lm/W | 1316.4 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 126.8 lm/W | 1217.3 lm/m | E | 106.8 lm/W | 1025 lm/m | F | — | — | — |
| 2300 K | 138.2 lm/W | 1326.6 lm/m | E | 119.1 lm/W | 1143.1 lm/m | E | 96.5 lm/W | 926.4 lm/m | F |
| 2700 K | 149 lm/W | 1430.1 lm/m | D | 128.8 lm/W | 1236.8 lm/m | E | 104.4 lm/W | 1002.5 lm/m | F |
| 3000 K | 156.5 lm/W | 1502.3 lm/m | D | 136.1 lm/W | 1306.1 lm/m | E | 110.6 lm/W | 1062.1 lm/m | F |
| 3500 K | 158.8 lm/W | 1524.8 lm/m | D | 139 lm/W | 1334.4 lm/m | E | 114.4 lm/W | 1098.2 lm/m | F |
| 4000 K | 161.8 lm/W | 1553.1 lm/m | D | 139.8 lm/W | 1342.3 lm/m | E | 115.4 lm/W | 1108 lm/m | F |
| 5000 K | 161.6 lm/W | 1551.2 lm/m | D | 140.7 lm/W | 1351 lm/m | E | 116.1 lm/W | 1114.6 lm/m | F |
| 6500 K | 154.9 lm/W | 1486.7 lm/m | D | 134.4 lm/W | 1290.5 lm/m | E | 111.6 lm/W | 1071.4 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 122.6 lm/W | 1765.4 lm/m | E | 103.2 lm/W | 1486.5 lm/m | F | — | — | — |
| 2300 K | 133.6 lm/W | 1924 lm/m | E | 115.1 lm/W | 1657.8 lm/m | F | 93.3 lm/W | 1343.5 lm/m | F |
| 2700 K | 144 lm/W | 2074 lm/m | E | 124.6 lm/W | 1793.7 lm/m | E | 101 lm/W | 1454 lm/m | F |
| 3000 K | 151.3 lm/W | 2178.8 lm/m | D | 131.5 lm/W | 1894.2 lm/m | E | 107 lm/W | 1540.3 lm/m | F |
| 3500 K | 153.6 lm/W | 2211.4 lm/m | D | 134.4 lm/W | 1935.3 lm/m | E | 110.6 lm/W | 1592.7 lm/m | F |
| 4000 K | 156.4 lm/W | 2252.4 lm/m | D | 135.2 lm/W | 1946.6 lm/m | E | 111.6 lm/W | 1606.9 lm/m | F |
| 5000 K | 156.2 lm/W | 2249.6 lm/m | D | 136.1 lm/W | 1959.4 lm/m | E | 112.3 lm/W | 1617.1 lm/m | F |
| 6500 K | 149.7 lm/W | 2156.2 lm/m | D | 130 lm/W | 1871.6 lm/m | E | 107.9 lm/W | 1553.8 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 118.5 lm/W | 2275.8 lm/m | F | 99.8 lm/W | 1916.3 lm/m | F | — | — | — |
| 2300 K | 129.2 lm/W | 2480.2 lm/m | E | 111.3 lm/W | 2137.1 lm/m | F | 90.2 lm/W | 1731.8 lm/m | G |
| 2700 K | 139.3 lm/W | 2673.7 lm/m | E | 120.4 lm/W | 2312.3 lm/m | E | 97.6 lm/W | 1874.3 lm/m | F |
| 3000 K | 146.3 lm/W | 2808.8 lm/m | D | 127.2 lm/W | 2441.9 lm/m | E | 103.4 lm/W | 1985.7 lm/m | F |
| 3500 K | 148.5 lm/W | 2850.7 lm/m | D | 129.9 lm/W | 2494.8 lm/m | E | 106.9 lm/W | 2053.2 lm/m | F |
| 4000 K | 151.2 lm/W | 2903.7 lm/m | D | 130.7 lm/W | 2509.4 lm/m | E | 107.9 lm/W | 2071.4 lm/m | F |
| 5000 K | 151 lm/W | 2900 lm/m | D | 131.6 lm/W | 2525.9 lm/m | E | 108.5 lm/W | 2083.2 lm/m | F |
| 6500 K | 144.8 lm/W | 2779.6 lm/m | E | 125.7 lm/W | 2412.7 lm/m | E | 104.3 lm/W | 2002.6 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 95.4 lm/W | 915.7 lm/m | F | 76.3 lm/W | 732.1 lm/m | G | — | — | — |
| 2300 K | 106.4 lm/W | 1021.1 lm/m | F | 84.9 lm/W | 815.1 lm/m | G | 68.8 lm/W | 660.5 lm/m | G |
| 2700 K | 114.6 lm/W | 1100.2 lm/m | E | 92.1 lm/W | 884.4 lm/m | F | 74.7 lm/W | 717.5 lm/m | G |
| 3000 K | 120.4 lm/W | 1155.8 lm/m | E | 97.4 lm/W | 935.2 lm/m | F | 79.2 lm/W | 760.4 lm/m | G |
| 3500 K | 122.2 lm/W | 1173.4 lm/m | E | 99.3 lm/W | 953.7 lm/m | F | 81.8 lm/W | 784.9 lm/m | G |
| 4000 K | 125.8 lm/W | 1207.5 lm/m | E | 101.5 lm/W | 974.2 lm/m | F | 83.8 lm/W | 804.4 lm/m | G |
| 5000 K | 125.6 lm/W | 1205.6 lm/m | E | 101.5 lm/W | 974.2 lm/m | F | 83.7 lm/W | 803.5 lm/m | G |
| 6500 K | 120.4 lm/W | 1155.8 lm/m | E | 97.4 lm/W | 935.2 lm/m | F | 80.9 lm/W | 776.6 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 92.2 lm/W | 1328 lm/m | F | 73.7 lm/W | 1061.8 lm/m | G | — | — | — |
| 2300 K | 102.8 lm/W | 1480.9 lm/m | F | 82.1 lm/W | 1182.1 lm/m | G | 66.5 lm/W | 957.6 lm/m | G |
| 2700 K | 110.8 lm/W | 1595.5 lm/m | E | 89.1 lm/W | 1282.6 lm/m | F | 72.3 lm/W | 1040.6 lm/m | G |
| 3000 K | 116.4 lm/W | 1676.2 lm/m | E | 94.2 lm/W | 1356.3 lm/m | F | 76.6 lm/W | 1102.9 lm/m | G |
| 3500 K | 118.2 lm/W | 1701.7 lm/m | E | 96.1 lm/W | 1383.2 lm/m | F | 79 lm/W | 1138.2 lm/m | G |
| 4000 K | 121.6 lm/W | 1751.3 lm/m | E | 98.1 lm/W | 1412.9 lm/m | F | 81 lm/W | 1166.6 lm/m | G |
| 5000 K | 121.4 lm/W | 1748.4 lm/m | E | 98.1 lm/W | 1412.9 lm/m | F | 80.9 lm/W | 1165 lm/m | G |
| 6500 K | 116.4 lm/W | 1676.2 lm/m | E | 94.2 lm/W | 1356.3 lm/m | F | 78.2 lm/W | 1126.1 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 89.2 lm/W | 1711.9 lm/m | F | 71.3 lm/W | 1368.8 lm/m | G | — | — | — |
| 2300 K | 99.4 lm/W | 1909 lm/m | F | 79.4 lm/W | 1523.9 lm/m | G | 64.3 lm/W | 1234.6 lm/m | G |
| 2700 K | 107.1 lm/W | 2056.8 lm/m | F | 86.1 lm/W | 1653.5 lm/m | F | 69.9 lm/W | 1341.4 lm/m | G |
| 3000 K | 112.5 lm/W | 2160.9 lm/m | E | 91.1 lm/W | 1748.4 lm/m | F | 74 lm/W | 1421.7 lm/m | G |
| 3500 K | 114.3 lm/W | 2193.7 lm/m | E | 92.9 lm/W | 1783.1 lm/m | F | 76.4 lm/W | 1467.3 lm/m | G |
| 4000 K | 117.6 lm/W | 2257.6 lm/m | E | 94.9 lm/W | 1821.4 lm/m | F | 78.3 lm/W | 1503.8 lm/m | G |
| 5000 K | 117.4 lm/W | 2253.9 lm/m | E | 94.9 lm/W | 1821.4 lm/m | F | 78.3 lm/W | 1503.4 lm/m | G |
| 6500 K | 112.5 lm/W | 2160.9 lm/m | E | 91.1 lm/W | 1748.4 lm/m | F | 75.6 lm/W | 1451.5 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 93.8 lm/W | 1125.4 lm/m | F | 75 lm/W | 899.9 lm/m | G | — | — | — |
| 2300 K | 104.6 lm/W | 1255 lm/m | F | 83.5 lm/W | 1001.9 lm/m | G | 67.6 lm/W | 811.2 lm/m | G |
| 2700 K | 112.7 lm/W | 1352.2 lm/m | E | 90.6 lm/W | 1087 lm/m | F | 73.5 lm/W | 881.9 lm/m | G |
| 3000 K | 118.4 lm/W | 1420.6 lm/m | E | 95.8 lm/W | 1149.4 lm/m | F | 77.9 lm/W | 934.7 lm/m | G |
| 3500 K | 120.2 lm/W | 1442.2 lm/m | E | 97.7 lm/W | 1172.2 lm/m | F | 80.4 lm/W | 964.7 lm/m | G |
| 4000 K | 123.7 lm/W | 1484.2 lm/m | E | 99.8 lm/W | 1197.4 lm/m | F | 82.4 lm/W | 988.7 lm/m | G |
| 5000 K | 123.5 lm/W | 1481.8 lm/m | E | 99.8 lm/W | 1197.4 lm/m | F | 82.3 lm/W | 987.6 lm/m | G |
| 6500 K | 118.4 lm/W | 1420.6 lm/m | E | 95.8 lm/W | 1149.4 lm/m | F | 79.5 lm/W | 954 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 19.2W/m, 2307 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
- 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
- 12x15mm Surface Mount LED Channel · fits ≤8mm strip
- Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
- 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
- 14x8mm Surface Mount LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2307?
2307: 2835, 120 LEDs/m, 24V, 8mm PCB, 3 oz copper FPCB, cuttable 6LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
Which LED driver and run length suit #2307?
8mm | 24V | 120LEDs | 50cut | #2307 | 2835 Classic LED Strip Light is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
