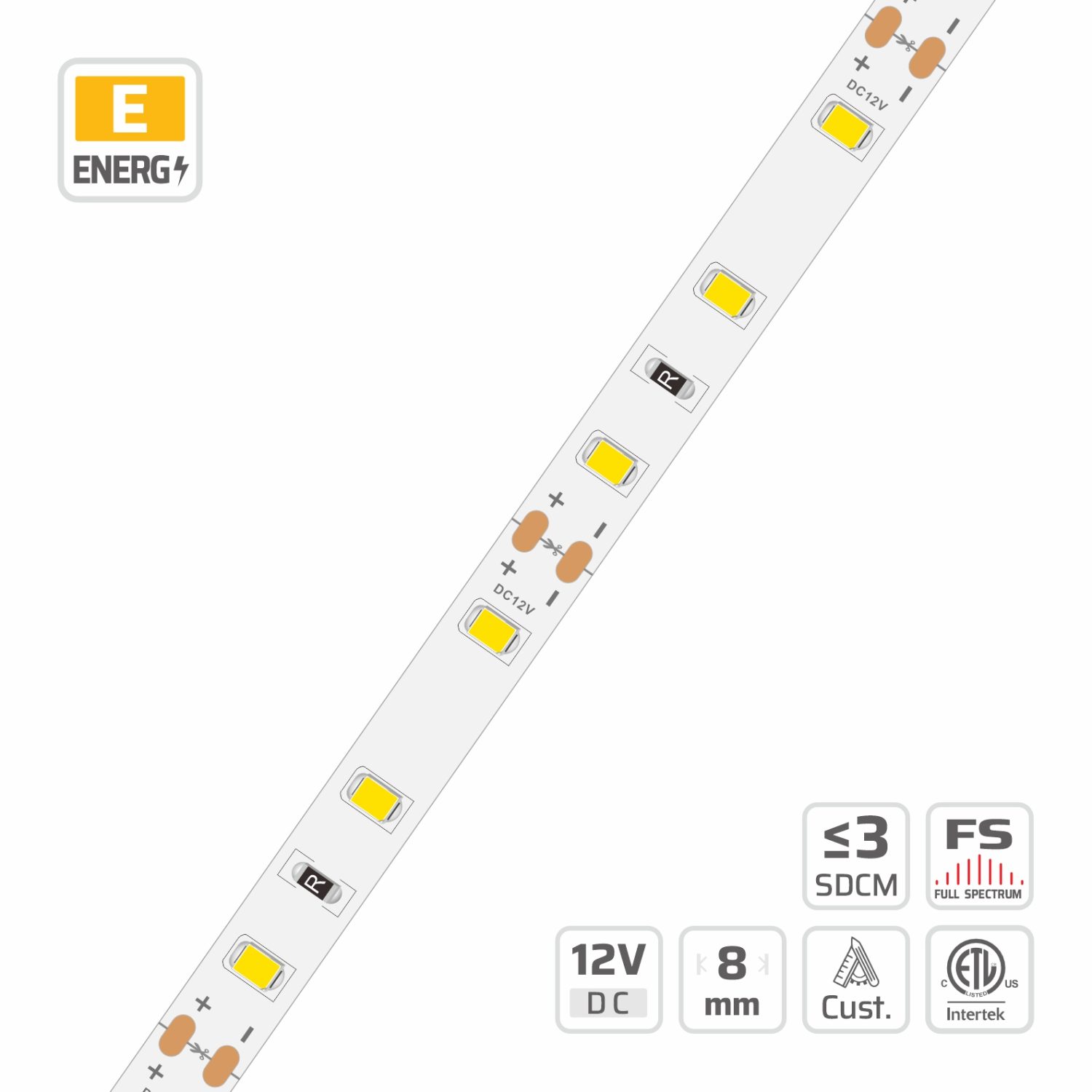

2835 Classic LED Strip Light (#2300)

8mm · 12V · 60LEDs · 50mm/cut

Model: 2300

Overview

2835 Classic LED Strip Light | 8mm | 12V | 60LEDs | 50mm/cut | #2300 is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2835, 60 LEDs/m, DC 12V, 8mm PCB, 3oz copper FPCB, cuttable 3LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

2835 Classic LED Strip Light | 8mm | 12V | 60LEDs | 50mm/cut | #2300 Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications. High brightness SMD2835 LED Strips is outfitted with extremely bright LED chips and strong adhesive backing. Special heat resistant PCB layout, copper layer 3Oz that make sure lower voltage drop and excellent heat dissipation. 3 SDCM 1 BIN , these strips are great for providing elegant and discreet lighting.

24v Smd Led Strip Lights built for classic smd strips projects.

Specifications

LED QTY	60 LEDs/m
PART NO	DL-F28A30V12-2300-*
SMD TYPE	2835
CUTTABLE UNIT	3LEDs/50mm
DIMMABLE	Yes
LED PITCH	16.6mm
PCB WIDTH	8mm
BEAM ANGLE	120°
LENGTH MAX	5m
COPPER FOIL	3oz
POWER RANGE	2.4~14.4W
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	DC 12V

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Request a quotation for #2300

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 171 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier)).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	123.9 lm/W	743.6 lm/m	E	99.3 lm/W	596 lm/m	F	—	—	—
2300 K	137.9 lm/W	827.6 lm/m	D	110.6 lm/W	663.8 lm/m	E	89.6 lm/W	537.6 lm/m	F
2700 K	145.6 lm/W	873.8 lm/m	D	119.7 lm/W	718.4 lm/m	E	97 lm/W	582.2 lm/m	F
3000 K	155.2 lm/W	931.4 lm/m	D	125.9 lm/W	755.6 lm/m	E	102.4 lm/W	614.6 lm/m	F
3500 K	157.6 lm/W	945.9 lm/m	D	128.2 lm/W	769.4 lm/m	E	105.5 lm/W	633.2 lm/m	F
4000 K	162.6 lm/W	975.9 lm/m	C	131.3 lm/W	788 lm/m	E	108.4 lm/W	650.6 lm/m	F
5000 K	162.4 lm/W	974.7 lm/m	C	131.2 lm/W	787.4 lm/m	E	108.3 lm/W	649.8 lm/m	F
6500 K	148.8 lm/W	893 lm/m	D	125.9 lm/W	755.6 lm/m	E	104.5 lm/W	627 lm/m	F

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	122.9 lm/W	884.8 lm/m	E	98.5 lm/W	709.1 lm/m	F	—	—	—
2300 K	136.8 lm/W	984.8 lm/m	D	109.7 lm/W	789.8 lm/m	F	88.9 lm/W	640.1 lm/m	F
2700 K	144.4 lm/W	1039.8 lm/m	D	118.7 lm/W	854.8 lm/m	E	96.2 lm/W	692.7 lm/m	F
3000 K	153.9 lm/W	1108.4 lm/m	D	124.9 lm/W	899.1 lm/m	E	101.6 lm/W	731.3 lm/m	F
3500 K	156.3 lm/W	1125.5 lm/m	D	127.2 lm/W	915.5 lm/m	E	104.6 lm/W	753.4 lm/m	F
4000 K	161.3 lm/W	1161.2 lm/m	C	130.2 lm/W	937.7 lm/m	E	107.5 lm/W	774.1 lm/m	F
5000 K	161.1 lm/W	1159.8 lm/m	C	130.1 lm/W	937 lm/m	E	107.4 lm/W	773.3 lm/m	F
6500 K	147.6 lm/W	1062.7 lm/m	D	124.9 lm/W	899.1 lm/m	E	103.6 lm/W	745.9 lm/m	F

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	120.8 lm/W	1160 lm/m	E	96.8 lm/W	929.7 lm/m	F	—	—	—
2300 K	134.5 lm/W	1291.1 lm/m	E	107.9 lm/W	1035.5 lm/m	F	87.4 lm/W	839 lm/m	F
2700 K	142 lm/W	1363.2 lm/m	D	116.7 lm/W	1120.7 lm/m	E	94.6 lm/W	908.2 lm/m	F
3000 K	151.4 lm/W	1453.1 lm/m	D	122.8 lm/W	1178.8 lm/m	E	99.9 lm/W	958.7 lm/m	F
3500 K	153.7 lm/W	1475.6 lm/m	D	125 lm/W	1200.3 lm/m	E	102.9 lm/W	987.8 lm/m	F
4000 K	158.6 lm/W	1522.4 lm/m	D	128.1 lm/W	1229.3 lm/m	E	105.7 lm/W	1014.9 lm/m	F
5000 K	158.4 lm/W	1520.5 lm/m	D	128 lm/W	1228.4 lm/m	E	105.6 lm/W	1013.8 lm/m	F
6500 K	145.1 lm/W	1393.2 lm/m	D	122.8 lm/W	1178.8 lm/m	E	101.9 lm/W	978.2 lm/m	F

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 10.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	119.8 lm/W	1294.1 lm/m	E	96 lm/W	1037.2 lm/m	F	—	—	—
2300 K	133.4 lm/W	1440.3 lm/m	E	107 lm/W	1155.2 lm/m	F	86.6 lm/W	935.3 lm/m	F
2700 K	140.8 lm/W	1520.7 lm/m	D	115.8 lm/W	1250.2 lm/m	E	93.8 lm/W	1013.1 lm/m	F
3000 K	150.1 lm/W	1621 lm/m	D	121.8 lm/W	1315 lm/m	E	99 lm/W	1069.5 lm/m	F
3500 K	152.4 lm/W	1646.1 lm/m	D	124 lm/W	1339 lm/m	E	102 lm/W	1101.9 lm/m	F
4000 K	157.3 lm/W	1698.3 lm/m	D	127 lm/W	1371.4 lm/m	E	104.8 lm/W	1132.2 lm/m	F
5000 K	157.1 lm/W	1696.2 lm/m	D	126.9 lm/W	1370.3 lm/m	E	104.7 lm/W	1130.8 lm/m	F
6500 K	143.9 lm/W	1554.2 lm/m	D	121.8 lm/W	1315 lm/m	E	101.1 lm/W	1091.9 lm/m	F

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	118.8 lm/W	1425.8 lm/m	E	95.2 lm/W	1142.7 lm/m	F	—	—	—
2300 K	132.2 lm/W	1586.9 lm/m	E	106.1 lm/W	1272.8 lm/m	F	85.9 lm/W	1030.8 lm/m	F
2700 K	139.6 lm/W	1675.5 lm/m	D	114.8 lm/W	1377.5 lm/m	E	93 lm/W	1116.3 lm/m	F
3000 K	148.8 lm/W	1786 lm/m	D	120.7 lm/W	1448.8 lm/m	E	98.2 lm/W	1178.4 lm/m	F
3500 K	151.1 lm/W	1813.6 lm/m	D	122.9 lm/W	1475.3 lm/m	E	101.2 lm/W	1214.1 lm/m	F
4000 K	155.9 lm/W	1871.2 lm/m	D	125.9 lm/W	1511 lm/m	E	104 lm/W	1247.4 lm/m	F
5000 K	155.7 lm/W	1868.9 lm/m	D	125.8 lm/W	1509.8 lm/m	E	103.8 lm/W	1245.6 lm/m	F
6500 K	142.7 lm/W	1712.4 lm/m	D	120.7 lm/W	1448.8 lm/m	E	100.2 lm/W	1202.4 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	134 lm/W	804.2 lm/m	E	112.9 lm/W	677.6 lm/m	F	—	—	—
2300 K	146.1 lm/W	876.8 lm/m	D	126 lm/W	756.2 lm/m	E	102.1 lm/W	612.6 lm/m	F
2700 K	157.5 lm/W	945.3 lm/m	D	136.3 lm/W	818 lm/m	E	110.5 lm/W	663.2 lm/m	F
3000 K	165.4 lm/W	992.7 lm/m	D	143.9 lm/W	863.6 lm/m	E	117 lm/W	702.2 lm/m	F
3500 K	167.9 lm/W	1007.7 lm/m	D	147 lm/W	882.2 lm/m	D	121 lm/W	726.2 lm/m	E
4000 K	171 lm/W	1026.3 lm/m	D	147.8 lm/W	887 lm/m	D	122 lm/W	732.2 lm/m	E
5000 K	170.8 lm/W	1025.1 lm/m	D	148.8 lm/W	893 lm/m	D	122.8 lm/W	736.8 lm/m	E
6500 K	163.7 lm/W	982.5 lm/m	D	142.2 lm/W	853.4 lm/m	E	118.1 lm/W	708.6 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	132.9 lm/W	957 lm/m	E	112 lm/W	806.3 lm/m	F	—	—	—
2300 K	144.9 lm/W	1043.4 lm/m	E	125 lm/W	899.8 lm/m	E	101.2 lm/W	728.6 lm/m	F
2700 K	156.2 lm/W	1124.8 lm/m	D	135.2 lm/W	973.4 lm/m	E	109.6 lm/W	789.1 lm/m	F
3000 K	164.1 lm/W	1181.2 lm/m	D	142.7 lm/W	1027.7 lm/m	E	116 lm/W	835.6 lm/m	F
3500 K	166.5 lm/W	1199.1 lm/m	D	145.8 lm/W	1049.8 lm/m	D	120 lm/W	864.1 lm/m	E
4000 K	169.6 lm/W	1221.2 lm/m	D	146.6 lm/W	1055.5 lm/m	D	121 lm/W	871.3 lm/m	E
5000 K	169.4 lm/W	1219.8 lm/m	D	147.6 lm/W	1062.7 lm/m	D	121.8 lm/W	877 lm/m	E
6500 K	162.4 lm/W	1169.1 lm/m	D	141 lm/W	1015.5 lm/m	E	117.1 lm/W	843.1 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	130.7 lm/W	1254.6 lm/m	E	110.1 lm/W	1057.1 lm/m	F	—	—	—
2300 K	142.5 lm/W	1367.9 lm/m	E	122.9 lm/W	1179.7 lm/m	E	99.5 lm/W	955.2 lm/m	F
2700 K	153.6 lm/W	1474.6 lm/m	D	132.9 lm/W	1276.1 lm/m	E	107.8 lm/W	1034.6 lm/m	F
3000 K	161.3 lm/W	1548.6 lm/m	D	140.3 lm/W	1347.3 lm/m	E	114.1 lm/W	1095.4 lm/m	F
3500 K	163.8 lm/W	1572 lm/m	D	143.4 lm/W	1376.3 lm/m	E	118 lm/W	1132.9 lm/m	F
4000 K	166.8 lm/W	1601 lm/m	D	144.1 lm/W	1383.8 lm/m	E	119 lm/W	1142.3 lm/m	E
5000 K	166.6 lm/W	1599.2 lm/m	D	145.1 lm/W	1393.2 lm/m	E	119.7 lm/W	1149.1 lm/m	E
6500 K	159.7 lm/W	1532.7 lm/m	D	138.7 lm/W	1331.4 lm/m	E	115.1 lm/W	1105 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 10.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	129.6 lm/W	1399.6 lm/m	E	109.2 lm/W	1179.2 lm/m	F	—	—	—
2300 K	141.3 lm/W	1526 lm/m	E	121.9 lm/W	1316 lm/m	E	98.7 lm/W	1066 lm/m	F
2700 K	152.3 lm/W	1645 lm/m	D	131.8 lm/W	1423.6 lm/m	E	106.9 lm/W	1154.1 lm/m	F
3000 K	160 lm/W	1727.6 lm/m	D	139.2 lm/W	1503 lm/m	E	113.2 lm/W	1222 lm/m	F
3500 K	162.4 lm/W	1753.7 lm/m	D	142.2 lm/W	1535.4 lm/m	E	117 lm/W	1263.8 lm/m	F
4000 K	165.4 lm/W	1786 lm/m	D	142.9 lm/W	1543.7 lm/m	E	118 lm/W	1274.3 lm/m	F
5000 K	165.2 lm/W	1784 lm/m	D	143.9 lm/W	1554.2 lm/m	E	118.7 lm/W	1282 lm/m	F
6500 K	158.3 lm/W	1709.8 lm/m	D	137.5 lm/W	1485.2 lm/m	E	114.1 lm/W	1232.3 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	128.5 lm/W	1542 lm/m	E	108.3 lm/W	1299.2 lm/m	F	—	—	—
2300 K	140.1 lm/W	1681.3 lm/m	E	120.8 lm/W	1450 lm/m	E	97.9 lm/W	1174.8 lm/m	F
2700 K	151 lm/W	1812.5 lm/m	D	130.7 lm/W	1568.5 lm/m	E	106 lm/W	1271.6 lm/m	F
3000 K	158.6 lm/W	1903.4 lm/m	D	138 lm/W	1656 lm/m	E	112.2 lm/W	1346.4 lm/m	F
3500 K	161 lm/W	1932.2 lm/m	D	141 lm/W	1691.6 lm/m	E	116 lm/W	1392.4 lm/m	F
4000 K	164 lm/W	1967.8 lm/m	D	141.7 lm/W	1700.9 lm/m	E	117 lm/W	1404 lm/m	F
5000 K	163.8 lm/W	1965.5 lm/m	D	142.7 lm/W	1712.4 lm/m	E	117.7 lm/W	1412.4 lm/m	F
6500 K	157 lm/W	1883.8 lm/m	D	136.4 lm/W	1636.4 lm/m	E	113.2 lm/W	1358.4 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	103.6 lm/W	621.8 lm/m	F	82.9 lm/W	497.5 lm/m	G	—	—	—
2300 K	115.5 lm/W	693.2 lm/m	E	92.4 lm/W	554.5 lm/m	F	74.9 lm/W	449.4 lm/m	G
2700 K	124.5 lm/W	747.2 lm/m	E	100.2 lm/W	601.4 lm/m	F	81.2 lm/W	487.3 lm/m	G
3000 K	130.7 lm/W	784.4 lm/m	E	105.9 lm/W	635.6 lm/m	F	86.1 lm/W	516.7 lm/m	F
3500 K	132.7 lm/W	796.4 lm/m	E	108 lm/W	648.2 lm/m	F	88.9 lm/W	533.5 lm/m	F
4000 K	136.6 lm/W	819.8 lm/m	D	110.3 lm/W	662 lm/m	E	91 lm/W	546.1 lm/m	F
5000 K	136.4 lm/W	818.6 lm/m	D	110.3 lm/W	662 lm/m	E	91 lm/W	546 lm/m	F
6500 K	130.7 lm/W	784.4 lm/m	E	105.9 lm/W	635.6 lm/m	F	87.9 lm/W	527.4 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	102.8 lm/W	739.9 lm/m	F	82.2 lm/W	592 lm/m	G	—	—	—
2300 K	114.6 lm/W	824.8 lm/m	E	91.6 lm/W	659.9 lm/m	F	74.2 lm/W	534.2 lm/m	G
2700 K	123.5 lm/W	889.1 lm/m	E	99.4 lm/W	715.6 lm/m	F	80.5 lm/W	579.9 lm/m	G
3000 K	129.6 lm/W	933.4 lm/m	E	105 lm/W	756.3 lm/m	F	85.4 lm/W	614.9 lm/m	F
3500 K	131.6 lm/W	947.7 lm/m	E	107.1 lm/W	771.3 lm/m	F	88.2 lm/W	634.9 lm/m	F
4000 K	135.5 lm/W	975.5 lm/m	D	109.4 lm/W	787.7 lm/m	F	90.3 lm/W	649.9 lm/m	F
5000 K	135.3 lm/W	974.1 lm/m	D	109.4 lm/W	787.7 lm/m	F	90.3 lm/W	650.2 lm/m	F
6500 K	129.6 lm/W	933.4 lm/m	E	105 lm/W	756.3 lm/m	F	87.2 lm/W	627.8 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	101 lm/W	970 lm/m	F	80.9 lm/W	776.2 lm/m	G	—	—	—
2300 K	112.6 lm/W	1081.4 lm/m	E	90.1 lm/W	865.1 lm/m	F	73 lm/W	700.8 lm/m	G
2700 K	121.4 lm/W	1165.7 lm/m	E	97.7 lm/W	938.1 lm/m	F	79.2 lm/W	760.3 lm/m	G
3000 K	127.5 lm/W	1223.7 lm/m	E	103.3 lm/W	991.5 lm/m	F	84 lm/W	806.1 lm/m	G
3500 K	129.4 lm/W	1242.4 lm/m	E	105.3 lm/W	1011.2 lm/m	F	86.7 lm/W	832.4 lm/m	F
4000 K	133.2 lm/W	1279 lm/m	E	107.6 lm/W	1032.7 lm/m	F	88.8 lm/W	852 lm/m	F
5000 K	133 lm/W	1277.1 lm/m	E	107.6 lm/W	1032.7 lm/m	F	88.7 lm/W	851.5 lm/m	F
6500 K	127.5 lm/W	1223.7 lm/m	E	103.3 lm/W	991.5 lm/m	F	85.7 lm/W	822.7 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 10.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	100.2 lm/W	1082.1 lm/m	F	80.2 lm/W	865.9 lm/m	G	—	—	—
2300 K	111.7 lm/W	1206.4 lm/m	E	89.4 lm/W	965.1 lm/m	F	72.4 lm/W	781.9 lm/m	G
2700 K	120.4 lm/W	1300.4 lm/m	E	96.9 lm/W	1046.6 lm/m	F	78.5 lm/W	848.1 lm/m	G
3000 K	126.4 lm/W	1365.1 lm/m	E	102.4 lm/W	1106.1 lm/m	F	83.3 lm/W	899.3 lm/m	G
3500 K	128.3 lm/W	1386 lm/m	E	104.4 lm/W	1128 lm/m	F	86 lm/W	928.5 lm/m	F
4000 K	132.1 lm/W	1426.7 lm/m	E	106.7 lm/W	1152.1 lm/m	F	88 lm/W	950.5 lm/m	F
5000 K	131.9 lm/W	1424.7 lm/m	E	106.7 lm/W	1152.1 lm/m	F	88 lm/W	950.4 lm/m	F
6500 K	126.4 lm/W	1365.1 lm/m	E	102.4 lm/W	1106.1 lm/m	F	85 lm/W	918 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	99.4 lm/W	1192.2 lm/m	F	79.5 lm/W	954 lm/m	G	—	—	—
2300 K	110.8 lm/W	1329.2 lm/m	E	88.6 lm/W	1063.3 lm/m	F	71.8 lm/W	861.6 lm/m	G
2700 K	119.4 lm/W	1432.7 lm/m	E	96.1 lm/W	1153.1 lm/m	F	77.9 lm/W	934.4 lm/m	G
3000 K	125.3 lm/W	1504.1 lm/m	E	101.6 lm/W	1218.7 lm/m	F	82.6 lm/W	990.8 lm/m	G
3500 K	127.3 lm/W	1527.1 lm/m	E	103.6 lm/W	1242.8 lm/m	F	85.3 lm/W	1023 lm/m	F
4000 K	131 lm/W	1572 lm/m	E	105.8 lm/W	1269.3 lm/m	F	87.3 lm/W	1047.2 lm/m	F
5000 K	130.8 lm/W	1569.7 lm/m	E	105.8 lm/W	1269.3 lm/m	F	87.3 lm/W	1047.6 lm/m	F
6500 K	125.3 lm/W	1504.1 lm/m	E	101.6 lm/W	1218.7 lm/m	F	84.3 lm/W	1011.6 lm/m	G

Related models in this series

See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 2300?

2300: 2835, 60 LEDs/m, DC 12V, 8mm PCB, 3oz copper FPCB, cuttable 3LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

How long can a single run of this 24V SMD LED strip lights be?

Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.

Can DENO customise this 24V SMD LED strip lights for a project?

Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Which SMD LED strip density should you specify?

For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.

Which LED driver and run length suit #2300?

2835 Classic LED Strip Light | 8mm | 12V | 60LEDs | 50mm/cut | #2300 is a constant-voltage DC 12V product, so pair it with a CE or UL listed DC 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
