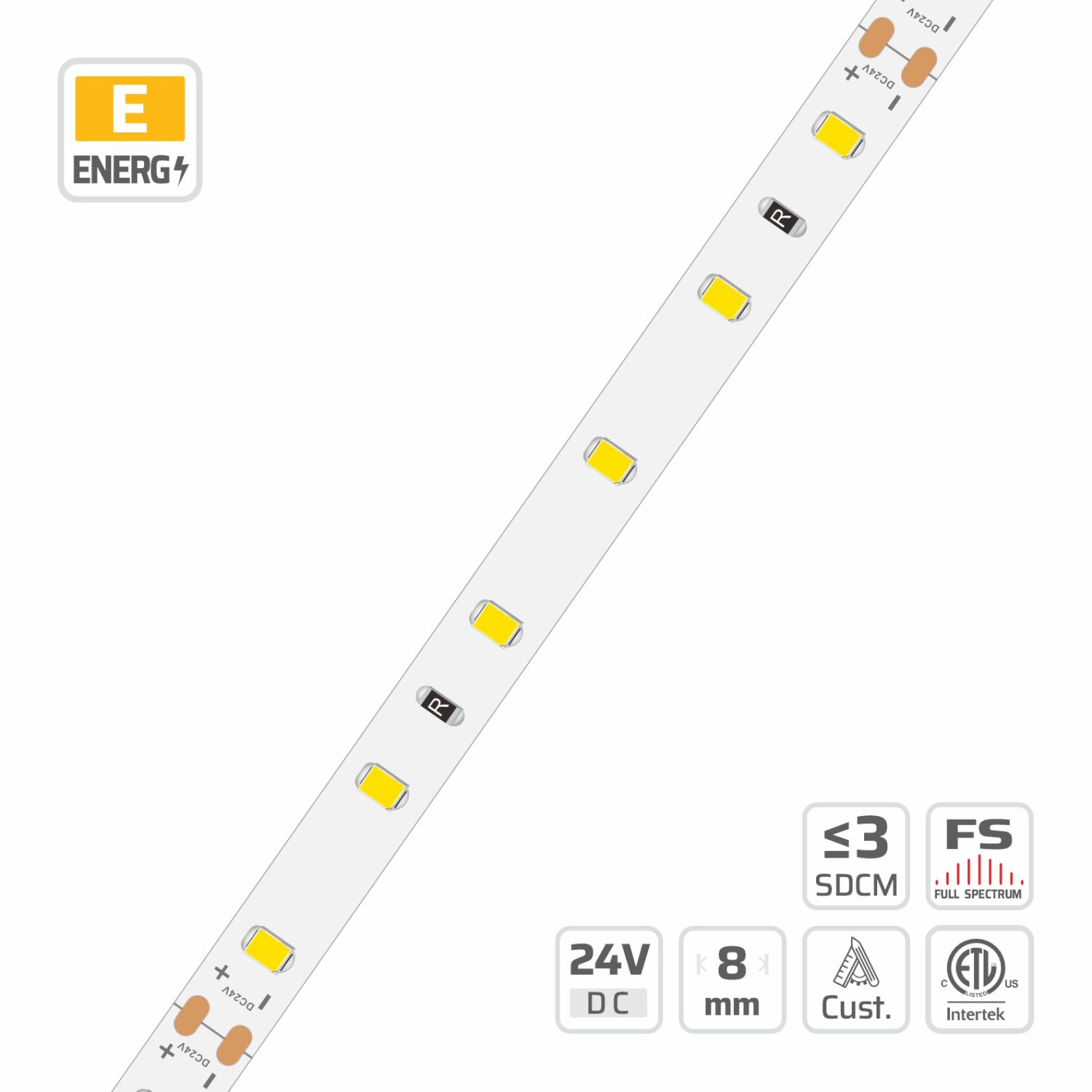

2835 Classic LED Strip Light (#2299)
8mm · 24V · 60LEDs · 100mm/cut
Model: 2299
Overview
2835 Classic LED Strip Light | 8mm | 24V | 60LEDs | 100mm/cut | #2299 is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2835, 60 LEDs/m, DC 24V, 8mm PCB, 3oz copper FPCB, cuttable 6LEDs/100mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered on an 8mm PCB with heavy 3oz copper foil, this 24V LED strip light ensures minimal voltage drop and superior thermal dissipation. Premium SMD2835 LEDs feature pure copper lead frames and 99.9% purity gold wire encapsulation to deliver robust durability across diverse operating conditions. Tight 3 SDCM single-bin color consistency and a wide 120-degree beam angle make this dimmable strip ideal for seamless architectural lighting installations. Featuring 60 LEDs per meter with precise 100mm cut increments, this constant-voltage model is optimized for factory-direct wholesale project supply and custom layouts.
24v Smd Led Strip Lights built for classic smd strips projects.
Specifications
| LED QTY | 60 LEDs/m |
|---|---|
| PART NO | DL-F28A30V24-2299-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/100mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 16.6mm |
| PCB WIDTH | 8mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.4~14.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 24V |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #2299
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 162.7 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier)).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 116.1 lm/W | 696.7 lm/m | E | 92.9 lm/W | 557.2 lm/m | F | — | — | — |
| 2300 K | 129.2 lm/W | 775.3 lm/m | E | 103.4 lm/W | 620.6 lm/m | F | 83.8 lm/W | 502.8 lm/m | G |
| 2700 K | 136.1 lm/W | 816.5 lm/m | D | 112 lm/W | 672 lm/m | E | 90.8 lm/W | 544.5 lm/m | F |
| 3000 K | 145.4 lm/W | 872.3 lm/m | D | 117.8 lm/W | 706.8 lm/m | E | 95.8 lm/W | 575 lm/m | F |
| 3500 K | 147.6 lm/W | 885.6 lm/m | D | 119.9 lm/W | 719.5 lm/m | E | 98.7 lm/W | 592.1 lm/m | F |
| 4000 K | 152.4 lm/W | 914.1 lm/m | D | 122.9 lm/W | 737.3 lm/m | E | 101.4 lm/W | 608.6 lm/m | F |
| 5000 K | 152.1 lm/W | 912.9 lm/m | D | 122.8 lm/W | 736.6 lm/m | E | 101.3 lm/W | 607.8 lm/m | F |
| 6500 K | 139.3 lm/W | 835.5 lm/m | D | 117.8 lm/W | 706.8 lm/m | E | 97.8 lm/W | 586.8 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 115.1 lm/W | 829 lm/m | E | 92.1 lm/W | 663.1 lm/m | F | — | — | — |
| 2300 K | 128.1 lm/W | 922.5 lm/m | E | 102.6 lm/W | 738.5 lm/m | F | 83.1 lm/W | 598.3 lm/m | G |
| 2700 K | 134.9 lm/W | 971.6 lm/m | E | 111.1 lm/W | 799.6 lm/m | E | 90 lm/W | 648 lm/m | F |
| 3000 K | 144.2 lm/W | 1038 lm/m | D | 116.8 lm/W | 841.1 lm/m | E | 95 lm/W | 684.2 lm/m | F |
| 3500 K | 146.4 lm/W | 1053.8 lm/m | D | 118.9 lm/W | 856.2 lm/m | E | 97.9 lm/W | 704.5 lm/m | F |
| 4000 K | 151.1 lm/W | 1087.7 lm/m | D | 121.8 lm/W | 877.3 lm/m | E | 100.6 lm/W | 724.2 lm/m | F |
| 5000 K | 150.9 lm/W | 1086.2 lm/m | D | 121.7 lm/W | 876.5 lm/m | E | 100.4 lm/W | 722.9 lm/m | F |
| 6500 K | 138.1 lm/W | 994.2 lm/m | D | 116.8 lm/W | 841.1 lm/m | E | 97 lm/W | 698.4 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 113.2 lm/W | 1086.9 lm/m | E | 90.6 lm/W | 869.3 lm/m | F | — | — | — |
| 2300 K | 126 lm/W | 1209.5 lm/m | E | 100.9 lm/W | 968.2 lm/m | F | 81.7 lm/W | 784.3 lm/m | G |
| 2700 K | 132.7 lm/W | 1273.8 lm/m | E | 109.2 lm/W | 1048.3 lm/m | F | 88.5 lm/W | 849.5 lm/m | F |
| 3000 K | 141.8 lm/W | 1360.8 lm/m | D | 114.9 lm/W | 1102.7 lm/m | E | 93.4 lm/W | 897 lm/m | F |
| 3500 K | 143.9 lm/W | 1381.6 lm/m | D | 116.9 lm/W | 1122.5 lm/m | E | 96.2 lm/W | 923.7 lm/m | F |
| 4000 K | 148.5 lm/W | 1426.1 lm/m | D | 119.8 lm/W | 1150.2 lm/m | E | 98.9 lm/W | 949.4 lm/m | F |
| 5000 K | 148.3 lm/W | 1424.1 lm/m | D | 119.7 lm/W | 1149.2 lm/m | E | 98.8 lm/W | 948.5 lm/m | F |
| 6500 K | 135.8 lm/W | 1303.4 lm/m | D | 114.9 lm/W | 1102.7 lm/m | E | 95.3 lm/W | 914.9 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 112.3 lm/W | 1212.5 lm/m | E | 89.8 lm/W | 969.7 lm/m | F | — | — | — |
| 2300 K | 124.9 lm/W | 1349.3 lm/m | E | 100 lm/W | 1080.1 lm/m | F | 81 lm/W | 874.8 lm/m | G |
| 2700 K | 131.6 lm/W | 1421 lm/m | E | 108.3 lm/W | 1169.4 lm/m | F | 87.7 lm/W | 947.7 lm/m | F |
| 3000 K | 140.6 lm/W | 1518 lm/m | D | 113.9 lm/W | 1230.1 lm/m | E | 92.7 lm/W | 1000.6 lm/m | F |
| 3500 K | 142.7 lm/W | 1541.2 lm/m | D | 115.9 lm/W | 1252.2 lm/m | E | 95.4 lm/W | 1030.4 lm/m | F |
| 4000 K | 147.3 lm/W | 1590.9 lm/m | D | 118.8 lm/W | 1283.1 lm/m | E | 98.1 lm/W | 1059.1 lm/m | F |
| 5000 K | 147.1 lm/W | 1588.7 lm/m | D | 118.7 lm/W | 1282 lm/m | E | 97.9 lm/W | 1057.3 lm/m | F |
| 6500 K | 134.6 lm/W | 1454.1 lm/m | E | 113.9 lm/W | 1230.1 lm/m | E | 94.5 lm/W | 1020.6 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 111.3 lm/W | 1335.9 lm/m | E | 89 lm/W | 1068.4 lm/m | F | — | — | — |
| 2300 K | 123.9 lm/W | 1486.6 lm/m | E | 99.2 lm/W | 1190 lm/m | F | 80.3 lm/W | 963.6 lm/m | G |
| 2700 K | 130.5 lm/W | 1565.6 lm/m | E | 107.4 lm/W | 1288.5 lm/m | F | 87 lm/W | 1044.1 lm/m | F |
| 3000 K | 139.4 lm/W | 1672.6 lm/m | D | 112.9 lm/W | 1355.3 lm/m | E | 91.9 lm/W | 1102.5 lm/m | F |
| 3500 K | 141.5 lm/W | 1698.1 lm/m | D | 115 lm/W | 1379.6 lm/m | E | 94.6 lm/W | 1135.3 lm/m | F |
| 4000 K | 146.1 lm/W | 1752.8 lm/m | D | 117.8 lm/W | 1413.7 lm/m | E | 97.2 lm/W | 1166.9 lm/m | F |
| 5000 K | 145.9 lm/W | 1750.4 lm/m | D | 117.7 lm/W | 1412.4 lm/m | E | 97.1 lm/W | 1165.2 lm/m | F |
| 6500 K | 133.5 lm/W | 1602.1 lm/m | E | 112.9 lm/W | 1355.3 lm/m | E | 93.7 lm/W | 1124.4 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 127.5 lm/W | 765.1 lm/m | E | 107.3 lm/W | 644.1 lm/m | F | — | — | — |
| 2300 K | 139 lm/W | 834.2 lm/m | E | 119.7 lm/W | 718.2 lm/m | E | 97 lm/W | 582 lm/m | F |
| 2700 K | 149.9 lm/W | 899.5 lm/m | D | 129.6 lm/W | 777.8 lm/m | E | 105 lm/W | 630.1 lm/m | F |
| 3000 K | 157.4 lm/W | 944.5 lm/m | D | 136.8 lm/W | 820.9 lm/m | E | 111.3 lm/W | 667.5 lm/m | F |
| 3500 K | 159.7 lm/W | 958.5 lm/m | D | 139.8 lm/W | 838.7 lm/m | E | 115.1 lm/W | 690.3 lm/m | F |
| 4000 K | 162.7 lm/W | 976.2 lm/m | D | 140.5 lm/W | 843.1 lm/m | E | 116 lm/W | 696.1 lm/m | F |
| 5000 K | 162.5 lm/W | 975 lm/m | D | 141.5 lm/W | 848.8 lm/m | E | 116.7 lm/W | 700.2 lm/m | F |
| 6500 K | 155.8 lm/W | 935 lm/m | D | 135.2 lm/W | 811.4 lm/m | E | 112.2 lm/W | 673.2 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 126.5 lm/W | 910.5 lm/m | E | 106.4 lm/W | 766.4 lm/m | F | — | — | — |
| 2300 K | 137.9 lm/W | 992.7 lm/m | E | 118.7 lm/W | 854.7 lm/m | F | 96.1 lm/W | 691.9 lm/m | F |
| 2700 K | 148.7 lm/W | 1070.4 lm/m | D | 128.5 lm/W | 925.6 lm/m | E | 104.1 lm/W | 749.8 lm/m | F |
| 3000 K | 156.1 lm/W | 1123.9 lm/m | D | 135.7 lm/W | 976.9 lm/m | E | 110.3 lm/W | 794.3 lm/m | F |
| 3500 K | 158.4 lm/W | 1140.5 lm/m | D | 138.6 lm/W | 998 lm/m | E | 114.1 lm/W | 821.5 lm/m | F |
| 4000 K | 161.3 lm/W | 1161.7 lm/m | D | 139.3 lm/W | 1003.3 lm/m | E | 115 lm/W | 828.2 lm/m | F |
| 5000 K | 161.1 lm/W | 1160.2 lm/m | D | 140.3 lm/W | 1010 lm/m | E | 115.7 lm/W | 833 lm/m | F |
| 6500 K | 154.5 lm/W | 1112.6 lm/m | D | 134.1 lm/W | 965.5 lm/m | E | 111.3 lm/W | 801.4 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 124.3 lm/W | 1193.7 lm/m | E | 104.7 lm/W | 1004.8 lm/m | F | — | — | — |
| 2300 K | 135.6 lm/W | 1301.5 lm/m | E | 116.7 lm/W | 1120.5 lm/m | F | 94.5 lm/W | 907.2 lm/m | F |
| 2700 K | 146.2 lm/W | 1403.3 lm/m | D | 126.4 lm/W | 1213.4 lm/m | E | 102.4 lm/W | 983 lm/m | F |
| 3000 K | 153.5 lm/W | 1473.5 lm/m | D | 133.4 lm/W | 1280.7 lm/m | E | 108.5 lm/W | 1041.4 lm/m | F |
| 3500 K | 155.8 lm/W | 1495.3 lm/m | D | 136.3 lm/W | 1308.4 lm/m | E | 112.2 lm/W | 1077 lm/m | F |
| 4000 K | 158.6 lm/W | 1523 lm/m | D | 137 lm/W | 1315.3 lm/m | E | 113.1 lm/W | 1085.9 lm/m | F |
| 5000 K | 158.4 lm/W | 1521 lm/m | D | 137.9 lm/W | 1324.2 lm/m | E | 113.8 lm/W | 1092.5 lm/m | F |
| 6500 K | 151.9 lm/W | 1458.7 lm/m | D | 131.9 lm/W | 1265.9 lm/m | E | 109.4 lm/W | 1050.2 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 123.3 lm/W | 1331.6 lm/m | E | 103.8 lm/W | 1120.9 lm/m | F | — | — | — |
| 2300 K | 134.4 lm/W | 1451.9 lm/m | E | 115.7 lm/W | 1250 lm/m | F | 93.7 lm/W | 1012 lm/m | F |
| 2700 K | 145 lm/W | 1565.5 lm/m | E | 125.3 lm/W | 1353.7 lm/m | E | 101.5 lm/W | 1096.6 lm/m | F |
| 3000 K | 152.2 lm/W | 1643.8 lm/m | D | 132.3 lm/W | 1428.7 lm/m | E | 107.6 lm/W | 1161.7 lm/m | F |
| 3500 K | 154.5 lm/W | 1668.1 lm/m | D | 135.1 lm/W | 1459.6 lm/m | E | 111.2 lm/W | 1201.4 lm/m | F |
| 4000 K | 157.3 lm/W | 1699 lm/m | D | 135.9 lm/W | 1467.3 lm/m | E | 112.2 lm/W | 1211.4 lm/m | F |
| 5000 K | 157.1 lm/W | 1696.8 lm/m | D | 136.8 lm/W | 1477.2 lm/m | E | 112.8 lm/W | 1218.2 lm/m | F |
| 6500 K | 150.7 lm/W | 1627.3 lm/m | D | 130.8 lm/W | 1412.1 lm/m | E | 108.5 lm/W | 1171.8 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 122.3 lm/W | 1467.1 lm/m | E | 102.9 lm/W | 1235 lm/m | F | — | — | — |
| 2300 K | 133.3 lm/W | 1599.6 lm/m | E | 114.8 lm/W | 1377.2 lm/m | F | 93 lm/W | 1116 lm/m | F |
| 2700 K | 143.7 lm/W | 1724.8 lm/m | E | 124.3 lm/W | 1491.4 lm/m | E | 100.7 lm/W | 1208.2 lm/m | F |
| 3000 K | 150.9 lm/W | 1811.1 lm/m | D | 131.2 lm/W | 1574.1 lm/m | E | 106.7 lm/W | 1279.9 lm/m | F |
| 3500 K | 153.2 lm/W | 1837.9 lm/m | D | 134 lm/W | 1608.1 lm/m | E | 110.3 lm/W | 1323.7 lm/m | F |
| 4000 K | 156 lm/W | 1871.9 lm/m | D | 134.7 lm/W | 1616.6 lm/m | E | 111.2 lm/W | 1334.6 lm/m | F |
| 5000 K | 155.8 lm/W | 1869.5 lm/m | D | 135.6 lm/W | 1627.6 lm/m | E | 111.9 lm/W | 1342.8 lm/m | F |
| 6500 K | 149.4 lm/W | 1792.9 lm/m | D | 129.7 lm/W | 1555.9 lm/m | E | 107.6 lm/W | 1291.2 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 94.8 lm/W | 568.6 lm/m | F | 75.6 lm/W | 453.9 lm/m | G | — | — | — |
| 2300 K | 105.7 lm/W | 633.9 lm/m | F | 84.3 lm/W | 505.9 lm/m | G | 68.3 lm/W | 409.8 lm/m | G |
| 2700 K | 113.8 lm/W | 682.7 lm/m | E | 91.5 lm/W | 549 lm/m | F | 74.2 lm/W | 445 lm/m | G |
| 3000 K | 119.6 lm/W | 717.6 lm/m | E | 96.7 lm/W | 580 lm/m | F | 78.6 lm/W | 471.6 lm/m | G |
| 3500 K | 121.3 lm/W | 727.7 lm/m | E | 98.6 lm/W | 591.5 lm/m | F | 81.1 lm/W | 486.9 lm/m | G |
| 4000 K | 124.9 lm/W | 749.3 lm/m | E | 100.7 lm/W | 604.1 lm/m | F | 83.1 lm/W | 498.9 lm/m | G |
| 5000 K | 124.7 lm/W | 748 lm/m | E | 100.7 lm/W | 604.1 lm/m | F | 83.1 lm/W | 498.6 lm/m | G |
| 6500 K | 119.5 lm/W | 717 lm/m | E | 96.7 lm/W | 580 lm/m | F | 80.2 lm/W | 481.2 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 94 lm/W | 676.6 lm/m | F | 75 lm/W | 540.1 lm/m | G | — | — | — |
| 2300 K | 104.8 lm/W | 754.3 lm/m | F | 83.6 lm/W | 602 lm/m | G | 67.7 lm/W | 487.4 lm/m | G |
| 2700 K | 112.8 lm/W | 812.4 lm/m | E | 90.7 lm/W | 653.2 lm/m | F | 73.5 lm/W | 529.5 lm/m | G |
| 3000 K | 118.6 lm/W | 853.9 lm/m | E | 95.9 lm/W | 690.2 lm/m | F | 77.9 lm/W | 561.2 lm/m | G |
| 3500 K | 120.3 lm/W | 866 lm/m | E | 97.7 lm/W | 703.8 lm/m | F | 80.5 lm/W | 579.3 lm/m | G |
| 4000 K | 123.8 lm/W | 891.6 lm/m | E | 99.8 lm/W | 718.9 lm/m | F | 82.5 lm/W | 593.7 lm/m | G |
| 5000 K | 123.6 lm/W | 890.1 lm/m | E | 99.8 lm/W | 718.9 lm/m | F | 82.4 lm/W | 593.3 lm/m | G |
| 6500 K | 118.5 lm/W | 853.1 lm/m | E | 95.9 lm/W | 690.2 lm/m | F | 79.6 lm/W | 573.1 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 92.4 lm/W | 887.1 lm/m | F | 73.8 lm/W | 708.1 lm/m | G | — | — | — |
| 2300 K | 103 lm/W | 989 lm/m | F | 82.2 lm/W | 789.2 lm/m | G | 66.6 lm/W | 639.4 lm/m | G |
| 2700 K | 110.9 lm/W | 1065.1 lm/m | E | 89.2 lm/W | 856.4 lm/m | F | 72.3 lm/W | 694.2 lm/m | G |
| 3000 K | 116.6 lm/W | 1119.5 lm/m | E | 94.3 lm/W | 904.9 lm/m | F | 76.6 lm/W | 735.8 lm/m | G |
| 3500 K | 118.3 lm/W | 1135.3 lm/m | E | 96.1 lm/W | 922.7 lm/m | F | 79.1 lm/W | 759.5 lm/m | G |
| 4000 K | 121.8 lm/W | 1168.9 lm/m | E | 98.2 lm/W | 942.5 lm/m | F | 81.1 lm/W | 778.3 lm/m | G |
| 5000 K | 121.6 lm/W | 1167 lm/m | E | 98.2 lm/W | 942.5 lm/m | F | 81 lm/W | 777.6 lm/m | G |
| 6500 K | 116.5 lm/W | 1118.5 lm/m | E | 94.3 lm/W | 904.9 lm/m | F | 78.2 lm/W | 750.7 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 91.6 lm/W | 989.6 lm/m | F | 73.1 lm/W | 789.9 lm/m | G | — | — | — |
| 2300 K | 102.2 lm/W | 1103.2 lm/m | F | 81.5 lm/W | 880.4 lm/m | G | 66 lm/W | 712.8 lm/m | G |
| 2700 K | 110 lm/W | 1188.2 lm/m | E | 88.5 lm/W | 955.4 lm/m | F | 71.7 lm/W | 774.5 lm/m | G |
| 3000 K | 115.6 lm/W | 1248.9 lm/m | E | 93.5 lm/W | 1009.5 lm/m | F | 76 lm/W | 820.8 lm/m | G |
| 3500 K | 117.3 lm/W | 1266.5 lm/m | E | 95.3 lm/W | 1029.3 lm/m | F | 78.5 lm/W | 847.3 lm/m | G |
| 4000 K | 120.7 lm/W | 1304 lm/m | E | 97.4 lm/W | 1051.4 lm/m | F | 80.4 lm/W | 868.2 lm/m | G |
| 5000 K | 120.5 lm/W | 1301.8 lm/m | E | 97.4 lm/W | 1051.4 lm/m | F | 80.3 lm/W | 867.2 lm/m | G |
| 6500 K | 115.5 lm/W | 1247.8 lm/m | E | 93.5 lm/W | 1009.5 lm/m | F | 77.6 lm/W | 838.1 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 90.9 lm/W | 1090.3 lm/m | F | 72.5 lm/W | 870.3 lm/m | G | — | — | — |
| 2300 K | 101.3 lm/W | 1215.5 lm/m | F | 80.8 lm/W | 970 lm/m | G | 65.5 lm/W | 786 lm/m | G |
| 2700 K | 109.1 lm/W | 1309.1 lm/m | F | 87.7 lm/W | 1052.6 lm/m | F | 71.1 lm/W | 853.3 lm/m | G |
| 3000 K | 114.7 lm/W | 1376 lm/m | E | 92.7 lm/W | 1112.2 lm/m | F | 75.4 lm/W | 904.4 lm/m | G |
| 3500 K | 116.3 lm/W | 1395.4 lm/m | E | 94.5 lm/W | 1134.1 lm/m | F | 77.8 lm/W | 933.5 lm/m | G |
| 4000 K | 119.7 lm/W | 1436.8 lm/m | E | 96.5 lm/W | 1158.4 lm/m | F | 79.7 lm/W | 956.6 lm/m | G |
| 5000 K | 119.5 lm/W | 1434.3 lm/m | E | 96.5 lm/W | 1158.4 lm/m | F | 79.6 lm/W | 955.2 lm/m | G |
| 6500 K | 114.6 lm/W | 1374.8 lm/m | E | 92.7 lm/W | 1112.2 lm/m | F | 76.9 lm/W | 922.8 lm/m | G |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2299?
2299: 2835, 60 LEDs/m, DC 24V, 8mm PCB, 3oz copper FPCB, cuttable 6LEDs/100mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
Which LED driver and run length suit #2299?
2835 Classic LED Strip Light | 8mm | 24V | 60LEDs | 100mm/cut | #2299 is a constant-voltage DC 24V product, so pair it with a CE or UL listed DC 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
