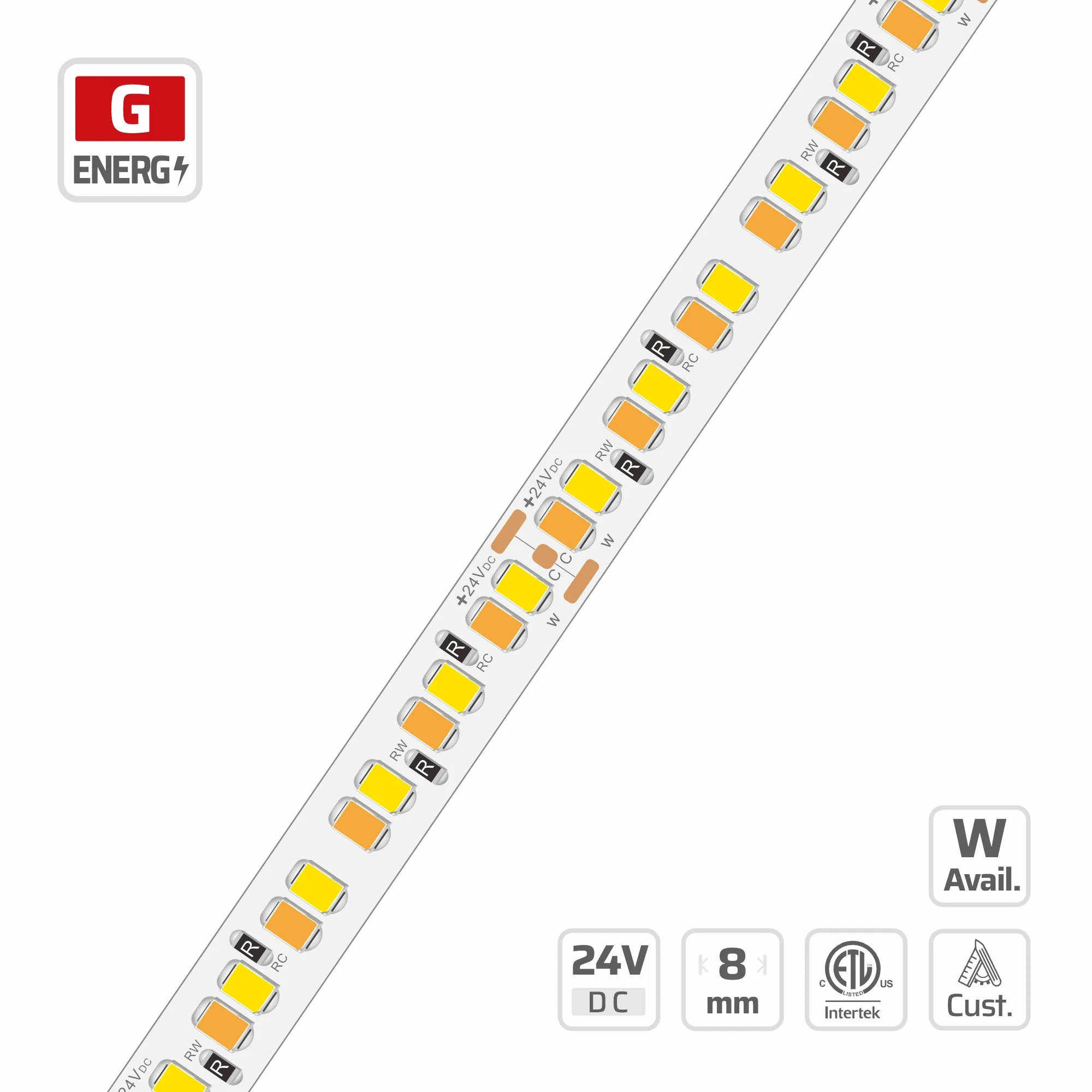

2835 CCT Tunable LED Strip Light (#18450)
8mm · 24V · 240LEDs · 50mm/cut
Model: 18450
Overview
2835 CCT Tunable LED Strip Light | 8mm | 24V | 240LEDs | 50mm/cut | #18450 is part of the DENO CCT SMD Strips series, engineered around tunable white LED strip. Key specifications: 2835, 240, 24V, 8 PCB, 3oz copper FPCB, cuttable 50mm, IP20/IP54/IP65/IP66/IP67/IP68, CRI Ra≥90. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 2835 CCT tunable LED strip light provides seamless color temperature adjustment from 1800K to 3000K for versatile hospitality and architectural lighting. Featuring a high-density layout of 240 LEDs per meter on an 8mm PCB, it delivers smooth linear illumination across tight installation spaces. Operating at 24V with 50mm cutting increments, the 3oz copper circuit board ensures efficient thermal management and reliable dimmable performance. With Ra≥90 color rendering and under 3 SDCM single-bin sorting, it ensures exceptional color fidelity across all linear lighting fixtures. Available in multiple waterproof ratings from IP20 to IP68, we support wholesale project supply with factory-direct OEM custom reel lengths.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CCT (K) | 1800-3000 |
|---|---|
| CRI | Ra≥90 |
| SDCM | < 3 SDCM (Single Bin) |
| LED QTY | 240 |
| PART NO | DL-F28A120V24-18450-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 50mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP54/IP65/IP66/IP67/IP68 |
| LED PITCH | 8.333mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 8 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 3oz |
| POWER RANGE | 9.6~24W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1839 lm/m |
| OPERATING TEMPERATURE | -20°C ~ +50°C |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V2 — 12-24VDC 2-Channel * 5A Color Temperature Controller | V2: Matched by input voltage range and colour channels.
Request a quotation for #18450
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 171.5 lm/W at 6500K, Ra 80, ErP energy class D (Grade DN (1st Tier) · CCT 3-Anchor · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DN (1st Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 154.5 lm/W | 927.1 lm/m | D | 125.4 lm/W | 752.4 lm/m | E | 97.8 lm/W | 586.9 lm/m | F |
| 4000 K | 156 lm/W | 1872.3 lm/m | D | 126.7 lm/W | 1520.4 lm/m | E | 98.8 lm/W | 1185.4 lm/m | F |
| 6500 K | 171.5 lm/W | 1029 lm/m | D | 139.4 lm/W | 836.2 lm/m | E | 108.7 lm/W | 652.4 lm/m | F |
Grade DN (1st Tier) · CCT 3-Anchor · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 151.3 lm/W | 1134.7 lm/m | D | 122.8 lm/W | 920.9 lm/m | E | 95.8 lm/W | 718.3 lm/m | F |
| 4000 K | 152.8 lm/W | 2291.6 lm/m | D | 124.1 lm/W | 1860.9 lm/m | E | 96.7 lm/W | 1450.9 lm/m | F |
| 6500 K | 167.9 lm/W | 1259.4 lm/m | D | 136.5 lm/W | 1023.4 lm/m | E | 106.5 lm/W | 798.6 lm/m | F |
Grade DN (1st Tier) · CCT 3-Anchor · 20W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 146.1 lm/W | 1460.7 lm/m | D | 118.6 lm/W | 1185.5 lm/m | F | 92.5 lm/W | 924.7 lm/m | F |
| 4000 K | 147.5 lm/W | 2950 lm/m | D | 119.8 lm/W | 2395.6 lm/m | E | 93.4 lm/W | 1867.8 lm/m | F |
| 6500 K | 162.1 lm/W | 1621.3 lm/m | D | 131.7 lm/W | 1317.5 lm/m | E | 102.8 lm/W | 1028 lm/m | F |
Grade DN (1st Tier) · CCT 3-Anchor · 23W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 143 lm/W | 1644.7 lm/m | E | 116.1 lm/W | 1334.9 lm/m | F | 90.5 lm/W | 1041.2 lm/m | G |
| 4000 K | 144.4 lm/W | 3321.7 lm/m | E | 117.3 lm/W | 2697.5 lm/m | F | 91.4 lm/W | 2103.1 lm/m | G |
| 6500 K | 158.7 lm/W | 1825.6 lm/m | D | 129 lm/W | 1483.5 lm/m | E | 100.7 lm/W | 1157.5 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 130.9 lm/W | 785.5 lm/m | E | 106.1 lm/W | 636.9 lm/m | F | 82.8 lm/W | 496.6 lm/m | G |
| 4000 K | 132.2 lm/W | 1586.7 lm/m | E | 107.2 lm/W | 1286.7 lm/m | F | 83.6 lm/W | 1003.7 lm/m | G |
| 6500 K | 145.3 lm/W | 871.9 lm/m | D | 117.9 lm/W | 707.6 lm/m | E | 92 lm/W | 551.8 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 128.2 lm/W | 961.4 lm/m | E | 103.9 lm/W | 779.5 lm/m | F | 81 lm/W | 607.9 lm/m | G |
| 4000 K | 129.5 lm/W | 1942 lm/m | E | 105 lm/W | 1574.9 lm/m | F | 81.9 lm/W | 1228.4 lm/m | G |
| 6500 K | 142.3 lm/W | 1067.1 lm/m | D | 115.5 lm/W | 866.1 lm/m | E | 90.1 lm/W | 675.4 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 20W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 123.8 lm/W | 1237.7 lm/m | E | 100.3 lm/W | 1003.4 lm/m | F | 78.3 lm/W | 782.5 lm/m | G |
| 4000 K | 125 lm/W | 2499.9 lm/m | E | 101.4 lm/W | 2027.3 lm/m | F | 79.1 lm/W | 1581.4 lm/m | G |
| 6500 K | 137.4 lm/W | 1373.7 lm/m | D | 111.5 lm/W | 1114.9 lm/m | E | 86.9 lm/W | 869.4 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 23W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 121.2 lm/W | 1393.7 lm/m | E | 98.3 lm/W | 1129.9 lm/m | F | 76.6 lm/W | 881.1 lm/m | G |
| 4000 K | 122.4 lm/W | 2814.9 lm/m | E | 99.3 lm/W | 2282.8 lm/m | F | 77.4 lm/W | 1780.6 lm/m | G |
| 6500 K | 134.5 lm/W | 1546.8 lm/m | E | 109.2 lm/W | 1255.4 lm/m | F | 85.1 lm/W | 979 lm/m | F |
Grade KE (3rd Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 104.8 lm/W | 629.1 lm/m | F | 84.7 lm/W | 508.3 lm/m | G | 66.1 lm/W | 396.7 lm/m | G |
| 4000 K | 105.8 lm/W | 1269.8 lm/m | F | 85.6 lm/W | 1027 lm/m | F | 66.8 lm/W | 801.1 lm/m | G |
| 6500 K | 116.3 lm/W | 697.9 lm/m | E | 94.1 lm/W | 564.8 lm/m | F | 73.5 lm/W | 440.8 lm/m | G |
Grade KE (3rd Tier) · CCT 3-Anchor · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 102.7 lm/W | 769.9 lm/m | F | 83 lm/W | 622.2 lm/m | G | 64.7 lm/W | 485.5 lm/m | G |
| 4000 K | 103.6 lm/W | 1554.2 lm/m | F | 83.8 lm/W | 1257 lm/m | G | 65.4 lm/W | 980.5 lm/m | G |
| 6500 K | 113.9 lm/W | 854.2 lm/m | E | 92.2 lm/W | 691.3 lm/m | F | 71.9 lm/W | 539.5 lm/m | G |
Grade KE (3rd Tier) · CCT 3-Anchor · 20W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 99.1 lm/W | 991.2 lm/m | F | 80.1 lm/W | 800.9 lm/m | G | 62.5 lm/W | 625 lm/m | G |
| 4000 K | 100 lm/W | 2000.7 lm/m | F | 80.9 lm/W | 1618.2 lm/m | G | 63.1 lm/W | 1262.2 lm/m | G |
| 6500 K | 110 lm/W | 1099.6 lm/m | F | 89 lm/W | 889.9 lm/m | F | 69.5 lm/W | 694.5 lm/m | G |
Grade KE (3rd Tier) · CCT 3-Anchor · 23W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 97 lm/W | 1116.1 lm/m | F | 78.4 lm/W | 901.8 lm/m | G | 61.2 lm/W | 703.7 lm/m | G |
| 4000 K | 98 lm/W | 2252.9 lm/m | F | 79.2 lm/W | 1822.1 lm/m | G | 61.8 lm/W | 1421.3 lm/m | G |
| 6500 K | 107.7 lm/W | 1238.2 lm/m | F | 87.1 lm/W | 1002 lm/m | F | 68 lm/W | 782.1 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 23W/m, 18450 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
- 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
- 12x15mm Surface Mount LED Channel · fits ≤8mm strip
- Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
- 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
- 14x8mm Surface Mount LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 18450?
18450: 2835, 240, 24V, 8 PCB, 3oz copper FPCB, cuttable 50mm, IP20/IP54/IP65/IP66/IP67/IP68, CRI Ra≥90. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What colour temperatures and CRI options does this tunable white LED strip offer?
This model is supplied as a tunable white LED strip with CRI Ra≥90 and 1800-3000 colour temperature options. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.
Can DENO customise this tunable white LED strip for a project?
Yes. DENO manufactures the CCT SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How does a tunable white LED strip mix colour temperature?
Two LED channels, typically 2700K and 6500K, sit on the same FPCB and are dimmed against each other. Mixing the channels sweeps the white point along the black body line while total output stays even, which is how a CCT LED strip supports circadian and human centric lighting schedules.
Which LED driver and run length suit #18450?
2835 CCT Tunable LED Strip Light | 8mm | 24V | 240LEDs | 50mm/cut | #18450 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5M. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
