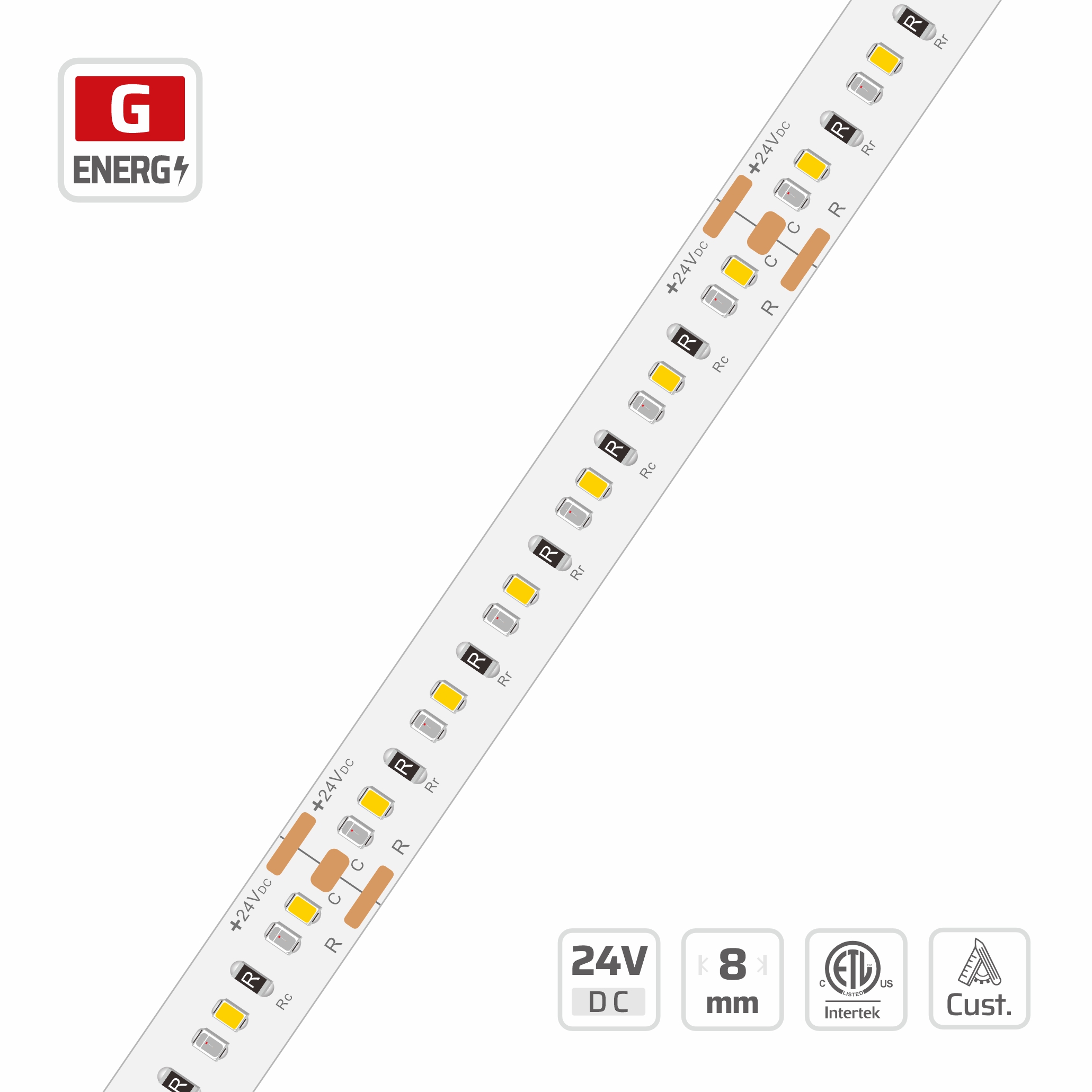

2216 Tunable CCT LED Strip Red+White (#17353)

Overview

2216 Tunable CCT LED Strip Red+White | 8mm | 24V | 240LEDs | 50mm/cut | #17353 is part of the DENO Special SMD Strips series, engineered around special application LED strip. Key specifications: 2216, 240 LEDs/m, 24V, 8 PCB, 3oz copper FPCB, cuttable 12LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Featuring high-density 2216 SMD chips, this tunable CCT LED strip light blends red and white diodes for dynamic dual-color architectural lighting effects. Engineered with 240 LEDs per meter and a 120-degree beam angle, the 8mm PCB ensures smooth, uniform light distribution across continuous runs. The 24V constant voltage design operates efficiently between 12W and 19.2W per meter with precise cut points every 50mm for tailored installations. Constructed with heavy 3oz copper foil, this fully dimmable strip delivers superior thermal management and electrical stability across commercial environments. DENO supplies these versatile flexible strips with factory-direct OEM support and customized packaging for dependable wholesale project supply.

Specifications

Applications

• Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
• Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
• Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
• Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.

Recommended accessories & compatible parts

• DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
• DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
• DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
• DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
• DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
• DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
• V2 — 12-24VDC 2-Channel * 5A Color Temperature Controller | V2: Matched by input voltage range and colour channels.

Request a quotation for #17353

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

• Warranty: 5 years
• Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
• Compliance: CE · UL · RoHS
• Bonding wire: 99.99% pure gold
• Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 19.2W/m, 17353 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

• Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
• LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
• Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

• Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
• The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
• A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

• 14x8mm Magnetic LED Channel · fits ≤8mm strip
• 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
• 12x15mm Surface Mount LED Channel · fits ≤8mm strip
• Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
• 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
• 14x8mm Surface Mount LED Channel · fits ≤8mm strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.

• 14x8mm Magnetic LED Channel · fits ≤8mm strip
• 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
• 12x15mm Surface Mount LED Channel · fits ≤8mm strip
• Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip

Related models in this series

• 2216 High Density LED Strip Light (#17000-N)
• 2216 Constant Current High Lumen High Density High Light Efficacy LED Strip Light (#9426)
• 2216 Single-Color LED Strip Light (#15926-N)
• 2216 Dim-to-warm LED Ultra-Narrow strip light (#17254)
• 2216 Dim-to-warm High density LED Strip Light (#14207-N)
• Classic Series PU LED Light Strips (#1688 PU)
• 2216 Ultra-high density mini cutting LED Strip Light (#14158-N)
• PU LED Light Strips (#2783-PU)

See every model in SMD LED Strip Series or narrow to 2216. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
