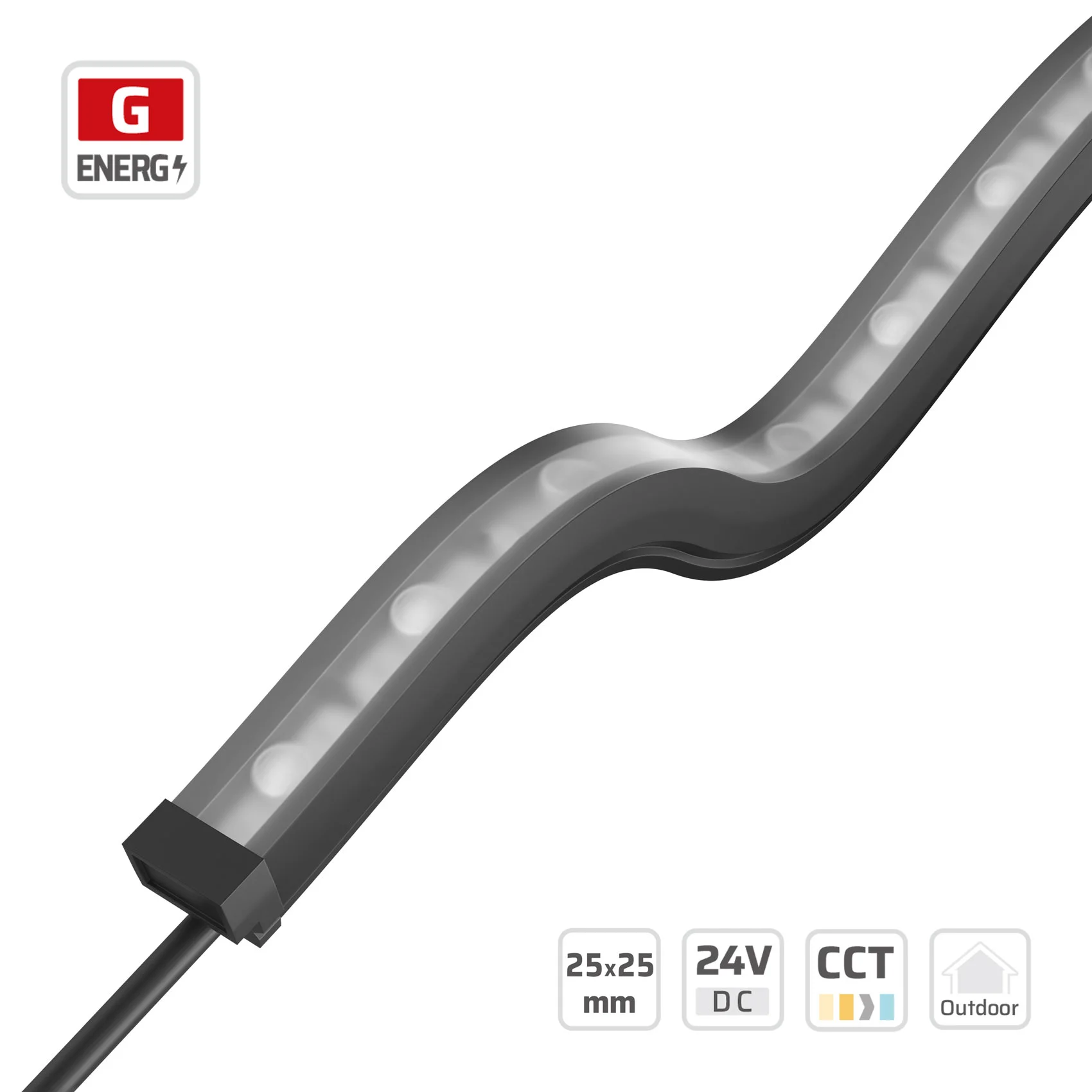

2525 3D Twistable CCT LED Strip Light (#15058)
24V · 24LEDs · 250mm/cut · 25*25mm
Model: 15058
Overview
The DENO LED 15058 is a high-performance 3D Twistable CCT LED Strip Light, specifically designed for applications requiring dynamic and adaptable illumination. Featuring a compact 25*25mm profile and 24 LEDs per section, this 24V strip is engineered with integrated silicone encapsulation and precision lenses for uniform light distribution. It supports PWM, DALI, and 0/1-10V dimming, making it highly versatile for various control systems. Ideal for facade lighting, landscape...
Description
This 24V 3D twistable CCT LED strip light features a 25x25mm profile engineered for seamless multi-directional bending along complex architectural contours. Integrated silicone encapsulation and precision optical lenses house 3030 SMD LEDs with beam angle options of 35°, 45°, and 10*60°. Operating on a 24V constant voltage circuit with 250mm cut intervals, the fixture supports PWM, DALI, and 0/1-10V dimming protocols for precise control. Engineered for facade lighting, landscape illumination, and pathway lighting, this flexible linear system provides uniform illumination across structural surfaces. Built with a 2oz copper PCB in 2m maximum unit lengths, DENO provides wholesale project supply and OEM custom lengths for commercial installations.
Specifications
| CRI | Ra≥80 |
|---|---|
| POWER (W/M) | 21 W/m |
| LED QTY | 24 |
| PART NO | DL-F30C12V24-15058-* |
| SMD TYPE | 3030 SMD |
| CUTTABLE UNIT | 6LEDs/250mm |
| DIMMABLE | Yes |
| IP RATING | IP65 |
| LED PITCH | 41.667mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 18.4mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 35°,45°,10*60° |
| RUN LENGTH | 2m |
| COPPER FOIL | 2oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 824–1693 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Damp and splash-prone areas (IP65) — IP65 protection covers covered outdoor soffits, bathrooms and kitchens where occasional water contact is expected.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Request a quotation for #15058
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 89.6 lm/W at 6500K, Ra 80, ErP energy class F (Grade DL (2nd Tier) · CCT 3-Anchor · 16W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · CCT 3-Anchor · 16W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 80.8 lm/W | 646.8 lm/m | G | 65.1 lm/W | 520.9 lm/m | G | — | — | — |
| 4000 K | 81.7 lm/W | 1306.9 lm/m | G | 65.7 lm/W | 1051.9 lm/m | G | — | — | — |
| 6500 K | 89.6 lm/W | 716.8 lm/m | F | 72.3 lm/W | 578.5 lm/m | G | — | — | — |
Grade DL (2nd Tier) · CCT 3-Anchor · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 78.1 lm/W | 819.6 lm/m | G | 62.9 lm/W | 660.1 lm/m | G | — | — | — |
| 4000 K | 78.9 lm/W | 1656.1 lm/m | G | 63.5 lm/W | 1332.9 lm/m | G | — | — | — |
| 6500 K | 86.5 lm/W | 908.3 lm/m | F | 69.8 lm/W | 733 lm/m | G | — | — | — |
Frequently Asked Questions
What dimming protocols are compatible with the 15058 3D Twistable CCT LED Strip?
The 15058 is compatible with PWM, DALI, and 0/1-10V dimming systems, offering versatile control for light intensity and ambiance in professional installations.
What is the maximum continuous run length for the 15058 LED strip with a single power feed?
For optimal performance, the maximum continuous connection length for the 15058 LED strip from a single power end is 5 meters. Each piece is 2 meters maximum.
Does the 15058 LED strip offer different beam angle options for diverse applications?
Yes, the 15058 offers multiple beam angle options including 35°, 45°, and 10*60°, providing flexibility to achieve desired lighting effects for various architectural and landscape designs.
Can the 15058 3D Twistable CCT LED Strip be customized for specific project requirements?
DENO LED offers customization options for our products, including the 15058. Please contact our sales team to discuss specific length, CCT, or other project-specific needs.
What are the key specifications of #15058?
2525 3D Twistable CCT LED Strip Light | 25*25mm | 24V | 24LEDs | 250mm/cut | #15058: 3030 SMD LEDs, 24, 24V, 18.4mm FPCB, 2oz copper foil, cut unit 6LEDs/250mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
