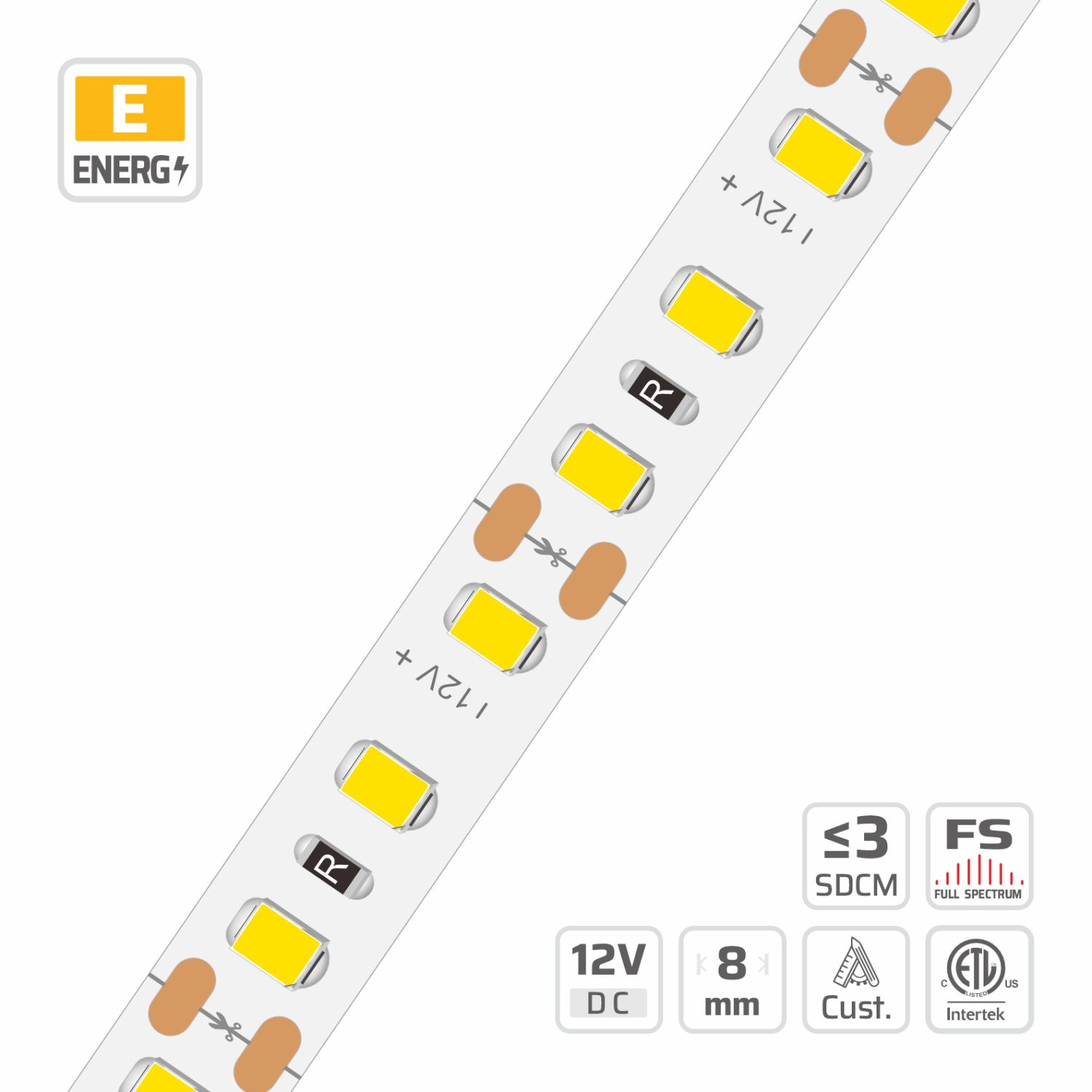

2835 Classic LED Strip Light (#0011)
8mm · 12V · 120LEDs · 25cut
Model: 0011
Overview
2835 Classic LED Strip Light | 8mm | 12V | 120LEDs | 25cut | #0011 is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2835, 120 LEDs/m, 12V, 8mm PCB, 3oz copper FPCB, cuttable 3LEDs/25mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 99.9% purity gold wire encapsulation and pure copper frames, this 2835 LED strip light ensures stable performance across demanding architectural lighting installations. Featuring a heavy 3oz copper foil PCB with an 8mm width, the constant voltage 12V circuit design effectively manages thermal dissipation up to 75°C Tc. Equipped with 120 LEDs per meter at an 8.3mm pitch, this dimmable strip delivers a smooth 120-degree beam angle across max continuous 5-meter runs. Precision cut points every 25mm allow exact field modifications, making this model ideal for factory-direct wholesale project supply and custom cove lighting builds.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 120 LEDs/m |
|---|---|
| PART NO | DL-F28A60V12-0011-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 3LEDs/25mm |
| DIMMABLE | Yes |
| IP RATING | IP67 |
| LED PITCH | 8.3mm |
| PCB WIDTH | 8mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Facade, landscape & bathroom runs (IP67) — IP67 sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #0011
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 149.7 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier)).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 106.5 lm/W | 1277.4 lm/m | F | 85.2 lm/W | 1022.4 lm/m | F | — | — | — |
| 2300 K | 118.5 lm/W | 1422.1 lm/m | E | 94.9 lm/W | 1138.6 lm/m | F | 76.9 lm/W | 922.8 lm/m | G |
| 2700 K | 124.7 lm/W | 1496.8 lm/m | E | 102.7 lm/W | 1232.3 lm/m | F | 83.2 lm/W | 998.7 lm/m | G |
| 3000 K | 133.3 lm/W | 1600 lm/m | E | 108 lm/W | 1296.4 lm/m | F | 87.9 lm/W | 1054.4 lm/m | F |
| 3500 K | 135.4 lm/W | 1624.9 lm/m | D | 110 lm/W | 1320.1 lm/m | E | 90.5 lm/W | 1086.5 lm/m | F |
| 4000 K | 139.8 lm/W | 1677.1 lm/m | D | 112.7 lm/W | 1352.1 lm/m | E | 93 lm/W | 1116.1 lm/m | F |
| 5000 K | 139.6 lm/W | 1674.8 lm/m | D | 112.6 lm/W | 1351 lm/m | E | 92.9 lm/W | 1114.8 lm/m | F |
| 6500 K | 127.7 lm/W | 1532.4 lm/m | E | 108 lm/W | 1296.4 lm/m | F | 89.7 lm/W | 1076.4 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 104.7 lm/W | 1507.3 lm/m | F | 83.8 lm/W | 1206.4 lm/m | G | — | — | — |
| 2300 K | 116.5 lm/W | 1678 lm/m | E | 93.3 lm/W | 1343.5 lm/m | F | 75.6 lm/W | 1088.6 lm/m | G |
| 2700 K | 122.7 lm/W | 1766.2 lm/m | E | 101 lm/W | 1454.1 lm/m | F | 81.8 lm/W | 1178.4 lm/m | G |
| 3000 K | 131.1 lm/W | 1887.9 lm/m | E | 106.2 lm/W | 1529.7 lm/m | F | 86.4 lm/W | 1244.2 lm/m | F |
| 3500 K | 133.1 lm/W | 1917.3 lm/m | E | 108.2 lm/W | 1557.7 lm/m | F | 89 lm/W | 1282 lm/m | F |
| 4000 K | 137.4 lm/W | 1978.9 lm/m | D | 110.8 lm/W | 1595.4 lm/m | E | 91.5 lm/W | 1316.9 lm/m | F |
| 5000 K | 137.2 lm/W | 1976.1 lm/m | D | 110.7 lm/W | 1594 lm/m | E | 91.3 lm/W | 1314.7 lm/m | F |
| 6500 K | 125.6 lm/W | 1808.2 lm/m | E | 106.2 lm/W | 1529.7 lm/m | F | 88.2 lm/W | 1270.1 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 102.9 lm/W | 1729.1 lm/m | F | 82.4 lm/W | 1383.9 lm/m | G | — | — | — |
| 2300 K | 114.6 lm/W | 1925 lm/m | E | 91.7 lm/W | 1541.2 lm/m | F | 74.3 lm/W | 1248.2 lm/m | G |
| 2700 K | 120.6 lm/W | 2026.1 lm/m | E | 99.3 lm/W | 1668.1 lm/m | F | 80.5 lm/W | 1351.8 lm/m | G |
| 3000 K | 128.9 lm/W | 2165.8 lm/m | E | 104.5 lm/W | 1754.8 lm/m | F | 85 lm/W | 1427.3 lm/m | G |
| 3500 K | 130.9 lm/W | 2199.5 lm/m | E | 106.4 lm/W | 1786.9 lm/m | F | 87.5 lm/W | 1470.6 lm/m | F |
| 4000 K | 135.1 lm/W | 2270.1 lm/m | D | 108.9 lm/W | 1830.2 lm/m | F | 89.9 lm/W | 1510.7 lm/m | F |
| 5000 K | 134.9 lm/W | 2266.9 lm/m | E | 108.8 lm/W | 1828.6 lm/m | F | 89.8 lm/W | 1508.6 lm/m | F |
| 6500 K | 123.5 lm/W | 2074.3 lm/m | E | 104.5 lm/W | 1754.8 lm/m | F | 86.7 lm/W | 1456.6 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 101.2 lm/W | 1943.1 lm/m | F | 81 lm/W | 1555.2 lm/m | G | — | — | — |
| 2300 K | 112.7 lm/W | 2163.2 lm/m | E | 90.2 lm/W | 1732 lm/m | F | 73.1 lm/W | 1403.5 lm/m | G |
| 2700 K | 118.6 lm/W | 2276.8 lm/m | E | 97.6 lm/W | 1874.5 lm/m | F | 79.1 lm/W | 1519.1 lm/m | G |
| 3000 K | 126.8 lm/W | 2433.8 lm/m | E | 102.7 lm/W | 1971.9 lm/m | F | 83.5 lm/W | 1603.9 lm/m | G |
| 3500 K | 128.7 lm/W | 2471.7 lm/m | E | 104.6 lm/W | 2008 lm/m | F | 86.1 lm/W | 1652.6 lm/m | F |
| 4000 K | 132.9 lm/W | 2551.1 lm/m | E | 107.1 lm/W | 2056.7 lm/m | F | 88.4 lm/W | 1697.7 lm/m | F |
| 5000 K | 132.7 lm/W | 2547.5 lm/m | E | 107 lm/W | 2054.9 lm/m | F | 88.3 lm/W | 1695.4 lm/m | F |
| 6500 K | 121.4 lm/W | 2331 lm/m | E | 102.7 lm/W | 1971.9 lm/m | F | 85.2 lm/W | 1635.8 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 117.3 lm/W | 1407.9 lm/m | F | 98.6 lm/W | 1183.7 lm/m | F | — | — | — |
| 2300 K | 127.9 lm/W | 1534.8 lm/m | E | 110.1 lm/W | 1321.3 lm/m | F | 89.2 lm/W | 1070.4 lm/m | G |
| 2700 K | 137.9 lm/W | 1654.6 lm/m | E | 119.2 lm/W | 1430.4 lm/m | E | 96.6 lm/W | 1158.8 lm/m | F |
| 3000 K | 144.8 lm/W | 1737.6 lm/m | E | 125.8 lm/W | 1509.9 lm/m | E | 102.3 lm/W | 1227.6 lm/m | F |
| 3500 K | 147 lm/W | 1763.7 lm/m | D | 128.6 lm/W | 1543.1 lm/m | E | 105.8 lm/W | 1269.1 lm/m | F |
| 4000 K | 149.7 lm/W | 1796.9 lm/m | D | 129.3 lm/W | 1551.4 lm/m | E | 106.7 lm/W | 1281 lm/m | F |
| 5000 K | 149.4 lm/W | 1793.4 lm/m | D | 130.1 lm/W | 1560.9 lm/m | E | 107.3 lm/W | 1287.6 lm/m | F |
| 6500 K | 143.3 lm/W | 1719.8 lm/m | E | 124.3 lm/W | 1492.1 lm/m | E | 103.2 lm/W | 1238.4 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 115.4 lm/W | 1661.2 lm/m | F | 97 lm/W | 1396.7 lm/m | F | — | — | — |
| 2300 K | 125.8 lm/W | 1811 lm/m | E | 108.3 lm/W | 1559.1 lm/m | F | 87.7 lm/W | 1262.9 lm/m | G |
| 2700 K | 135.6 lm/W | 1952.3 lm/m | E | 117.2 lm/W | 1687.8 lm/m | F | 95 lm/W | 1367.3 lm/m | F |
| 3000 K | 142.4 lm/W | 2050.3 lm/m | E | 123.7 lm/W | 1781.6 lm/m | E | 100.6 lm/W | 1448.5 lm/m | F |
| 3500 K | 144.5 lm/W | 2081.1 lm/m | E | 126.4 lm/W | 1820.8 lm/m | E | 104 lm/W | 1497.5 lm/m | F |
| 4000 K | 147.2 lm/W | 2120.3 lm/m | D | 127.1 lm/W | 1830.6 lm/m | E | 105 lm/W | 1511.5 lm/m | F |
| 5000 K | 146.9 lm/W | 2116.1 lm/m | D | 127.9 lm/W | 1841.8 lm/m | E | 105.5 lm/W | 1519.2 lm/m | F |
| 6500 K | 140.9 lm/W | 2029.3 lm/m | E | 122.3 lm/W | 1760.6 lm/m | E | 101.5 lm/W | 1461.6 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 113.4 lm/W | 1905.7 lm/m | F | 95.4 lm/W | 1602.3 lm/m | F | — | — | — |
| 2300 K | 123.7 lm/W | 2077.5 lm/m | E | 106.5 lm/W | 1788.5 lm/m | F | 86.2 lm/W | 1448.2 lm/m | G |
| 2700 K | 133.3 lm/W | 2239.6 lm/m | E | 115.2 lm/W | 1936.2 lm/m | F | 93.4 lm/W | 1568.5 lm/m | F |
| 3000 K | 140 lm/W | 2352 lm/m | E | 121.7 lm/W | 2043.8 lm/m | E | 98.9 lm/W | 1661.7 lm/m | F |
| 3500 K | 142.1 lm/W | 2387.3 lm/m | E | 124.3 lm/W | 2088.7 lm/m | E | 102.3 lm/W | 1717.8 lm/m | F |
| 4000 K | 144.8 lm/W | 2432.3 lm/m | E | 125 lm/W | 2100 lm/m | E | 103.2 lm/W | 1733.9 lm/m | F |
| 5000 K | 144.5 lm/W | 2427.5 lm/m | E | 125.8 lm/W | 2112.8 lm/m | E | 103.8 lm/W | 1743.8 lm/m | F |
| 6500 K | 138.6 lm/W | 2327.9 lm/m | E | 120.2 lm/W | 2019.7 lm/m | E | 99.8 lm/W | 1676.6 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 111.5 lm/W | 2141.5 lm/m | F | 93.8 lm/W | 1800.5 lm/m | F | — | — | — |
| 2300 K | 121.6 lm/W | 2334.6 lm/m | E | 104.7 lm/W | 2009.8 lm/m | F | 84.8 lm/W | 1628.2 lm/m | G |
| 2700 K | 131.1 lm/W | 2516.8 lm/m | E | 113.3 lm/W | 2175.8 lm/m | F | 91.8 lm/W | 1762.7 lm/m | F |
| 3000 K | 137.7 lm/W | 2643.1 lm/m | E | 119.6 lm/W | 2296.7 lm/m | E | 97.3 lm/W | 1867.3 lm/m | F |
| 3500 K | 139.7 lm/W | 2682.8 lm/m | E | 122.2 lm/W | 2347.2 lm/m | E | 100.5 lm/W | 1930.4 lm/m | F |
| 4000 K | 142.4 lm/W | 2733.3 lm/m | E | 122.9 lm/W | 2359.8 lm/m | E | 101.5 lm/W | 1948.5 lm/m | F |
| 5000 K | 142.1 lm/W | 2727.9 lm/m | E | 123.7 lm/W | 2374.3 lm/m | E | 102 lm/W | 1958.4 lm/m | F |
| 6500 K | 136.3 lm/W | 2616 lm/m | E | 118.2 lm/W | 2269.6 lm/m | F | 98.1 lm/W | 1883.5 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 86.5 lm/W | 1037.8 lm/m | F | 69.1 lm/W | 829.1 lm/m | G | — | — | — |
| 2300 K | 96.5 lm/W | 1157.6 lm/m | F | 77 lm/W | 924 lm/m | G | 62.4 lm/W | 748.8 lm/m | G |
| 2700 K | 104 lm/W | 1247.8 lm/m | F | 83.5 lm/W | 1002.2 lm/m | G | 67.7 lm/W | 812.5 lm/m | G |
| 3000 K | 109.2 lm/W | 1310.6 lm/m | F | 88.3 lm/W | 1059.2 lm/m | F | 71.8 lm/W | 861.1 lm/m | G |
| 3500 K | 110.8 lm/W | 1329.6 lm/m | E | 90 lm/W | 1080.5 lm/m | F | 74.1 lm/W | 889.6 lm/m | G |
| 4000 K | 114.1 lm/W | 1368.7 lm/m | E | 91.9 lm/W | 1103.1 lm/m | F | 75.9 lm/W | 910.9 lm/m | G |
| 5000 K | 113.9 lm/W | 1366.4 lm/m | E | 91.9 lm/W | 1103.1 lm/m | F | 75.8 lm/W | 909.6 lm/m | G |
| 6500 K | 109.2 lm/W | 1310.6 lm/m | F | 88.3 lm/W | 1059.2 lm/m | F | 73.3 lm/W | 879.6 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 85 lm/W | 1224.6 lm/m | F | 67.9 lm/W | 978.3 lm/m | G | — | — | — |
| 2300 K | 94.9 lm/W | 1365.9 lm/m | F | 75.7 lm/W | 1090.2 lm/m | G | 61.3 lm/W | 882.7 lm/m | G |
| 2700 K | 102.2 lm/W | 1472.3 lm/m | F | 82.1 lm/W | 1182.6 lm/m | G | 66.6 lm/W | 958.7 lm/m | G |
| 3000 K | 107.4 lm/W | 1546.5 lm/m | F | 86.8 lm/W | 1249.8 lm/m | F | 70.6 lm/W | 1016 lm/m | G |
| 3500 K | 108.9 lm/W | 1568.9 lm/m | F | 88.5 lm/W | 1275 lm/m | F | 72.9 lm/W | 1049.6 lm/m | G |
| 4000 K | 112.2 lm/W | 1615 lm/m | E | 90.4 lm/W | 1301.5 lm/m | F | 74.6 lm/W | 1074.8 lm/m | G |
| 5000 K | 112 lm/W | 1612.2 lm/m | E | 90.4 lm/W | 1301.5 lm/m | F | 74.6 lm/W | 1074.2 lm/m | G |
| 6500 K | 107.4 lm/W | 1546.5 lm/m | F | 86.8 lm/W | 1249.8 lm/m | F | 72 lm/W | 1036.8 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 83.6 lm/W | 1404.8 lm/m | G | 66.8 lm/W | 1122.2 lm/m | G | — | — | — |
| 2300 K | 93.3 lm/W | 1566.9 lm/m | F | 74.4 lm/W | 1250.7 lm/m | G | 60.3 lm/W | 1013 lm/m | G |
| 2700 K | 100.5 lm/W | 1689 lm/m | F | 80.8 lm/W | 1356.6 lm/m | G | 65.5 lm/W | 1099.7 lm/m | G |
| 3000 K | 105.6 lm/W | 1774 lm/m | F | 85.3 lm/W | 1433.7 lm/m | F | 69.4 lm/W | 1165.6 lm/m | G |
| 3500 K | 107.1 lm/W | 1799.7 lm/m | F | 87.1 lm/W | 1462.6 lm/m | F | 71.7 lm/W | 1204.1 lm/m | G |
| 4000 K | 110.3 lm/W | 1852.7 lm/m | E | 88.9 lm/W | 1493.1 lm/m | F | 73.4 lm/W | 1233 lm/m | G |
| 5000 K | 110.1 lm/W | 1849.5 lm/m | E | 88.9 lm/W | 1493.1 lm/m | F | 73.3 lm/W | 1231.4 lm/m | G |
| 6500 K | 105.6 lm/W | 1774 lm/m | F | 85.3 lm/W | 1433.7 lm/m | F | 70.8 lm/W | 1189.4 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 82.2 lm/W | 1578.6 lm/m | G | 65.7 lm/W | 1261.1 lm/m | G | — | — | — |
| 2300 K | 91.7 lm/W | 1760.8 lm/m | F | 73.2 lm/W | 1405.4 lm/m | G | 59.3 lm/W | 1138.6 lm/m | G |
| 2700 K | 98.9 lm/W | 1898 lm/m | F | 79.4 lm/W | 1524.5 lm/m | G | 64.4 lm/W | 1235.8 lm/m | G |
| 3000 K | 103.8 lm/W | 1993.6 lm/m | F | 83.9 lm/W | 1611.1 lm/m | G | 68.2 lm/W | 1309.8 lm/m | G |
| 3500 K | 105.3 lm/W | 2022.4 lm/m | F | 85.6 lm/W | 1643.6 lm/m | F | 70.5 lm/W | 1353.1 lm/m | G |
| 4000 K | 108.4 lm/W | 2082 lm/m | F | 87.4 lm/W | 1677.9 lm/m | F | 72.2 lm/W | 1385.6 lm/m | G |
| 5000 K | 108.2 lm/W | 2078.4 lm/m | F | 87.4 lm/W | 1677.9 lm/m | F | 72.1 lm/W | 1384.3 lm/m | G |
| 6500 K | 103.8 lm/W | 1993.6 lm/m | F | 83.9 lm/W | 1611.1 lm/m | G | 69.6 lm/W | 1336.3 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 19.2W/m, 0011 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
- 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
- 12x15mm Surface Mount LED Channel · fits ≤8mm strip
- Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
- 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
- 14x8mm Surface Mount LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 0011?
0011: 2835, 120 LEDs/m, 12V, 8mm PCB, 3oz copper FPCB, cuttable 3LEDs/25mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
Which LED driver and run length suit #0011?
2835 Classic LED Strip Light | 8mm | 12V | 120LEDs | 25cut | #0011 is a constant-voltage 12V product, so pair it with a CE or UL listed 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5M. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
