DL-NFT22D1
Model: DL-NFT22D1
Overview
The DL-NFT22D1 is a high-performance Neon LED Strip from DENO LED, engineered for superior uniform lighting without visible spotting. Constructed from high-quality silica gel, this flexible LED strip is built to withstand extreme temperatures and harsh outdoor environments, boasting an impressive IP67 waterproof rating. It offers excellent resistance to saline solutions, acids, alkalis, corrosive gases, fire, and UV, ensuring long-term durability. With Ra≥80 CRI, ≥120 LEDs/...
Description

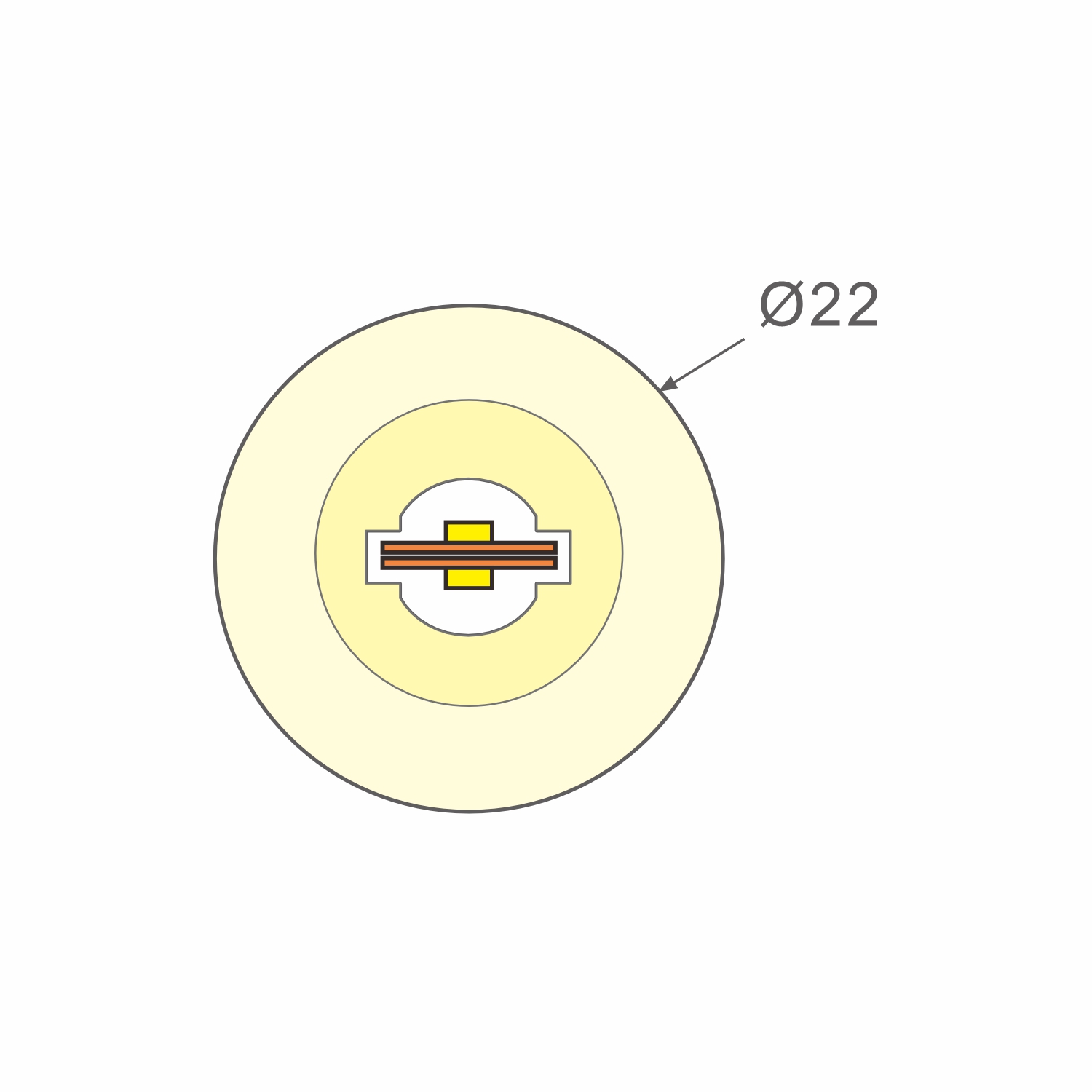

DL-NFT22D1 Professional structural design, it can achieve uniform lighting and will not appear spot. It be made by good quality silica gel materials,it can work at high temperatures or bad outdoor weather. Waterproof grade of IP67 , with resistances to saline solutions, acids & alkalis, corrosive gases, fire and UV. You can use it to make any shape you want, it’s soft and easy to be bent. Easy to install,can see the cut position. convenient and accurate cutting of any length.
Specifications
| cri | Ra≥80 |
|---|---|
| ledQty | ≥ 120 LEDs/m |
| cuttable | 7LEDs/14.28mm |
| dimmable | Yes |
| lifespan | 50000h |
| pcbWidth | 8(2PCS) |
| warranty | 5 Years |
| beamAngle | 360° |
| lengthMax | 5m |
| inputVoltage | 24V DC |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What are the primary advantages of the DL-NFT22D1's silica gel construction?
The silica gel construction ensures the DL-NFT22D1 can operate reliably in high temperatures and harsh outdoor weather, offering superior resistance to chemicals and UV for extended product life.
What is the waterproof rating and what does it mean for outdoor use?
The DL-NFT22D1 has an IP67 waterproof rating, meaning it is protected against dust ingress and can withstand temporary immersion in water, making it highly suitable for demanding outdoor installations.
Can the DL-NFT22D1 be cut to specific lengths for custom projects?
Yes, the DL-NFT22D1 is designed for easy cutting at marked positions every 7 LEDs (14.28mm), allowing for precise customization to fit diverse project requirements.
What is the input voltage requirement for the DL-NFT22D1 Neon LED Strip?
The DL-NFT22D1 operates on a safe and efficient 24V DC input voltage, which is common for professional-grade LED lighting installations.
