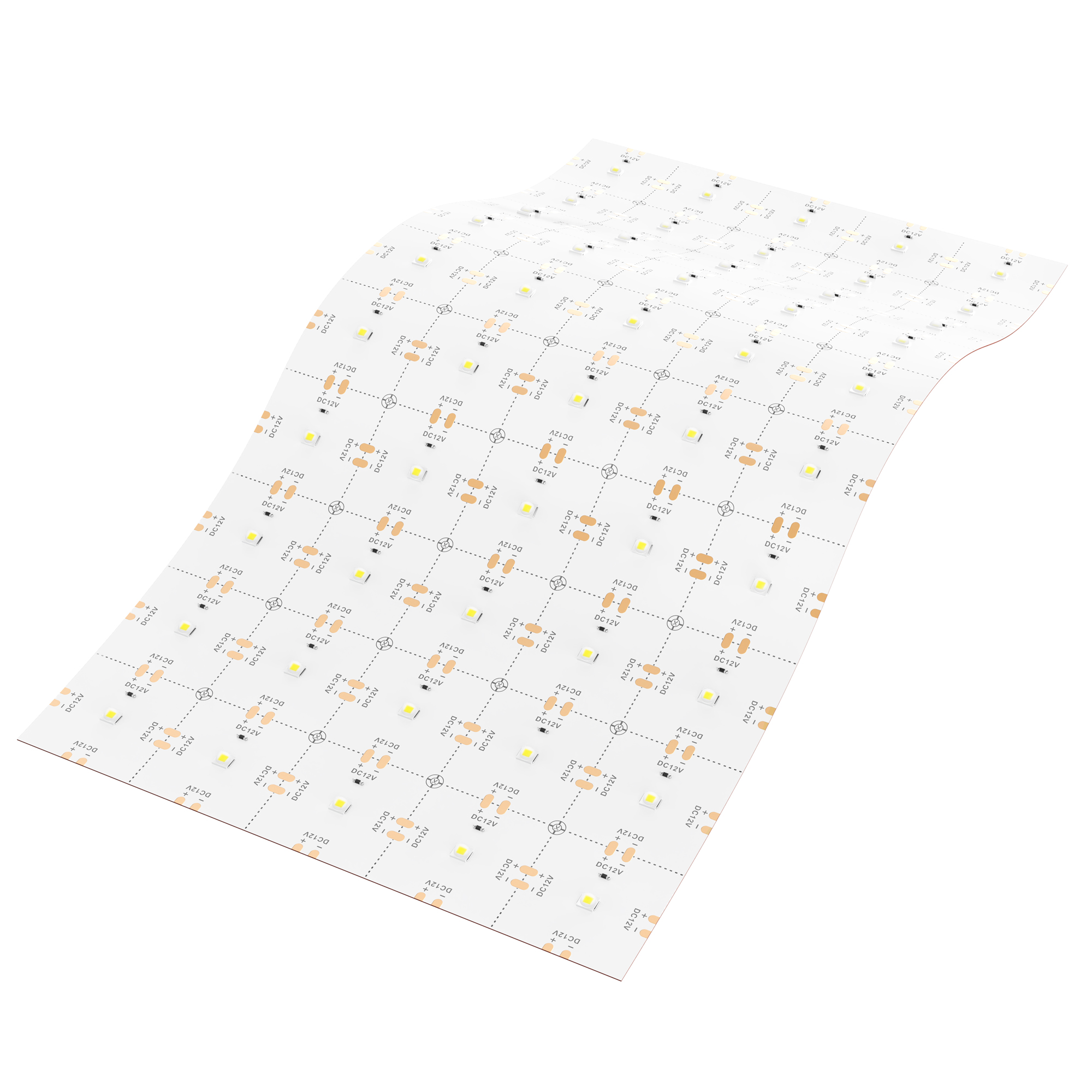

DL-F60A50V12-Lens-6710-*
Model: 6710
Overview
The DL-F60A50V12-Lens-6710 SMD LED Strip is a robust lighting solution designed for various B2B applications. Featuring 50 LEDs per piece with a SMD 6060 type, it offers excellent light quality with a color temperature range of 2700K to 6500K and a high CRI of Ra≥80. The unique environmental silicon encapsulation ensures high light transmittance and effective protection for the LED chip, contributing to a 50,000-hour lifespan. With a 160° beam angle, dimmable functionality,...
Description
DL-F60A50V12-Lens-6710-* Membrane top is encapsulated with environmental silicon material, which has high light transmittance, reflow light decay, high temperature resistance. and can be reflow soldered to protect the led chip well. It has large-area bracket heat sink, fast heat conduction, and low light decay.
Specifications
| cct | 2700-6500 |
|---|---|
| cri | Ra≥80 |
| sdcm | < 3 SDCM (Single Bin) |
| ledQty | 50 LEDs/pcs |
| partNo | DL-F60A50V12-Lens-6710-* |
| smdType | 6060 |
| cuttable | 1LED/48*48mm |
| dimmable | Yes |
| ipRating | IP20 |
| ledPitch | 48mm |
| lifespan | 50000 |
| pcbWidth | 240mm |
| warranty | 5 Years |
| beamAngle | 160° |
| lengthMax | 4pcs |
| copperFoil | 2oz |
| powerRange | 10~60W |
| circuitType | CV |
| inputVoltage | DC 12V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What are the primary specifications of the DL-F60A50V12-Lens-6710 LED strip?
This SMD LED strip features a CCT range of 2700-6500K, Ra≥80 CRI, 12V DC input, and an IP20 rating. It is dimmable and offers a 160° beam angle.
Can this SMD LED strip be customized for specific project requirements?
Yes, DENO LED offers customization options for our products, including specific lengths, CCT, and other parameters to meet unique project needs.
Is the DL-F60A50V12-Lens-6710 suitable for outdoor use?
No, with an IP20 rating, this LED strip is designed for indoor applications only. For outdoor use, higher IP-rated products are recommended.
What is the typical lifespan and warranty for this LED strip?
The DL-F60A50V12-Lens-6710 has an impressive lifespan of 50,000 hours and comes with a comprehensive 5-year warranty from DENO LED.
