DL-F50A162V24-16796-*
Model: 16796
Overview
The DENO LED model 16796 is a cutting-edge flexible RGBW LED panel designed for versatile B2B applications. Featuring 162 high-quality 5050 SMD LEDs per sheet, it integrates RGBW 4-chip technology to deliver an astounding 4 billion customizable colors. Its light sheet design is perfect for creating large-area surface lighting, while an efficient heat dissipation system ensures long-term stable operation and a 50,000-hour lifespan. With a wide 120° beam angle, 24V input, and...
Description
DL-F50A162V24-16796-* Mixes RGBW 4 chip in 1 LED, with tunable fucntion combine. Up to 4 billion colors to choose from. With the addition of white light, much brighter colors and a softer pastel range are produced to satisfy the exacting color requirements of any lighting design. LED light sheet design, suitable for creating large-area surface lighting. Efficient heat dissipation design, ensuring long-term stable operation. Ideal for backlighting, architectural lighting, advertising displays, and stage lighting applications.
Specifications
| ledQty | 162 LEDs/sheet |
|---|---|
| partNo | DL-F50A162V24-16796-* |
| smdType | 5050 |

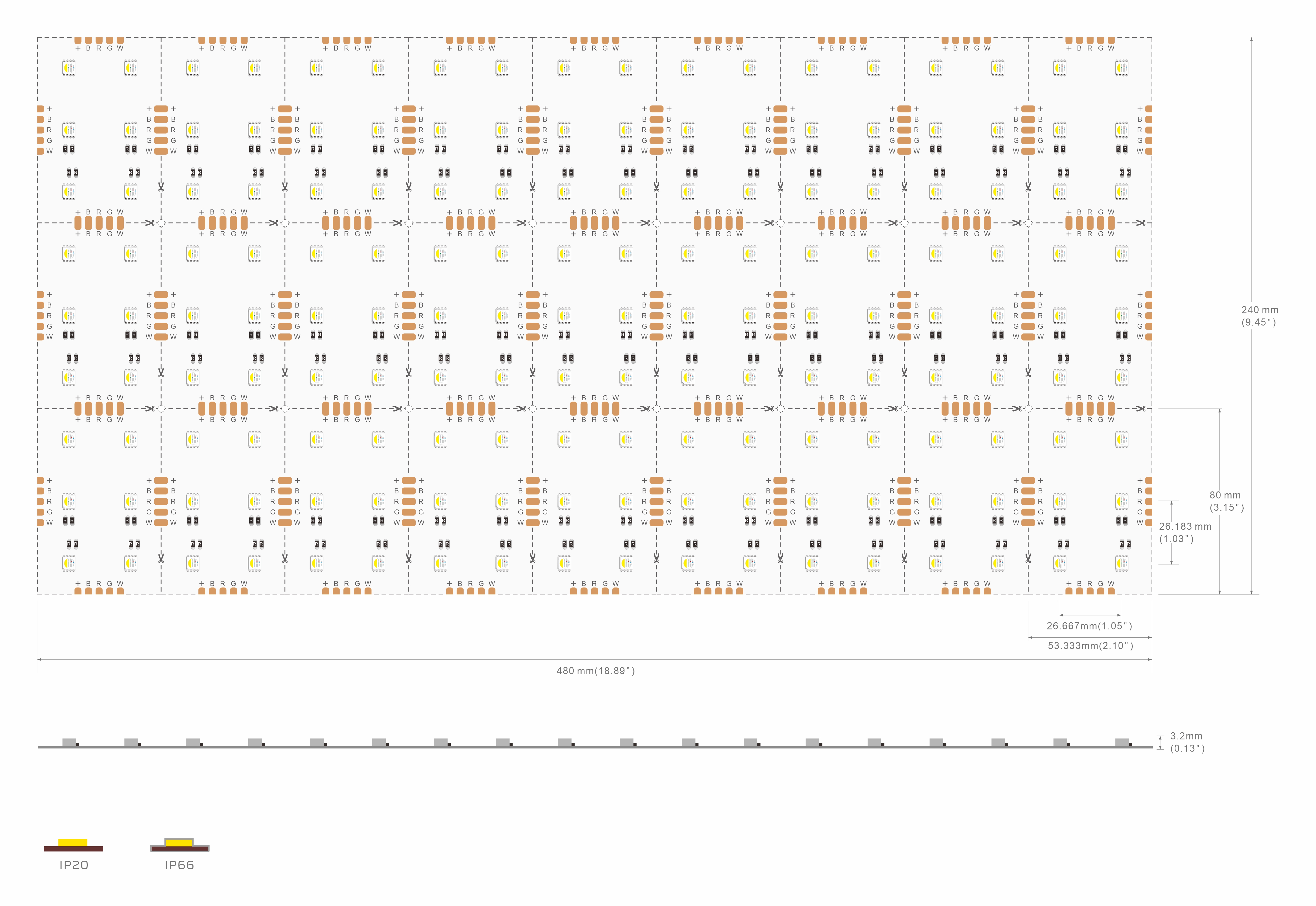

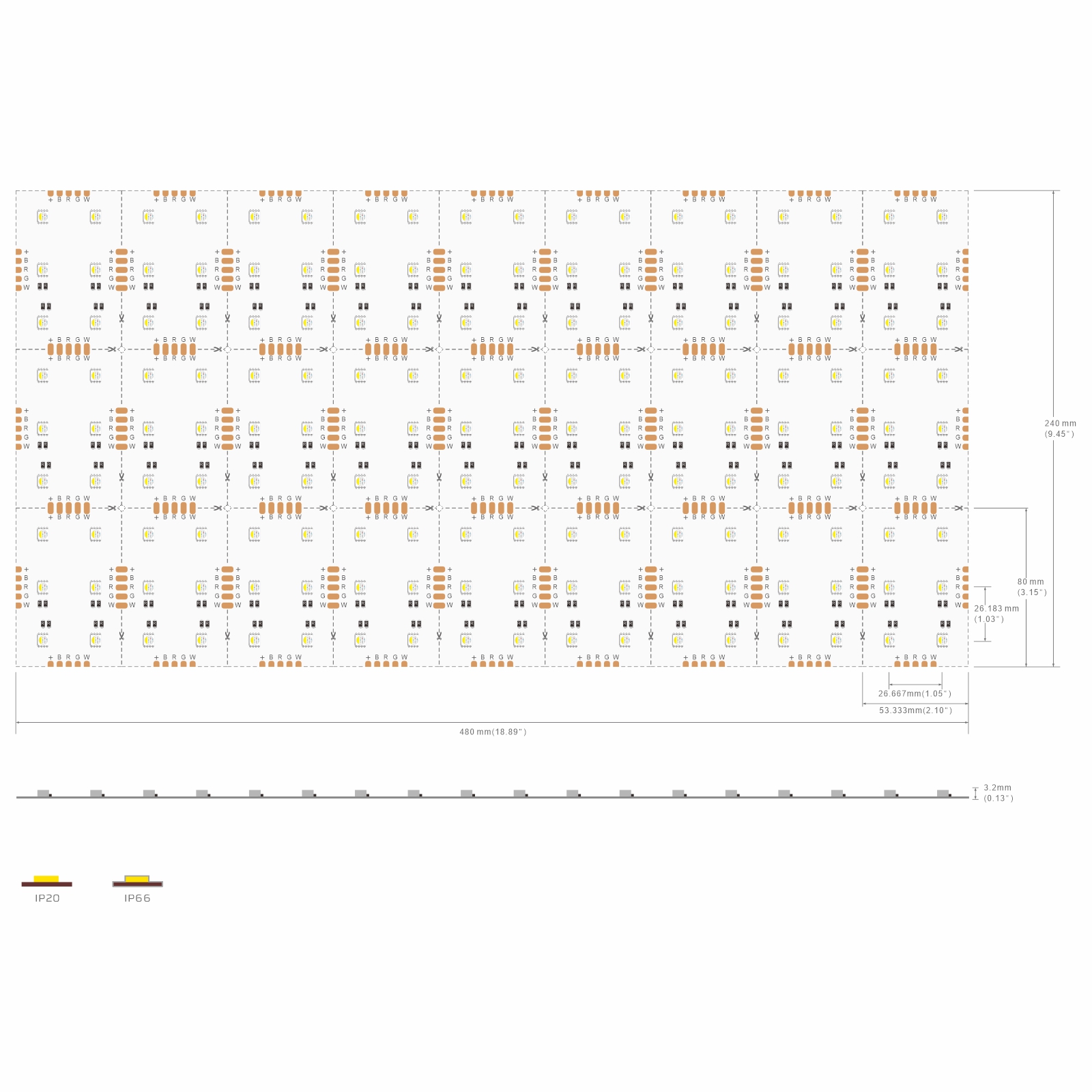

| cuttable | 6LEDs/53.333*80mm |
| dimmable | Yes |
| ipRating | IP20 |
| ledPitch | 26.667mm |
| lifespan | 50000 |
| pcbWidth | 240mm |
| warranty | 5 Years |
| beamAngle | 120° |
| lengthMax | 4pcs |
| copperFoil | 2oz |
| powerRange | 13~50W |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What makes this RGBW LED panel suitable for diverse color requirements?
This panel mixes RGBW 4 chips in 1 LED, with tunable functionality, offering up to 4 billion colors for precise and vibrant lighting designs.
What are the key benefits of its heat dissipation design?
The efficient heat dissipation design ensures the LED panel's long-term stable operation and extends its lifespan to 50,000 hours, crucial for B2B reliability.
Is this flexible LED panel compatible with standard control systems?
Yes, with a DC 24V input and dimmable capability, it is designed for compatibility with common LED control systems for seamless integration.
Can this panel be customized or cut to specific sizes for projects?
The panel is cuttable every 6 LEDs (53.333*80mm sections), offering flexibility for project-specific dimensions and applications.
