DL-F50A144V24-6432-*
Model: 6432
Overview

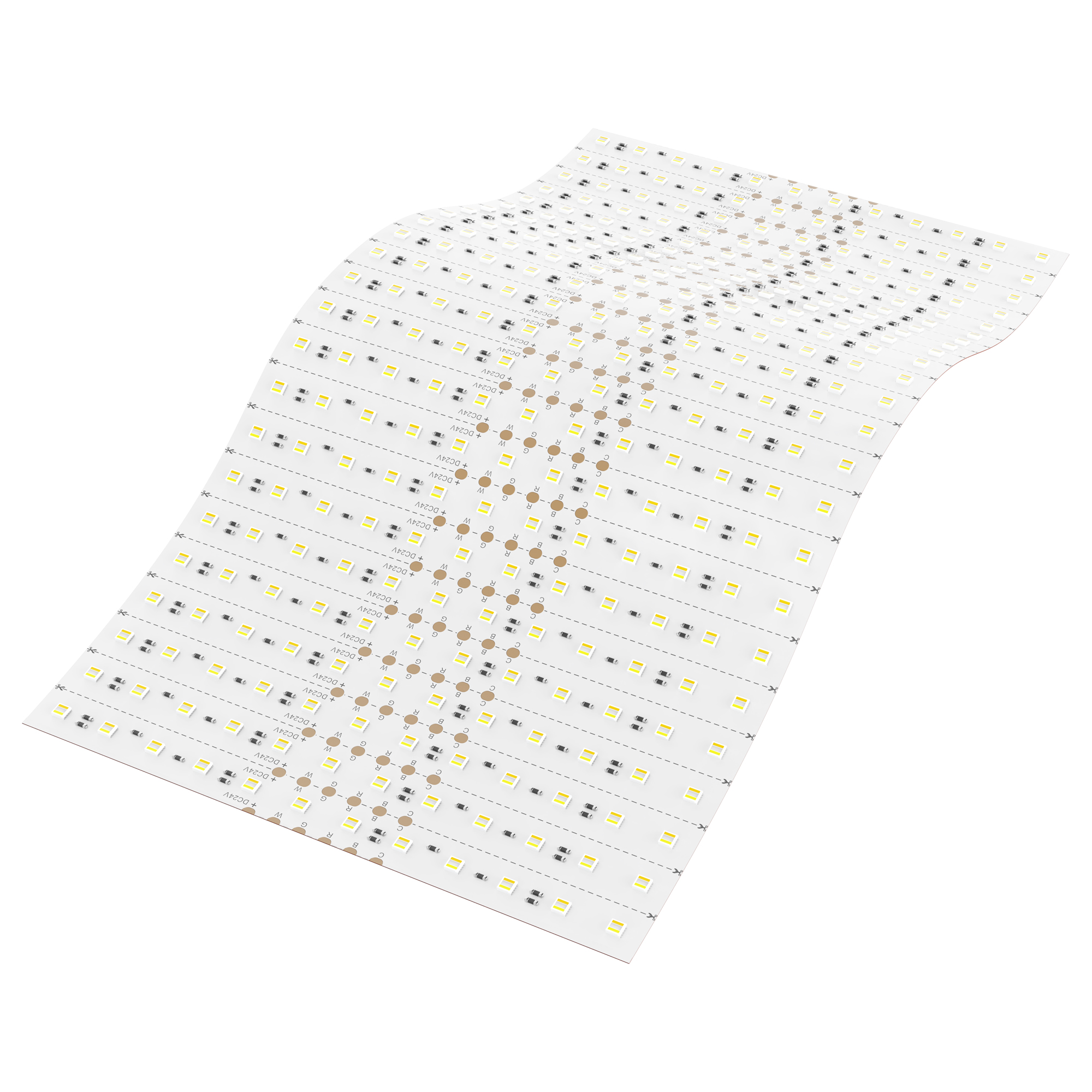

The DENO LED DL-F50A144V24-6432-* flexible LED panel, model 6432, offers exceptional lighting solutions for diverse B2B applications. Featuring a robust pure copper LED frame and high-purity gold wire encapsulation, this panel is built for durability and reduced damage in various environments. With 288 LEDs/pcs of 5050 SMD type, it operates on DC 24V, provides IP20 protection, and boasts a lifespan of 50,000 hours with a 5-year warranty. It caters to commercial lighting des...
Description
DL-F50A144V24-6432-* Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LEDs in different applications.
Specifications
| ledQty | 288 LEDs/pcs |
|---|---|
| partNo | DL-F50A144V24-6432-* |
| smdType | 5050 |
| cuttable | 12LEDs/20*240mm |
| dimmable | Yes |
| ipRating | IP20 |
| ledPitch | 20mm |
| lifespan | 50000 |
| pcbWidth | 240mm |
| warranty | 5 Years |
| lengthMax | 4pcs |
| copperFoil | 2oz |
| powerRange | 20~110W |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What are the key technical specifications for the 6432 Flexible LED Panel?
This flexible LED panel features 288 LEDs/pcs (5050 SMD), operates on DC 24V, has an IP20 rating, and a lifespan of 50,000 hours with a 5-year warranty.
In what types of commercial applications is this LED panel most suitable?
The 6432 Flexible LED Panel is ideal for commercial installations requiring customized lighting, such as retail displays, signage, architectural lighting, and hospitality environments.
Does DENO LED offer customization options or certifications for bulk orders?
Yes, we offer customization for various project requirements. Please contact our sales team to discuss certifications and minimum order quantities for bulk purchases.
What makes the DENO LED 6432 panel superior to other flexible LED options?
Its strong pure copper LED frame and 99.9% purity gold wire encapsulation minimize damage, ensuring exceptional durability and long-term performance in demanding applications.
