DL-F50A144V24-6352-*
Model: 6352
Overview

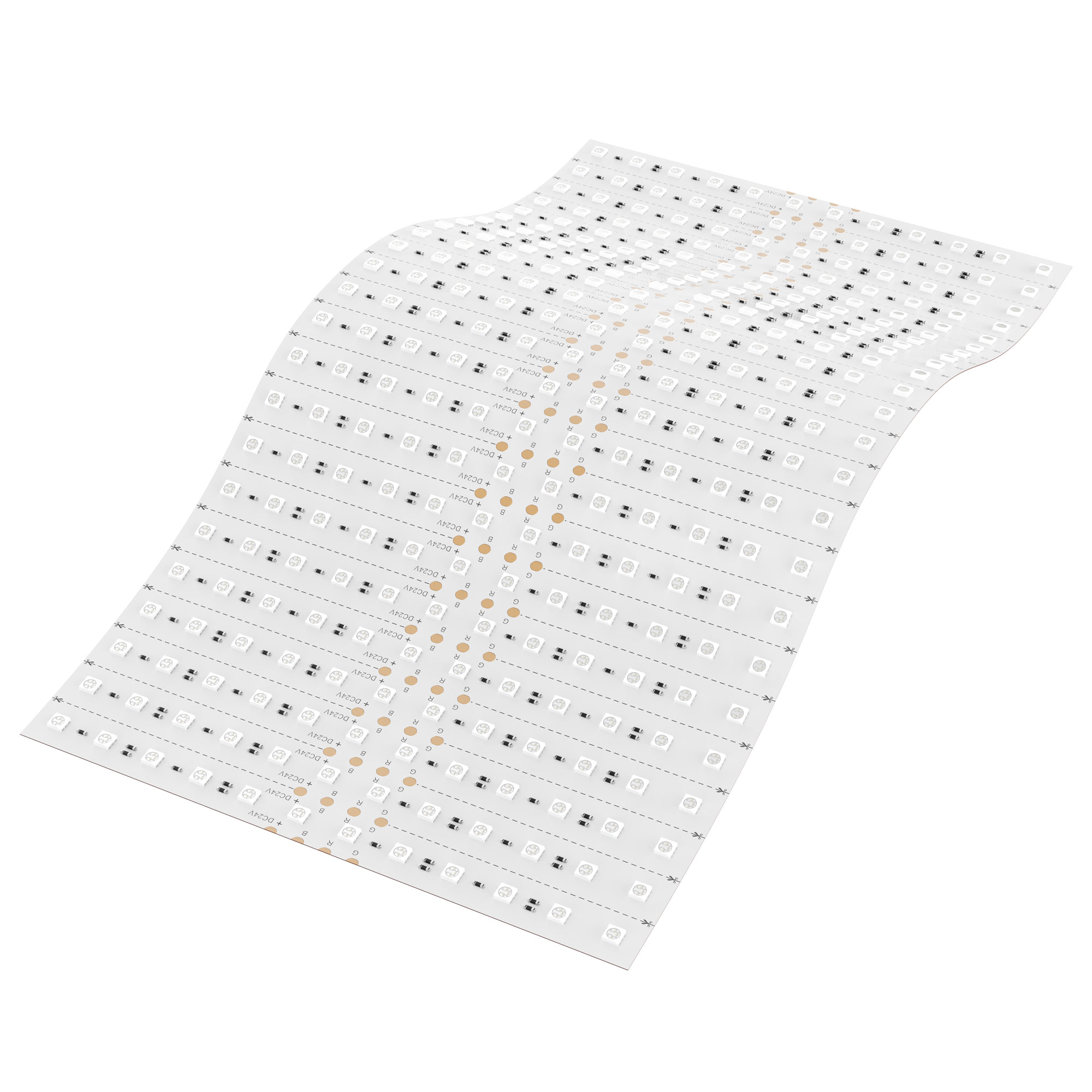

The DENO LED DL-F50A144V24-6352-* is a versatile flexible LED panel, featuring a high density of up to 288 5050 SMD LEDs per panel. It supports multiple color options including monochrome white, RGB, RGBW, and CCT, making it ideal for dynamic architectural lighting, retail displays, and commercial illumination. With a smallest cutting size of 20mm*240mm and dimmable functionality, it offers exceptional design flexibility. Operating at DC 24V with a 5-year warranty and 50,00...
Description
DL-F50A144V24-6352-* Multiple colors are available like monochrome white light, RGB, RGBW, and CCT. The highest density can reach 288 LEDs/panel. The smallest cutting size could be 20mm*240mm, single led .
Specifications
| ledQty | 288 LEDs/pcs |
|---|---|
| partNo | DL-F50A144V24-6352-* |
| smdType | 5050 |
| cuttable | 12LEDs/20*240mm |
| dimmable | Yes |
| ledPitch | 20mm |
| lifespan | 50000 |
| pcbWidth | 240mm |
| warranty | 5 Years |
| lengthMax | 4pcs |
| copperFoil | 2oz |
| powerRange | 17.2~70W |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What power range does the DL-F50A144V24-6352-* flexible LED panel support?
This flexible LED panel supports a power range of 17.2W to 70W, suitable for various intensity requirements in commercial projects.
Can these flexible LED panels be dimmed, and what voltage do they operate at?
Yes, our flexible LED panels are fully dimmable and operate safely and efficiently at a standard DC 24V input voltage.
What is the smallest cuttable unit for the DL-F50A144V24-6352-* series?
The smallest cuttable size for this series is 20mm x 240mm, featuring 12 LEDs, allowing for intricate custom designs.
Does DENO LED offer customization options for the flexible LED panels in terms of color or length?
Yes, we offer various color options like RGB, RGBW, and CCT, and panels can be customized in length up to 4pcs max, tailored for B2B project needs.
