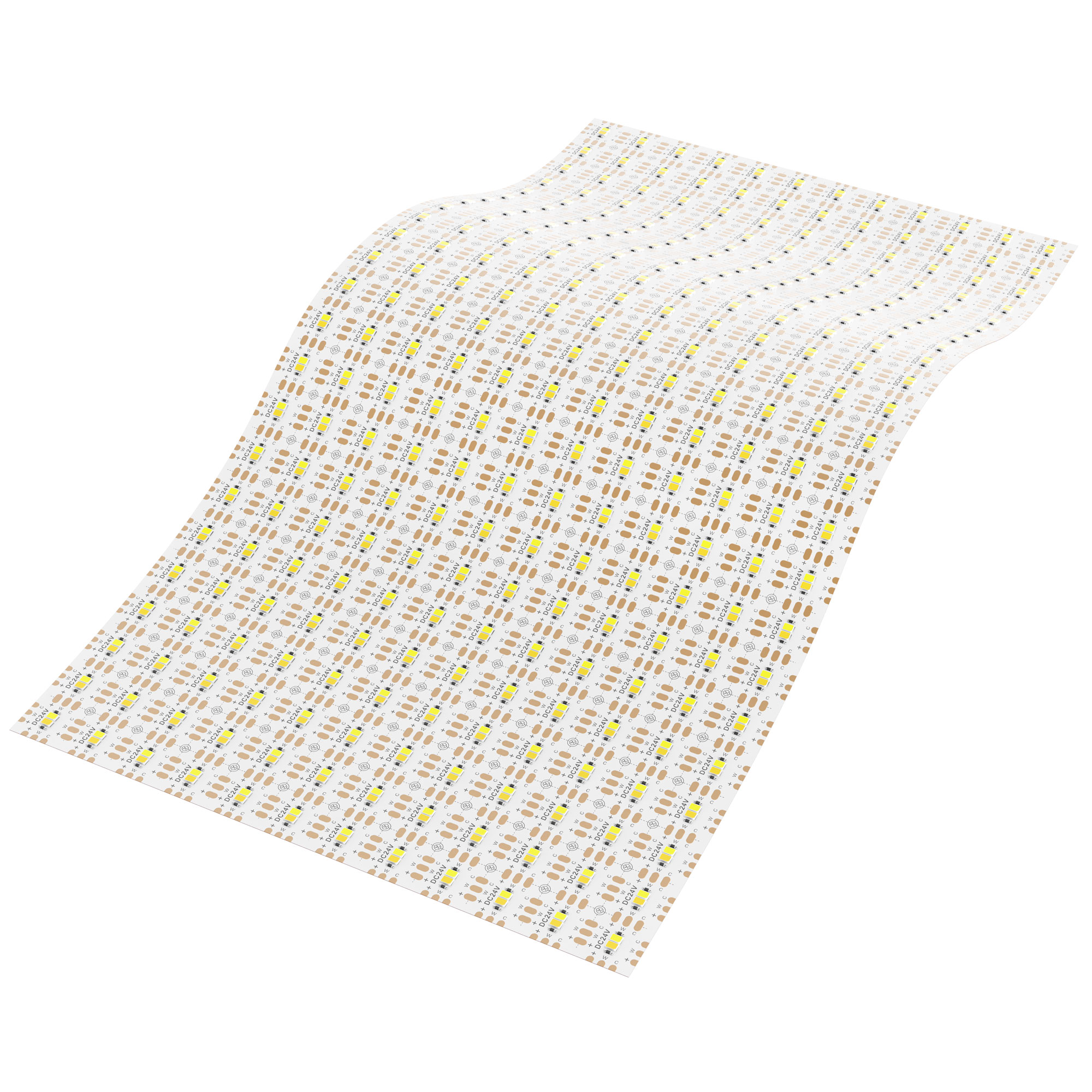

DL-F28A288V24-6600-*
Model: 6600
Overview
The DENO LED DL-F28A288V24-6600-* is a premium flexible LED panel, an exceptional backlighting solution for applications demanding the thinnest and most adaptable lighting. Featuring 576 2835 SMD LEDs, a tight 3 SDCM color consistency, and a 24V input voltage, this dimmable panel offers superior performance and a 5-year warranty. Its flexible nature makes it ideal for curved surfaces and space-constrained installations, widely utilized in retail displays, signage, architect...
Description
DL-F28A288V24-6600-* For backlighting solutions which are sensitive to curvy and space, requiring the thinnest lighting solutions, flexible panel light is the most suitable option.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 576 LEDs/pcs |
| partNo | DL-F28A288V24-6600-* |
| smdType | 2835 |
| cuttable | 2LEDs/20*20mm |
| dimmable | Yes |
| ledPitch | 20mm |
| pcbWidth | 240mm |
| warranty | 5 Years |
| beamAngle | 120° |
| lengthMax | 4pcs |
| copperFoil | 2oz |
| powerRange | 20~120W |
| circuitType | CV |
| inputVoltage | 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What kind of projects are best suited for the Flexible LED Panel 6600?
The Flexible LED Panel 6600 is ideal for backlighting solutions requiring ultra-thin, bendable light sources, such as curved display cases, intricate signage, or custom architectural lighting designs.
What is the maximum continuous length I can install for this flexible LED panel?
You can connect up to 4 pieces of the Flexible LED Panel 6600 in series, providing a maximum continuous length for seamless integration in larger projects.
Does this flexible LED panel support dimming functionality for adjustable brightness?
Yes, the DL-F28A288V24-6600-* panel is fully dimmable, allowing for precise control over light output and ambiance to suit various application requirements.
What certifications does the Flexible LED Panel 6600 hold, ensuring quality and safety?
DENO LED products, including the 6600 series, are designed and manufactured to meet relevant industry standards and certifications, guaranteeing quality and safety for B2B applications.
