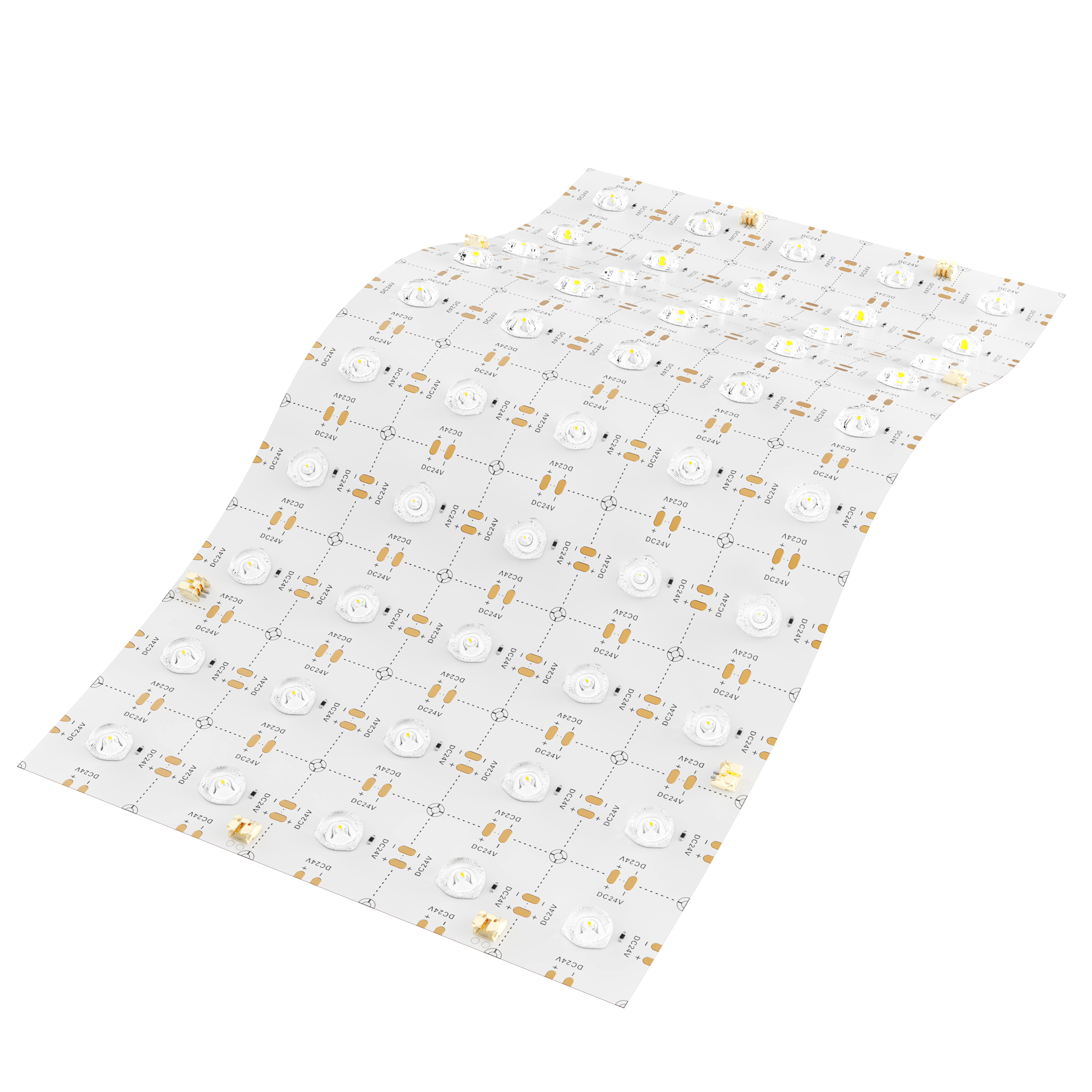

DL-F28A25V24-Lens-6105-*
Model: 6105
Overview
The DL-F28A25V24-Lens-6105-* Flexible LED Panel is designed for dynamic backlighting applications where traditional rigid PCBs fall short. Its flexible PCB construction allows for seamless integration into curvy and space-sensitive designs. Featuring a 160° beam angle and an encapsulated silicone membrane, it ensures high light transmittance and durability, along with excellent heat dissipation. Each 12-60W panel operates on DC 24V, is cuttable every 48x48mm and boasts a 5-...
Description
DL-F28A25V24-Lens-6105-* This light series use the flexible PCB instead of the traditional rigid PCB. For backlighting solutions which are sensitive to curvy and space, requiring the thinnest lighting solutions, flexible panel light is the most suitable option. Integration of LED light source, secondary optical treatment on membrane top, with exceptionally wide beam angle of 160°, much wider angle than the normal LED strip. Membrane top is encapsulated with environmental silicon material, which has high light transmittance, high temperature resistance. and can be reflow soldered to protect the led chip well. It has large-area bracket heat sink, fast heat conduction, and low light decay. Single LED cuttable, the mini size is : 48mm*48mm. Flexible cutting design, can be divided into various shapes, like linear, square, rectangular, letters, symbols etc., used in advertising words, sign light boxes or special installation scenarios.
Specifications
| ledQty | 50 LEDs/pcs |
|---|---|
| partNo | DL-F28A25V24-Lens-6105-* |
| smdType | 2835 |
| cuttable | 1LED/48*48mm |
| dimmable | Yes |
| ledPitch | 48mm |
| lifespan | 50000 |
| pcbWidth | 240mm |
| warranty | 5 Years |
| beamAngle | 160° |
| lengthMax | 4pcs |
| copperFoil | 3oz |
| powerRange | 12~60W |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What are the common applications for this flexible LED panel?
This flexible LED panel is ideal for curved backlighting, display cases, signage, architectural accents, and custom lighting installations requiring adaptable shapes.
Can this flexible LED panel be cut or customized to specific dimensions?
Yes, the DL-F28A25V24-Lens-6105-* can be custom cut every 48mm x 48mm, offering significant flexibility for various project requirements.
What is the expected lifespan and warranty for this product?
This flexible LED panel offers a robust lifespan of 50,000 hours and comes with a comprehensive 5-year warranty period.
Is this flexible LED panel suitable for outdoor or high-humidity environments?
This product is designed for indoor and protected environments with an operating temperature of -25~40°C. Check specific IP ratings for outdoor use.
