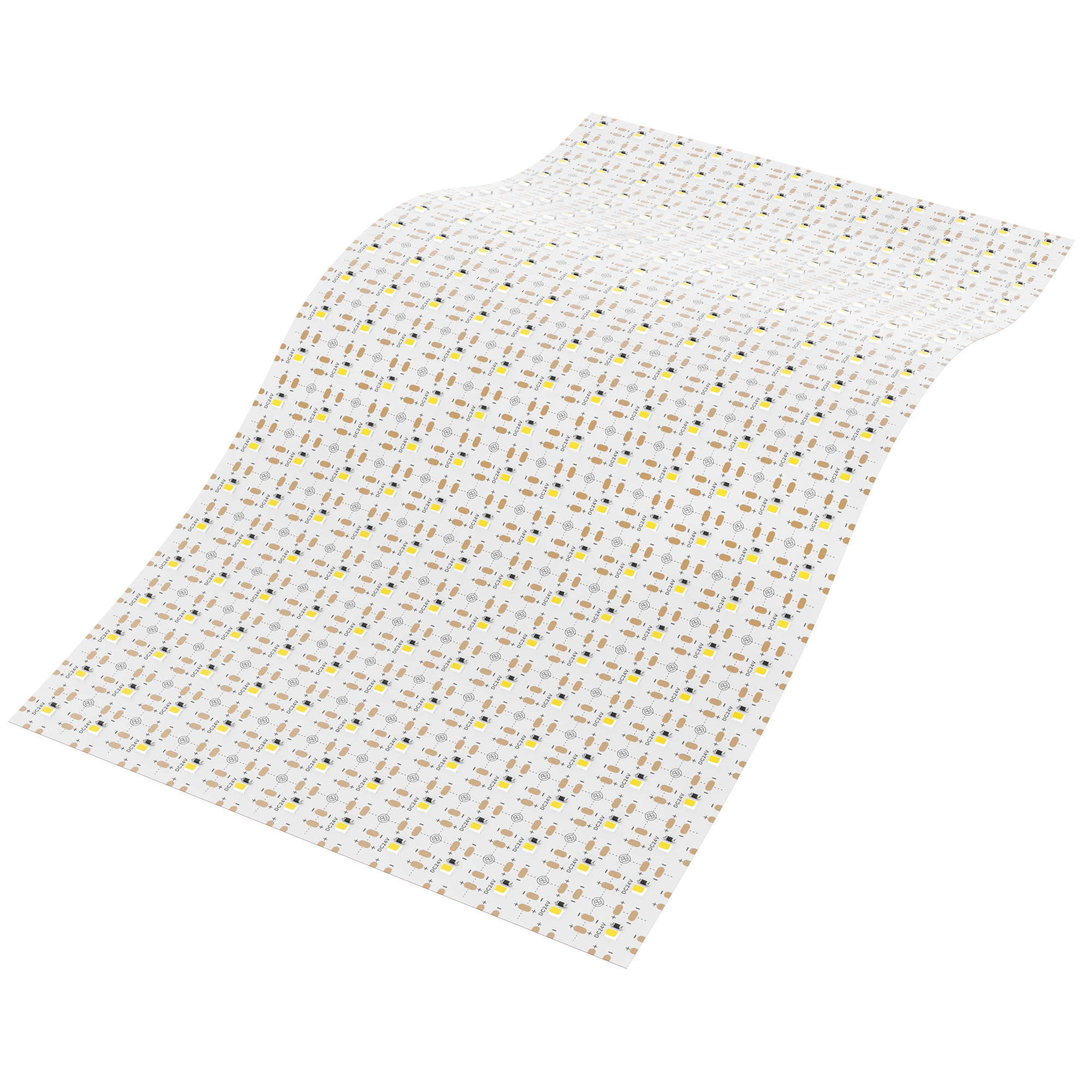

DL-F28A144V24-6433-* | 2835 FlexLite Single Color Panel LED Strips
Model: 6433
Overview
The DL-F28A144V24-6433 flexible LED panel features 288 high-efficiency 2835 LEDs, offering a versatile single-color solution for various backlighting needs. Designed for installations sensitive to space and requiring curved light, this dimmable 24V panel is cuttable every 20x20mm, providing exceptional adaptability with a 120° beam angle. It is ideal for signage, display cases, architectural accents, and custom lighting fixtures in retail, hospitality, and exhibition indust...
Description
DL-F28A144V24-6433-* | 2835 FlexLite Single Color Panel LED Strips For backlighting solutions which are sensitive to curvy and space, requiring the thinnest lighting solutions, flexible panel light is the most suitable option.
Specifications
| ledQty | 288 LEDs/pcs |
|---|---|
| partNo | DL-F28A144V24-6433-* |
| smdType | 2835 |
| cuttable | 1LED/20*20mm |
| dimmable | Yes |
| ledPitch | 20mm |
| pcbWidth | 240mm |
| beamAngle | 120° |
| lengthMax | 4pcs |
| copperFoil | 2oz |
| powerRange | 20~138W |
| circuitType | C.V. |
| inputVoltage | DC 24V |
Frequently Asked Questions
What are the common applications for this flexible LED panel?
This flexible LED panel is ideal for backlit signage, curved displays, cove lighting, architectural accents, and custom light installations needing thin, adaptable illumination.
Can this flexible LED panel be cut or configured for specific project dimensions?
Yes, the DL-F28A144V24-6433 panel is highly adaptable, designed to be cut every 20x20mm (1 LED) to fit precise project requirements.
What voltage is required to operate the DL-F28A144V24-6433 flexible LED strip?
This flexible LED strip operates on a DC 24V input voltage, which requires a compatible constant voltage LED driver for proper functioning.
Are custom lengths or configurations available for bulk orders of this product?
DENO LED offers customization options for bulk orders including custom lengths and specific configurations tailored to large-scale B2B project needs. Contact us directly for details.
