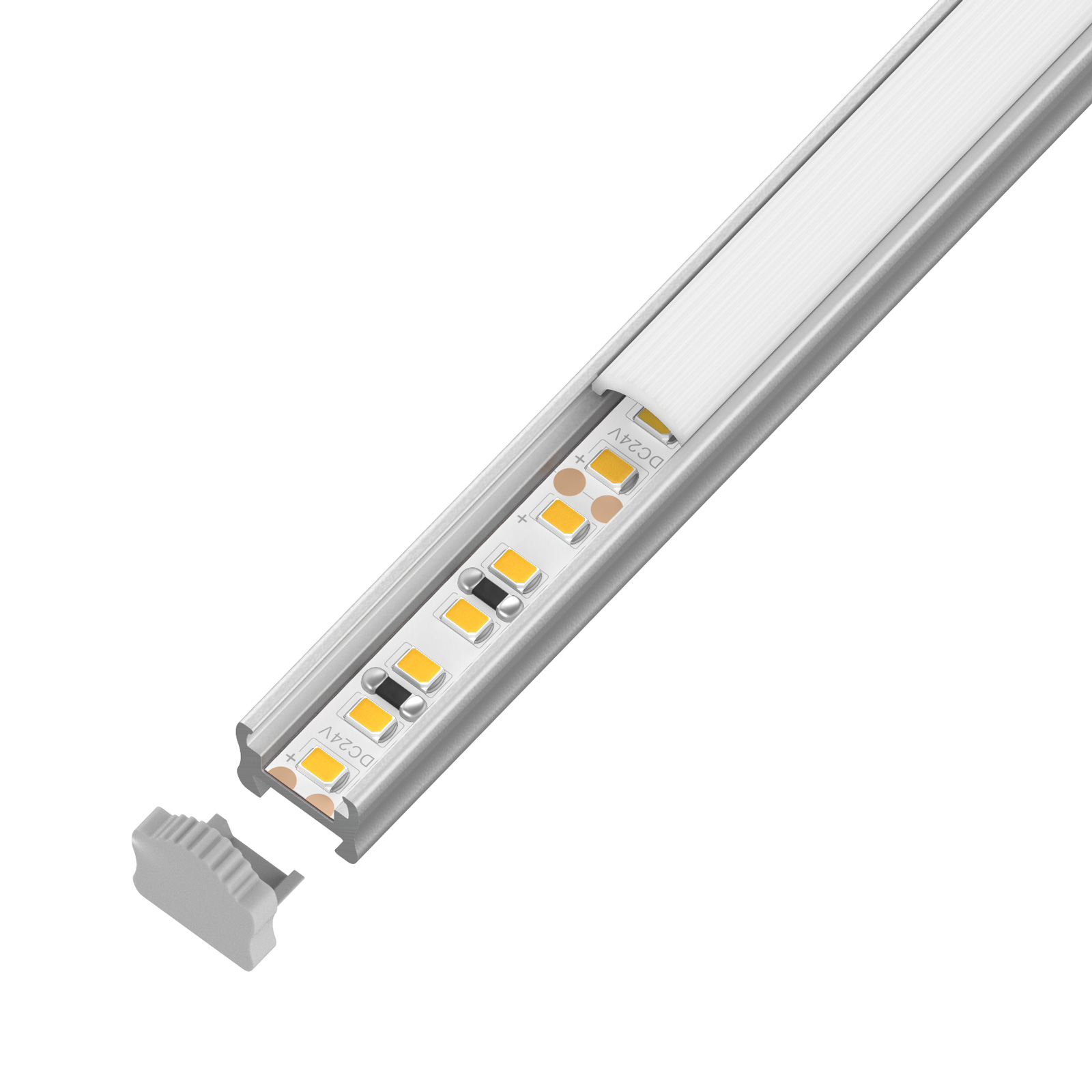

9x9mm Magnetic Clips led strip profile
Model: DL-0909HX-M
Overview
The DL-0909HX-M is a standout 9x9mm Magnetic Clips LED strip profile from DENO LED, designed for seamless recessed linear lighting. This profile supports PCB widths up to 5mm, ideal for 120leds/m (2216 SMD type) and above, operating efficiently at DC 24V. Its innovative magnetic clip design simplifies installation and repositioning, making it perfect for dynamic B2B applications. Crafted from premium aluminum, it ensures excellent thermal dissipation, extending LED lifespan...
Description
9x9mm Magnetic Clips led strip profile The DL-0909HX-M 9x9mm led strip profile is a sleek, space-saving solution for recessed linear lighting. Precision-engineered from premium aluminum alloy, this led strip profile offers superior thermal conductivity to keep your LEDs cool and performing at their best. Its game-changing magnetic clip design makes installing this led strip profile a breeze, letting you reposition your lighting layout in seconds. When paired with a frosted silicone (PC) diffuser cover, this led strip profile delivers a smooth, even glow that eliminates harsh hotspots. Perfect for under-cabinet task lighting, wardrobe interiors, shelf accents, TV feature walls, bedside cove lighting, and vanity mirrors, this led strip profile transforms any space with subtle, sophisticated ambient light.
Specifications
| ledQty | 120leds/m or above |
|---|---|
| partNo | DL-0909HX-M |
| smdType | 2216 |
| cuttable | 6LEDs/25mm |
| dimmable | Yes |
| ledPitch | 4.1mm |
| pcbWidth | 5mm |
| warranty | 3 Years |
| lengthMax | 0.5~4m |
| LED Sample | DL-F20A120V24-6891-* |
| copperFoil | 2oz |
| Accessories | End Cap |
| circuitType | CV |
| inputVoltage | DC 24V |
| Max.FPC Width | 5mm |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip widths are compatible with the DL-0909HX-M magnetic clip profile?
The DL-0909HX-M profile is specifically designed to accommodate LED strips with a maximum FPC width of 5mm, ensuring a snug and secure fit.
What are the primary benefits of the magnetic clip design for installation?
The magnetic clip design allows for quick, tool-free installation and easy repositioning of the profile, significantly reducing labor time on projects.
Is this profile suitable for high-density LED strips with specific power requirements?
Yes, with an input voltage of DC 24V and excellent thermal management, it effectively handles high-density LED strips like 2216 SMD, ensuring optimal performance and longevity.
Can I obtain samples or request custom lengths for large B2B projects?
Yes, DENO LED offers samples for evaluation. Custom lengths from 0.5m to 4m are available upon request to meet specific project demands.
