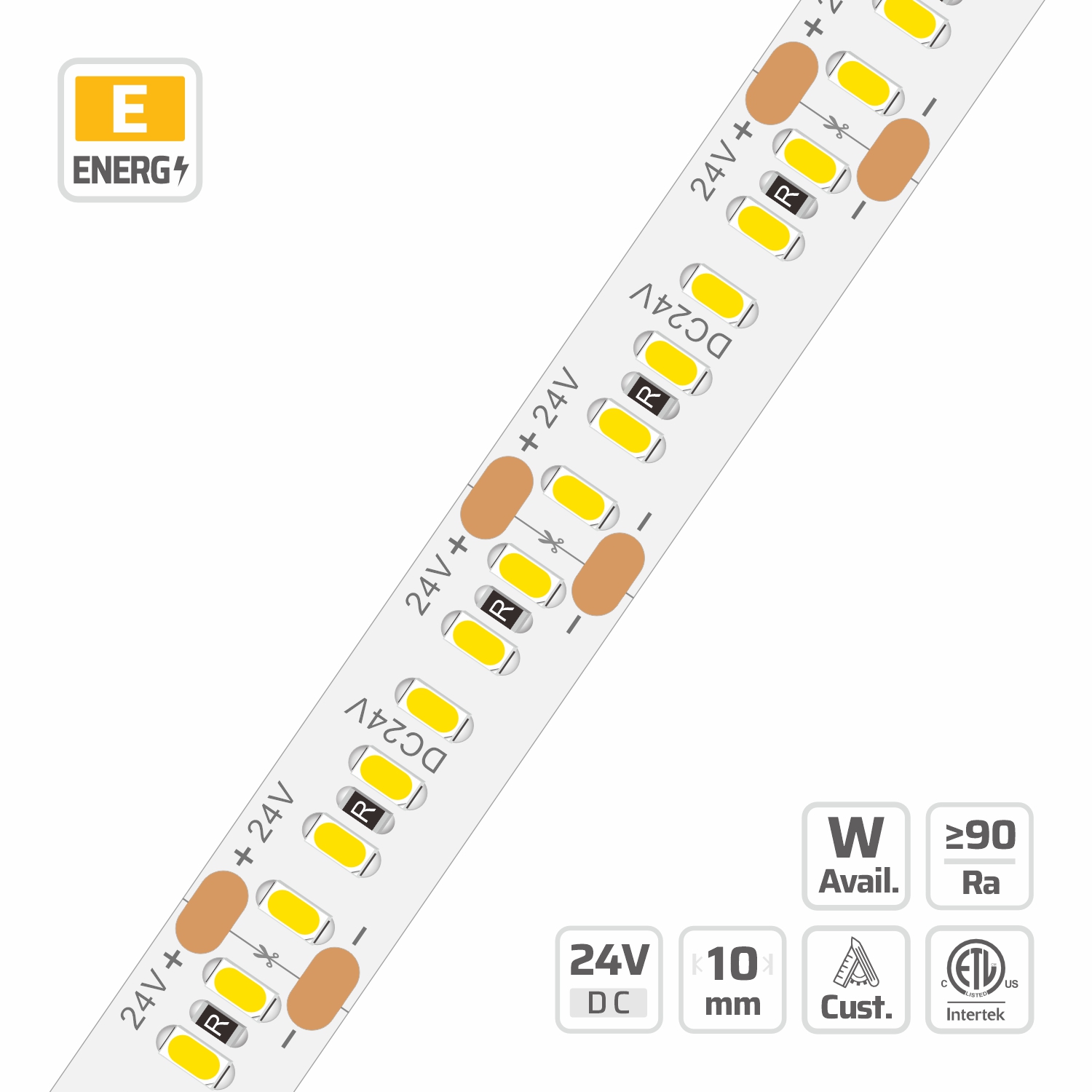

10mm | 24V | 240LEDs | 25cut | #5590 | 3014 Ultra-density LED strip light
Model: 5590
Overview
The DENO LED Model 5590 is a high-performance 3014 Ultra-density LED strip light, engineered for demanding B2B applications. With 240 LEDs per meter, a 24V input, and a narrow 10mm width, it offers exceptional brightness and versatility. Its 3oz copper foil ensures superior thermal management and longevity. Ideal for backlighting, general illumination in aluminum frames, and under-cabinet lighting, it's a favorite among architects and lighting designers. Available with a CC...
Description
10mm | 24V | 240LEDs | 25cut | #5590 | 3014 Ultra-density LED strip light Adopt pure copper strong LED frame, 99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications. Ultra-thin single row strip or ultra-wide multi-row strip are avaiable. CCT from 2000K ~7000K are avaialble. Muli-option to provide a wide range lighting application. 5 SDCM one BIN only,these strips are great for providing elegant, discreet lighting. The flexible design of LED strips allows for bright lighting almost any space you can imagine,which is very much suitable for back lighting and general lighting in aluminum frames or under cabinet,and are commonly used by architects and lighting designers in professional installations.
Specifications
| ledQty | 240LEDs/m |
|---|---|
| partNo | DL-F34A120V24-5590-* |
| smdType | 3014 |
| cuttable | 6LEDs/25mm |
| dimmable | Yes |
| ledPitch | 4.1mm |
| pcbWidth | 10 |
| beamAngle | 120° |
| lengthMax | 5M |
| copperFoil | 3oz |
| onOffTimes | 10000（test times） |
| circuitType | CV (Resistor Based) |
| inputVoltage | 24V |
| minBendDiameter | Φ60mm |
| operatingTemperature | -25~40°C; Tc: 75°C (max) |
Frequently Asked Questions
What are the common applications for the 5590 Ultra-density LED strip?
The 5590 is commonly used for backlighting, under-cabinet lighting, and general illumination in aluminum profiles, suitable for architectural and commercial projects.
What is the maximum continuous run length for this LED strip?
The maximum continuous run length for the DENO LED 5590 strip is specified as 5 meters, ensuring consistent performance without voltage drop issues.
Can the 5590 Ultra-density LED strip be dimmed?
Yes, the 5590 LED strip is dimmable, allowing for flexible lighting control and ambiance adjustment with compatible dimming systems.
What are the customization options for CCT on this product?
The 5590 offers a wide range of CCT options from 2000K to 7000K, provided with a precise 5 SDCM one BIN only for consistent color temperature.
