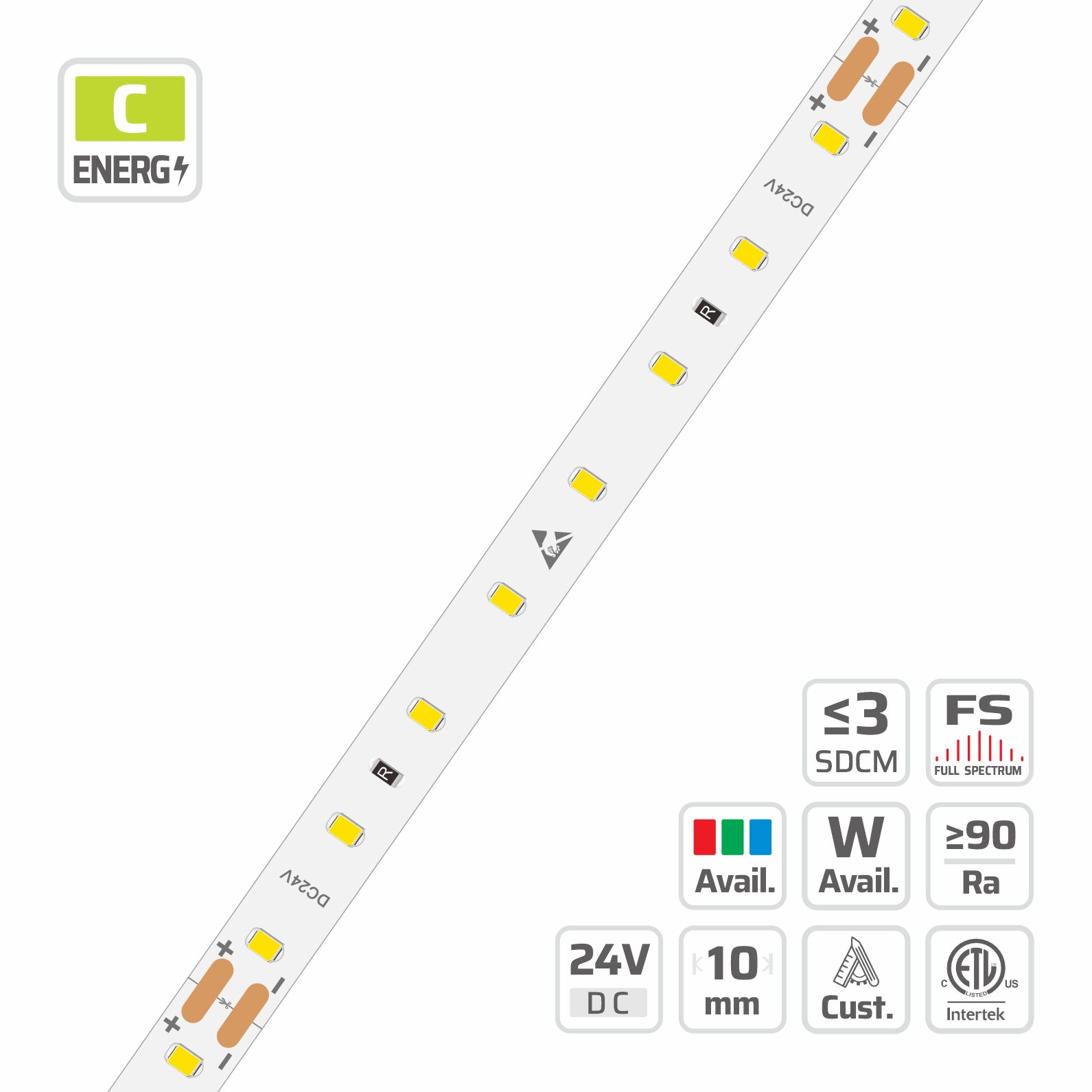

10mm | 24V | 64LEDs | 125cut | #5381-OSRAM | 2835 High Light Efficacy High Lumen LED Strip
Model: 5381-OSRAM
Overview
The DENO LED 5381-OSRAM series offers a premium 2835 high light efficacy and high lumen LED strip, engineered for demanding B2B applications. Featuring a robust 10mm PCB and operating at 24V, this strip ensures brilliant illumination with 64 LEDs/meter and includes a strong pure copper LED frame for enhanced durability. Its 120° beam angle and dimmable functionality provide versatile lighting solutions. Ideal for architectural lighting, retail displays, and commercial space...
Description
10mm | 24V | 64LEDs | 125cut | #5381-OSRAM | 2835 High Light Efficacy High Lumen LED Strip Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications.
Specifications
| ledQty | 64LED/m |
|---|---|
| partNo | DL-F28A32V24-5381-OSRAM-* |
| smdType | 2835 |
| cuttable | 8LEDs/125mm |
| dimmable | Yes |
| ledPitch | 15.6mm |
| pcbWidth | 10mm |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 3oz |
| powerRange | 2~12W |
| circuitType | C.V. |
| inputVoltage | DC 24V |
Frequently Asked Questions
What are the key technical specifications of the 5381-OSRAM LED strip?
The 5381-OSRAM features 64 LEDs/meter, a 10mm PCB width, operates at 24V DC, and has a cuttable length of 125mm (8 LEDs).
What makes the 5381-OSRAM suitable for high-lumen applications?
It utilizes 2835 SMD LEDs with high light efficacy and a robust pure copper LED frame which reduces damage and ensures consistent high lumen output.
Is this LED strip dimmable and what are its typical B2B applications?
Yes, it is dimmable. It's ideal for commercial lighting, architectural accents, display cases, and various indoor industrial lighting needs.
What is the circuit type and maximum length of this LED strip?
The circuit type is constant voltage (C.V.), and the maximum continuous length recommended is 5 meters for optimal performance.
