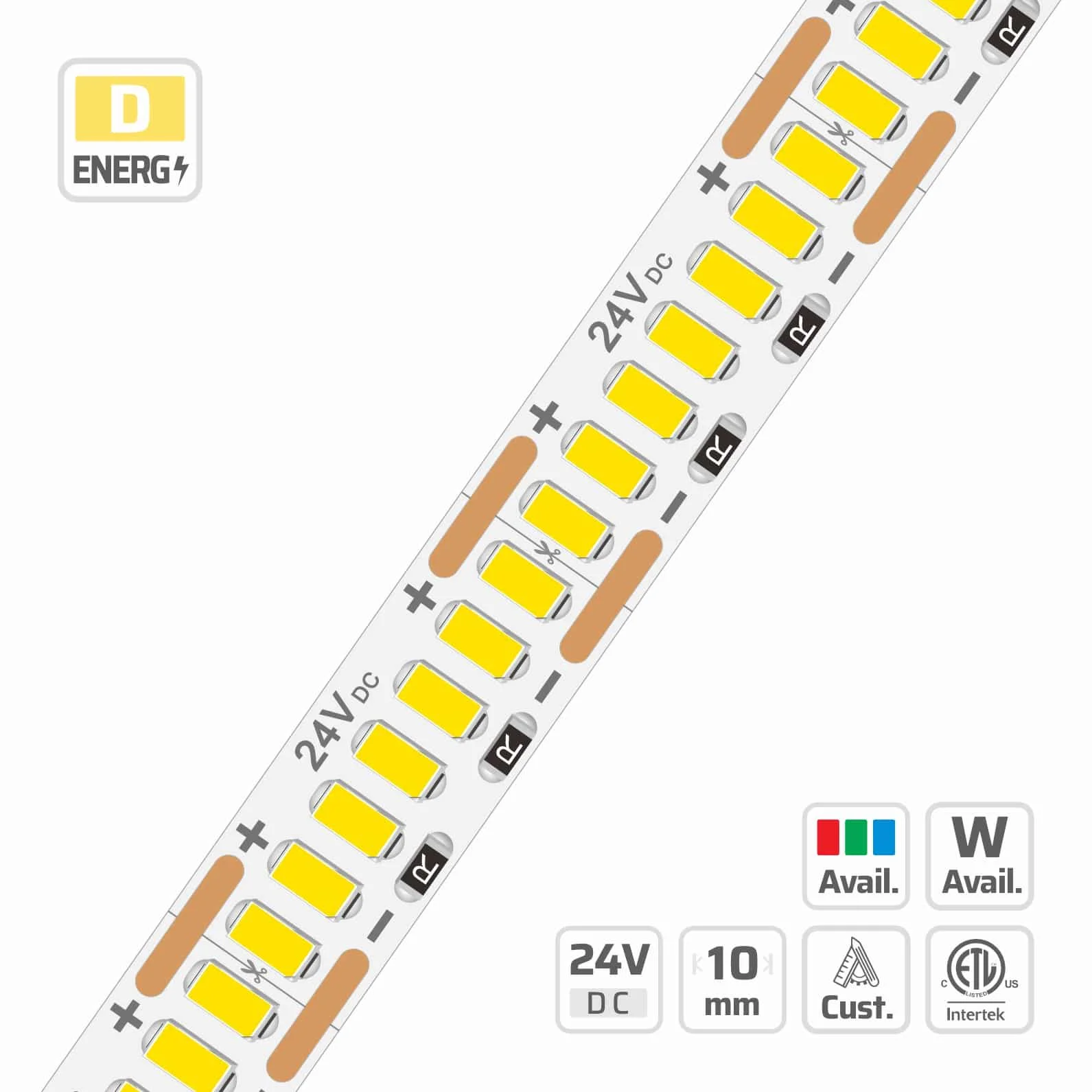

12mm | 24V | 238LEDs | 29.41cut | #5325 | 5630 Ultra-density LED strip light
Model: 5325
Overview
The DENO LED model 5325 is a 5630 ultra-density LED strip light, designed for professional B2B applications. Featuring 238 LEDs/m, Ra≥80 CRI, and a 24V input, it delivers exceptional illumination with a luminous flux of 7305 lm/m. Available in various IP ratings (IP20/IP65/IP67/IP68), it suits diverse environments from indoor architectural lighting to outdoor facade illumination. Built with pure copper LED frames and 99.9% golden wire, it ensures longevity and consistent pe...
Description
12mm | 24V | 238LEDs | 29.41cut | #5325 | 5630 Ultra-density LED strip light Adopt pure copper strong LED frame,99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.
Specifications
| cct | 2700-6500 |
|---|---|
| cri | Ra≥80 |
| sdcm | < 3 SDCM (Single Bin) |
| ledQty | 238 |
| partNo | DL-F56A119V24-5325-* |
| smdType | 5630 |
| cuttable | 7LEDs/29.41mm |
| dimmable | Yes |
| ipRating | IP20/IP65/IP67/IP68 |
| ledPitch | 4.2mm |
| lifespan | 50000 |
| pcbWidth | 12 |
| warranty | 5 Years |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 2 oz |
| onOffTimes | 10000（test times） |
| circuitType | CV |
| inputVoltage | 24V |
| luminousFlux | 7305 lm/m |
| minBendDiameter | Φ60mm |
| operatingTemperature | -25~40°C;Tc: 75°C (max) |
Frequently Asked Questions
What are the available color temperatures (CCT) for the 5325 LED strip?
The 5325 LED strip is available with a wide range of CCT options, from 2700K (warm white) to 6500K (cool white), ensuring suitability for various ambiance requirements.
Is the 5325 LED strip dimmable and what power supply is recommended?
Yes, the 5325 LED strip is fully dimmable. A compatible 24V constant voltage LED driver is recommended for optimal performance and dimming control.
What certifications do DENO LED products like the 5325 typically carry?
DENO LED products, including the 5325 strip, are designed to meet international standards such as CE, RoHS, and UL, ensuring quality and safety for professional projects.
Can the 5325 LED strip be customized for specific project lengths or IP ratings?
Yes, DENO LED offers customization for project-specific lengths and various IP ratings (IP20, IP65, IP67, IP68) to meet diverse application requirements for B2B clients.
