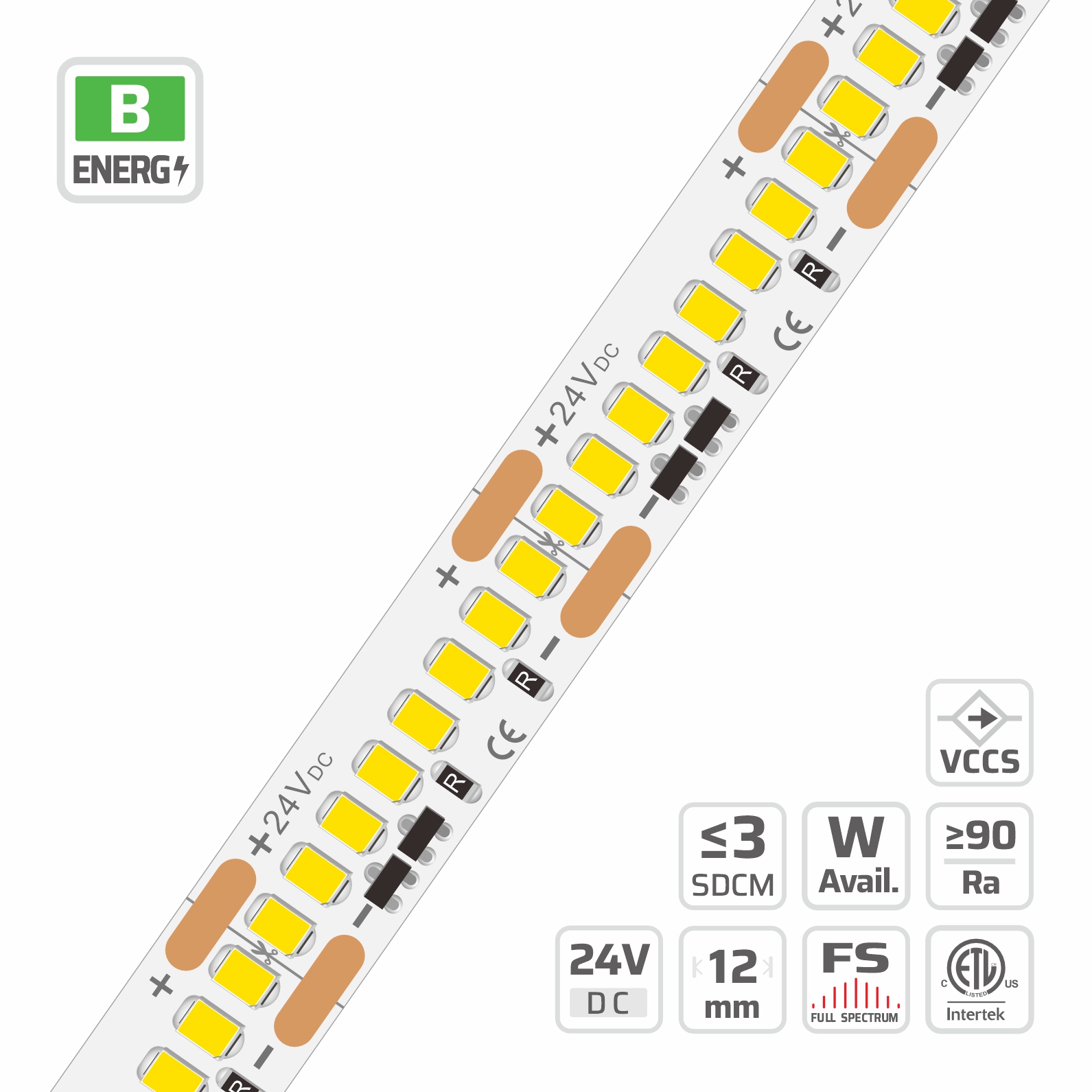

12mm | 24V | 256LEDs | 31.25cut | #5247 | 4000lm/m High Lumen High Light Efficacy Ultra-Density LED Strip
Model: 5247
Overview
The DENO LED model 5247 is an ultra-density LED strip designed for demanding B2B applications. Featuring a high lumen output of 4000lm/m and excellent color consistency with <3 SDCM, this 24V strip is perfect for premium commercial lighting environments. Its 12mm width and 256LEDs/m provide uniform light distribution. Engineered with strong pure copper LED frames and 99.9% purity gold wire encapsulation, it ensures durability and reliability across various installations. Id...
Description
12mm | 24V | 256LEDs | 31.25cut | #5247 | 4000lm/m High Lumen High Light Efficacy Ultra-Density LED Strip Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 256 |
| partNo | DL-F28A128V24-5247-* |
| smdType | 2835 |
| cuttable | 8LEDs/31.25mm |
| dimmable | Yes |
| ledPitch | 3.9mm |
| pcbWidth | 12mm |
| warranty | 5 Years |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 3 oz |
| onOffTimes | 10000（test times） |
| circuitType | CC |
| inputVoltage | 24V |
| minBendDiameter | Φ60mm |
| operatingTemperature | -25~40°C;Tc: 75°C (max) |
Frequently Asked Questions
What is the primary benefit of the ultra-density design?
The ultra-density design with 256 LEDs/meter provides incredibly uniform, dot-free lighting, making it ideal for applications requiring seamless illumination without visible hot spots, even in shallow profiles.
Is this LED strip compatible with standard dimming systems?
Yes, this 24V LED strip is fully dimmable, allowing for flexible light control and ambiance adjustment when paired with compatible constant voltage dimmers and power supplies from DENO LED.
What is the expected lifespan and warranty for this product?
DENO LED offers a 5-year warranty on this product, ensuring long-term reliability. Its robust construction with pure copper frames supports extended operational life and consistent performance.
Can DENO LED provide custom lengths or specific CCT options for B2B orders?
DENO LED specializes in B2B solutions and can accommodate custom length requirements. For specific CCT options or other customizations, please contact our sales team to discuss project needs and MOQ.
