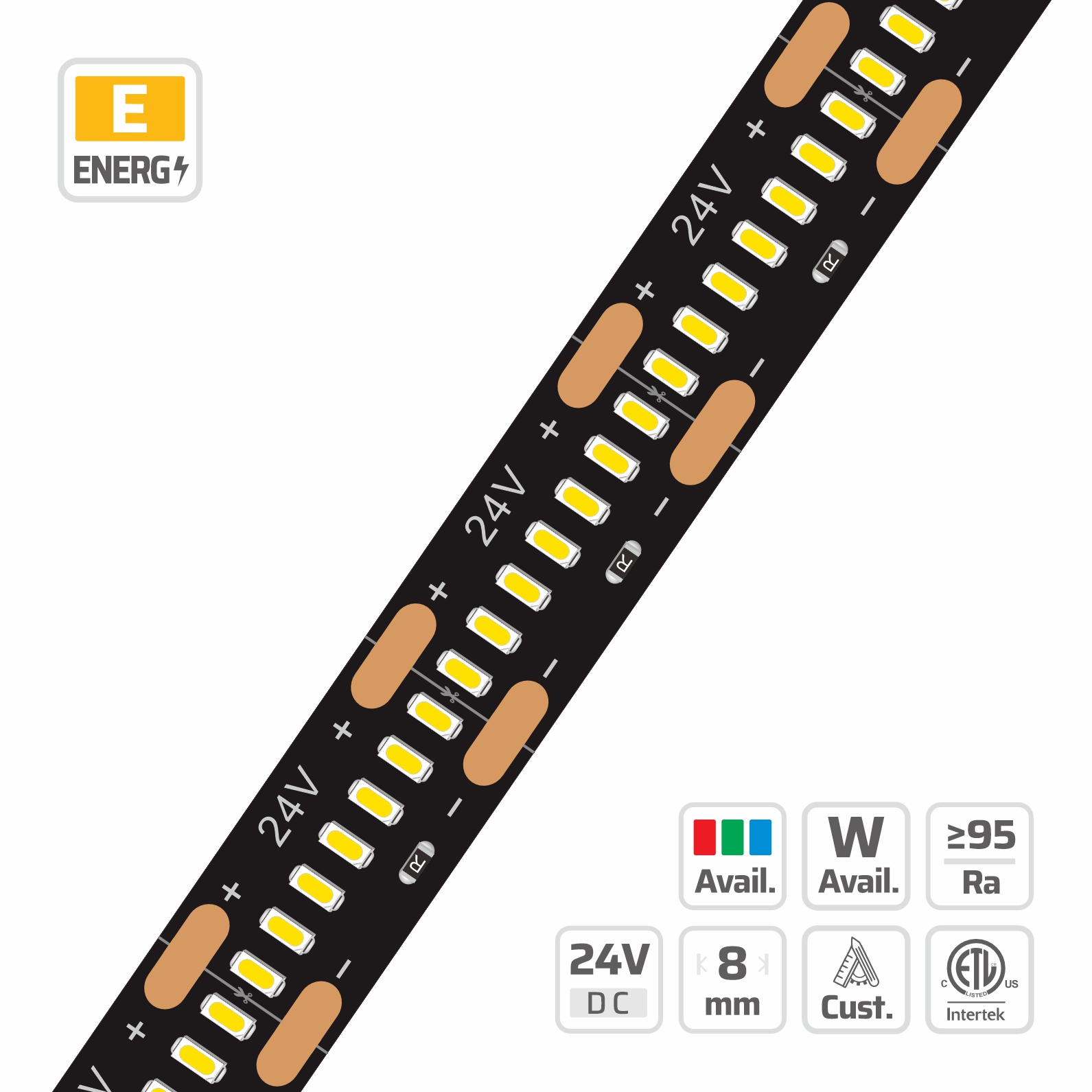

8mm | 24V | 490LEDs | 14.2cut | #3850 | 2110 Ultra Density LED strip light
Model: 3850
Overview
The DENO LED 3850 Series Ultra Density LED strip light is engineered for demanding commercial and architectural lighting projects. Featuring 490 LEDs/m with advanced 2110 SMD technology, it provides exceptionally uniform and bright illumination. Key specifications include a 24V input, an 8mm PCB width, and a high-purity gold wire encapsulation for enhanced durability and reliability, minimizing LED damage. Suitable for a wide range of applications such as retail displays, h...
Description
8mm | 24V | 490LEDs | 14.2cut | #3850 | 2110 Ultra Density LED strip light Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce the LED damage in different applications.
Specifications
| ledQty | 490 LEDs/m |
|---|---|
| partNo | DL-F21A245V24-3850-* |
| smdType | 2110 |
| cuttable | 7LEDs/14.28mm |
| dimmable | Yes |
| ledPitch | 2.04mm |
| pcbWidth | 8 mm |
| beamAngle | 120° |
| lengthMax | 5M |
| copperFoil | 2oz |
| onOffTimes | 10000（test times） |
| circuitType | CV (Resistor Based) |
| inputVoltage | 24V |
| minBendDiameter | Φ60mm |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What are the advantages of the 2110 SMD type for the 3850 LED strip?
The 2110 SMD type enables ultra-high LED density, providing a more uniform, hotspot-free light output and exceptional brightness for demanding applications.
Is the 3850 LED strip dimmable and what power supply is recommended?
Yes, our 3850 LED strip is fully dimmable. We recommend using a compatible 24V constant voltage (CV) dimmable LED driver from DENO LED for optimal performance.
What is the minimum bending diameter for installation of this strip?
The 3850 LED strip has a minimum bending diameter of Φ60mm, allowing for flexible installation in various curvilinear designs and architectural elements.
Can DENO LED provide custom lengths or specific CCTs for large projects?
Yes, for B2B projects, DENO LED offers customizable lengths and can discuss specific Correlated Color Temperature (CCT) options to meet project requirements.
