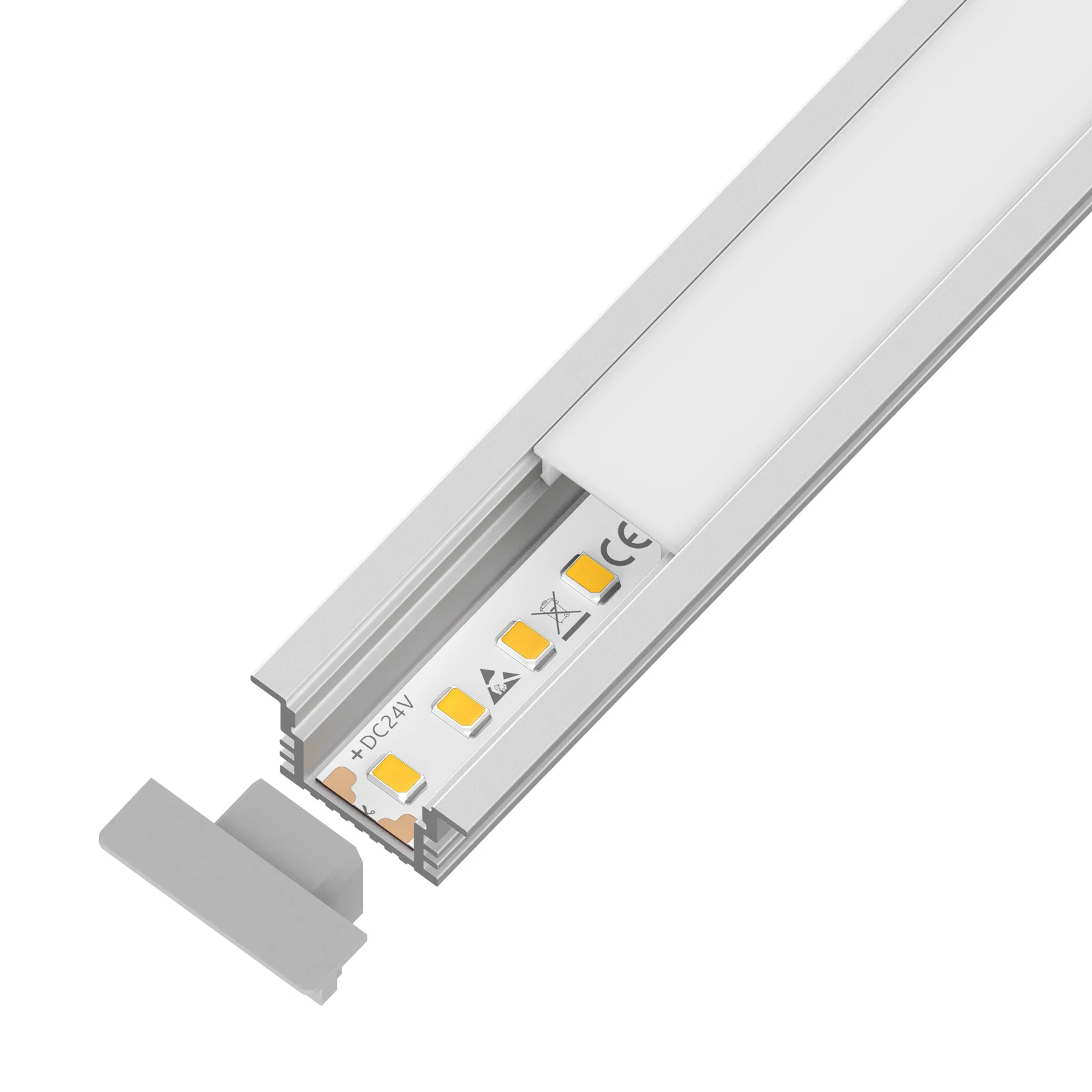

22x12mm With Flange Aluminum Channel LED
Model: DL-2212B HX-F
Overview
The DL-2212B HX-F (22x12mm With Flange) is a premium LED aluminum channel designed by DENO LED for professional linear lighting applications. It supports 10mm FPC LED strips, including high-density layouts of 120 LEDs/m, ensuring a clean and uniform light output. Constructed from durable AL6063-T5 aluminum, this profile offers excellent heat dissipation, significantly extending the lifespan of LED strips. Its robust housing protects against physical impact and environmental...
Description
22x12mm With Flange Aluminum Channel LED The Aluminum Channel LED provides a stable and professional housing solution for LED strip installations. This ultra-thin aluminum profile is designed for 10mm FPC LED strips and supports high-density layouts of 120 LEDs/m or above, helping achieve uniform light output and a clean lighting appearance. Made from high-quality aluminum, the channel offers effective heat dissipation by transferring heat away from the LED strip. This helps maintain consistent performance, reduce light degradation, and extend the service life of the LEDs. The rigid aluminum housing provides reliable protection against impact, corrosion, and environmental exposure. It is suitable for both residential and commercial applications, including kitchens, retail spaces, and display areas. Featuring an integrated flange design, the profile allows for easy and secure installation using screws, mounting clips, or adhesive tape. When used with a diffuser, it helps minimize visible LED dots and delivers a smooth, continuous lighting effect.
Specifications
| ledQty | 120leds/m or above |
|---|---|
| partNo | DL-2212B HX-F |
| smdType | 2835 |
| Material | AL6063-T5 |
| cuttable | 8LEDs/62.5mm |
| dimmable | Yes |
| ledPitch | 7.8mm |
| pcbWidth | 10mm |
| warranty | 3 Years |
| lengthMax | 0.5~3m |
| LED Sample | DL-F28A64V24-3015-* |
| copperFoil | 3oz |
| Accessories | End Cap | Clip |
| circuitType | CV |
| inputVoltage | DC 24V |
| Max.FPC Width | 10mm |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip widths are compatible with the DL-2212B HX-F channel?
This LED aluminum channel is specifically designed to accommodate LED strips with a maximum FPC width of 10mm, ideal for high-density applications.
Can this aluminum channel be used in damp or humid environments?
Yes, its anodized aluminum construction provides good corrosion resistance, making it suitable for various indoor commercial and residential applications.
What are the primary benefits of using an aluminum channel for LED strips?
Aluminum channels provide superior heat dissipation, prolonging LED life, and offer robust physical protection for the LED strips. They also deliver a professional, finished aesthetic.
Does DENO LED offer customization options for length or accessories?
Yes, DENO LED offers customizable lengths from 0.5m to 3m and provides essential accessories like end caps and clips to meet specific project requirements.
