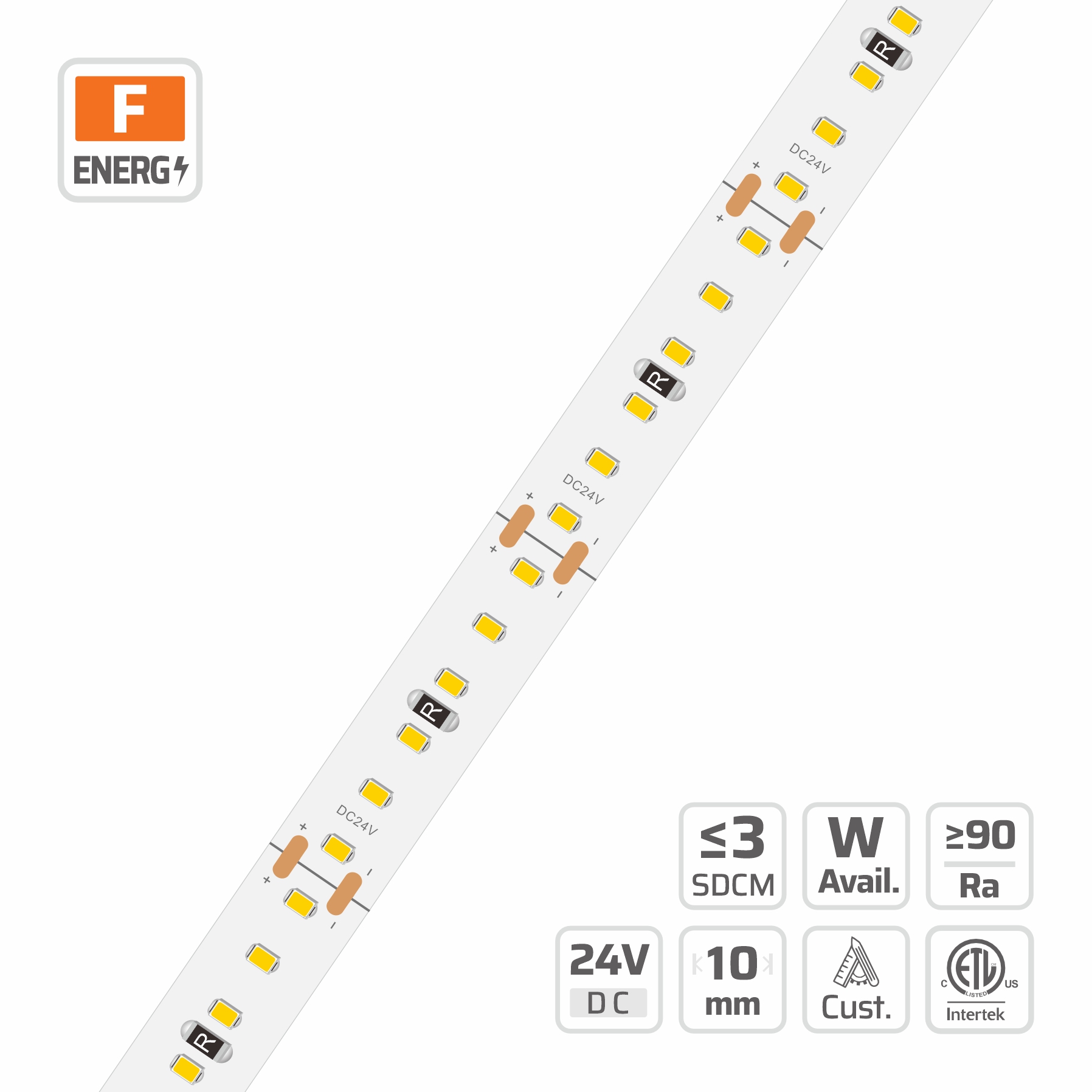

2216 Classic LED Strip Light (#2260U)
10mm · 24V · 180LEDs · 33.33mm/cut
Model: 2260U
Overview
2216 Classic LED Strip Light | 10mm | 24V | 180LEDs | 33.33mm/cut | #2260U is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2216, 180 LEDs/m, DC24V, 10mm PCB, 2oz copper FPCB, cuttable 6LEDs/33.33mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
2216 Classic LED Strip Light | 10mm | 24V | 180LEDs | 33.33mm/cut | #2260U Adopt pure copper strong LED frame,99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.
24v Smd Led Strip Lights built for classic smd strips projects.
Specifications
| LED QTY | 180 LEDs/m |
|---|---|
| PART NO | DL-F22A90V24-2260U-* |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | 6LEDs/33.33mm |
| DIMMABLE | Yes |
| LED PITCH | 5.5mm |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 3.6~14.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC24V |
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 124.6 lm/W at 5000K, Ra 90, ErP energy class E (Grade DN (1st Tier) · 3.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 3.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 79.8 lm/W | 287.2 lm/m | G | — | — | — |
| 2300 K | — | — | — | 88.9 lm/W | 319.9 lm/m | F | — | — | — |
| 2700 K | — | — | — | 96.1 lm/W | 346 lm/m | F | 77.9 lm/W | 280.6 lm/m | G |
| 3000 K | — | — | — | 101.1 lm/W | 364.1 lm/m | F | 82.2 lm/W | 296 lm/m | G |
| 3500 K | — | — | — | 103 lm/W | 370.7 lm/m | F | 84.8 lm/W | 305.2 lm/m | G |
| 4000 K | — | — | — | 105.4 lm/W | 379.5 lm/m | F | 87 lm/W | 313.3 lm/m | F |
| 5000 K | — | — | — | 105.4 lm/W | 379.5 lm/m | F | — | — | — |
| 6500 K | — | — | — | 101.1 lm/W | 364.1 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 76.5 lm/W | 734.1 lm/m | G | — | — | — |
| 2300 K | — | — | — | 85.2 lm/W | 817.8 lm/m | F | — | — | — |
| 2700 K | — | — | — | 92.2 lm/W | 884.7 lm/m | F | 74.7 lm/W | 717.4 lm/m | G |
| 3000 K | — | — | — | 97 lm/W | 931 lm/m | F | 78.8 lm/W | 756.8 lm/m | G |
| 3500 K | — | — | — | 98.7 lm/W | 947.7 lm/m | F | 81.3 lm/W | 780.4 lm/m | G |
| 4000 K | — | — | — | 101.1 lm/W | 970.3 lm/m | F | 83.4 lm/W | 801.1 lm/m | G |
| 5000 K | — | — | — | 101.1 lm/W | 970.3 lm/m | F | — | — | — |
| 6500 K | — | — | — | 97 lm/W | 931 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 73.9 lm/W | 1064.7 lm/m | G | — | — | — |
| 2300 K | — | — | — | 82.4 lm/W | 1186 lm/m | G | — | — | — |
| 2700 K | — | — | — | 89.1 lm/W | 1283.1 lm/m | F | 72.3 lm/W | 1040.4 lm/m | G |
| 3000 K | — | — | — | 93.8 lm/W | 1350.1 lm/m | F | 76.2 lm/W | 1097.5 lm/m | G |
| 3500 K | — | — | — | 95.4 lm/W | 1374.4 lm/m | F | 78.6 lm/W | 1131.8 lm/m | G |
| 4000 K | — | — | — | 97.7 lm/W | 1407.2 lm/m | F | 80.7 lm/W | 1161.7 lm/m | G |
| 5000 K | — | — | — | 97.7 lm/W | 1407.2 lm/m | F | — | — | — |
| 6500 K | — | — | — | 93.8 lm/W | 1350.1 lm/m | F | — | — | — |
Grade DN (1st Tier) · 3.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 94.4 lm/W | 339.9 lm/m | F | — | — | — |
| 2300 K | — | — | — | 105.3 lm/W | 379.2 lm/m | F | — | — | — |
| 2700 K | — | — | — | 114 lm/W | 410.3 lm/m | F | 92.4 lm/W | 332.6 lm/m | F |
| 3000 K | — | — | — | 120.4 lm/W | 433.4 lm/m | E | 97.9 lm/W | 352.6 lm/m | F |
| 3500 K | — | — | — | 123.1 lm/W | 443 lm/m | E | 101.3 lm/W | 364.5 lm/m | F |
| 4000 K | — | — | — | 123.7 lm/W | 445.4 lm/m | E | 102.1 lm/W | 367.6 lm/m | F |
| 5000 K | — | — | — | 124.6 lm/W | 448.4 lm/m | E | — | — | — |
| 6500 K | — | — | — | 119 lm/W | 428.4 lm/m | E | — | — | — |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 90.5 lm/W | 869 lm/m | G | — | — | — |
| 2300 K | — | — | — | 101 lm/W | 969.3 lm/m | F | — | — | — |
| 2700 K | — | — | — | 109.3 lm/W | 1049.1 lm/m | F | 88.6 lm/W | 850.3 lm/m | G |
| 3000 K | — | — | — | 115.4 lm/W | 1108.1 lm/m | F | 93.9 lm/W | 901.4 lm/m | F |
| 3500 K | — | — | — | 118 lm/W | 1132.7 lm/m | F | 97.1 lm/W | 931.9 lm/m | F |
| 4000 K | — | — | — | 118.6 lm/W | 1138.6 lm/m | F | 97.9 lm/W | 939.8 lm/m | F |
| 5000 K | — | — | — | 119.4 lm/W | 1146.5 lm/m | E | — | — | — |
| 6500 K | — | — | — | 114.1 lm/W | 1095.3 lm/m | F | — | — | — |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 87.5 lm/W | 1260.2 lm/m | G | — | — | — |
| 2300 K | — | — | — | 97.6 lm/W | 1405.8 lm/m | F | — | — | — |
| 2700 K | — | — | — | 105.7 lm/W | 1521.4 lm/m | F | 85.6 lm/W | 1233.1 lm/m | G |
| 3000 K | — | — | — | 111.6 lm/W | 1607 lm/m | F | 90.8 lm/W | 1307.3 lm/m | G |
| 3500 K | — | — | — | 114.1 lm/W | 1642.7 lm/m | F | 93.9 lm/W | 1351.6 lm/m | F |
| 4000 K | — | — | — | 114.7 lm/W | 1651.3 lm/m | F | 94.7 lm/W | 1363 lm/m | F |
| 5000 K | — | — | — | 115.5 lm/W | 1662.7 lm/m | F | — | — | — |
| 6500 K | — | — | — | 110.3 lm/W | 1588.5 lm/m | F | — | — | — |
Frequently Asked Questions
What are the key specifications of 2260U?
2260U: 2216, 180 LEDs/m, DC24V, 10mm PCB, 2oz copper FPCB, cuttable 6LEDs/33.33mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
