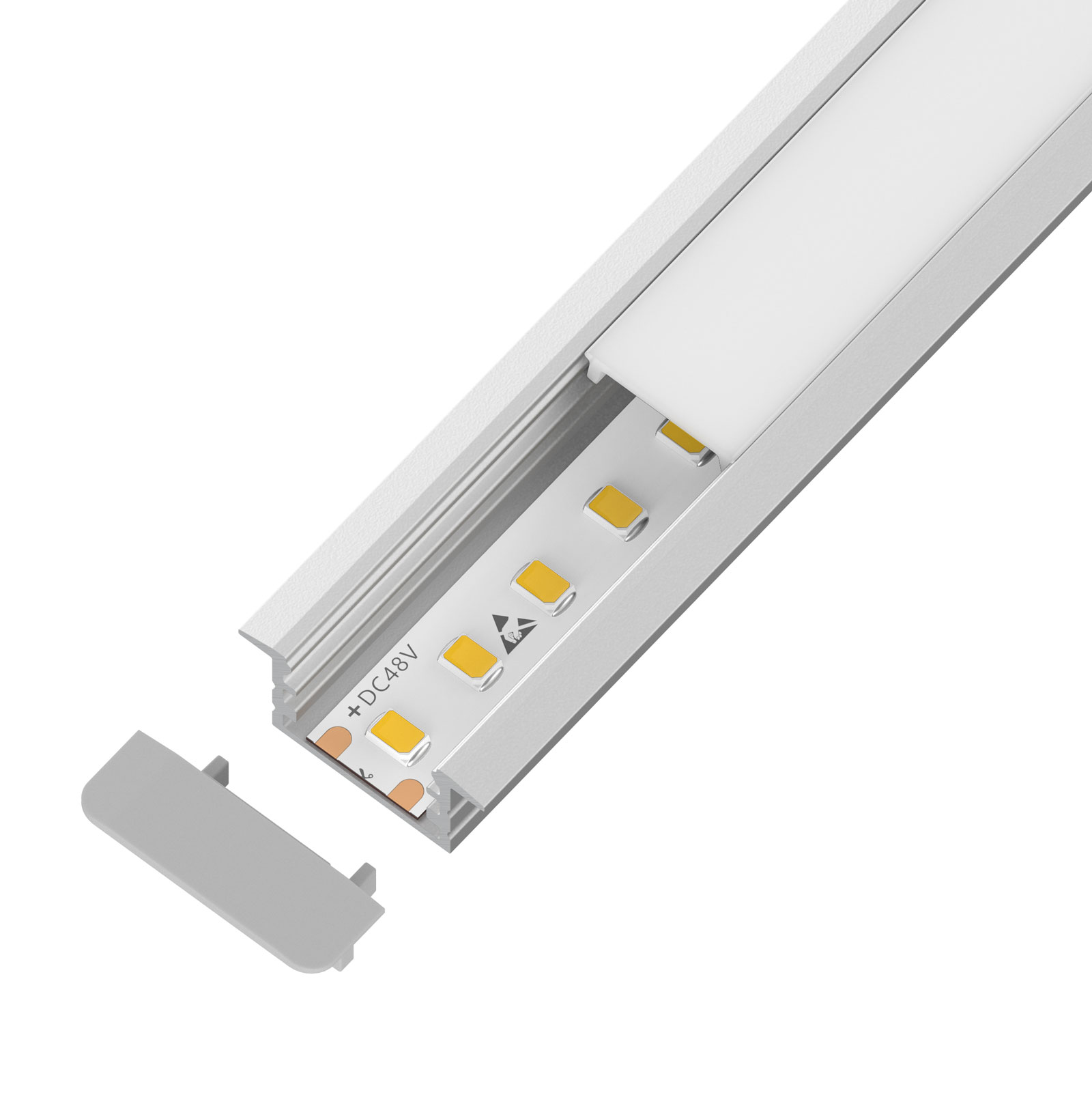

15×9.9mm With Flange Aluminum LED Strip Channel
Model: DL-1510 HX-F
Overview
The DENO LED DL-1510 HX-F is a 15x9.9mm flanged aluminum LED channel specifically designed for narrow, recessed decorative lighting applications. It accommodates 10mm LED strips, making it versatile for various lighting designs. Key specifications include a generous 5-year warranty, an input voltage of DC 24V, and suitability for operating temperatures from -25 to 40°C. This profile is engineered for precision installation, with flanges that conceal cutting tolerances, ensu...
Description
15×9.9mm With Flange Aluminum LED Strip Channel This LED Strip Profilet is a flanged LED aluminum profile designed for narrow, recessed decorative lighting applications. With a slim structure and clean linear appearance, this LED Strip Profilet is ideal for modern interior lighting projects that require precision installation and refined finishing. The profile features flanges on both sides, allowing it to cover slot cutting tolerances after installation. This design ensures cleaner edges, reduces visible gaps, and improves the overall visual quality of recessed lighting systems. As a professional LED Strip Profilet, it is especially suitable for furniture panels, gypsum boards, and architectural slots. The narrow internal channel is engineered to fit 10 mm LED strips, supporting common LED strip types while maintaining a compact profile size. Made from high-quality aluminum, this LED Strip Profilet enhances heat dissipation to extend LED strip lifespan and reduce light decay. At the same time, it protects LED strips from dust, accidental touch, and damage during cleaning. Applications: cabinet lighting, recessed ceiling or gypsum board light slots, wall and background wall linear lighting, stair lighting, skirting boards, and corridor lighting.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-1510 HX-F |
| smdType | 2835 |
| cuttable | 8LEDs/62.5mm |
| dimmable | Yes |
| ledPitch | 7.8mm |
| pcbWidth | 10mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| copperFoil | 3oz |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What is the maximum PCB width this aluminum LED channel can accommodate?
This DL-1510 HX-F aluminum LED channel is designed to perfectly fit LED strips with a PCB width of up to 10mm.
What are the primary applications for the DL-1510 HX-F profile?
The DL-1510 HX-F is ideal for recessed decorative lighting in furniture panels, gypsum boards, and other architectural slots, offering a clean, flanged finish.
Does DENO LED offer customization options for length?
Yes, for B2B orders, the DL-1510 HX-F aluminum LED channel is available in custom lengths ranging from 0.5m to 4m to meet specific project requirements.
What is the operating voltage for LED strips typically used with this profile?
This profile is optimized for LED strips requiring a DC 24V input voltage, ensuring broad compatibility with standard commercial LED systems.
