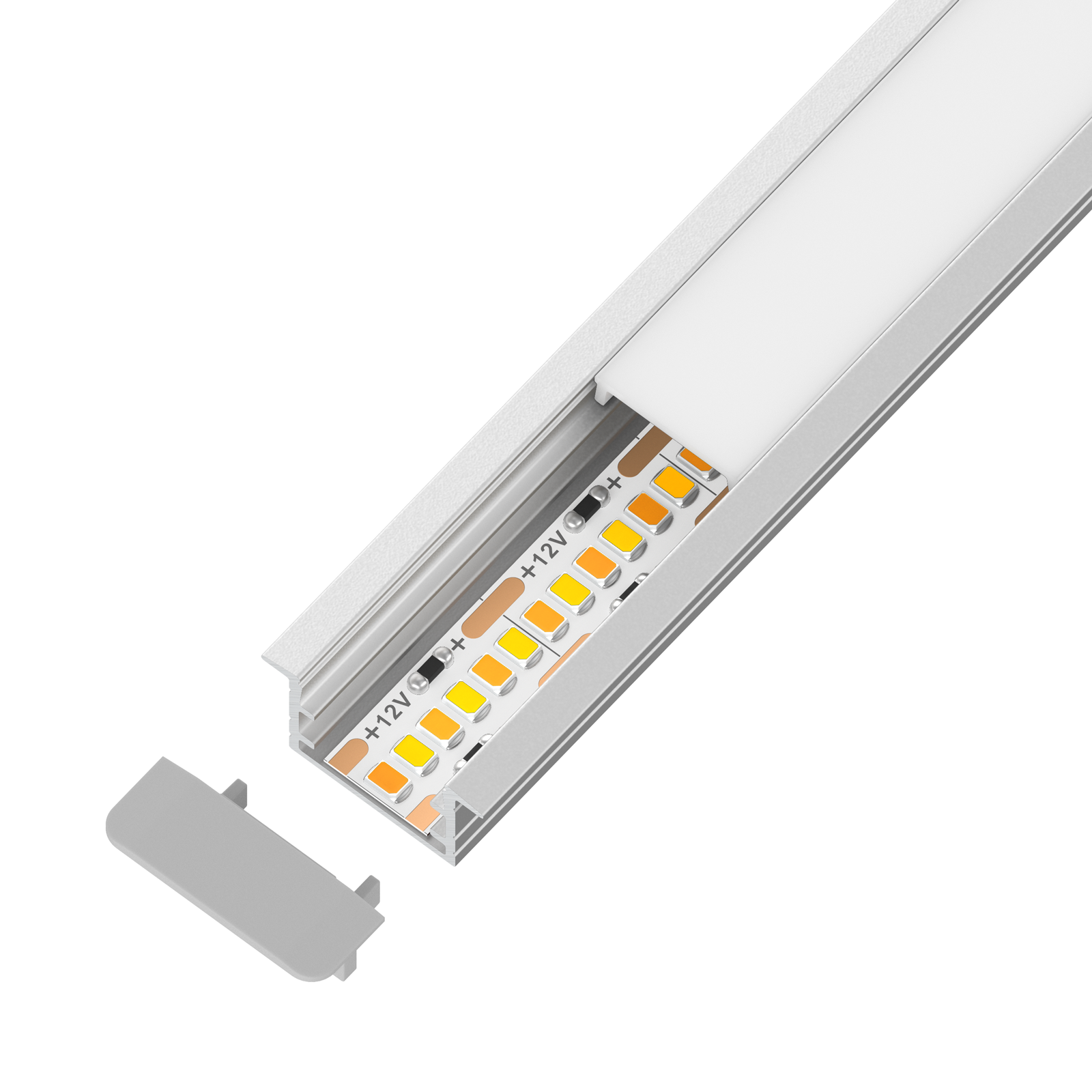

14.2×9.8mm With Flange Aluminum Channel LED
Model: DL-1409B HX-F
Overview
The DENO LED DL-1409B HX-F is a top-tier flange aluminum channel LED designed for demanding B2B lighting applications. Engineered for optimal thermal management, it effectively dissipates heat 8-10 times faster than plastic alternatives, significantly enhancing LED lifespan. This robust profile supports LED strips up to 8mm wide and operates reliably across a wide temperature range of -25~40°C. Its integrated flange ensures effortless and secure installation in various comm...
Description
14.2×9.8mm With Flange Aluminum Channel LED This profile is engineered for professional lighting installations requiring durability and efficiency. Superior Heat Dissipation: The aluminum construction of this <strong>With Flange Aluminum Channel LED draws heat away 8-10x faster than plastic, preventing LED overheating and extending lifespan. Robust & Durable: Built to resist corrosion and impact, this profile thrives in both demanding commercial and comfortable residential environments. Effortless Installation: The integrated flange design allows for quick, secure mounting with screws or clips, saving valuable installation time. Enhanced Efficiency: By enabling higher-power LED strip applications, this With Flange Aluminum Channel LED delivers brighter, more energy-efficient illumination. Perfect Applications:Ideal for commercial spaces like retail displays and offices, as well as residential projects such as kitchen under-cabinet and living room accent lighting. Invest in the reliability of a true With Flange Aluminum Channel LED system for lighting that combines performance with lasting value.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-1409B HX-F |
| dimmable | Yes |
| pcbWidth | 8mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What is the maximum PCB width this profile can accommodate?
The DL-1409B HX-F flange aluminum channel LED is designed to accept LED strips with a maximum PCB width of 8mm for optimal fit and performance.
What are the common applications for this flanged LED profile?
This profile is ideal for surface-mounted installations in retail displays, under-cabinet lighting, architectural accents, and various commercial and residential projects.
Does this aluminum channel provide sufficient heat dissipation for high-power LEDs?
Yes, its aluminum construction offers superior heat dissipation, 8-10x faster than plastic, preventing overheating and extending the lifespan of high-power LED strips.
Are there options for standard lengths or customization available for this model?
The DL-1409B HX-F is available in standard lengths from 0.5m to 4m. Custom lengths can often be accommodated for large orders; please inquire with our sales team for details.
