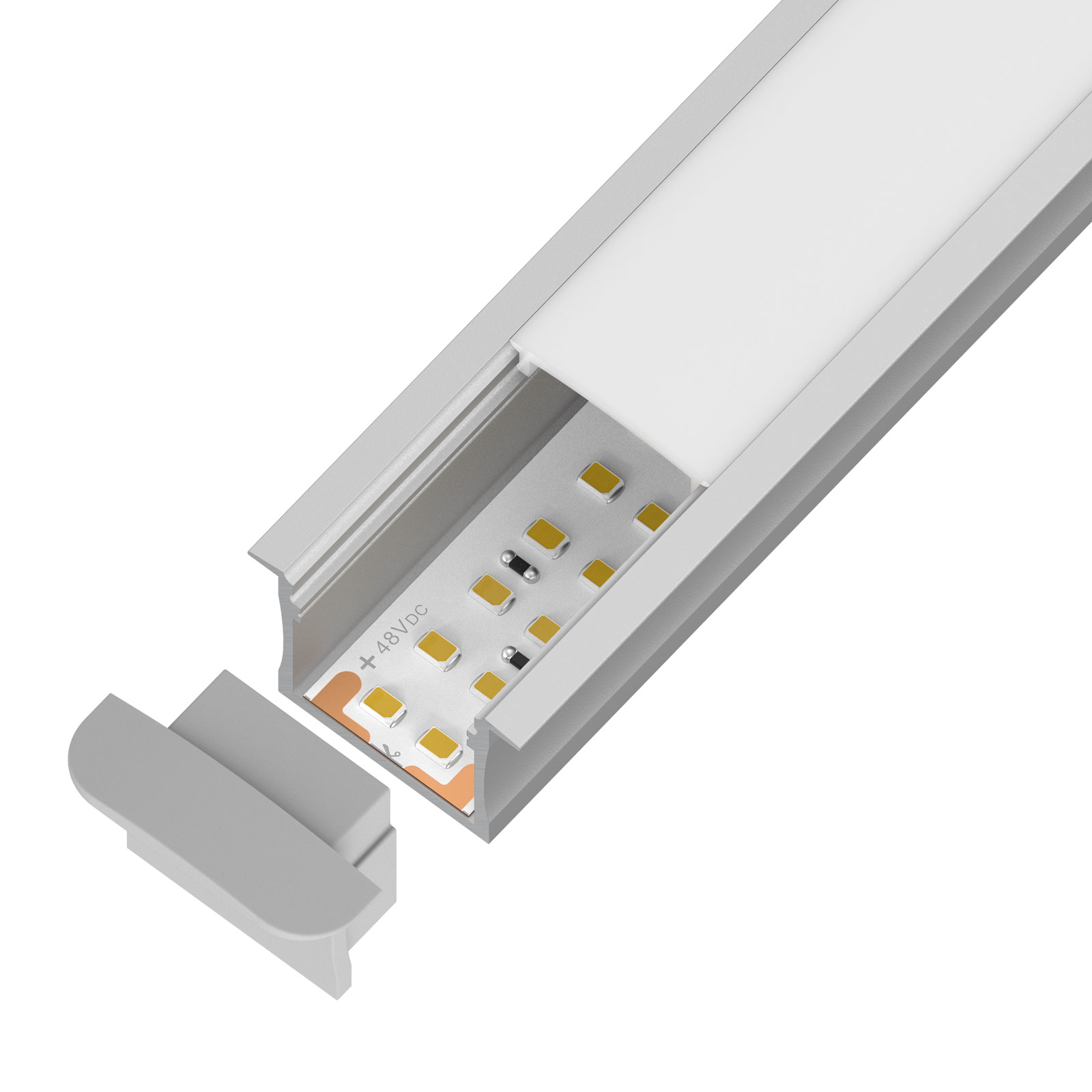

20x08mm LED Strip Profile
Model: DL-2008
Overview
The DL-2008 is a premium 20x08mm LED strip profile from DENO LED, meticulously engineered for 20mm wide, high-density LED strips (120+ LEDs/m). Constructed from AL6063-T5 aluminum, it offers exceptional heat dissipation, extending LED lifespan by 30%, and robust impact/corrosion resistance. Featuring tool-free installation, it simplifies setup for diverse applications. Supporting DC 24V input and operable from -25~40°C, this profile is a reliable choice for demanding commer...
Description
20x08mm LED Strip Profile The DL-2008 aluminum profile is engineered for 20mm wide, high-density LED strips (120+ LEDs/m). This premium LED strip profilefeatures ultra-thin construction that provides superior heat dissipation, extending lifespan by 30%. The durable aluminum design offers excellent impact and corrosion resistance for demanding environments. With tool-free installation, this LED channelensures quick setup. Ideal for commercial displays and residential projects, the DL-2008 delivers optimal performance with elegant aesthetics.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-2008 |
| smdType | 2835 |
| Material | AL6063-T5 |
| cuttable | 16LEDs/62.5mm |
| dimmable | Yes |
| ledPitch | 7.813mm |
| pcbWidth | 20mm |
| lengthMax | 0.5~4m |
| LED Sample | DL-F28A128V24-17510-* |
| copperFoil | 3oz |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip specifications are compatible with the DL-2008 profile?
The DL-2008 profile is specifically designed for 20mm wide LED strips with a density of 120 LEDs/m or higher. It is optimized for 2835 SMD type LEDs.
How does the DL-2008 profile contribute to the lifespan of the LED strips?
Engineered with AL6063-T5 aluminum, the DL-2008 ensures superior heat dissipation, which can extend the lifespan of your LED strips by up to 30%.
Are there customization options or specific certifications available for B2B orders?
Yes, DENO LED offers customizable lengths (0.5m-4m) and can provide specific certifications like CE or UL upon request for large B2B orders to meet project requirements.
What are the common applications for the DL-2008 LED strip profile?
The DL-2008 is ideal for professional applications such as commercial displays, architectural accent lighting, under-cabinet lighting, and high-end residential projects.
