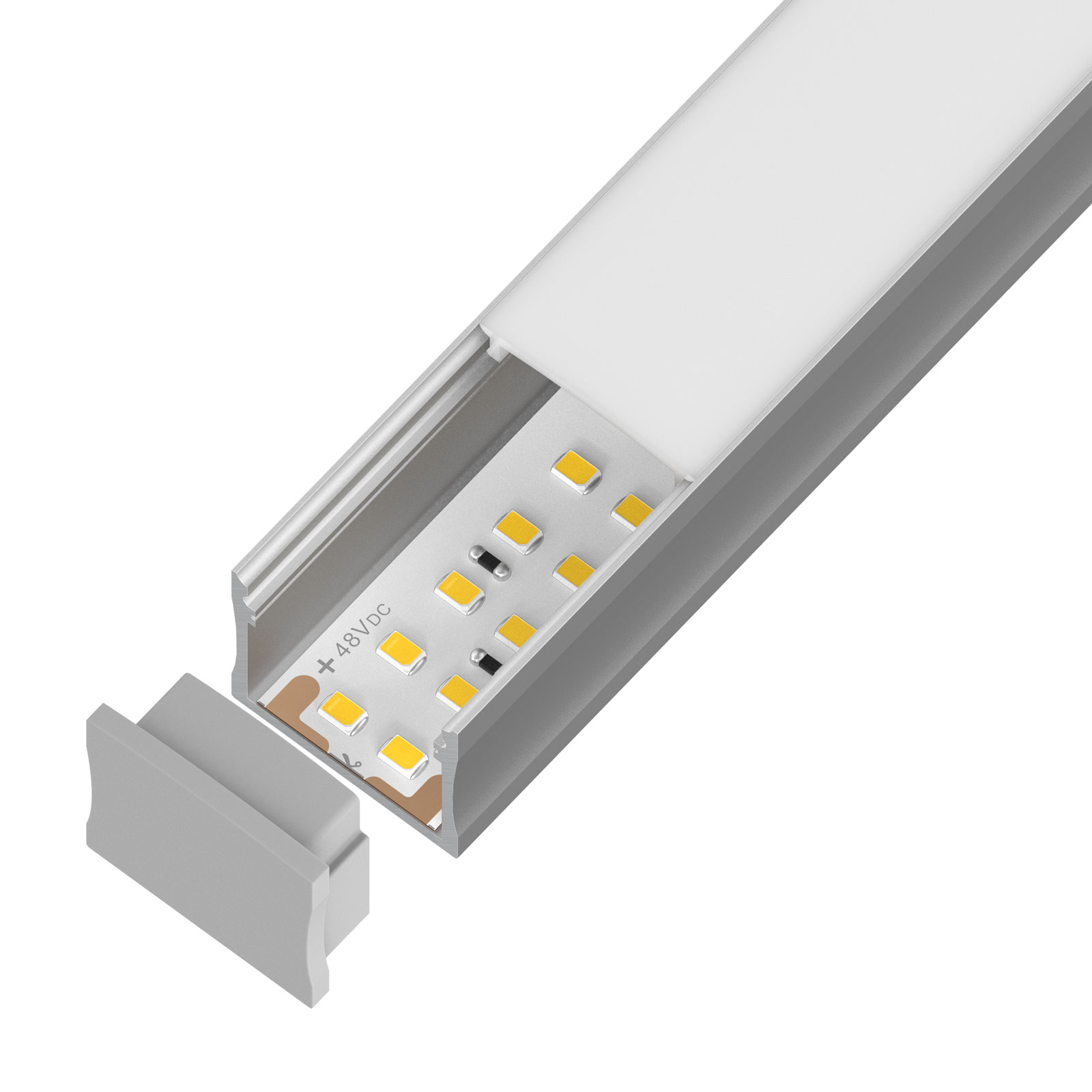

20x07mm LED Strip Profile
Model: DL-2007
Overview
The DL-2007 is a versatile 20x07mm LED strip profile from DENO LED, designed to house high-density LED strips (120 LEDs/m or above) up to 20mm wide. Its robust aluminum construction effectively dissipates heat, ensuring optimal performance and extending the lifespan of your LED strips by preventing thermal degradation. The profile is shock-resistant and corrosion-resistant, making it suitable for demanding commercial and architectural lighting applications. Featuring a quic...
Description
20x07mm LED Strip Profile This premium-grade LED strip profile is engineered to maximize the performance and longevity of 20mm wide, high-density LED strips (120 LEDs/m or greater). Its ultra-thin aluminum construction acts as an integrated heat sink, actively drawing heat away from the LEDs to prevent overheating and significantly extend operational lifespan. This robust aluminum LED profile offers exceptional durability, being both shock-resistant and corrosion-resistant for reliable use in demanding commercial environments. Featuring a user-friendly clip-on design, installation is quick and simple. By effectively managing thermal output, this LED channel enables support for higher-power strips while promoting greater energy efficiency. It is the ideal solution for achieving a seamless, professional finish in retail displays, architectural accent lighting, and sophisticated home decor projects. Choose this LED Strip Profile for a perfect blend of reliability, aesthetics, and performance.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-2007 |
| smdType | 2835 |
| cuttable | 16LEDs/62.5mm |
| dimmable | Yes |
| ledPitch | 7.813mm |
| pcbWidth | 20mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| copperFoil | 3oz |
| circuitType | CV |
| inputVoltage | DC 48V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip widths are compatible with the DL-2007 profile?
The DL-2007 LED strip profile is specifically designed to accommodate LED strips with a PCB width of up to 20mm, optimizing thermal management.
Does this LED profile help extend the lifespan of my LED strips?
Yes, its aluminum construction acts as an efficient heat sink, drawing heat away from the LEDs to significantly extend their operational lifespan and maintain light output.
Is the DL-2007 suitable for outdoor or high-humidity environments?
The DL-2007 profile is corrosion-resistant, making it suitable for demanding commercial settings. For specific outdoor applications, proper gasket and sealing must be ensured.
What is the maximum continuous length available for this profile?
The DL-2007 LED strip profile is available in various lengths from 0.5m up to 4m, allowing for versatile installation options in commercial projects.
