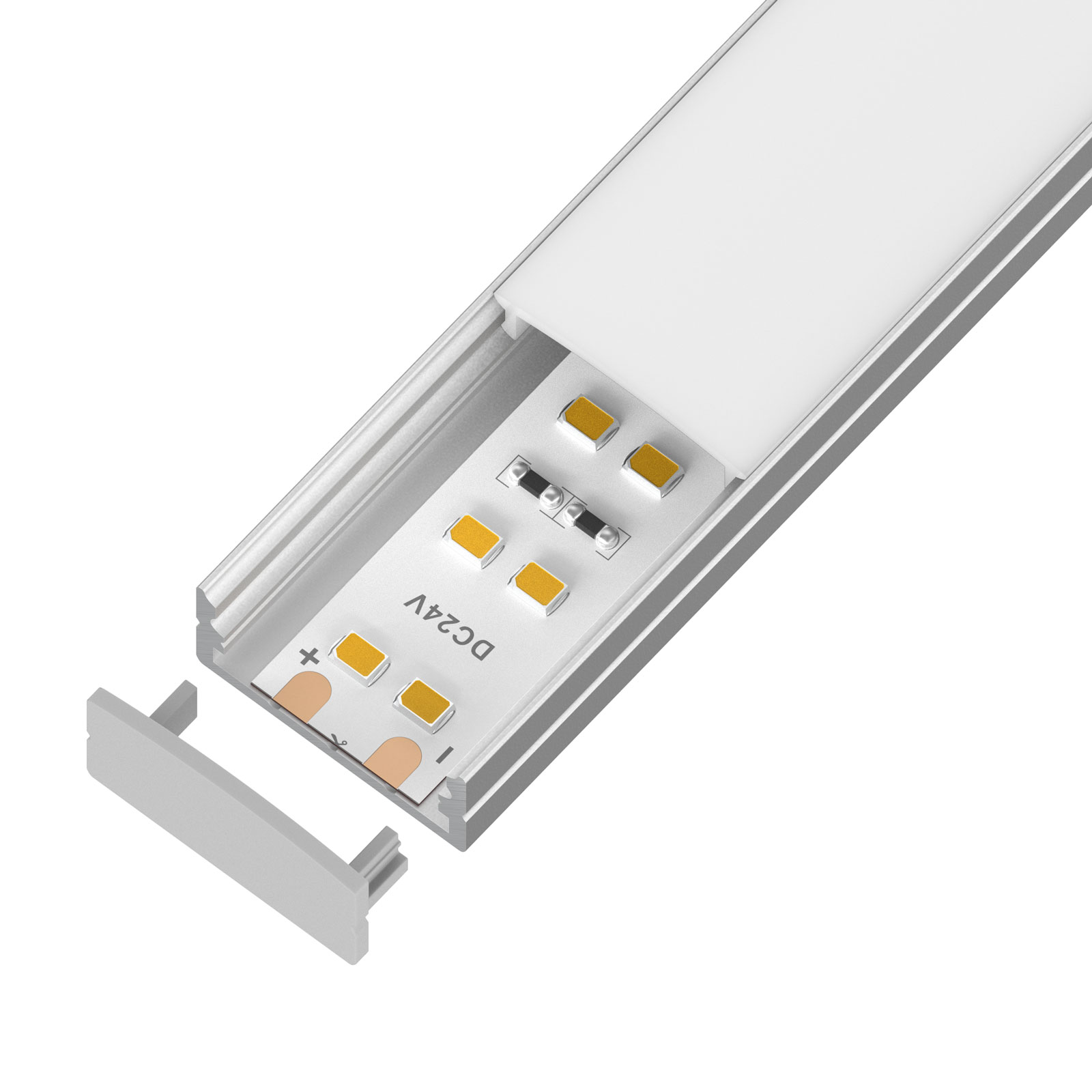

20x02mm LED Strip Profile
Model: DL-2002
Overview
The DL-2002 LED Strip Profile from DENO LED is a high-performance aluminum housing for high-density LED strips (160+ LEDs/m) with a 15mm PCB width. Its robust 20x02mm aluminum construction ensures superior heat dissipation, extending LED lifespan up to 50,000 hours, and offers excellent shock and corrosion resistance. Featuring tool-free installation, this profile is ideal for a wide range of B2B applications including commercial display lighting, retail environments, offic...
Description
20x02mm LED Strip Profile The LED Strip Profile features a 15mm slim aluminum housing engineered for high-density LED strips (≥160 LEDs/m). Its superior aluminum construction ensures exceptional heat dissipation, extending lifespan to 50,000 hours. With enhanced shock/corrosion resistance and tool-free installation, it’s ideal for commercial displays and residential lighting.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 160leds/m or above |
| partNo | DL-2002 |
| smdType | 2835 |
| cuttable | 8LEDs/50mm |
| dimmable | Yes |
| ledPitch | 12.5mm |
| pcbWidth | 15mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| copperFoil | 2oz |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What types of LED strips are compatible with the DL-2002 profile?
The DL-2002 LED Strip Profile is designed for high-density LED strips (≥160 LEDs/m) with a maximum PCB width of 15mm.
How does the aluminum construction benefit the LED lifespan?
The superior aluminum construction of the DL-2002 ensures exceptional heat dissipation, crucial for extending the lifespan of LED strips to 50,000 hours.
Does this LED strip profile support dimming functionality?
Yes, the DL-2002 LED Strip Profile is fully compatible with dimmable LED strips, allowing for versatile lighting control.
What are the common applications for the 20x02mm LED Strip Profile?
This profile is ideal for commercial displays, accent lighting, under-cabinet lighting, and various interior linear lighting applications in both commercial and residential settings.
