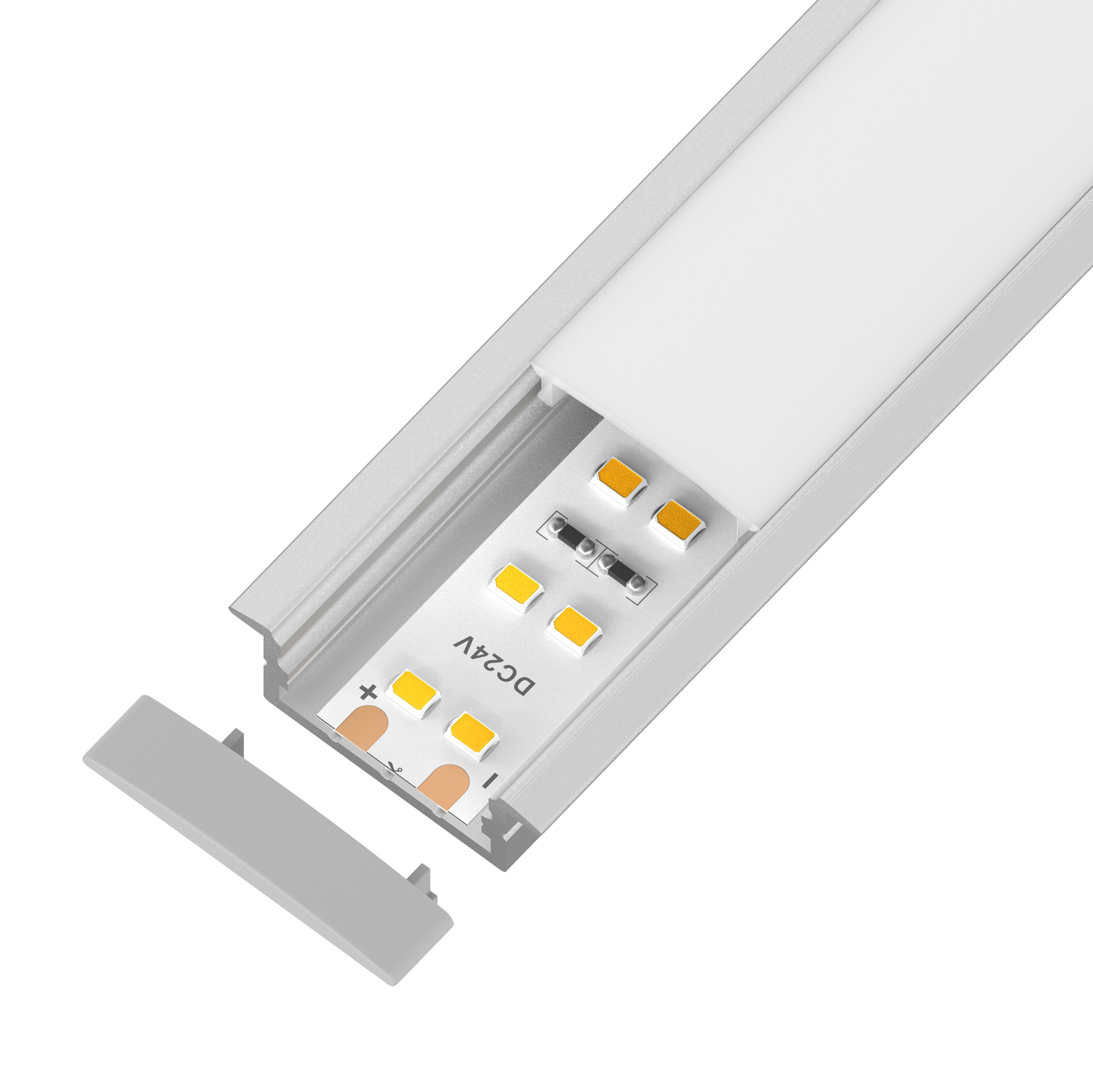

20x01mm LED Strip Profile
Model: DL-2001
Overview
The DENO LED DL-2001 is a premium 20x01mm LED strip profile from our Aluminum Profile Series, specifically designed for high-density LED strips with a PCB width of 15mm. It boasts exceptional heat dissipation, crucial for extending the lifespan and maintaining the performance of LED strips operating at 160 LEDs/m or above. This ultra-thin profile is suitable for various applications, including commercial, residential, and architectural lighting, providing a sleek, integrate...
Description
20x01mm LED Strip Profile The LED Strip Profile is an ultra-thin aluminum channel for 15mm, high-density (≥160 LEDs/m) LED strips. It delivers superior heat dissipation for long life, durability for various environments, and easy installation. Ideal for enhancing both commercial and residential lighting with efficient, uniform light.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 160leds/m or above |
| partNo | DL-2001 |
| smdType | 2835 |
| cuttable | 8LEDs/50mm |
| dimmable | Yes |
| ledPitch | 12.5mm |
| pcbWidth | 15mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| copperFoil | 2oz |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip widths are compatible with the DL-2001 LED Strip Profile?
The DL-2001 LED Strip Profile is specifically designed to accommodate LED strips with a PCB width of 15mm, ideal for high-density applications.
Does this profile offer effective heat dissipation for high-density LED strips?
Yes, the DL-2001 is engineered for superior heat dissipation, crucial for extending the lifespan of high-density LED strips (≥160 LEDs/m).
What are the common applications for the DL-2001 aluminum LED profile?
This profile is ideal for architectural, commercial, and residential linear lighting, providing a sleek finish for various interior designs.
What is the warranty period for the DL-2001 LED Strip Profile?
The DL-2001 LED Strip Profile comes with a robust 5-year warranty, ensuring long-term reliability and peace of mind for B2B clients.
