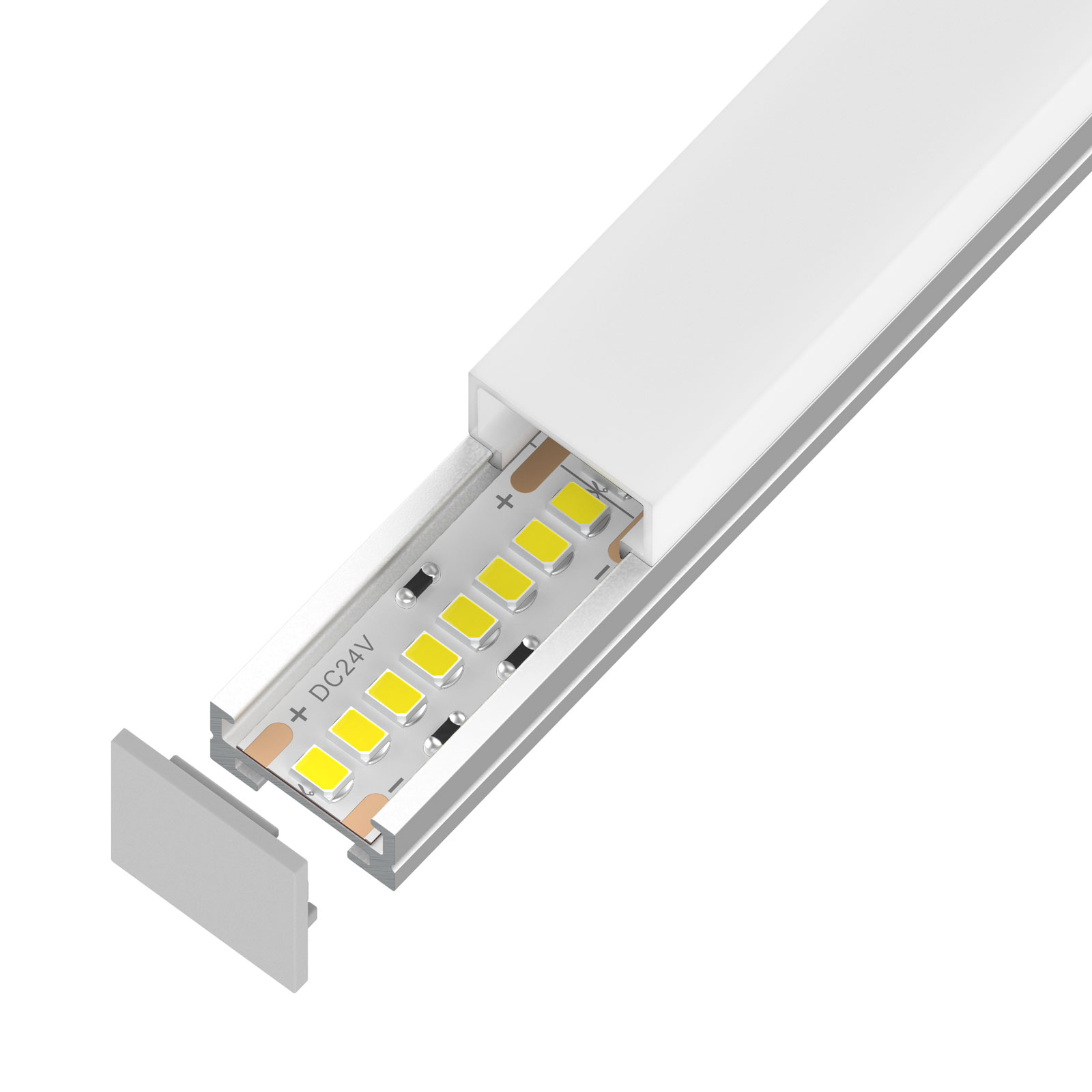

18x18mm Magnetic Clips Aluminum LED Strip Channel
Model: DL-1818 HX-M
Overview
The DL-1818 HX-M is an 18x18mm Magnetic Clips Aluminum LED Strip Channel from DENO LED's Aluminum Profile Series. This innovative profile features a U-shaped aluminum housing with an integrated magnetic mounting channel, allowing for quick, tool-free installation. Its raised and protruding diffuser design ensures superior light uniformity and significantly reduces LED dot visibility, even with medium-density LED strips, making it a cost-effective solution for achieving smoo...
Description
18x18mm Magnetic Clips Aluminum LED Strip Channel DL-1818HX is a professional recessed LED Strip Profile featuring a U-shaped aluminum housing with an integrated magnetic mounting channel, enabling fast and secure installation without additional fixing accessories. This LED Strip Profile adopts a raised and protruding diffuser design, increasing the optical mixing height to significantly reduce LED dot visibility and deliver a smoother, more continuous linear light output. Compared with conventional low-profile LED Strip Profile designs, DL-1818HX achieves excellent uniformity even with medium-density LED strips, reducing the need for ultra-high LED density. The internal channel supports LED strips up to 12mm width, compatible with DC12V and DC24V systems. After recessed installation, the light-emitting surface remains slightly visible, balancing concealment with architectural presence. This LED Strip Profile is ideal for applications requiring visual continuity, clean light lines, and reliable installation performance. Applications: Commercial linear lighting, office corridors, hotel public areas, display cabinets, wall accents, recessed decorative lighting.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-1818 HX-M |
| smdType | 2835 |
| cuttable | 8LEDs/31.25mm |
| dimmable | Yes |
| ledPitch | 3.9mm |
| pcbWidth | 12mm |
| warranty | 5 Years |
| beamAngle | 180° |
| lengthMax | 0.5~4m |
| copperFoil | 3oz |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip widths are compatible with the DL-1818 HX-M profile?
This aluminum LED profile is designed to accommodate LED strips with a maximum PCB width of 12mm, suitable for various professional applications.
How does the magnetic mounting system benefit installation?
The integrated magnetic mounting channel allows for fast, secure, and tool-free recessed installation without additional fixing accessories, saving time and labor.
What is the primary advantage of the protruding diffuser design?
The raised diffuser increases optical mixing height, significantly reducing LED dot visibility and providing a smoother, more continuous linear light output.
Are there customization options for length or finish for large orders?
Yes, we offer customizable lengths from 0.5m to 4m, and discuss finish options for bulk B2B orders to meet specific project requirements.
