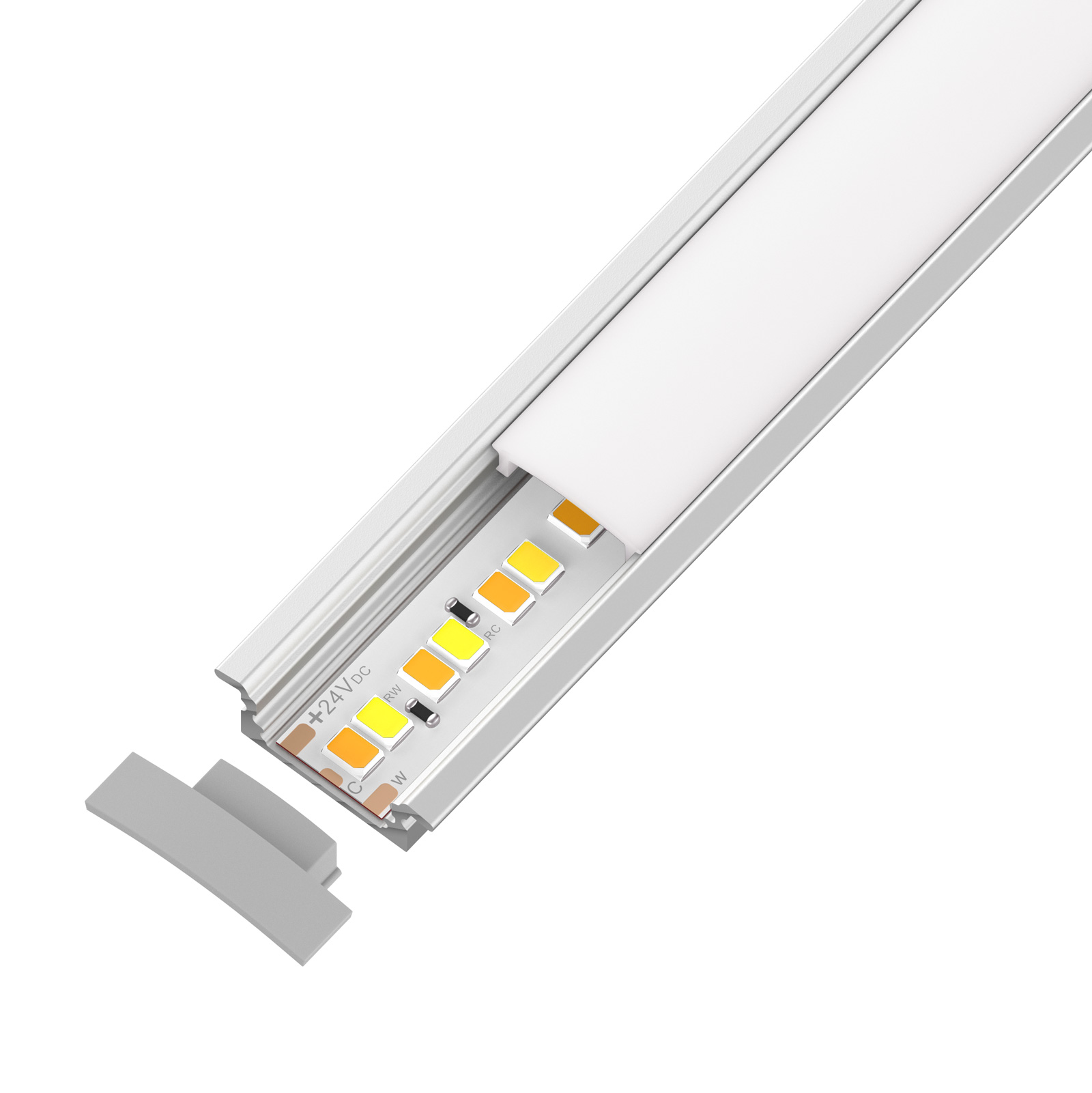

17x7mm With Flange Aluminum Channel LED
Model: DL-1707HX-F
Overview
The DENO LED DL-1707HX-F LED Aluminum Channel is a robust solution designed for professional lighting applications. Featuring a flanged structure and high-quality AL6063-T5 aluminum, it perfectly accommodates 10mm FPC LED strips, supporting high-density layouts of ≥120 LEDs/m for seamless, consistent illumination. This model boasts excellent heat dissipation, extending the LED lifespan, and offers superb mechanical strength and corrosion resistance for diverse indoor enviro...
Description
17x7mm With Flange Aluminum Channel LED The Aluminum Channel LED series provides a reliable and practical lighting solution for professional applications. The DL-1707HX-F Aluminum Channel LED features a with-flange structure, designed for 10mm FPC LED strips and compatible with high-density layouts of ≥120 LEDs/m, delivering uniform and consistent light output. Manufactured from high-quality aluminum, this Aluminum Channel LED offers effective heat dissipation, helping transfer heat away from the LEDs to maintain stable performance and extend service life. The aluminum housing also provides good mechanical strength and corrosion resistance, making it suitable for various indoor environments. It is suitable for applications such as retail displays, under-cabinet lighting, display shelves, and decorative backlighting.
Specifications
| ledQty | 120leds/m or above |
|---|---|
| partNo | DL-1707HX-F |
| smdType | 2835 |
| Material | AL6063-T5 |
| cuttable | 12LEDs/50mm |
| dimmable | Yes |
| ledPitch | 8.334mm |
| pcbWidth | 10mm |
| warranty | 3 Years |
| lengthMax | 0.5~3m |
| LED Sample | DL-F28A120V24-16474-* |
| copperFoil | 3oz |
| Accessories | End Cap | Clip |
| circuitType | CV |
| inputVoltage | DC 24V |
| Max.FPC Width | 10mm |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip widths are compatible with the DL-1707HX-F LED Aluminum Channel?
This aluminum channel is specifically designed to accommodate LED strips with a maximum FPC width of 10mm, enabling use with various high-density LED options.
What are the primary benefits of the AL6063-T5 aluminum material for this profile?
AL6063-T5 aluminum provides superior heat dissipation, corrosion resistance, and good mechanical strength, ensuring stable performance and extended product lifespan for B2B applications.
Does DENO LED offer customization options for the DL-1707HX-F, such as specific lengths or finishes?
Yes, we offer customization for project-specific lengths ranging from 0.5m to 3m. Please contact our sales team for bespoke finish requirements or other large-volume custom orders.
What is the typical lead time for bulk orders of the DL-1707HX-F LED Aluminum Channel?
Typical lead times for bulk orders vary based on quantity and current production schedules. We recommend contacting our sales department directly to get an accurate estimate tailored to your specific order and delivery needs.
