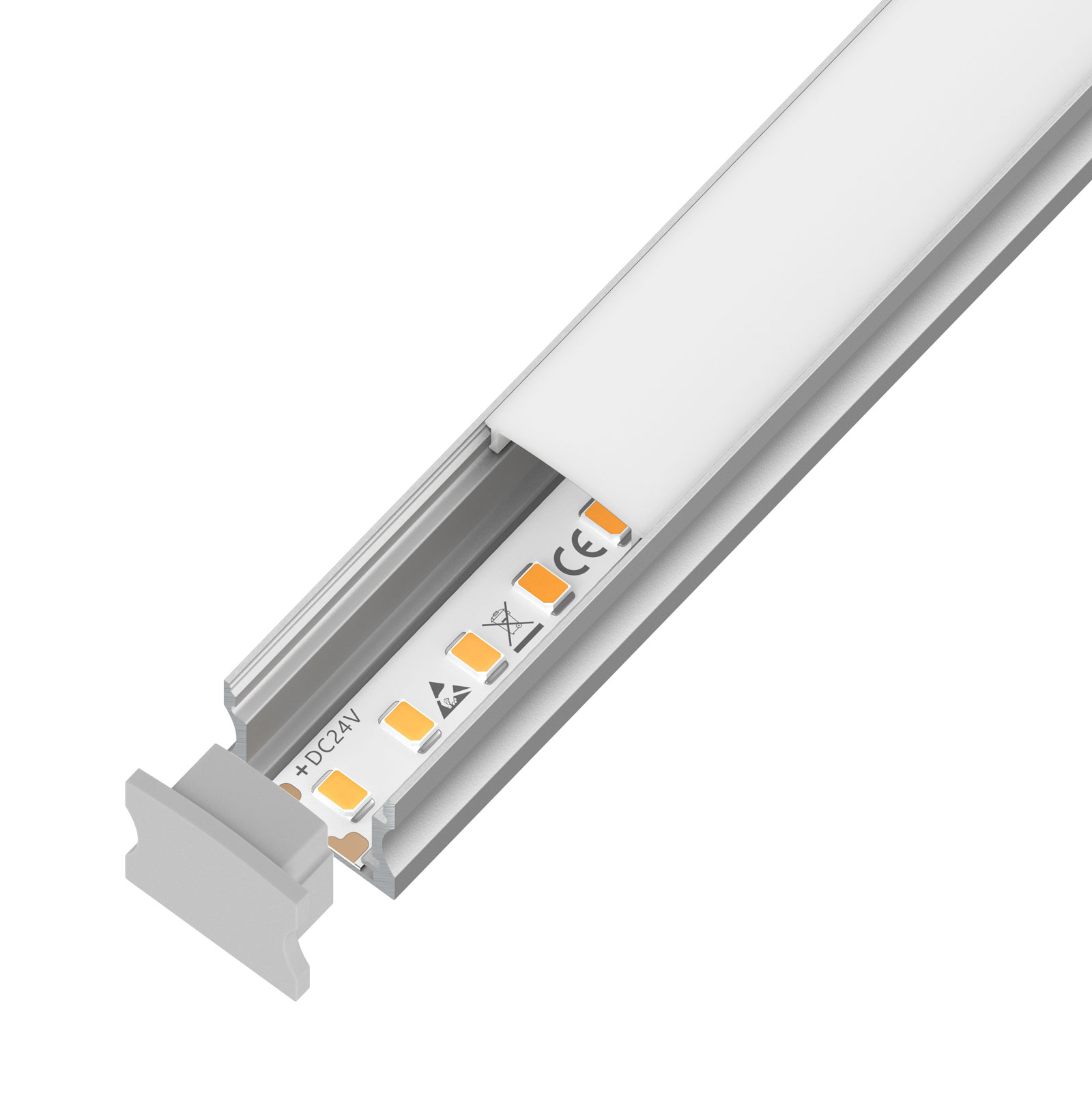

17x15mm Aluminum LED Strip Channel
Model: DL-1715 HX
Overview
The DL-1715 HX Aluminum LED Strip Channel is an ultra-slim profile designed for 10mm FPC and high-density LED strips (≥120 LEDs/m). It provides superior thermal management, significantly extending LED lifespan by dissipating heat effectively. Built with durable, corrosion-resistant aluminum, it ensures reliable performance in various demanding B2B environments. This easy-to-install channel supports high-power 24V LED strips, delivering brilliant and seamless linear illumina...
Description
17x15mm Aluminum LED Strip Channel Introducing the DL-1715HX: an ultra-slim aluminum profile engineered specifically for 10mm FPC and high-density LED strips (≥120 LEDs/m). This Aluminum LED Strip Channel excels in thermal management, pulling heat away to dramatically extend LED lifespan. Its durable, corrosion-resistant construction ensures reliability in demanding environments. Easy to install, it supports high-power strips for brilliant, seamless linear light. Ideal for kitchen under-cabinet, retail displays, or architectural accents, this channel delivers a sleek, professional finish.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-1715 HX |
| smdType | 2835 |
| cuttable | 8LEDs/62.5mm |
| dimmable | Yes |
| ledPitch | 7.8mm |
| pcbWidth | 10mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| copperFoil | 3oz |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip widths are compatible with the DL-1715 HX profile?
The DL-1715 HX profile is specifically engineered to accommodate LED strips with a PCB width of up to 10mm, ensuring a snug fit.
How does this aluminum channel benefit LED strip longevity?
Its robust aluminum construction provides excellent thermal management, effectively pulling heat away from the LEDs to significantly extend their operational lifespan and maintain performance.
Is the DL-1715 HX suitable for outdoor installations?
While corrosion-resistant, the DL-1715 HX is primarily designed for indoor or protected outdoor environments. For fully exposed outdoor use, additional IP-rated protection may be necessary.
Can I get custom lengths or finishes for the DL-1715 HX?
Yes, we offer custom lengths ranging from 0.5m to 4m, and various finishes may be available upon request to meet specific project requirements. Contact our sales team for details.
