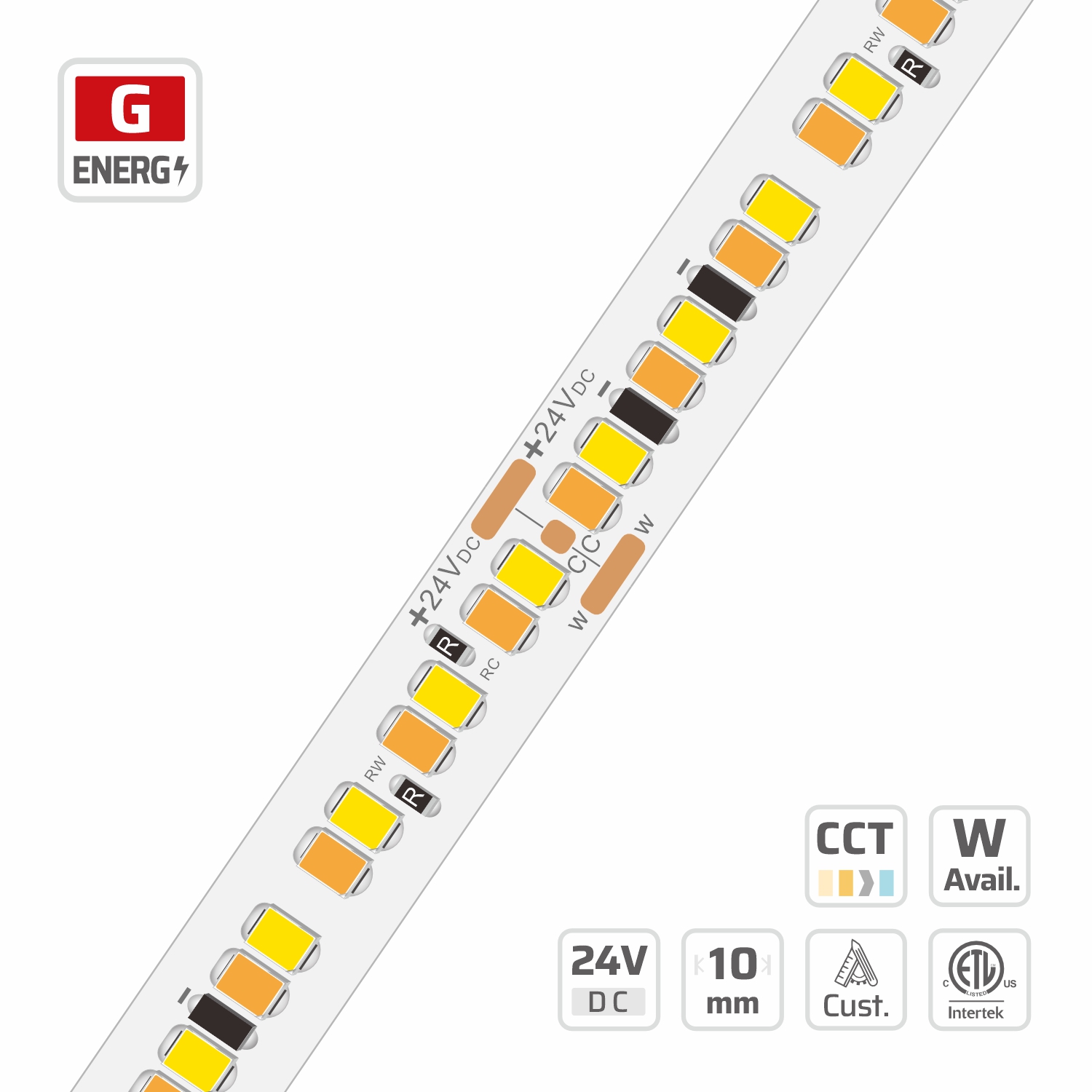

2835 CCT Tunable LED Strip Light (#17985)
10mm · 24V · 240LEDs · 50mm/cut
Model: 17985
Overview
2835 CCT Tunable LED Strip Light | 10mm | 24V | 240LEDs | 50mm/cut | #17985 is part of the DENO CCT SMD Strips series, engineered around tunable white LED strip. Key specifications: 2835, 240, DC 24V, 10mm PCB, 3oz copper FPCB, cuttable 12LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
2835 CCT Tunable LED Strip Light | 10mm | 24V | 240LEDs | 50mm/cut | #17985
Tunable White CCT design offers both white light, making this lamp suitable for both work and leisure needs.
This tunable white LED strip features 2835 LED chips, creating a brighter, softer, and more uniform lighting effect.
With a high-density design of 240 LEDs per meter, it ensures even light distribution.
An 10mm narrow board design enhances installation compatibility, making it suitable for various tight spaces.
Light can be switched between warm and white using a controller, meeting a variety of lighting needs.
Ideal for decorative lighting, architectural lighting, commercial lighting, and home lighting in scenarios that require tunable white CCT effects.
Tunable White Led Strip built for cct smd strips projects.
Specifications
| LED QTY | 240 |
|---|
| PART NO | DL-F28A120V24-17985 |
|---|
| SMD TYPE | 2835 |
|---|
| CUTTABLE UNIT | 12LEDs/50mm |
|---|
| DIMMABLE | Yes |
|---|
| LED PITCH | 8.333mm |
|---|
| PCB WIDTH | 10mm |
|---|
| BEAM ANGLE | 120° |
|---|
| LENGTH MAX | 5m |
|---|
| COPPER FOIL | 3oz |
|---|
| POWER RANGE | 9.6~28.8W |
|---|
| CIRCUIT TYPE | C.C. |
|---|
| INPUT VOLTAGE | DC 24V |
|---|
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 146.6 lm/W at 6500K, Ra 80, ErP energy class D (Grade DN (1st Tier) · CCT 3-Anchor · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DN (1st Tier) · CCT 3-Anchor · 9.6W/m
Grade DN (1st Tier) · CCT 3-Anchor · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 132.1 lm/W | 634 lm/m | E | 107.1 lm/W | 514.2 lm/m | F | 83.5 lm/W | 401 lm/m | G |
|---|
| 4000 K | 133.5 lm/W | 1281.4 lm/m | E | 108.2 lm/W | 1038.6 lm/m | F | 84.4 lm/W | 810.2 lm/m | G |
|---|
| 6500 K | 146.6 lm/W | 703.7 lm/m | D | 119 lm/W | 571.1 lm/m | E | 92.8 lm/W | 445.6 lm/m | F |
|---|
Grade DN (1st Tier) · CCT 3-Anchor · 14.4W/m
Grade DN (1st Tier) · CCT 3-Anchor · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 127.7 lm/W | 919.5 lm/m | E | 103.6 lm/W | 745.7 lm/m | F | 80.8 lm/W | 581.6 lm/m | G |
|---|
| 4000 K | 129.1 lm/W | 1858.4 lm/m | E | 104.6 lm/W | 1506.3 lm/m | F | 81.6 lm/W | 1175 lm/m | G |
|---|
| 6500 K | 141.7 lm/W | 1020.5 lm/m | E | 115 lm/W | 828.2 lm/m | F | 89.7 lm/W | 646.2 lm/m | G |
|---|
Grade DN (1st Tier) · CCT 3-Anchor · 19.2W/m
Grade DN (1st Tier) · CCT 3-Anchor · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 123.5 lm/W | 1185.4 lm/m | E | 100.1 lm/W | 961.3 lm/m | F | 78.1 lm/W | 749.7 lm/m | G |
|---|
| 4000 K | 124.8 lm/W | 2395.7 lm/m | E | 101.1 lm/W | 1941.8 lm/m | F | 78.9 lm/W | 1514.8 lm/m | G |
|---|
| 6500 K | 137 lm/W | 1315.6 lm/m | E | 111.2 lm/W | 1067.6 lm/m | F | 86.8 lm/W | 833 lm/m | G |
|---|
Grade DN (1st Tier) · CCT 3-Anchor · 28.8W/m
Grade DN (1st Tier) · CCT 3-Anchor · 28.8W/m — measured at 28.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 115.4 lm/W | 1662.1 lm/m | F | 93.6 lm/W | 1348 lm/m | F | 73 lm/W | 1051.3 lm/m | G |
|---|
| 4000 K | 116.6 lm/W | 3359.2 lm/m | F | 94.5 lm/W | 2722.8 lm/m | F | 73.7 lm/W | 2124 lm/m | G |
|---|
| 6500 K | 128.1 lm/W | 1844.7 lm/m | E | 104 lm/W | 1497 lm/m | F | 81.1 lm/W | 1168.1 lm/m | G |
|---|
Grade DL (2nd Tier) · CCT 3-Anchor · 9.6W/m
Grade DL (2nd Tier) · CCT 3-Anchor · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 108.9 lm/W | 522.9 lm/m | F | 88.1 lm/W | 423 lm/m | F | 68.7 lm/W | 329.8 lm/m | G |
|---|
| 4000 K | 110 lm/W | 1056.1 lm/m | E | 89 lm/W | 854.3 lm/m | F | 69.5 lm/W | 666.8 lm/m | G |
|---|
| 6500 K | 120.9 lm/W | 580.3 lm/m | E | 97.8 lm/W | 469.6 lm/m | F | 76.4 lm/W | 366.7 lm/m | G |
|---|
Grade DL (2nd Tier) · CCT 3-Anchor · 14.4W/m
Grade DL (2nd Tier) · CCT 3-Anchor · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 105.3 lm/W | 758.4 lm/m | F | 85.2 lm/W | 613.5 lm/m | F | 66.4 lm/W | 478.3 lm/m | G |
|---|
| 4000 K | 106.4 lm/W | 1531.6 lm/m | F | 86 lm/W | 1238.9 lm/m | F | 67.2 lm/W | 967.1 lm/m | G |
|---|
| 6500 K | 116.9 lm/W | 841.5 lm/m | E | 94.6 lm/W | 681.1 lm/m | F | 73.9 lm/W | 531.8 lm/m | G |
|---|
Grade DL (2nd Tier) · CCT 3-Anchor · 19.2W/m
Grade DL (2nd Tier) · CCT 3-Anchor · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 101.8 lm/W | 977.6 lm/m | F | 82.4 lm/W | 790.9 lm/m | G | 64.2 lm/W | 616.6 lm/m | G |
|---|
| 4000 K | 102.8 lm/W | 1974.4 lm/m | F | 83.2 lm/W | 1597.1 lm/m | G | 64.9 lm/W | 1246.7 lm/m | G |
|---|
| 6500 K | 113 lm/W | 1084.9 lm/m | E | 91.5 lm/W | 878 lm/m | F | 71.4 lm/W | 685.6 lm/m | G |
|---|
Grade DL (2nd Tier) · CCT 3-Anchor · 28.8W/m
Grade DL (2nd Tier) · CCT 3-Anchor · 28.8W/m — measured at 28.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 95.2 lm/W | 1370.8 lm/m | F | 77 lm/W | 1109 lm/m | G | 60 lm/W | 864.6 lm/m | G |
|---|
| 4000 K | 96.1 lm/W | 2768.4 lm/m | F | 77.8 lm/W | 2239.5 lm/m | G | 60.7 lm/W | 1748.1 lm/m | G |
|---|
| 6500 K | 105.6 lm/W | 1521.2 lm/m | F | 85.5 lm/W | 1231.2 lm/m | F | 66.8 lm/W | 961.3 lm/m | G |
|---|
Grade KE (3rd Tier) · CCT 3-Anchor · 9.6W/m
Grade KE (3rd Tier) · CCT 3-Anchor · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 83.1 lm/W | 399 lm/m | G | 67 lm/W | 321.6 lm/m | G | 52.3 lm/W | 251 lm/m | G |
|---|
| 4000 K | 84 lm/W | 806.1 lm/m | G | 67.6 lm/W | 649.4 lm/m | G | 52.8 lm/W | 507 lm/m | G |
|---|
| 6500 K | 92.2 lm/W | 442.5 lm/m | F | 74.4 lm/W | 357 lm/m | G | 58 lm/W | 278.6 lm/m | G |
|---|
Grade KE (3rd Tier) · CCT 3-Anchor · 14.4W/m
Grade KE (3rd Tier) · CCT 3-Anchor · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 80.4 lm/W | 578.6 lm/m | G | 64.8 lm/W | 466.5 lm/m | G | 50.5 lm/W | 364 lm/m | G |
|---|
| 4000 K | 81.2 lm/W | 1169.1 lm/m | G | 65.4 lm/W | 941.8 lm/m | G | 51.1 lm/W | 735.3 lm/m | G |
|---|
| 6500 K | 89.1 lm/W | 641.7 lm/m | F | 71.9 lm/W | 517.7 lm/m | G | 56.1 lm/W | 404.1 lm/m | G |
|---|
Grade KE (3rd Tier) · CCT 3-Anchor · 19.2W/m
Grade KE (3rd Tier) · CCT 3-Anchor · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 77.7 lm/W | 745.9 lm/m | G | 62.6 lm/W | 601.3 lm/m | G | 48.9 lm/W | 469.2 lm/m | G |
|---|
| 4000 K | 78.5 lm/W | 1507.1 lm/m | G | 63.2 lm/W | 1214.1 lm/m | G | 49.4 lm/W | 947.9 lm/m | G |
|---|
| 6500 K | 86.2 lm/W | 827.3 lm/m | F | 69.5 lm/W | 667.4 lm/m | G | 54.3 lm/W | 520.9 lm/m | G |
|---|
Grade KE (3rd Tier) · CCT 3-Anchor · 28.8W/m
Grade KE (3rd Tier) · CCT 3-Anchor · 28.8W/m — measured at 28.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 2700 K | 72.6 lm/W | 1045.9 lm/m | G | 58.6 lm/W | 843.2 lm/m | G | 45.7 lm/W | 657.9 lm/m | G |
|---|
| 4000 K | 73.4 lm/W | 2113.3 lm/m | G | 59.1 lm/W | 1702.4 lm/m | G | 46.2 lm/W | 1329.2 lm/m | G |
|---|
| 6500 K | 80.6 lm/W | 1160 lm/m | G | 65 lm/W | 935.8 lm/m | G | 50.7 lm/W | 730.4 lm/m | G |
|---|
Frequently Asked Questions
What are the key specifications of 17985?
17985: 2835, 240, DC 24V, 10mm PCB, 3oz copper FPCB, cuttable 12LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What colour temperatures and CRI options does this tunable white LED strip offer?
This model is supplied as a tunable white LED strip with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.
Can DENO customise this tunable white LED strip for a project?
Yes. DENO manufactures the CCT SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How does a tunable white LED strip mix colour temperature?
Two LED channels, typically 2700K and 6500K, sit on the same FPCB and are dimmed against each other. Mixing the channels sweeps the white point along the black body line while total output stays even, which is how a CCT LED strip supports circadian and human centric lighting schedules.
