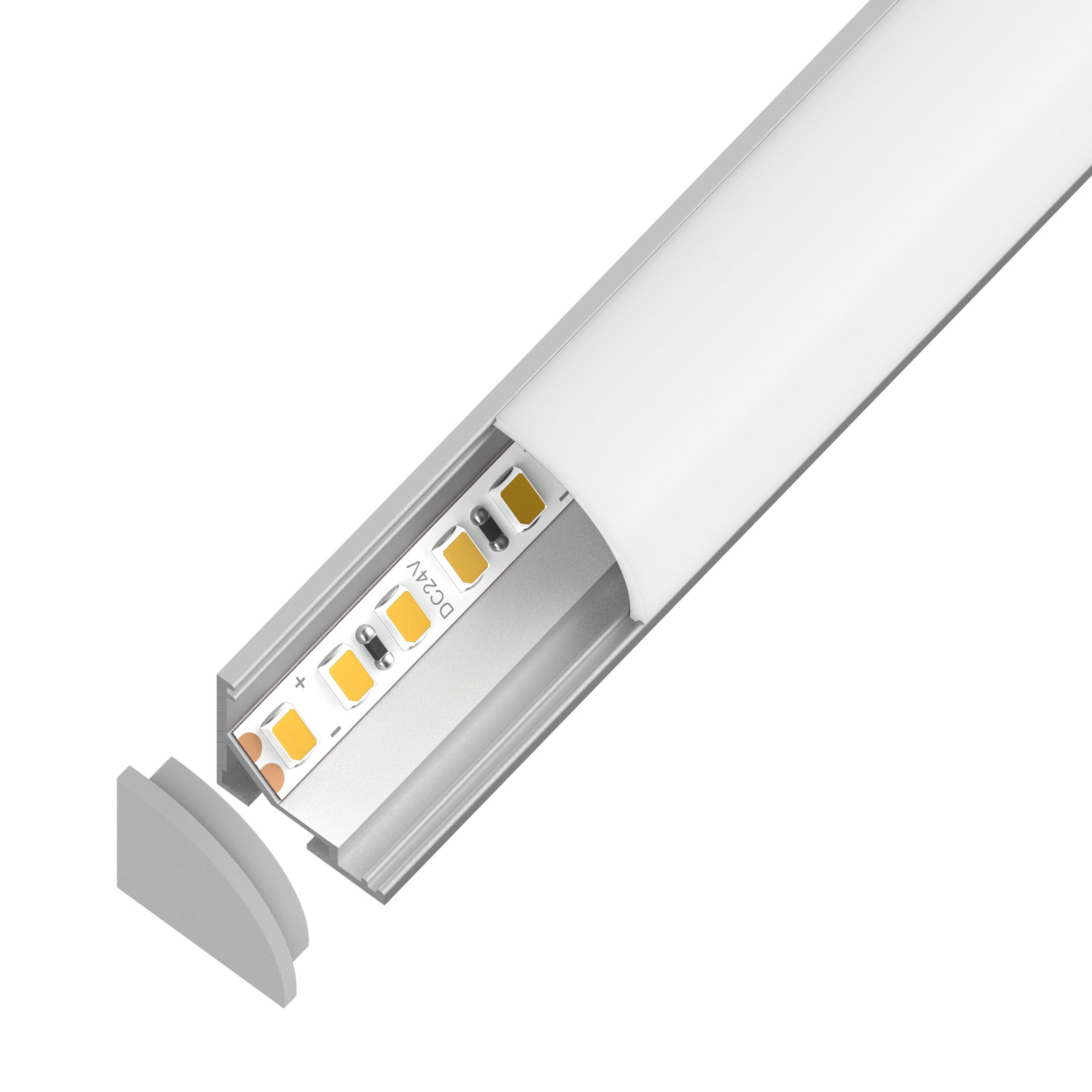

16x16mm V Shape Aluminum Channel LED Strip
Model: DL-1616 HX-V
Overview
The DENO LED DL-1616 HX-V is a robust V shape aluminum channel LED strip profile, specifically designed for corner and angled installations. Featuring a unique magnetic groove for tool-free mounting on metal surfaces, it ensures quick installation and flexible repositioning. This profile is compatible with 6mm PCB width LED strips, making it ideal for creating clean, glare-reduced illumination in high-end commercial and residential settings. With a standard input voltage of...
Description
16x16mm V Shape Aluminum Channel LED Strip This LED Strip Profile features a triangular aluminum structure designed for corner and angled lighting. The 45-degree mounting angle combined with a curved PC diffuser delivers soft, glare-reduced illumination while protecting the LED strip. A built-in magnetic groove allows the aluminum LED profile to attach directly to metal surfaces without drilling, enabling fast installation, easy removal, and flexible repositioning. Compatible with 6mm LED strips, this corner LED channel is suitable for high-end commercial and residential projects requiring adjustable lighting and clean architectural lines.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-1616 HX-V |
| smdType | 2835 |
| cuttable | 6LEDs/35.71mm |
| dimmable | Yes |
| ledPitch | 5.9mm |
| pcbWidth | 6mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| copperFoil | 3oz |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip specifications are compatible with the DL-1616 HX-V channel?
The DL-1616 HX-V is designed to be compatible with LED strips featuring a PCB width of up to 6mm, ensuring a snug and secure fit.
What is the primary benefit of the magnetic groove feature in this LED profile?
The magnetic groove allows for tool-free attachment to metal surfaces, enabling very fast installation, easy adjustments, and flexible repositioning.
Can this V shape aluminum channel be used in high-end commercial projects?
Yes, its sleek design, 45-degree angled light, and clean architectural lines make it ideal for high-end commercial applications.
Does DENO LED offer customization options for the length of the DL-1616 HX-V profile?
Yes, we offer flexible length options for this profile, ranging from 0.5m up to 4m, to meet diverse project requirements.
