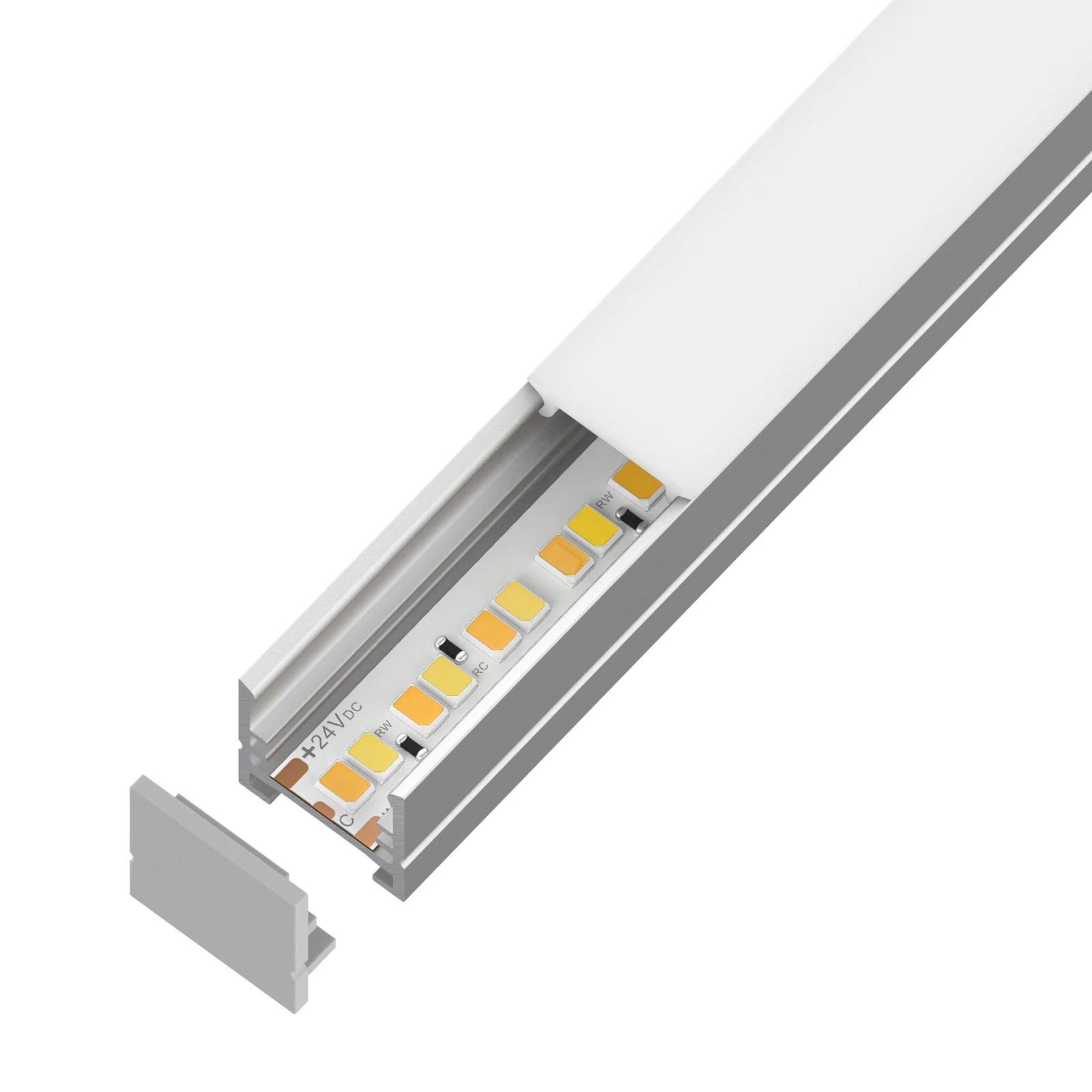

15x15mm Magnetic Clips Aluminum LED Strip Channel
Model: DL-1515 HX-M
Overview
The DL-1515 HX-M is an innovative Magnetic LED Strip Channel from DENO LED, uniquely designed with magnetic clips for versatile installation. This aluminum profile supports recessed mounting for a flush finish or effortless magnetic attachment to metal surfaces without drilling. Compatible with 10mm wide LED strips (120leds/m or above, 3oz copper foil), it operates at a safe DC 24V with a 5-year warranty. Its shallow U-channel design and milky white PC diffuser ensure optim...
Description
15x15mm Magnetic Clips Aluminum LED Strip Channel This LED Strip Profile is a recessed magnetic U-channel LED aluminum profile that innovatively incorporates magnetic clips at the bottom, built upon the classic recessed structure design. This enables dual installation methods: “recessed installation + magnetic installation.” The LED Strip Profile can be embedded into ceilings, walls, or furniture panels through slot cutting, keeping the fixture flush with the surface, or it can be directly attached to steel studs, metal shelving, or equipment casings via magnetic mounting—no drilling required—offering flexible and efficient installation and removal. The product features a shallow U-channel structure design, specifically optimized for 10mm wide LED strips, paired with a flat milky white PC diffuser cover that effectively softens light output and reduces glare, delivering uniform and comfortable illumination. The side-mounted end caps create a cleaner overall appearance with refined details that meet the demands of mid-to-high-end lighting projects. Compared to traditional profiles, this LED Strip Profile maintains secure recessed installation while significantly enhancing convenience for future adjustments and maintenance. This LED Strip Profile is particularly suitable for mid-to-high-end commercial and residential applications requiring flexible lighting arrangement, frequent adjustments, or corner illumination, such as shopping mall display areas, brand counters, smart home systems, cabinet lighting, shelf accent lighting, and equipment functional lighting. It represents an ideal LED Strip Profile solution that balances aesthetic design with practical functionality.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-1515 HX-M |
| smdType | 2835 |
| cuttable | 12LEDs/50mm |
| dimmable | Yes |
| ledPitch | 8.334mm |
| pcbWidth | 10mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| copperFoil | 3oz |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip widths are compatible with the DL-1515 HX-M profile?
This profile is specifically optimized to accommodate LED strips with a PCB width of 10mm, ensuring a snug and secure fit for optimal performance.
What are the primary installation methods for this magnetic LED channel?
It supports dual installation: recessed mounting for a flush look or direct magnetic attachment to ferrous surfaces, offering great flexibility without drilling.
Is the DL-1515 HX-M suitable for damp environments?
While robust, this profile is designed for indoor applications with an operating temperature range of -25~40°C. Please consult datasheets for specific IP ratings.
Does DENO LED offer customization or bulk order discounts for this product?
Yes, we offer customization options for length and bulk pricing for B2B orders. Please contact our sales team to discuss your specific project needs.
