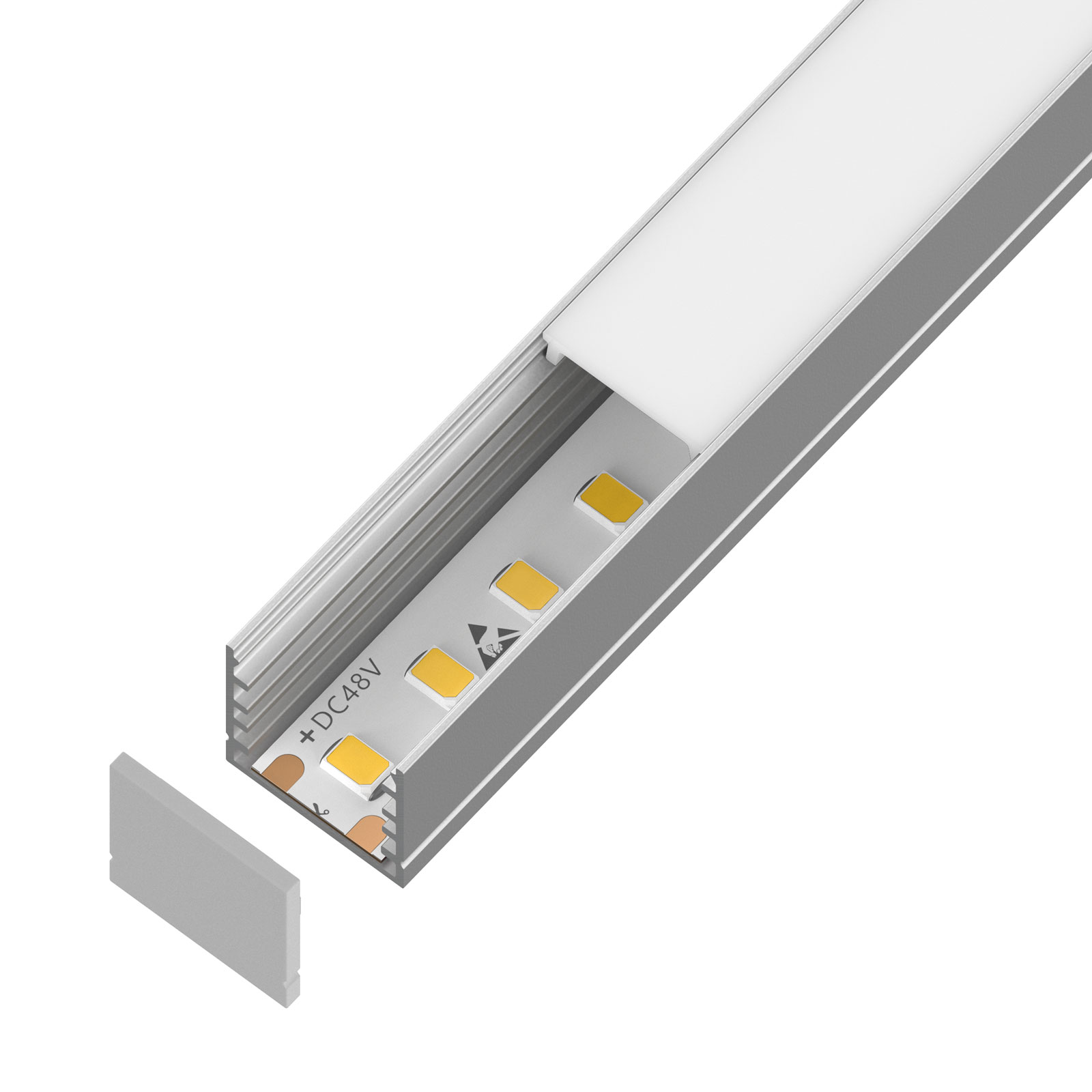

15x15mm Aluminum LED Strip Channel
Model: DL-1515 HX
Overview
The DENO LED DL-1515 HX is a 15x15mm aluminum LED strip channel, perfectly designed for high-end B2B architectural lighting. This recessed U-shaped profile, with its flat PC diffuser, ensures a flush finish and seamless integration into various surfaces. It supports 10mm LED strips and operates on a DC 48V input, offering dimmable, continuous linear illumination. Ideal for commercial and residential projects requiring concealed lighting in ceilings, walls, cabinets, and dis...
Description
15x15mm Aluminum LED Strip Channel This LED Strip Profile is a recessed U-shaped aluminum channel designed for concealed linear lighting applications. Featuring a shallow groove and a flat PC diffuser, it allows the lighting surface to sit flush with architectural finishes for a clean, integrated appearance. The anodized aluminum housing improves durability and corrosion resistance, while side-mounted end caps enhance the overall minimalist design. Designed to support 10mm LED strips, this recessed aluminum LED channel delivers continuous and uniform linear illumination. Suitable for high-end commercial and residential interiors, this LED Strip Profile is ideal for ceilings, walls, cabinets, and display areas where hidden installation and architectural consistency are required. For projects demanding seamless integration, the LED Strip Profile offers a professional solution for modern recessed lighting designs.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-1515 HX |
| smdType | 2835 |
| cuttable | 16LEDs/125mm |
| dimmable | Yes |
| ledPitch | 7.8mm |
| pcbWidth | 10mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| copperFoil | 3oz |
| circuitType | CV |
| inputVoltage | DC 48V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip widths are compatible with the DL-1515 HX channel?
The DL-1515 HX aluminum LED strip channel is specifically designed to accommodate LED strips with a PCB width of up to 10mm.
What are the primary applications for this recessed LED profile?
This recessed aluminum LED channel is ideal for architectural integration in ceilings, walls, cabinets, and display areas, providing hidden linear lighting.
Does the DL-1515 HX channel support dimming functionalities?
Yes, the DL-1515 HX model is designed to support dimmable LED strips, allowing for versatile lighting control in your projects.
Can I get custom lengths or bulk orders for the DL-1515 HX?
DENO LED offers custom lengths from 0.5m to 4m, and we can discuss bulk order pricing and customization for project requirements.
