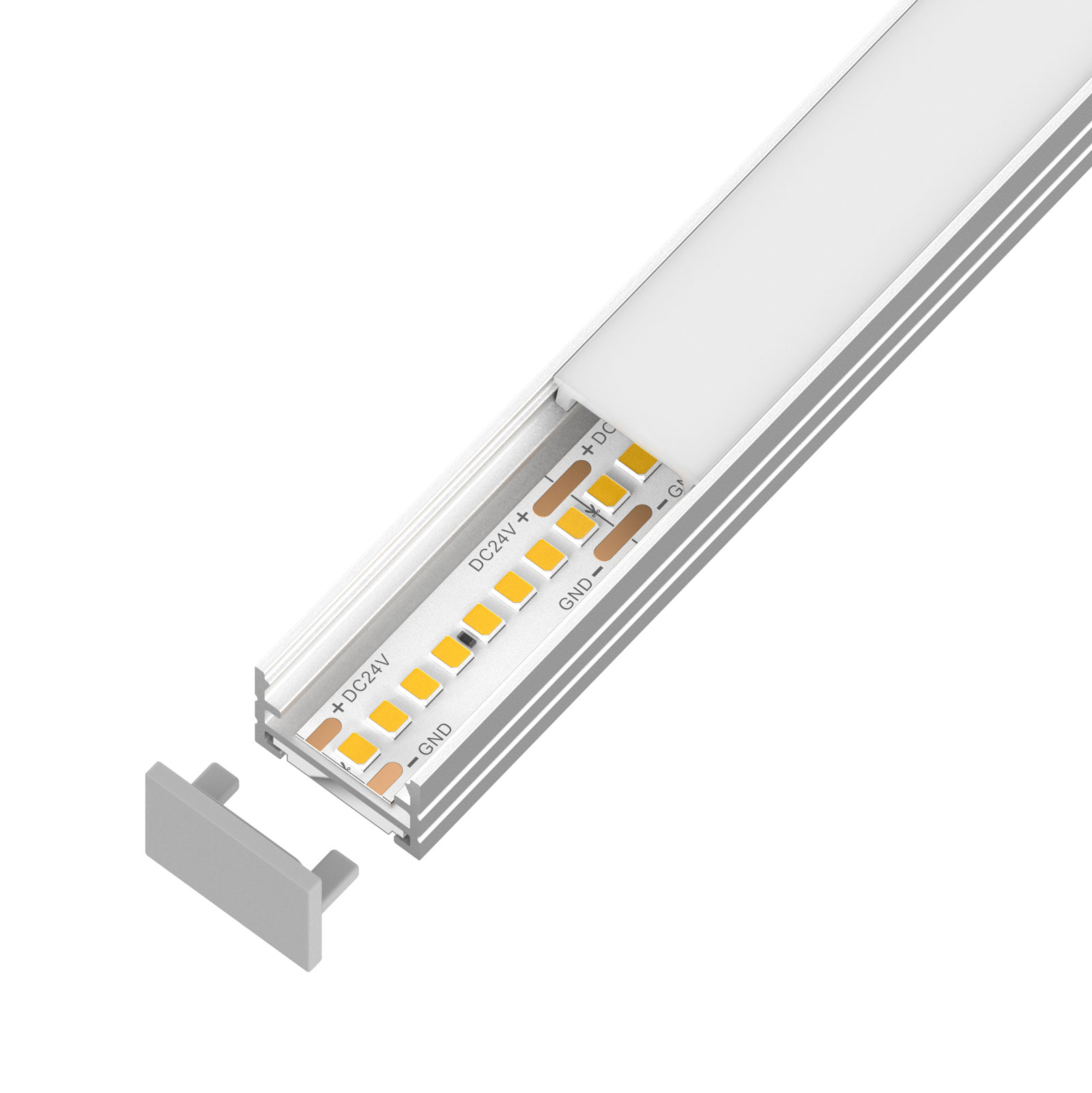

14x08mm Magnetic Clips LED Strip Profile
Model: DL-1408 HX-M
Overview
The DENO LED DL-1408 HX-M is an ultra-slim 14x08mm magnetic clips LED strip profile, designed for high-density LED strips with 8mm FPC and 120+ LEDs/m. This aluminum channel offers superior heat dissipation, extending LED lifespan, and allows for tool-free, slide-and-lock installation on metal surfaces thanks to its universal snap-on design compatible with magnetic clips. Ideal for accent, cabinet, or display case lighting in both commercial and residential applications, it...
Description
14x08mm Magnetic Clips LED Strip Profile Discover the premium LED Strip Profile DL-1408-M, an ultra-slim aluminum channel engineered for high-density strips (8mm FPC, ≥120 LEDs/m). This innovative profile excels in heat dissipation, dramatically extending LED lifespan. Featuring a universal snap-on channel, it is specifically compatible with magnetic clips, enabling a revolutionary tool-free, slide-and-lock installation on any metal surface. Its robust design ensures durability for demanding commercial and residential applications, while supporting higher-power LED strips for brilliant, efficient lighting. Ideal for accent, cabinet, or display case lighting, the DL-1408-M combines superior performance with a sleek, modern aesthetic and unparalleled installation flexibility.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-1408 HX-M |
| smdType | 2216 |
| cuttable | 8LEDs/25mm |
| dimmable | Yes |
| ledPitch | 3.125mm |
| pcbWidth | 8mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| copperFoil | 2oz |
| circuitType | CV |
| inputVoltage | Dc 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip specifications are compatible with this profile?
This profile is designed for high-density LED strips with an 8mm FPC and a minimum of 120 LEDs per meter.
How does the magnetic clip installation work?
The universal snap-on channel is compatible with magnetic clips, allowing for tool-free, slide-and-lock installation on any metal surface.
What are the common applications for the DL-1408 HX-M profile?
It is ideal for accent lighting, cabinet lighting, and display case lighting in both commercial and residential settings.
Can this profile accommodate high-power LED strips?
Yes, its robust design and excellent heat dissipation specifically support higher-power LED strips for brilliant, efficient lighting.
