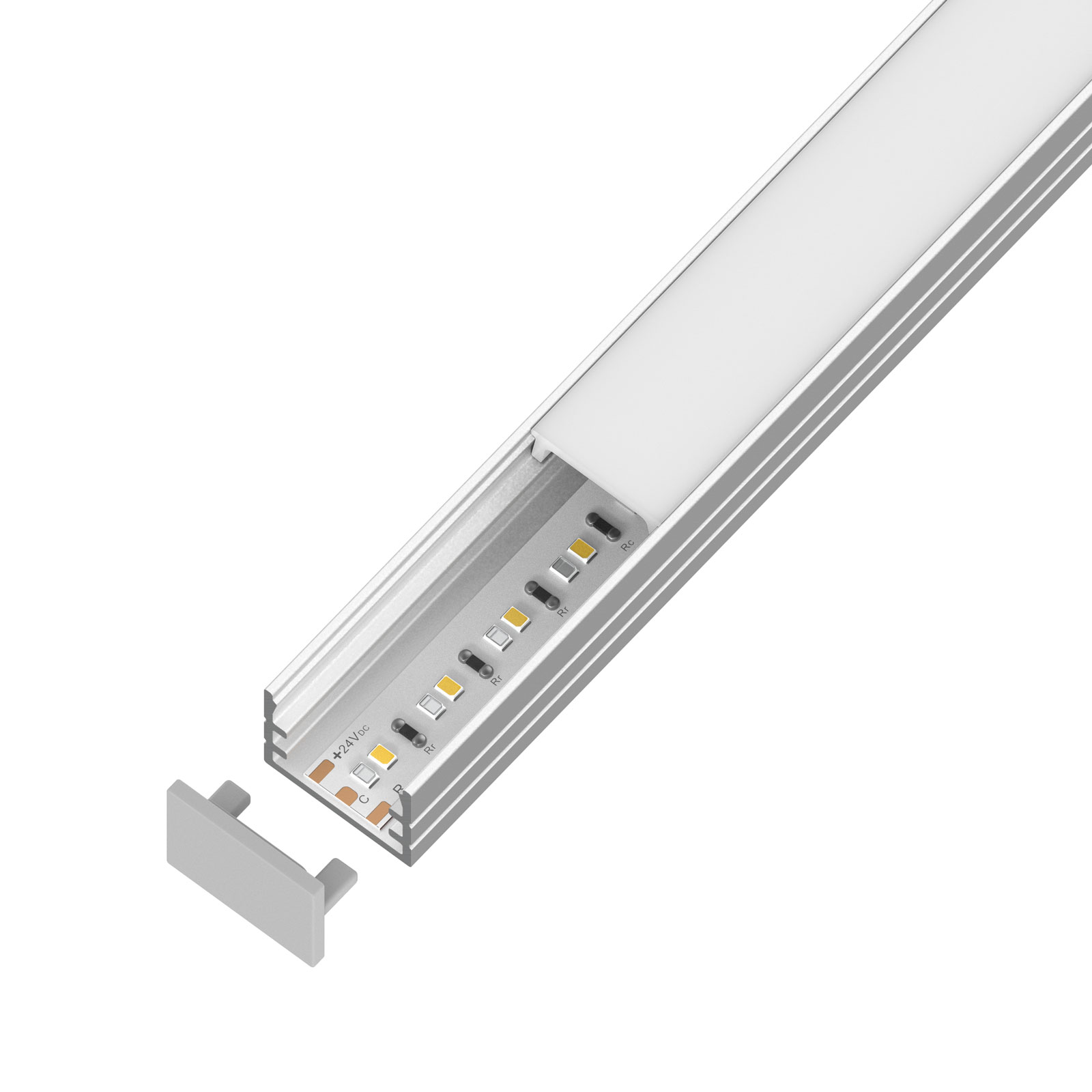

14x08mm LED Strip Profile
Model: DL-1408 HX
Overview
The DENO LED DL-1408 HX is an ultra-slim 14x08mm LED Strip Profile, a vital component in our Aluminum Profile Series. Designed to house high-density LED strips with an 8mm PCB width, it boasts excellent heat dissipation properties that significantly prolong LED lifespan, optimizing performance for commercial and residential installations. Compatible with DC 24V input and backed by a 5-year warranty, this profile is ideal for accent, cabinet, or display case lighting. While...
Description
14x08mm LED Strip Profile Discover the premium LED Strip Profile DL-1408, an ultra-slim aluminum channel engineered for high-density strips (8mm FPC, ≥120 LEDs/m). This innovative aluminum profileexcels in heat dissipation, dramatically extending LED lifespan. Its robust design ensures durability for demanding commercial and residential applications. Installation is straightforward, and the design supports higher-power LED stripsfor brilliant, efficient lighting. Ideal for accent, cabinet, or display case lighting, this solution combines performance with a sleek, modern aesthetic.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-1408 HX |
| smdType | 2216 |
| cuttable | 12LEDs/50mm |
| dimmable | Yes |
| ledPitch | 8.334mm |
| pcbWidth | 8mm |
| warranty | 5 Years |
| lengthMax | 0.5~4m |
| copperFoil | 3oz |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip specifications are compatible with the DL-1408 HX profile?
The DL-1408 HX is designed for LED strips with an 8mm PCB width and a minimum of 120 LEDs/meter, ensuring optimal light diffusion and heat management for high-density applications.
Does this aluminum profile offer effective heat dissipation for high-power LED strips?
Yes, its robust aluminum construction provides excellent heat dissipation, crucial for maintaining optimal operating temperatures and extending the lifespan of higher-power LED strips, ensuring long-term reliability.
Can the DL-1408 HX profile be customized for specific project lengths or finishes?
DENO LED offers a range of customization options, including lengths from 0.5m to 4m, to meet diverse project requirements. Please contact our sales team to discuss specific finish or cutting needs and MOQ.
Is the DL-1408 HX profile suitable for outdoor or wet location applications?
This profile is primarily designed for indoor use. For outdoor or wet location applications, additional sealing or alternative IP-rated profiles would be necessary to ensure long-term performance and safety. Consult with our technical support for specific applications.
