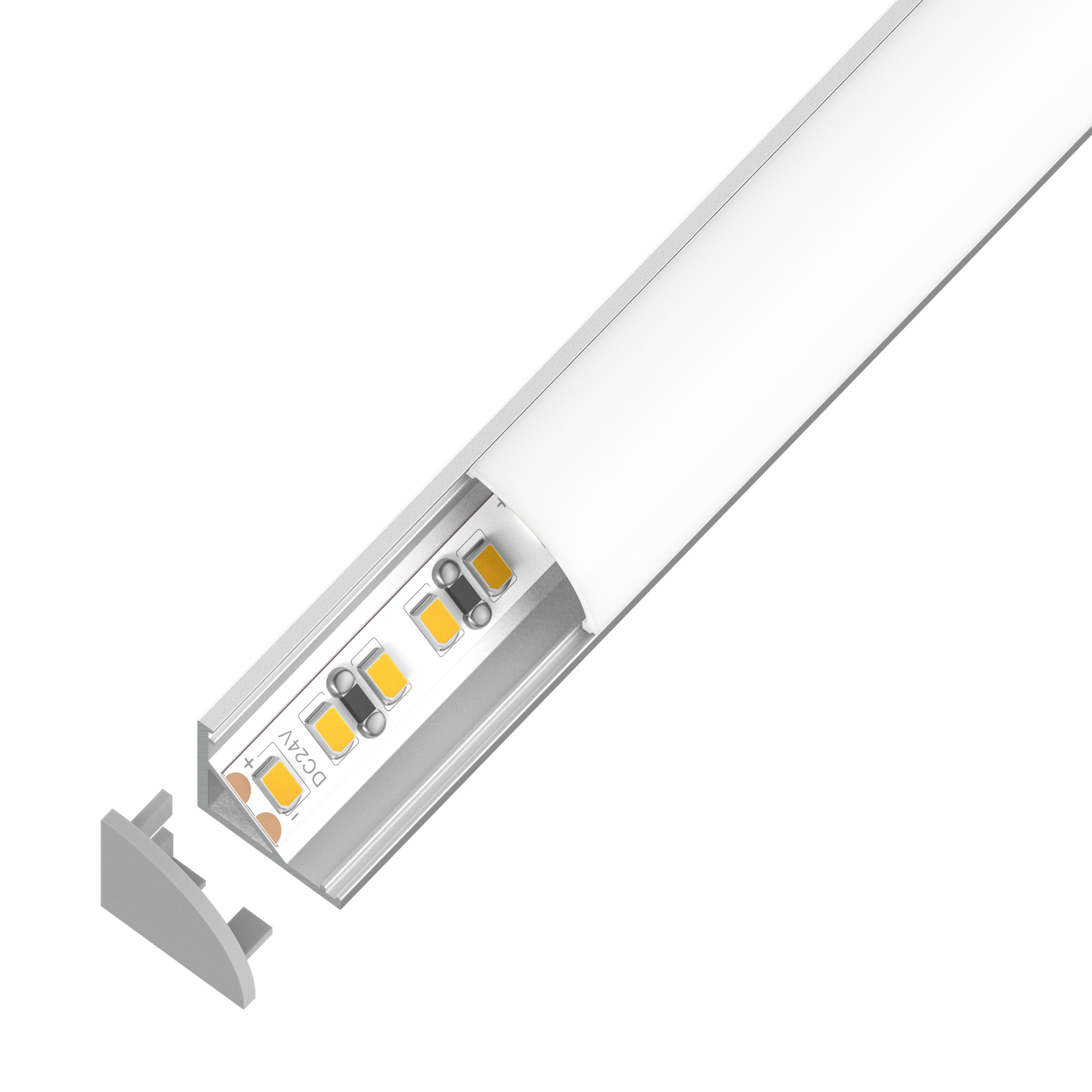

13x13mm V Shape Aluminum Channel LED
Model: DL-1313 HX-V
Overview
The DENO LED DL-1313 HX-V is a premium 13x13mm V Shape Aluminum Channel LED designed for professional B2B lighting applications. Featuring a 45° angled design for precise, glare-free light distribution, this profile accommodates LED strips like 2216 SMD with 120leds/m or above, operating at DC 24V constant voltage. It boasts superior heat dissipation, a 5-year warranty, and is cuttable every 25mm. Ideal for cabinet, showcase, and accent lighting in commercial and architectu...
Description
13x13mm V Shape Aluminum Channel LED Elevate your lighting projects with our premium 45° V-Shape Aluminum Channel LED Profile. This ultra-slim aluminum channel is engineered to deliver perfect, glare-free illumination for cabinet, showcase, and accent lighting. The 45° angled design creates precise light distribution and minimizes glare, while the durable aluminum construction ensures superior heat dissipation and long-term LED strip reliability.
Specifications
| sdcm | < 3 SDCM (Single Bin) |
|---|---|
| ledQty | 120leds/m or above |
| partNo | DL-1313 HX-V |
| smdType | 2216 |
| cuttable | 6LEDs/25mm |
| dimmable | Yes |
| ledPitch | 4.1mm |
| pcbWidth | 5mm |
| warranty | 5 Years |
| lengthMax | 0.5~3m |
| copperFoil | 2oz |
| circuitType | CV |
| inputVoltage | DC 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What LED strip specifications are compatible with this V-shape channel?
This channel accommodates LED strips with a PCB width of 5mm, such as 2216 SMD, and features an LED quantity of 120 LEDs/m or above for optimal light output.
What are the common applications for the DL-1313 HX-V profile?
The DL-1313 HX-V profile is ideal for cabinet lighting, showcase illumination, under-shelf lighting, and accent lighting in commercial and retail environments.
Does DENO offer customization or bulk ordering options for this product?
Yes, we offer flexible length options from 0.5m to 3m and welcome bulk orders, with customization options available upon request to meet specific project demands.
What is the warranty and expected lifespan of the DL-1313 HX-V aluminum channel?
This aluminum channel is backed by a 5-year warranty, ensuring long-term reliability and performance in demanding B2B lighting installations.
