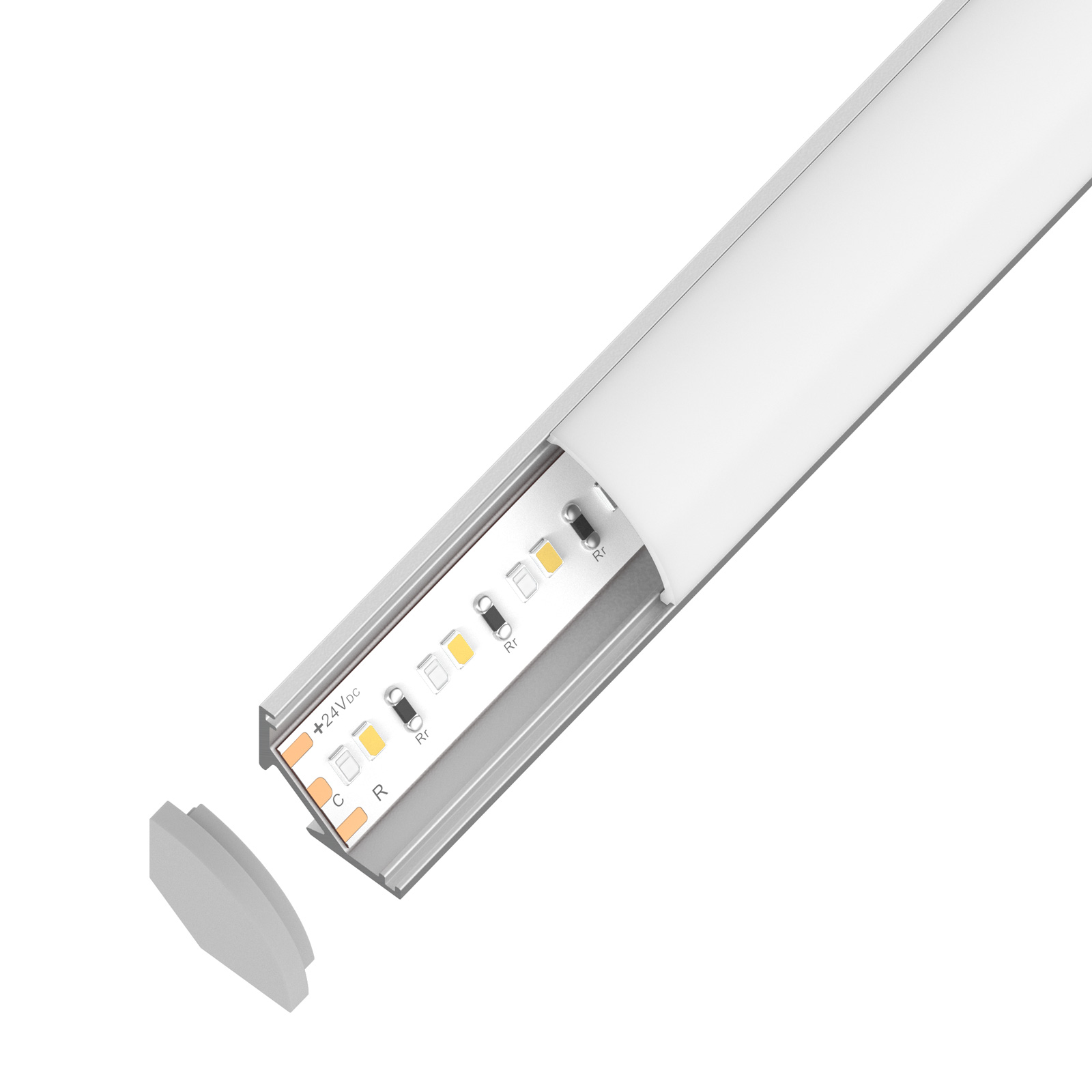

13x13mm Magnetic Clips Aluminum Channel
Model: DL-1313HX-M
Overview
The DENO LED DL-1313HX-M is a 13x13mm Magnetic Clips Aluminum Channel designed for rapid, tool-free LED strip installations. Constructed from high-grade AL6063-T5 aluminum, it offers excellent thermal management and corrosion resistance, extending the lifespan of LED strips such as the DL-F22A120V24 recommended for this model, which uses 2216 SMD type LEDs. With a maximum length of 3 meters and a 120° beam angle, this profile is dimmable with a 24V DC input. It is ideal for...
Description
13x13mm Magnetic Clips Aluminum Channel This 13×13mm Magnetic Clips LED strip profile features a tool-free, solderless design—no cutting, drilling, or welding required for rapid installation, with precise corner alignment for a seamless, aesthetic finish. This LED strip profile is crafted from high-grade aluminum, offering excellent thermal conductivity, stable load-bearing capacity, and superior corrosion resistance to extend the LED strip’s lifespan significantly. The profile provides robust structural protection and precise light control, ensuring strong directional light output while concealing the strip for a clean, professional look. The LED strip profile comes with a full suite of accessories, including end caps, mounting clips, corner connectors, and power adapters, making it ideal for furniture accent lighting, display cabinet illumination, ceiling light channels, TV backdrop cove lighting, and small equipment indicator housings in modern lighting designs.
Specifications
| ledQty | 120leds/m or above |
|---|---|
| partNo | DL-1313HX-M |
| smdType | 2216 |
| Material | AL6063-T5 |
| cuttable | 12LEDs/50mm |
| dimmable | Yes |
| ledPitch | 8.334mm |
| pcbWidth | 8mm |
| warranty | 5 Years |
| beamAngle | 120° |
| lengthMax | 3m |
| LED Sample | DL-F22A120V24-17353-RC-* |
| copperFoil | 3oz |
| Accessories | End Cap | Magnetic Mounting Clip |
| circuitType | CV |
| inputVoltage | DC 24V |
| Max.FPC Width | 8mm |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What is the maximum PCB width compatible with this magnetic clips led channel?
This DL-1313HX-M magnetic clips led channel is designed to accommodate LED strips with a maximum PCB width of 8mm.
What are the primary benefits of using magnetic clips for installation?
Magnetic clips allow for tool-free, solderless installation, providing quick setup, easy maintenance, and precise alignment for a professional finish. It saves time and labor costs.
What accessories are included with the DL-1313HX-M profile?
Each DL-1313HX-M profile comes with essential accessories including end caps and magnetic mounting clips for comprehensive installation.
Is this aluminum channel suitable for outdoor use or in wet environments?
This profile is designed for indoor use with an operating temperature range of -25~40°C. For wet or outdoor environments, specialized IP-rated profiles are recommended.
